Base class of all VTK-based Mappers for displaying primitives using VTK functionality. More...

#include <mitkVtkMapper.h>

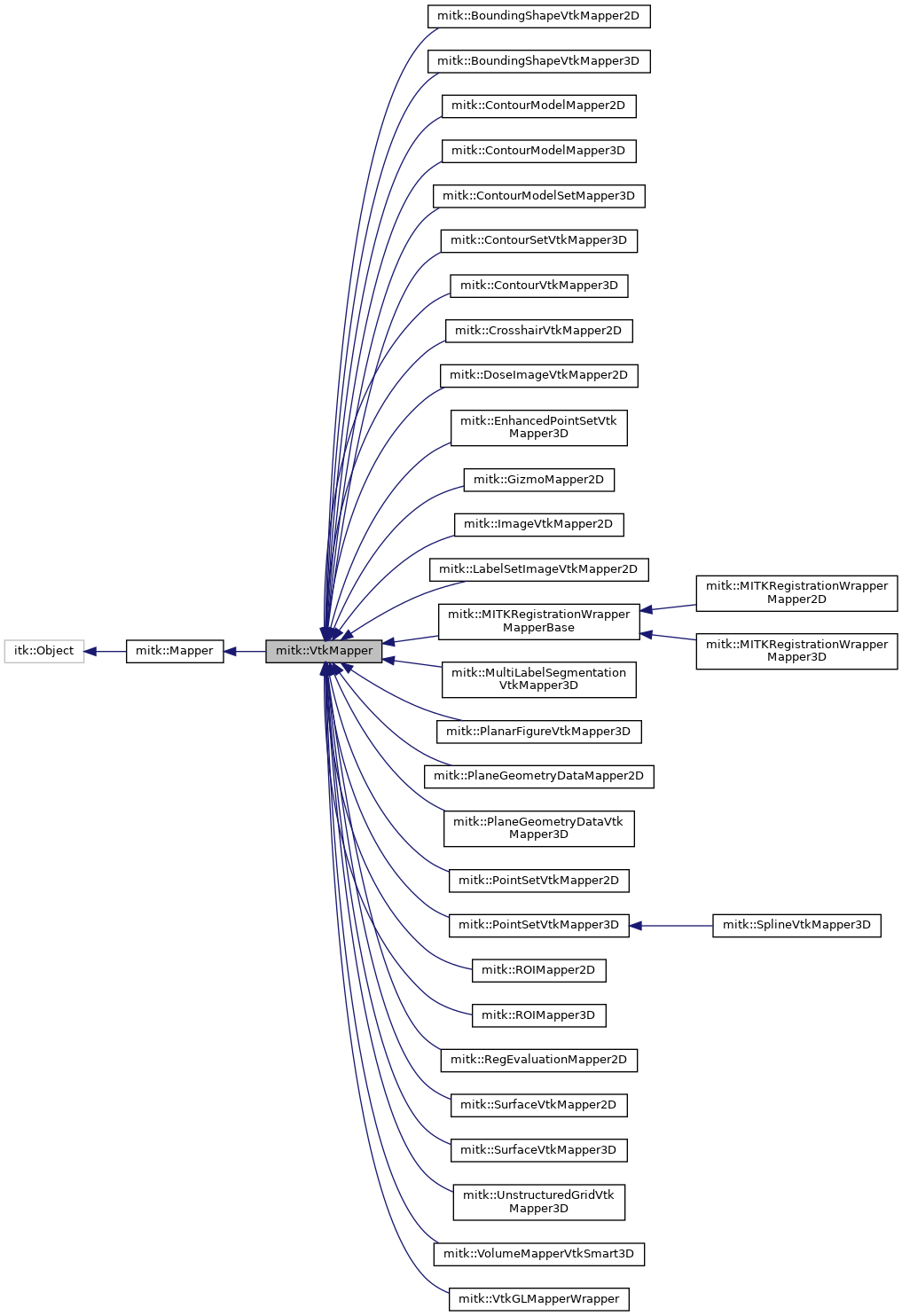

Inheritance diagram for mitk::VtkMapper:

[legend]

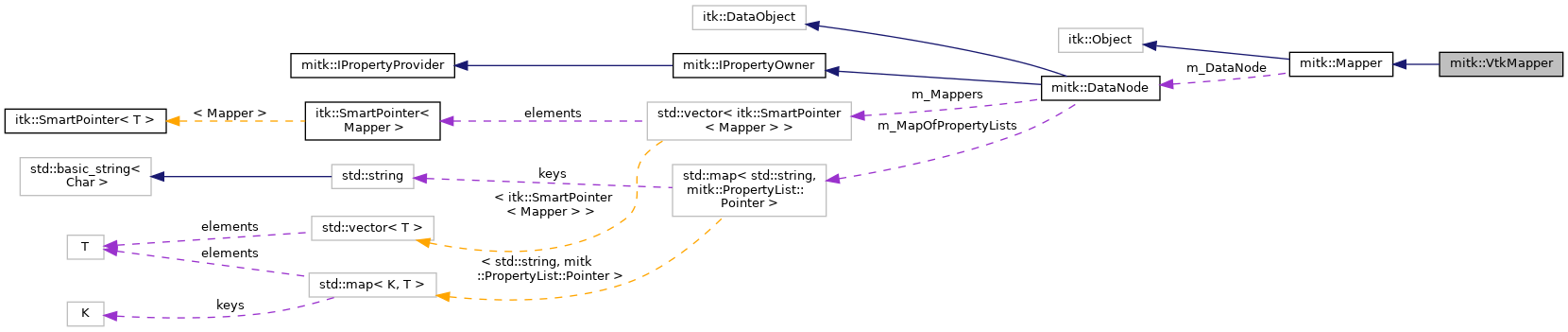

Collaboration diagram for mitk::VtkMapper:

[legend]

Classes
class	LocalStorage
	Empty LocalStorage subclass for VtkMapper. More...

Public Member Functions
	mitkClassMacro (VtkMapper, Mapper)

virtual vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer)=0
	Return the VTK prop (actor, assembly, etc.) for the given renderer. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Protected Member Functions
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateDataForRenderer (BaseRenderer *)
	Generate the data needed for rendering into renderer. More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Base class of all VTK-based Mappers for displaying primitives using VTK functionality.

Rendering of opaque, translucent or volumetric geometry and overlays is done in consecutive render passes. Subclasses must implement GetVtkProp() to provide the VTK prop (actor, assembly, etc.) for each BaseRenderer.

See also: Mapper; ImageVtkMapper2D; SurfaceVtkMapper2D; SurfaceVtkMapper3D

Definition at line 52 of file mitkVtkMapper.h.

Constructor & Destructor Documentation

◆ VtkMapper()

mitk::VtkMapper::VtkMapper ( )

protected

constructor

◆ ~VtkMapper()

mitk::VtkMapper::~VtkMapper ( )

overrideprotected

virtual destructor in order to derive from this class

Member Function Documentation

◆ ApplyColorAndOpacityProperties()

void mitk::VtkMapper::ApplyColorAndOpacityProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor
	)

overridevirtual

Apply color and opacity properties read from the PropertyList to the given vtkActor.

Reads the "color" and "opacity" properties from the DataNode and applies them to the actor's vtkProperty.

Parameters

[in]	renderer	The renderer whose property list is queried.
[in]	actor	The vtkActor to apply color and opacity to.

Implements mitk::Mapper.

Reimplemented in mitk::EnhancedPointSetVtkMapper3D, mitk::ROIMapper3D, mitk::ROIMapper2D, and mitk::PlanarFigureVtkMapper3D.

◆ GetVtkProp()

virtual vtkProp* mitk::VtkMapper::GetVtkProp ( mitk::BaseRenderer * renderer )

pure virtual

Return the VTK prop (actor, assembly, etc.) for the given renderer.

Each subclass must implement this to provide its rendering representation.

Parameters

[in] renderer The renderer for which the prop is requested.

Returns: Pointer to the vtkProp used for rendering.

Implemented in mitk::DoseImageVtkMapper2D, mitk::ROIMapper3D, mitk::ROIMapper2D, mitk::MultiLabelSegmentationVtkMapper3D, mitk::LabelSetImageVtkMapper2D, mitk::MITKRegistrationWrapperMapperBase, mitk::RegEvaluationMapper2D, mitk::VolumeMapperVtkSmart3D, mitk::SplineVtkMapper3D, mitk::EnhancedPointSetVtkMapper3D, mitk::GizmoMapper2D, mitk::SurfaceVtkMapper3D, mitk::SurfaceVtkMapper2D, mitk::PointSetVtkMapper3D, mitk::PointSetVtkMapper2D, mitk::PlaneGeometryDataVtkMapper3D, mitk::PlaneGeometryDataMapper2D, mitk::ImageVtkMapper2D, mitk::ContourModelSetMapper3D, mitk::ContourModelMapper3D, mitk::PlanarFigureVtkMapper3D, mitk::CrosshairVtkMapper2D, mitk::BoundingShapeVtkMapper3D, and mitk::BoundingShapeVtkMapper2D.

◆ HasVtkProp()

virtual bool mitk::VtkMapper::HasVtkProp	(	const vtkProp *	prop,
		BaseRenderer *	renderer
	)

virtual

Check whether this mapper owns the specified vtkProp for the given renderer.

Default implementation compares the given prop pointer with the result of GetVtkProp().

Parameters

[in]	prop	The vtkProp to check ownership of.
[in]	renderer	The renderer context.

Returns: true if this mapper owns the given prop, false otherwise.

◆ mitkClassMacro()

mitk::VtkMapper::mitkClassMacro	(	VtkMapper	,
		Mapper
	)

◆ MitkRender()

void mitk::VtkMapper::MitkRender	(	mitk::BaseRenderer *	renderer,
		mitk::VtkPropRenderer::RenderType	type
	)

overridevirtual

Determine the render pass type and call the appropriate render method.

Dispatches to MitkRenderOpaqueGeometry(), MitkRenderTranslucentGeometry(), MitkRenderOverlay(), or MitkRenderVolumetricGeometry() based on the type. Called by mitk::VtkPropRenderer::Render.

Parameters

[in]	renderer	The renderer to render into.
[in]	type	The render pass type (Opaque, Translucent, Overlay, Volumetric).

Implements mitk::Mapper.

◆ MitkRenderOpaqueGeometry()

virtual void mitk::VtkMapper::MitkRenderOpaqueGeometry ( BaseRenderer * renderer )

virtual

Check visibility and render opaque (untransparent) geometry.

Parameters

[in] renderer The renderer to render into.

◆ MitkRenderOverlay()

virtual void mitk::VtkMapper::MitkRenderOverlay ( BaseRenderer * renderer )

virtual

Check visibility and render the overlay pass.

Parameters

[in] renderer The renderer to render into.

◆ MitkRenderTranslucentGeometry()

virtual void mitk::VtkMapper::MitkRenderTranslucentGeometry ( BaseRenderer * renderer )

virtual

Check visibility and render translucent (transparent) geometry.

Parameters

[in] renderer The renderer to render into.

◆ MitkRenderVolumetricGeometry()

virtual void mitk::VtkMapper::MitkRenderVolumetricGeometry ( BaseRenderer * renderer )

virtual

Check visibility and render volumetric geometry.

Parameters

[in] renderer The renderer to render into.

◆ ReleaseGraphicsResources()

virtual void mitk::VtkMapper::ReleaseGraphicsResources ( mitk::BaseRenderer * )

inlinevirtual

Release VTK-based graphics resources consumed by this mapper.

Called by mitk::VtkPropRenderer. Subclasses should override this to release renderer-specific VTK resources (textures, framebuffers, etc.).

Reimplemented in mitk::PointSetVtkMapper3D.

Definition at line 146 of file mitkVtkMapper.h.

◆ UpdateVtkTransform()

virtual void mitk::VtkMapper::UpdateVtkTransform ( mitk::BaseRenderer * renderer )

virtual

Set the vtkTransform of the m_Prop3D for the current time step of renderer.

Called by mitk::VtkPropRenderer::Update before rendering. This method will transform all actors (e.g. of an vtkAssembly) according the geometry.

Warning: This method transforms only props which derive from vtkProp3D. Make sure to use vtkAssembly, if you have multiple props. vtkPropAssembly does not work, since it derives from vtkProp.

Reimplemented in mitk::SplineVtkMapper3D, mitk::EnhancedPointSetVtkMapper3D, mitk::PointSetVtkMapper3D, mitk::PlaneGeometryDataVtkMapper3D, mitk::SurfaceVtkMapper2D, and mitk::PlanarFigureVtkMapper3D.

The documentation for this class was generated from the following file:

mitkVtkMapper.h
