Key-value list holding instances of BaseProperty. More...

#include <mitkPropertyList.h>

Inheritance diagram for mitk::PropertyList:

[legend]

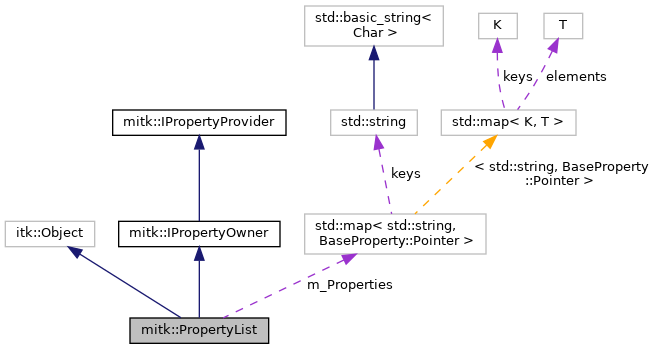

Collaboration diagram for mitk::PropertyList:

[legend]

Public Types
typedef std::map< std::string, BaseProperty::Pointer >	PropertyMap

typedef std::pair< std::string, BaseProperty::Pointer >	PropertyMapElementType

Public Member Functions
	mitkClassMacroItkParent (PropertyList, itk::Object)

Pointer	Clone () const

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Retrieve a property by key (const version). More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Retrieve all property keys. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Return available property context names. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Retrieve a property by key (non-const version). More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the list, preserving existing property type. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the list by key. More...

mitk::BaseProperty *	GetProperty (const std::string &propertyKey) const
	Get a property by its name. More...

void	ReplaceProperty (const std::string &propertyKey, BaseProperty *property)
	Replace a property object in the list by a new one. More...

void	ConcatenatePropertyList (PropertyList *pList, bool replace=false)
	Merge another PropertyList into this one. More...

template<typename T >
bool	GetPropertyValue (const char *propertyKey, T &value) const
	Convenience access method for GenericProperty<T> properties. More...

bool	GetBoolProperty (const char *propertyKey, bool &boolValue) const
	Convenience method to access the value of a BoolProperty. More...

bool	Get (const char *propertyKey, bool &boolValue) const
	Shortcut for GetBoolProperty(). More...

void	SetBoolProperty (const char *propertyKey, bool boolValue)
	Convenience method to set the value of a BoolProperty. More...

void	Set (const char *propertyKey, bool boolValue)
	Shortcut for SetBoolProperty(). More...

bool	GetIntProperty (const char *propertyKey, int &intValue) const
	Convenience method to access the value of an IntProperty. More...

bool	Get (const char *propertyKey, int &intValue) const
	Shortcut for GetIntProperty(). More...

void	SetIntProperty (const char *propertyKey, int intValue)
	Convenience method to set the value of an IntProperty. More...

void	Set (const char *propertyKey, int intValue)
	Shortcut for SetIntProperty(). More...

bool	GetFloatProperty (const char *propertyKey, float &floatValue) const
	Convenience method to access the value of a FloatProperty. More...

bool	Get (const char *propertyKey, float &floatValue) const
	Shortcut for GetFloatProperty(). More...

void	SetFloatProperty (const char *propertyKey, float floatValue)
	Convenience method to set the value of a FloatProperty. More...

void	Set (const char *propertyKey, float floatValue)
	Shortcut for SetFloatProperty(). More...

bool	GetDoubleProperty (const char *propertyKey, double &doubleValue) const
	Convenience method to access the value of a DoubleProperty. More...

bool	Get (const char *propertyKey, double &doubleValue) const
	Shortcut for GetDoubleProperty(). More...

void	SetDoubleProperty (const char *propertyKey, double doubleValue)
	Convenience method to set the value of a DoubleProperty. More...

void	Set (const char *propertyKey, double doubleValue)
	Shortcut for SetDoubleProperty(). More...

bool	GetStringProperty (const char *propertyKey, std::string &stringValue) const
	Convenience method to access the value of a StringProperty. More...

bool	Get (const char *propertyKey, std::string &stringValue) const
	Shortcut for GetStringProperty(). More...

void	SetStringProperty (const char propertyKey, const char stringValue)
	Convenience method to set the value of a StringProperty. More...

void	Set (const char propertyKey, const char stringValue)
	Shortcut for SetStringProperty() accepting a C-string. More...

void	Set (const char *propertyKey, const std::string &stringValue)
	Shortcut for SetStringProperty() accepting a std::string. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification timestamp of the list. More...

bool	DeleteProperty (const std::string &propertyKey)
	Remove a property from the list/map by key. More...

const PropertyMap *	GetMap () const
	Get a read-only pointer to the internal property map. More...

bool	IsEmpty () const
	Check whether the property list contains no properties. More...

virtual void	Clear ()
	Remove all properties from the list. More...

void	ToJSON (nlohmann::json &j) const
	Serialize the property list to JSON. More...

void	FromJSON (const nlohmann::json &j)
	Deserialize the property list from JSON. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	PropertyList ()

	PropertyList (const Self &other)

	~PropertyList () override

	mitkCloneMacro (Self)

Protected Attributes
PropertyMap	m_Properties
	Map of properties. More...

Detailed Description

Key-value list holding instances of BaseProperty.

This list is meant to hold an arbitrary list of "properties", which should describe the object associated with this list.

Usually you will use PropertyList as part of a DataNode object - in this context the properties describe the data object held by the DataNode (e.g. whether the object is rendered at all, which color is used for rendering, what name should be displayed for the object, etc.)

The values in the list are not fixed, you may introduce any kind of property that seems useful - all you have to do is inherit from BaseProperty.

The list is organized as a key-value pairs, i.e.

"name" : pointer to a StringProperty
"visible" : pointer to a BoolProperty
"color" : pointer to a ColorProperty
"volume" : pointer to a FloatProperty

Please see the documentation of SetProperty and ReplaceProperty for two quite different semantics. Normally SetProperty is what you want - this method will try to change the value of an existing property and will not allow you to replace e.g. a ColorProperty with an IntProperty.

Please also regard, that the key of a property must be a none empty string. This is a precondition. Setting properties with empty keys will raise an exception.

Definition at line 54 of file mitkPropertyList.h.

Member Typedef Documentation

◆ PropertyMap

typedef std::map<std::string, BaseProperty::Pointer> mitk::PropertyList::PropertyMap

Map structure to hold the properties: the map key is a string, the value consists of the actual property object (BaseProperty).

Definition at line 69 of file mitkPropertyList.h.

◆ PropertyMapElementType

typedef std::pair<std::string, BaseProperty::Pointer> mitk::PropertyList::PropertyMapElementType

Definition at line 70 of file mitkPropertyList.h.

Constructor & Destructor Documentation

◆ PropertyList() [1/2]

mitk::PropertyList::PropertyList ( )

protected

◆ PropertyList() [2/2]

mitk::PropertyList::PropertyList ( const Self & other )

protected

◆ ~PropertyList()

mitk::PropertyList::~PropertyList ( )

overrideprotected

Member Function Documentation

◆ Clear()

virtual void mitk::PropertyList::Clear ( )

virtual

Remove all properties from the list.

◆ Clone()

Pointer mitk::PropertyList::Clone ( ) const

◆ ConcatenatePropertyList()

void mitk::PropertyList::ConcatenatePropertyList	(	PropertyList *	pList,
		bool	replace = `false`
	)

Merge another PropertyList into this one.

All properties from the given list are added to this list. If a property key already exists, the behavior depends on the replace flag.

Parameters

[in]	pList	The property list to merge. If `nullptr`, the call is ignored.
[in]	replace	If `true`, existing properties are replaced via ReplaceProperty(). If `false` (default), existing properties are updated via SetProperty() (type-safe assignment).

See also: SetProperty; ReplaceProperty

◆ DeleteProperty()

bool mitk::PropertyList::DeleteProperty ( const std::string & propertyKey )

Remove a property from the list/map by key.

Parameters

[in] propertyKey The key of the property to remove.

Returns: true if the property was found and removed, false otherwise.

Referenced by mitk::SceneReaderHelpers::StripTransientProperties().

◆ FromJSON()

void mitk::PropertyList::FromJSON ( const nlohmann::json & j )

Deserialize the property list from JSON.

Note: Properties of a certain type can only be deserialized again if their type has been registered via the IPropertyDeserialization core service.

See also: CoreServices; IPropertyDeserialization::RegisterProperty

◆ Get() [1/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		bool &	boolValue
	)		const

Shortcut for GetBoolProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[out]	boolValue	Receives the boolean value if the property exists.

Returns: true if the property was found, false otherwise.

◆ Get() [2/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		double &	doubleValue
	)		const

Shortcut for GetDoubleProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[out]	doubleValue	Receives the double value if the property exists.

Returns: true if the property was found, false otherwise.

◆ Get() [3/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		float &	floatValue
	)		const

Shortcut for GetFloatProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[out]	floatValue	Receives the float value if the property exists.

Returns: true if the property was found, false otherwise.

◆ Get() [4/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		int &	intValue
	)		const

Shortcut for GetIntProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[out]	intValue	Receives the integer value if the property exists.

Returns: true if the property was found, false otherwise.

◆ Get() [5/5]

bool mitk::PropertyList::Get	(	const char *	propertyKey,
		std::string &	stringValue
	)		const

Shortcut for GetStringProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[out]	stringValue	Receives the string value if the property exists.

Returns: true if the property was found, false otherwise.

◆ GetBoolProperty()

bool mitk::PropertyList::GetBoolProperty	(	const char *	propertyKey,
		bool &	boolValue
	)		const

Convenience method to access the value of a BoolProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	boolValue	Receives the boolean value if the property exists.

Returns: true if the property was found, false otherwise.

◆ GetConstProperty()

BaseProperty::ConstPointer mitk::PropertyList::GetConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)		const

overridevirtual

Retrieve a property by key (const version).

Parameters

[in]	propertyKey	The key identifying the property.
[in]	contextName	Ignored in PropertyList (no context support). Provided for interface compatibility.
[in]	fallBackOnDefaultContext	Ignored in PropertyList.

Returns: A const smart pointer to the property, or nullptr if not found.

See also: IPropertyProvider

Implements mitk::IPropertyProvider.

Reimplemented in mitk::Label.

◆ GetDoubleProperty()

bool mitk::PropertyList::GetDoubleProperty	(	const char *	propertyKey,
		double &	doubleValue
	)		const

Convenience method to access the value of a DoubleProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	doubleValue	Receives the double value if the property exists.

Returns: true if the property was found, false otherwise.

◆ GetFloatProperty()

bool mitk::PropertyList::GetFloatProperty	(	const char *	propertyKey,
		float &	floatValue
	)		const

Convenience method to access the value of a FloatProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	floatValue	Receives the float value if the property exists.

Returns: true if the property was found, false otherwise.

◆ GetIntProperty()

bool mitk::PropertyList::GetIntProperty	(	const char *	propertyKey,
		int &	intValue
	)		const

Convenience method to access the value of an IntProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	intValue	Receives the integer value if the property exists.

Returns: true if the property was found, false otherwise.

◆ GetMap()

const PropertyMap* mitk::PropertyList::GetMap ( ) const

inline

Get a read-only pointer to the internal property map.

Returns: Pointer to the internal PropertyMap.

Definition at line 431 of file mitkPropertyList.h.

Referenced by mitk::SceneReaderHelpers::StripTransientProperties().

◆ GetMTime()

itk::ModifiedTimeType mitk::PropertyList::GetMTime ( ) const

override

Get the modification timestamp of the list.

Returns the timestamp of the last change of the map or the last change of any of the properties stored in the list, whichever is later.

Returns: The modification time.

◆ GetNonConstProperty()

BaseProperty* mitk::PropertyList::GetNonConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)

overridevirtual

Retrieve a property by key (non-const version).

Parameters

[in]	propertyKey	The key identifying the property.
[in]	contextName	Ignored in PropertyList.
[in]	fallBackOnDefaultContext	Ignored in PropertyList.

Returns: A raw pointer to the property, or nullptr if not found.

See also: IPropertyOwner

Implements mitk::IPropertyOwner.

Reimplemented in mitk::Label.

◆ GetProperty()

mitk::BaseProperty* mitk::PropertyList::GetProperty ( const std::string & propertyKey ) const

Get a property by its name.

Parameters

[in] propertyKey The key identifying the property.

Returns: A raw pointer to the property, or nullptr if no property with the given key exists.

◆ GetPropertyContextNames()

std::vector<std::string> mitk::PropertyList::GetPropertyContextNames ( ) const

overridevirtual

Return available property context names.

PropertyList does not support contexts, so this always returns an empty vector.

Returns: An empty vector.

See also: IPropertyProvider

Implements mitk::IPropertyProvider.

◆ GetPropertyKeys()

std::vector<std::string> mitk::PropertyList::GetPropertyKeys	(	const std::string &	contextName = `""`,
		bool	includeDefaultContext = `false`
	)		const

overridevirtual

Retrieve all property keys.

Parameters

[in]	contextName	Ignored in PropertyList (no context support). Keys are returned only when contextName is empty or includeDefaultContext is true.
[in]	includeDefaultContext	If `true` and contextName is non-empty, default context keys are included.

Returns: A vector of all property key strings in this list.

See also: IPropertyProvider

Implements mitk::IPropertyProvider.

◆ GetPropertyValue()

template<typename T >

bool mitk::PropertyList::GetPropertyValue	(	const char *	propertyKey,
		T &	value
	)		const

inline

Convenience access method for GenericProperty<T> properties.

Attempts to retrieve the value of a GenericProperty<T> identified by the given key.

Template Parameters

T	The value type of the GenericProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	value	Receives the property value if found.

Returns: true if the property was found and is of the expected type, false otherwise.

Definition at line 209 of file mitkPropertyList.h.

References mitk::GenericProperty< T >::GetValue().

◆ GetStringProperty()

bool mitk::PropertyList::GetStringProperty	(	const char *	propertyKey,
		std::string &	stringValue
	)		const

Convenience method to access the value of a StringProperty.

Parameters

[in]	propertyKey	The key identifying the property.
[out]	stringValue	Receives the string value if the property exists.

Returns: true if the property was found, false otherwise.

◆ IsEmpty()

bool mitk::PropertyList::IsEmpty ( ) const

inline

Check whether the property list contains no properties.

Returns: true if the list is empty, false otherwise.

Definition at line 438 of file mitkPropertyList.h.

◆ mitkClassMacroItkParent()

mitk::PropertyList::mitkClassMacroItkParent	(	PropertyList	,
		itk::Object
	)

◆ mitkCloneMacro()

mitk::PropertyList::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::PropertyList::New ( )

static

Method for creation through the object factory.

◆ RemoveProperty()

void mitk::PropertyList::RemoveProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Remove a property from the list by key.

Parameters

[in]	propertyKey	The key of the property to remove.
[in]	contextName	Ignored in PropertyList.
[in]	fallBackOnDefaultContext	Ignored in PropertyList.

See also: IPropertyOwner

Implements mitk::IPropertyOwner.

◆ ReplaceProperty()

void mitk::PropertyList::ReplaceProperty	(	const std::string &	propertyKey,
		BaseProperty *	property
	)

Replace a property object in the list by a new one.

The actual property object is replaced, unlike SetProperty() which tries to assign the value to an existing property of the same type. This is useful when you want to change the type of a property (e.g., from BoolProperty to StringProperty) or to share the same property object among several PropertyList/DataNode instances for synchronization.

Parameters

[in]	propertyKey	The key for the property.
[in]	property	The new property object. If `nullptr`, the call is ignored.

See also: SetProperty

◆ Set() [1/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		bool	boolValue
	)

Shortcut for SetBoolProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[in]	boolValue	The boolean value to set.

◆ Set() [2/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		const char *	stringValue
	)

Shortcut for SetStringProperty() accepting a C-string.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	stringValue	The C-string value to set.

◆ Set() [3/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		const std::string &	stringValue
	)

Shortcut for SetStringProperty() accepting a std::string.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	stringValue	The string value to set.

◆ Set() [4/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		double	doubleValue
	)

Shortcut for SetDoubleProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[in]	doubleValue	The double value to set.

◆ Set() [5/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		float	floatValue
	)

Shortcut for SetFloatProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[in]	floatValue	The float value to set.

◆ Set() [6/6]

void mitk::PropertyList::Set	(	const char *	propertyKey,
		int	intValue
	)

Shortcut for SetIntProperty().

Parameters

[in]	propertyKey	The key identifying the property.
[in]	intValue	The integer value to set.

◆ SetBoolProperty()

void mitk::PropertyList::SetBoolProperty	(	const char *	propertyKey,
		bool	boolValue
	)

Convenience method to set the value of a BoolProperty.

Creates a new BoolProperty if the key does not exist yet.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	boolValue	The boolean value to set.

◆ SetDoubleProperty()

void mitk::PropertyList::SetDoubleProperty	(	const char *	propertyKey,
		double	doubleValue
	)

Convenience method to set the value of a DoubleProperty.

Creates a new DoubleProperty if the key does not exist yet.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	doubleValue	The double value to set.

◆ SetFloatProperty()

void mitk::PropertyList::SetFloatProperty	(	const char *	propertyKey,
		float	floatValue
	)

Convenience method to set the value of a FloatProperty.

Creates a new FloatProperty if the key does not exist yet.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	floatValue	The float value to set.

◆ SetIntProperty()

void mitk::PropertyList::SetIntProperty	(	const char *	propertyKey,
		int	intValue
	)

Convenience method to set the value of an IntProperty.

Creates a new IntProperty if the key does not exist yet.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	intValue	The integer value to set.

◆ SetProperty()

void mitk::PropertyList::SetProperty	(	const std::string &	propertyKey,
		BaseProperty *	property,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Set a property in the list, preserving existing property type.

If a property with the given key already exists and has the same type, its value is updated via AssignProperty(). If the types differ, an error is logged and the property is not replaced (use ReplaceProperty() instead). If the key does not exist, the property is inserted.

Parameters

[in]	propertyKey	The key for the property. Must not be empty.
[in]	property	The property to set. If `nullptr`, the call is ignored.
[in]	contextName	Ignored in PropertyList.
[in]	fallBackOnDefaultContext	Ignored in PropertyList.

Precondition: propertyKey must be a non-empty string; otherwise an exception is thrown.

See also: ReplaceProperty; IPropertyOwner

Implements mitk::IPropertyOwner.

Reimplemented in mitk::Label.

◆ SetStringProperty()

void mitk::PropertyList::SetStringProperty	(	const char *	propertyKey,
		const char *	stringValue
	)

Convenience method to set the value of a StringProperty.

Creates a new StringProperty if the key does not exist yet.

Parameters

[in]	propertyKey	The key identifying the property.
[in]	stringValue	The C-string value to set.

◆ ToJSON()

void mitk::PropertyList::ToJSON ( nlohmann::json & j ) const

Serialize the property list to JSON.

Note: Properties of a certain type can only be deserialized again if their type has been registered via the IPropertyDeserialization core service.

See also: CoreServices; IPropertyDeserialization::RegisterProperty

Member Data Documentation

◆ m_Properties

PropertyMap mitk::PropertyList::m_Properties

protected

Map of properties.

Definition at line 478 of file mitkPropertyList.h.

The documentation for this class was generated from the following file:

mitkPropertyList.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ PropertyMap

◆ PropertyMapElementType

Constructor & Destructor Documentation

◆ PropertyList() [1/2]

◆ PropertyList() [2/2]

◆ ~PropertyList()

Member Function Documentation

◆ Clear()

◆ Clone()

◆ ConcatenatePropertyList()

◆ DeleteProperty()

◆ FromJSON()

◆ Get() [1/5]

◆ Get() [2/5]

◆ Get() [3/5]

◆ Get() [4/5]

◆ Get() [5/5]

◆ GetBoolProperty()

◆ GetConstProperty()

◆ GetDoubleProperty()

◆ GetFloatProperty()

◆ GetIntProperty()

◆ GetMap()

◆ GetMTime()

◆ GetNonConstProperty()

◆ GetProperty()

◆ GetPropertyContextNames()

◆ GetPropertyKeys()

◆ GetPropertyValue()

◆ GetStringProperty()

◆ IsEmpty()

◆ mitkClassMacroItkParent()

◆ mitkCloneMacro()

◆ New()

◆ RemoveProperty()

◆ ReplaceProperty()

◆ Set() [1/6]

◆ Set() [2/6]

◆ Set() [3/6]

◆ Set() [4/6]

◆ Set() [5/6]

◆ Set() [6/6]

◆ SetBoolProperty()

◆ SetDoubleProperty()

◆ SetFloatProperty()

◆ SetIntProperty()

◆ SetProperty()

◆ SetStringProperty()

◆ ToJSON()

Member Data Documentation

◆ m_Properties
