mitk::BaseProperty Class Reference

Abstract base class for properties. More...

#include <mitkBaseProperty.h>

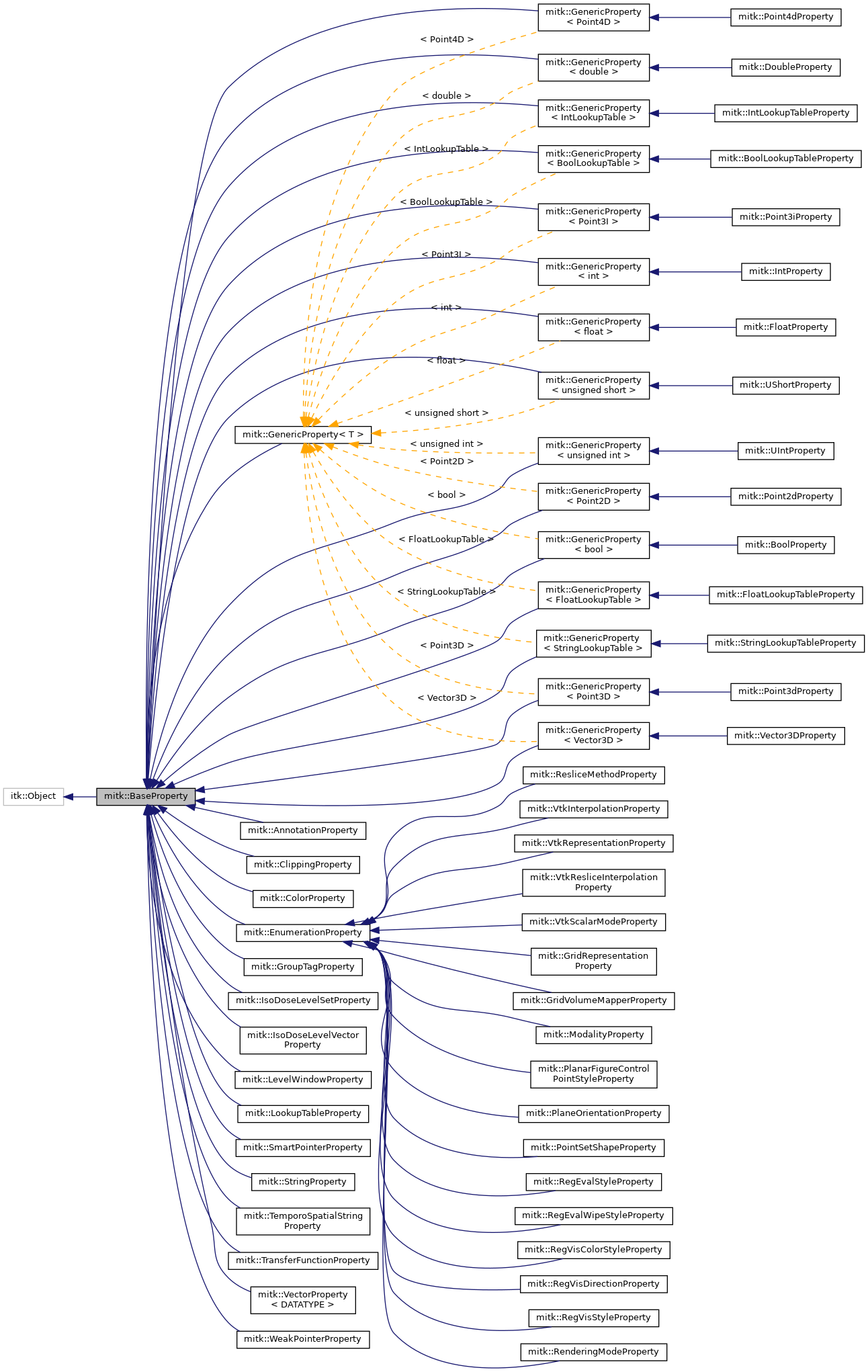

Inheritance diagram for mitk::BaseProperty:

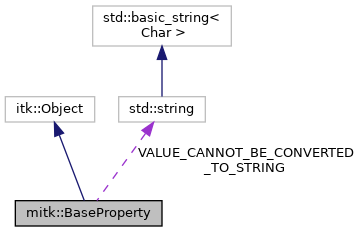

Collaboration diagram for mitk::BaseProperty:

Public Member Functions
	mitkClassMacroItkParent (BaseProperty, itk::Object)
Pointer	Clone () const
bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...
BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...
bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...
virtual std::string	GetValueAsString () const
	Return the property value as a human-readable string. More...
virtual bool	ToJSON (nlohmann::json &j) const =0
	Serialize property value(s) to JSON. More...
virtual bool	FromJSON (const nlohmann::json &j)=0
	Deserialize property value(s) from JSON. More...

Static Public Attributes
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Protected Member Functions
	BaseProperty ()
	BaseProperty (const BaseProperty &other)
	~BaseProperty () override

Detailed Description

Abstract base class for properties.

Base class for all properties in MITK. Properties represent arbitrary additional information that can be added to a PropertyList and associated with data objects. To define a new type of property, create a subclass of BaseProperty.

Concrete subclasses should define Set-/Get-methods to access the property value, which should be stored by value (not by reference). Subclasses must implement the pure virtual methods IsEqual() and Assign() for comparison and assignment support.

See also

PropertyList

GenericProperty

StringProperty

Definition at line 39 of file mitkBaseProperty.h.

Constructor & Destructor Documentation

BaseProperty() [1/2]

mitk::BaseProperty::BaseProperty ( )

protected

BaseProperty() [2/2]

mitk::BaseProperty::BaseProperty ( const BaseProperty &  other )

protected

~BaseProperty()

mitk::BaseProperty::~BaseProperty ( )

overrideprotected

Member Function Documentation

AssignProperty()

bool mitk::BaseProperty::AssignProperty

(

const BaseProperty &

property

)

Assign a property value to this instance and report success.

This method is identical to the assignment operator, except for the return type. It allows callers to directly check whether the assignment was successful. The assignment fails if the source and target properties have different types. On success, the property is marked as modified.

Parameters

[in]

property

The property whose value should be assigned to this instance.

Returns

true if the assignment was successful (same type), false otherwise.

See also

operator=

Clone()

Pointer mitk::BaseProperty::Clone

(

)

const

FromJSON()

virtual bool mitk::BaseProperty::FromJSON ( const nlohmann::json &  j )

pure virtual

Deserialize property value(s) from JSON.

Subclasses must implement this method to restore their value from the provided JSON object. Rely on exceptions for error handling when implementing deserialization.

Parameters

[in]

j

The JSON object containing the serialized value.

Returns

false if the property is not deserializable by design, true otherwise.

Implemented in mitk::IsoDoseLevelVectorProperty, mitk::IsoDoseLevelSetProperty, mitk::WeakPointerProperty, mitk::VectorProperty< DATATYPE >, mitk::TransferFunctionProperty, mitk::TemporoSpatialStringProperty, mitk::StringProperty, mitk::SmartPointerProperty, mitk::LookupTableProperty, mitk::LevelWindowProperty, mitk::GroupTagProperty, mitk::EnumerationProperty, mitk::ColorProperty, mitk::ClippingProperty, mitk::AnnotationProperty, mitk::GenericProperty< T >, mitk::GenericProperty< double >, mitk::GenericProperty< float >, and mitk::GenericProperty< int >.

GetValueAsString()

virtual std::string mitk::BaseProperty::GetValueAsString ( ) const

virtual

Return the property value as a human-readable string.

The default implementation returns VALUE_CANNOT_BE_CONVERTED_TO_STRING. Subclasses should override this method to provide a meaningful string representation of their value.

Returns

A string representation of the property value.

Reimplemented in mitk::IsoDoseLevelVectorProperty, mitk::IsoDoseLevelSetProperty, mitk::WeakPointerProperty, mitk::VectorProperty< DATATYPE >, mitk::TransferFunctionProperty, mitk::TemporoSpatialStringProperty, mitk::StringProperty, mitk::SmartPointerProperty, mitk::LookupTableProperty, mitk::LevelWindowProperty, mitk::GenericProperty< T >, mitk::GenericProperty< double >, mitk::GenericProperty< float >, mitk::GenericProperty< int >, mitk::EnumerationProperty, mitk::ColorProperty, mitk::ClippingProperty, and mitk::AnnotationProperty.

mitkClassMacroItkParent()

mitk::BaseProperty::mitkClassMacroItkParent	(	BaseProperty	,
		itk::Object
	)

operator=()

BaseProperty& mitk::BaseProperty::operator=

(

const BaseProperty &

property

)

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in]

property

The property whose value should be assigned to this instance.

Returns

A reference to this property.

See also

AssignProperty

Assign

operator==()

bool mitk::BaseProperty::operator==

(

const BaseProperty &

property

)

const

Compare two properties for equality.

Checks whether this property is equal to the given property. Two properties are considered equal if they have the same type (checked via typeid) and their subclass-specific IsEqual() method returns true.

Parameters

[in]

property

The property to compare against.

Returns

true if both properties are of the same type and have equal values, false otherwise.

See also

IsEqual

ToJSON()

virtual bool mitk::BaseProperty::ToJSON ( nlohmann::json &  j ) const

pure virtual

Serialize property value(s) to JSON.

Subclasses must implement this method to serialize their value into the provided JSON object. Rely on exceptions for error handling when implementing serialization.

Parameters

[out]

j

The JSON object to write the serialized value into.

Returns

false if the property is not serializable by design, true otherwise.

Implemented in mitk::IsoDoseLevelVectorProperty, mitk::IsoDoseLevelSetProperty, mitk::WeakPointerProperty, mitk::VectorProperty< DATATYPE >, mitk::TransferFunctionProperty, mitk::TemporoSpatialStringProperty, mitk::StringProperty, mitk::SmartPointerProperty, mitk::LookupTableProperty, mitk::LevelWindowProperty, mitk::GroupTagProperty, mitk::EnumerationProperty, mitk::ColorProperty, mitk::ClippingProperty, mitk::AnnotationProperty, mitk::GenericProperty< T >, mitk::GenericProperty< double >, mitk::GenericProperty< float >, and mitk::GenericProperty< int >.

Member Data Documentation

VALUE_CANNOT_BE_CONVERTED_TO_STRING

const std::string mitk::BaseProperty::VALUE_CANNOT_BE_CONVERTED_TO_STRING

static

Default return value for properties that cannot be converted to a string.

This constant (value "n/a") is returned by GetValueAsString() in the base implementation to indicate that no string conversion is available.

Definition at line 136 of file mitkBaseProperty.h.

---

The documentation for this class was generated from the following file:

• mitkBaseProperty.h
