Property for storing string values resolved by time step and slice index. More...

#include <mitkTemporoSpatialStringProperty.h>

Inheritance diagram for mitk::TemporoSpatialStringProperty:

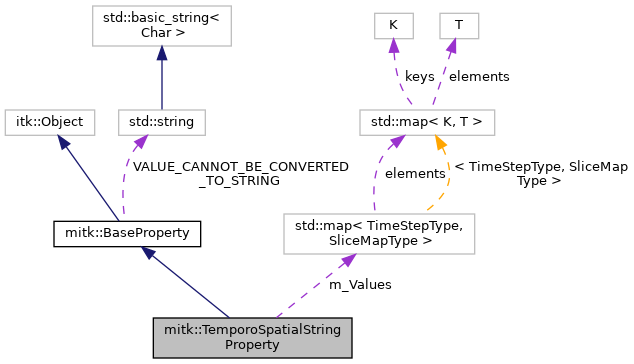

Collaboration diagram for mitk::TemporoSpatialStringProperty:

[legend]

Public Types
typedef ::itk::IndexValueType	IndexValueType
	Index type for slice indices. More...

typedef std::string	ValueType
	The type of the string value stored per time/slice entry. More...

Public Member Functions
	mitkClassMacro (TemporoSpatialStringProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro1Param (TemporoSpatialStringProperty, const char *)

	mitkNewMacro1Param (TemporoSpatialStringProperty, const std::string &)

ValueType	GetValue () const
	Get the value at the first time step and first slice. More...

ValueType	GetValue (const TimeStepType &timeStep, const IndexValueType &zSlice, bool allowCloseTime=false, bool allowCloseSlice=false) const
	Get the value for a specific time step and slice. More...

ValueType	GetValueBySlice (const IndexValueType &zSlice, bool allowClose=false) const
	Get the value for a given slice (time step defaults to 0). More...

ValueType	GetValueByTimeStep (const TimeStepType &timeStep, bool allowClose=false) const
	Get the value for a given time step (slice defaults to 0). More...

bool	HasValue () const
	Check whether any values are stored. More...

bool	HasValue (const TimeStepType &timeStep, const IndexValueType &zSlice, bool allowCloseTime=false, bool allowCloseSlice=false) const
	Check whether a value exists for the given time step and slice. More...

bool	HasValueBySlice (const IndexValueType &zSlice, bool allowClose=false) const
	Check whether a value exists for the given slice. More...

bool	HasValueByTimeStep (const TimeStepType &timeStep, bool allowClose=false) const
	Check whether a value exists for the given time step. More...

std::vector< IndexValueType >	GetAvailableSlices (const TimeStepType &timeStep) const
	Get all slice indices stored for the specified time step. More...

std::vector< TimeStepType >	GetAvailableTimeSteps (const IndexValueType &slice) const
	Get all time steps that contain a value for the specified slice. More...

std::vector< TimeStepType >	GetAvailableTimeSteps () const
	Get all time steps stored in the property. More...

std::vector< IndexValueType >	GetAvailableSlices () const
	Get all unique slice indices across all time steps. More...

void	SetValue (const TimeStepType &timeStep, const IndexValueType &zSlice, const ValueType &value)
	Set a value for a specific time step and slice. More...

void	SetValue (const ValueType &value)
	Set a uniform value (stored at time step 0, slice 0). More...

std::string	GetValueAsString () const override
	Return the value at the first time step and slice as a string. More...

bool	IsUniform () const
	Check whether all stored values are identical. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the property to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the property from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Types
typedef std::map< IndexValueType, std::string >	SliceMapType

typedef std::map< TimeStepType, SliceMapType >	TimeMapType

Protected Member Functions
	TemporoSpatialStringProperty (const char *string=nullptr)

	TemporoSpatialStringProperty (const std::string &s)

	TemporoSpatialStringProperty (const TemporoSpatialStringProperty &)

std::pair< bool, ValueType >	CheckValue (const TimeStepType &timeStep, const IndexValueType &zSlice, bool allowCloseTime=false, bool allowCloseSlice=false) const

	mitkCloneMacro (TemporoSpatialStringProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
TimeMapType	m_Values

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for storing string values resolved by time step and slice index.

This property can hold different string values for each combination of time step and z-slice index, making it suitable for DICOM metadata that varies across slices or time points (e.g., per-slice acquisition parameters). When constructed with a single string, the value is stored at time step 0, slice 0.

See also: BaseProperty; StringProperty

Definition at line 38 of file mitkTemporoSpatialStringProperty.h.

Member Typedef Documentation

◆ IndexValueType

typedef ::itk::IndexValueType mitk::TemporoSpatialStringProperty::IndexValueType

Index type for slice indices.

Definition at line 42 of file mitkTemporoSpatialStringProperty.h.

◆ SliceMapType

typedef std::map<IndexValueType, std::string> mitk::TemporoSpatialStringProperty::SliceMapType

protected

Definition at line 228 of file mitkTemporoSpatialStringProperty.h.

◆ TimeMapType

typedef std::map<TimeStepType, SliceMapType> mitk::TemporoSpatialStringProperty::TimeMapType

protected

Definition at line 229 of file mitkTemporoSpatialStringProperty.h.

◆ ValueType

typedef std::string mitk::TemporoSpatialStringProperty::ValueType

The type of the string value stored per time/slice entry.

Definition at line 45 of file mitkTemporoSpatialStringProperty.h.

Constructor & Destructor Documentation

◆ TemporoSpatialStringProperty() [1/3]

mitk::TemporoSpatialStringProperty::TemporoSpatialStringProperty ( const char * string = nullptr )

protected

◆ TemporoSpatialStringProperty() [2/3]

mitk::TemporoSpatialStringProperty::TemporoSpatialStringProperty ( const std::string & s )

protected

◆ TemporoSpatialStringProperty() [3/3]

mitk::TemporoSpatialStringProperty::TemporoSpatialStringProperty ( const TemporoSpatialStringProperty & )

protected

Member Function Documentation

◆ CheckValue()

std::pair<bool, ValueType> mitk::TemporoSpatialStringProperty::CheckValue	(	const TimeStepType &	timeStep,
		const IndexValueType &	zSlice,
		bool	allowCloseTime = `false`,
		bool	allowCloseSlice = `false`
	)		const

protected

◆ Clone()

Pointer mitk::TemporoSpatialStringProperty::Clone ( ) const

◆ FromJSON()

bool mitk::TemporoSpatialStringProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the property from JSON.

Reads the condensed JSON representation and expands time step/slice ranges into individual value entries.

Parameters

[in] j The JSON object containing the serialized data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetAvailableSlices() [1/2]

std::vector<IndexValueType> mitk::TemporoSpatialStringProperty::GetAvailableSlices ( ) const

Get all unique slice indices across all time steps.

Note: Not all time steps may contain all slices.

Returns: A sorted vector of unique slice indices.

◆ GetAvailableSlices() [2/2]

std::vector<IndexValueType> mitk::TemporoSpatialStringProperty::GetAvailableSlices ( const TimeStepType & timeStep ) const

Get all slice indices stored for the specified time step.

Parameters

[in] timeStep The time step to query.

Returns: A vector of slice indices. Empty if the time step does not exist.

◆ GetAvailableTimeSteps() [1/2]

std::vector<TimeStepType> mitk::TemporoSpatialStringProperty::GetAvailableTimeSteps ( ) const

Get all time steps stored in the property.

Returns: A vector of all time steps.

◆ GetAvailableTimeSteps() [2/2]

std::vector<TimeStepType> mitk::TemporoSpatialStringProperty::GetAvailableTimeSteps ( const IndexValueType & slice ) const

Get all time steps that contain a value for the specified slice.

Parameters

[in] slice The z-slice index to query.

Returns: A vector of time steps.

◆ GetValue() [1/2]

ValueType mitk::TemporoSpatialStringProperty::GetValue ( ) const

Get the value at the first time step and first slice.

Returns: The string value, or an empty string if no values exist.

◆ GetValue() [2/2]

ValueType mitk::TemporoSpatialStringProperty::GetValue	(	const TimeStepType &	timeStep,
		const IndexValueType &	zSlice,
		bool	allowCloseTime = `false`,
		bool	allowCloseSlice = `false`
	)		const

Get the value for a specific time step and slice.

Parameters

[in]	timeStep	The time step to query.
[in]	zSlice	The z-slice index to query.
[in]	allowCloseTime	If `true`, the closest earlier time step is used when the exact time step is not found.
[in]	allowCloseSlice	If `true`, the closest earlier slice is used when the exact slice is not found.

Returns: The string value, or an empty string if nothing was found.

◆ GetValueAsString()

std::string mitk::TemporoSpatialStringProperty::GetValueAsString ( ) const

overridevirtual

Return the value at the first time step and slice as a string.

Returns: The string value (same as GetValue()).

Reimplemented from mitk::BaseProperty.

◆ GetValueBySlice()

ValueType mitk::TemporoSpatialStringProperty::GetValueBySlice	(	const IndexValueType &	zSlice,
		bool	allowClose = `false`
	)		const

Get the value for a given slice (time step defaults to 0).

Parameters

[in]	zSlice	The z-slice index to query.
[in]	allowClose	If `true`, allows finding the closest slice.

Returns: The string value, or an empty string if not found.

◆ GetValueByTimeStep()

ValueType mitk::TemporoSpatialStringProperty::GetValueByTimeStep	(	const TimeStepType &	timeStep,
		bool	allowClose = `false`
	)		const

Get the value for a given time step (slice defaults to 0).

Parameters

[in]	timeStep	The time step to query.
[in]	allowClose	If `true`, allows finding the closest time step.

Returns: The string value, or an empty string if not found.

◆ HasValue() [1/2]

bool mitk::TemporoSpatialStringProperty::HasValue ( ) const

Check whether any values are stored.

Returns: true if at least one value exists, false otherwise.

◆ HasValue() [2/2]

bool mitk::TemporoSpatialStringProperty::HasValue	(	const TimeStepType &	timeStep,
		const IndexValueType &	zSlice,
		bool	allowCloseTime = `false`,
		bool	allowCloseSlice = `false`
	)		const

Check whether a value exists for the given time step and slice.

Parameters

[in]	timeStep	The time step to check.
[in]	zSlice	The z-slice index to check.
[in]	allowCloseTime	If `true`, allows finding the closest time step.
[in]	allowCloseSlice	If `true`, allows finding the closest slice.

Returns: true if a matching value exists, false otherwise.

◆ HasValueBySlice()

bool mitk::TemporoSpatialStringProperty::HasValueBySlice	(	const IndexValueType &	zSlice,
		bool	allowClose = `false`
	)		const

Check whether a value exists for the given slice.

Parameters

[in]	zSlice	The z-slice index to check.
[in]	allowClose	If `true`, allows finding the closest slice.

Returns: true if a matching value exists, false otherwise.

◆ HasValueByTimeStep()

bool mitk::TemporoSpatialStringProperty::HasValueByTimeStep	(	const TimeStepType &	timeStep,
		bool	allowClose = `false`
	)		const

Check whether a value exists for the given time step.

Parameters

[in]	timeStep	The time step to check.
[in]	allowClose	If `true`, allows finding the closest time step.

Returns: true if a matching value exists, false otherwise.

◆ IsUniform()

bool mitk::TemporoSpatialStringProperty::IsUniform ( ) const

Check whether all stored values are identical.

If true, GetValueAsString() returns the complete information without loss.

Returns: true if all values across all time steps and slices are equal, false if at least one value differs.

◆ mitkClassMacro()

mitk::TemporoSpatialStringProperty::mitkClassMacro	(	TemporoSpatialStringProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::TemporoSpatialStringProperty::mitkCloneMacro ( TemporoSpatialStringProperty )

protected

◆ mitkNewMacro1Param() [1/2]

mitk::TemporoSpatialStringProperty::mitkNewMacro1Param	(	TemporoSpatialStringProperty	,
		const char *
	)

◆ mitkNewMacro1Param() [2/2]

mitk::TemporoSpatialStringProperty::mitkNewMacro1Param	(	TemporoSpatialStringProperty	,
		const std::string &
	)

◆ New()

static Pointer mitk::TemporoSpatialStringProperty::New ( )

static

Referenced by mitk::python::tryDictToTemporoSpatialString().

◆ operator=()

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetValue() [1/2]

void mitk::TemporoSpatialStringProperty::SetValue	(	const TimeStepType &	timeStep,
		const IndexValueType &	zSlice,
		const ValueType &	value
	)

Set a value for a specific time step and slice.

If the time step or slice does not exist yet, it is created.

Parameters

[in]	timeStep	The time step to set.
[in]	zSlice	The z-slice index to set.
[in]	value	The string value to store.

◆ SetValue() [2/2]

void mitk::TemporoSpatialStringProperty::SetValue ( const ValueType & value )

Set a uniform value (stored at time step 0, slice 0).

Clears all existing values and stores the given value at time step 0, slice 0.

Parameters

[in] value The string value to store.

◆ ToJSON()

bool mitk::TemporoSpatialStringProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the property to JSON.

Serializes the values as a condensed JSON representation, grouping consecutive time steps and slices with identical values.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_Values

TimeMapType mitk::TemporoSpatialStringProperty::m_Values

protected

Definition at line 231 of file mitkTemporoSpatialStringProperty.h.

The documentation for this class was generated from the following file:

mitkTemporoSpatialStringProperty.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ IndexValueType

◆ SliceMapType

◆ TimeMapType

◆ ValueType

Constructor & Destructor Documentation

◆ TemporoSpatialStringProperty() [1/3]

◆ TemporoSpatialStringProperty() [2/3]

◆ TemporoSpatialStringProperty() [3/3]

Member Function Documentation

◆ CheckValue()

◆ Clone()

◆ FromJSON()

◆ GetAvailableSlices() [1/2]

◆ GetAvailableSlices() [2/2]

◆ GetAvailableTimeSteps() [1/2]

◆ GetAvailableTimeSteps() [2/2]

◆ GetValue() [1/2]

◆ GetValue() [2/2]

◆ GetValueAsString()

◆ GetValueBySlice()

◆ GetValueByTimeStep()

◆ HasValue() [1/2]

◆ HasValue() [2/2]

◆ HasValueBySlice()

◆ HasValueByTimeStep()

◆ IsUniform()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ mitkNewMacro1Param() [1/2]

◆ mitkNewMacro1Param() [2/2]

◆ New()

◆ operator=()

◆ SetValue() [1/2]

◆ SetValue() [2/2]

◆ ToJSON()

Member Data Documentation

◆ m_Values
