Property for storing a mitk::TransferFunction. More...

#include <mitkTransferFunctionProperty.h>

Inheritance diagram for mitk::TransferFunctionProperty:

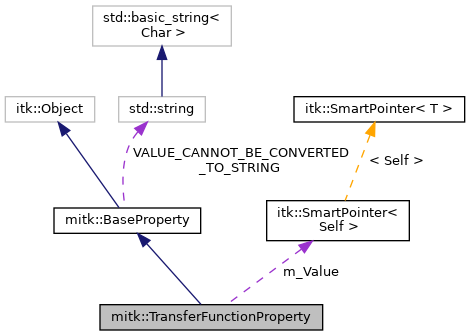

Collaboration diagram for mitk::TransferFunctionProperty:

[legend]

Public Types
typedef mitk::TransferFunction::Pointer	ValueType
	The type of the value stored by this property. More...

Public Member Functions
	mitkClassMacro (TransferFunctionProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro1Param (TransferFunctionProperty, mitk::TransferFunction::Pointer)

virtual void	SetValue (mitk::TransferFunction::Pointer _arg)
	Set the transfer function. More...

virtual mitk::TransferFunction::Pointer	GetValue () const
	Get the transfer function. More...

std::string	GetValueAsString () const override
	Return the transfer function as a string (address representation). More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the transfer function to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the transfer function from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	TransferFunctionProperty ()

	TransferFunctionProperty (const TransferFunctionProperty &other)

	TransferFunctionProperty (mitk::TransferFunction::Pointer value)

	mitkCloneMacro (TransferFunctionProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
mitk::TransferFunction::Pointer	m_Value

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for storing a mitk::TransferFunction.

Holds a transfer function that maps scalar values to colors and opacities for volume rendering or other rendering modes. The transfer function consists of scalar opacity, gradient opacity, and color transfer function components.

Note: If you want to use this property for an mitk::Image, make sure to set the mitk::RenderingModeProperty to a mode which supports transfer functions (e.g. COLORTRANSFERFUNCTION_COLOR). See the documentation of mitk::RenderingModeProperty. For a code example see mitkImageVtkMapper2DTransferFunctionTest.cpp in Core/Code/Testing.

See also: BaseProperty; TransferFunction; RenderingModeProperty

Definition at line 38 of file mitkTransferFunctionProperty.h.

Member Typedef Documentation

◆ ValueType

typedef mitk::TransferFunction::Pointer mitk::TransferFunctionProperty::ValueType

The type of the value stored by this property.

Definition at line 42 of file mitkTransferFunctionProperty.h.

Constructor & Destructor Documentation

◆ TransferFunctionProperty() [1/3]

mitk::TransferFunctionProperty::TransferFunctionProperty ( )

protected

◆ TransferFunctionProperty() [2/3]

mitk::TransferFunctionProperty::TransferFunctionProperty ( const TransferFunctionProperty & other )

protected

◆ TransferFunctionProperty() [3/3]

mitk::TransferFunctionProperty::TransferFunctionProperty ( mitk::TransferFunction::Pointer value )

protected

Member Function Documentation

◆ Clone()

Pointer mitk::TransferFunctionProperty::Clone ( ) const

◆ FromJSON()

bool mitk::TransferFunctionProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the transfer function from JSON.

Reads scalar opacity points, gradient opacity points, and color transfer function nodes from a structured JSON object and creates a new TransferFunction instance.

Parameters

[in] j The JSON object containing the transfer function data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetValue()

virtual mitk::TransferFunction::Pointer mitk::TransferFunctionProperty::GetValue ( ) const

virtual

Get the transfer function.

Returns: The stored transfer function smart pointer.

◆ GetValueAsString()

std::string mitk::TransferFunctionProperty::GetValueAsString ( ) const

overridevirtual

Return the transfer function as a string (address representation).

Returns: A string representation of the transfer function pointer.

Reimplemented from mitk::BaseProperty.

◆ mitkClassMacro()

mitk::TransferFunctionProperty::mitkClassMacro	(	TransferFunctionProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::TransferFunctionProperty::mitkCloneMacro ( TransferFunctionProperty )

protected

◆ mitkNewMacro1Param()

mitk::TransferFunctionProperty::mitkNewMacro1Param	(	TransferFunctionProperty	,
		mitk::TransferFunction::Pointer
	)

◆ New()

static Pointer mitk::TransferFunctionProperty::New ( )

static

◆ operator=()

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetValue()

virtual void mitk::TransferFunctionProperty::SetValue ( mitk::TransferFunction::Pointer _arg )

virtual

Set the transfer function.

Parameters

[in] _arg The new transfer function smart pointer.

◆ ToJSON()

bool mitk::TransferFunctionProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the transfer function to JSON.

Serializes scalar opacity points, gradient opacity points, and color transfer function nodes into a structured JSON object.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_Value

mitk::TransferFunction::Pointer mitk::TransferFunctionProperty::m_Value

protected

Definition at line 95 of file mitkTransferFunctionProperty.h.

The documentation for this class was generated from the following file:

mitkTransferFunctionProperty.h
