Image class for storing multi-dimensional medical image data. More...

#include <mitkImage.h>

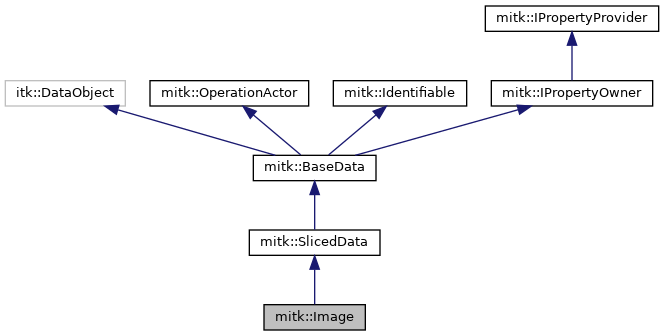

Inheritance diagram for mitk::Image:

[legend]

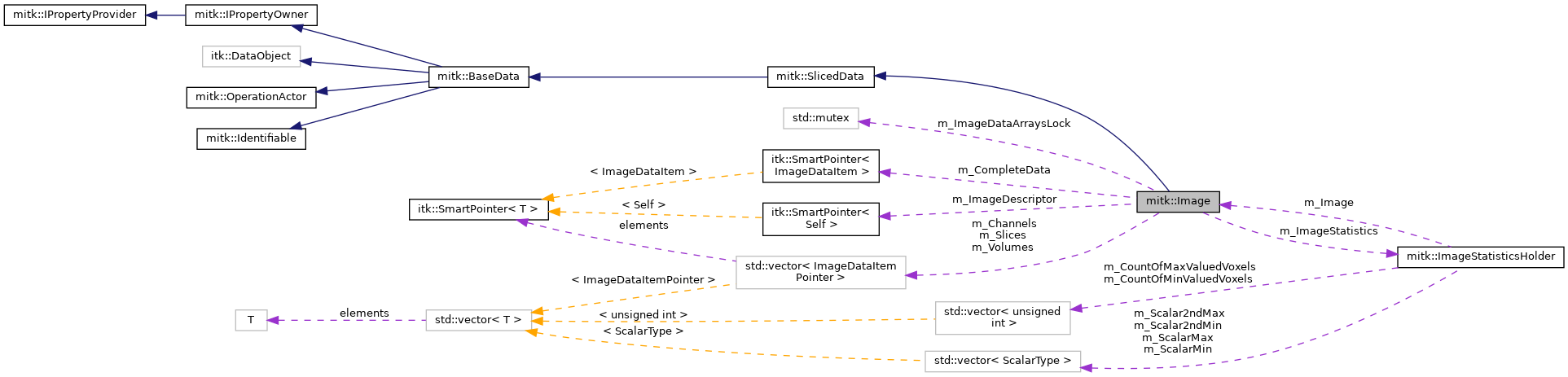

Collaboration diagram for mitk::Image:

[legend]

Public Types
enum	ImportMemoryManagementType { CopyMemory , ManageMemory , ReferenceMemory , DontManageMemory }
	Defines how imported memory is managed when setting data on an Image. More...

typedef itk::SmartPointer< ImageDataItem >	ImageDataItemPointer
	Smart Pointer type to an ImageDataItem. More...

typedef itk::Statistics::Histogram< double >	HistogramType
	Histogram type used for image statistics (double-precision). More...

typedef mitk::ImageStatisticsHolder *	StatisticsHolderPointer
	Pointer type to the ImageStatisticsHolder. More...

typedef std::vector< ImageDataItemPointer >	ImageDataItemPointerArray
	Vector container of SmartPointers to ImageDataItems. More...

Public Types inherited from mitk::SlicedData
typedef itk::ImageRegion< RegionDimension >	RegionType

typedef itk::Index< RegionDimension >	IndexType

typedef IndexType::IndexValueType	IndexValueType

typedef itk::Offset< RegionDimension >	OffsetType

typedef OffsetType::OffsetValueType	OffsetValueType

typedef itk::Size< RegionDimension >	SizeType

typedef SizeType::SizeValueType	SizeValueType

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (Image, SlicedData)

Pointer	Clone () const

const mitk::PixelType	GetPixelType (int n=0) const
	Returns the PixelType of channel n. More...

unsigned int	GetDimension () const
	Get the number of dimensions of the image. More...

unsigned int	GetDimension (int i) const
	Get the size of dimension i. More...

virtual vtkImageData *	GetVtkImageData (int t=0, int n=0)
	Get a volume at a specific time step t of channel n as a vtkImageData. More...

virtual const vtkImageData *	GetVtkImageData (int t=0, int n=0) const
	Get a volume at a specific time step t of channel n as a vtkImageData. More...

bool	IsSliceSet (int s=0, int t=0, int n=0) const override
	Check whether slice s at time t in channel n is set. More...

bool	IsVolumeSet (int t=0, int n=0) const override
	Check whether the volume at time t in channel n is set. More...

bool	IsChannelSet (int n=0) const override
	Check whether channel n is set. More...

virtual bool	SetSlice (const void *data, int s=0, int t=0, int n=0)
	Set data as slice s at time t in channel n. More...

virtual bool	SetVolume (const void *data, int t=0, int n=0)
	Set data as volume at time t in channel n. More...

virtual bool	SetChannel (const void *data, int n=0)
	Set data as the data for channel n. More...

virtual bool	SetImportSlice (void *data, int s=0, int t=0, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data as slice s at time t in channel n with configurable memory management. More...

virtual bool	SetImportVolume (void *data, int t=0, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data as volume at time t in channel n with configurable memory management. More...

virtual bool	SetImportVolume (const void *const_data, int t=0, int n=0)
	Set const_data as volume at time t in channel n (copy-only). More...

virtual void	AllocateZeroedVolume (int t=0, int n=0)
	Allocate a zero-initialized volume at time t in channel n. More...

virtual bool	SetImportChannel (void *data, int n=0, ImportMemoryManagementType importMemoryManagement=CopyMemory)
	Set data as the data for channel n with configurable memory management. More...

virtual void	Initialize (const mitk::PixelType &type, unsigned int dimension, const unsigned int *dimensions, unsigned int channels=1)
	Initialize (or re-initialize) image with pixel type and dimensions. More...

virtual void	Initialize (const mitk::PixelType &type, const mitk::BaseGeometry &geometry, unsigned int channels=1, int tDim=1)
	Initialize (or re-initialize) image from a BaseGeometry. More...

virtual void	Initialize (const mitk::PixelType &type, const mitk::TimeGeometry &geometry, unsigned int channels=1, int tDim=-1)
	Initialize (or re-initialize) image from a TimeGeometry. More...

virtual void	Initialize (const mitk::PixelType &type, int sDim, const mitk::PlaneGeometry &geometry2d, unsigned int channels=1, int tDim=1)
	Initialize (or re-initialize) image from a PlaneGeometry and number of slices. More...

virtual void	Initialize (const mitk::Image *image)
	Initialize (or re-initialize) image from another mitk::Image. More...

virtual void	Initialize (const mitk::ImageDescriptor::Pointer inDesc)
	Initialize (or re-initialize) image from an ImageDescriptor. More...

virtual void	Initialize (vtkImageData *vtkimagedata, int channels=1, int tDim=-1, int sDim=-1, int pDim=-1)
	Initialize (or re-initialize) image from a vtkImageData. More...

template<typename itkImageType >
void	InitializeByItk (const itkImageType *itkimage, int channels=1, int tDim=-1, int sDim=-1)
	Initialize (or re-initialize) image from a templated ITK image. More...

virtual bool	IsValidSlice (int s=0, int t=0, int n=0) const
	Check whether slice s at time t in channel n is valid. More...

virtual bool	IsValidVolume (int t=0, int n=0) const
	Check whether the volume at time t in channel n is valid. More...

virtual bool	IsValidChannel (int n=0) const
	Check whether channel n is valid. More...

bool	IsRotated () const
	Check whether the image has a rotated geometry. More...

unsigned int *	GetDimensions () const
	Get the sizes of all dimensions as an integer array. More...

ImageDescriptor::Pointer	GetImageDescriptor () const
	Get the image descriptor containing type and dimension information. More...

ChannelDescriptor	GetChannelDescriptor (int id=0) const
	Get the channel descriptor for channel id. More...

void	SetGeometry (BaseGeometry *aGeometry3D) override
	Set the geometry of the image. More...

virtual ImageDataItemPointer	GetSliceData (int s=0, int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const
	Get the ImageDataItem for slice s at time t in channel n. More...

virtual ImageDataItemPointer	GetVolumeData (int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const
	Get the ImageDataItem for the volume at time t in channel n. More...

virtual ImageDataItemPointer	GetChannelData (int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const
	Get the ImageDataItem for channel n. More...

void *	GetData (int t=0, int n=0)
	Get a raw pointer to the volume data at t in channel n without locking. More...

const void *	GetData (int t=0, int n=0) const
	Get a raw pointer to the volume data at t in channel n without locking. More...

StatisticsHolderPointer	GetStatistics () const
	Get the ImageStatisticsHolder that provides statistics for this image. More...

Public Member Functions inherited from mitk::SlicedData
	mitkClassMacro (SlicedData, BaseData)

	itkStaticConstMacro (RegionDimension, unsigned int, 5)

void	UpdateOutputInformation () override
	Update the information for this DataObject so it can be used as an output of a ProcessObject. More...

void	PrepareForNewData () override
	Prepare the data object to receive new data. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the RequestedRegion to the LargestPossibleRegion. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the RequestedRegion is outside of the BufferedRegion. More...

bool	VerifyRequestedRegion () override
	Verify that the RequestedRegion is within the LargestPossibleRegion. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object. More...

virtual void	SetRequestedRegion (SlicedData::RegionType *region)
	Set the requested region from a RegionType pointer. More...

void	SetLargestPossibleRegion (SlicedData::RegionType *region)
	Set the largest possible region. More...

const RegionType &	GetLargestPossibleRegion () const
	Get the largest possible region. More...

virtual const RegionType &	GetRequestedRegion () const
	Get the region object that defines the size and starting index for the requested region (i.e., the part of the data to be operated on). More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

unsigned int	GetNumberOfChannels () const
	Get the number of channels. More...

SlicedGeometry3D *	GetSlicedGeometry (unsigned int t=0) const
	Convenience access method for the geometry, which is of type SlicedGeometry3D (or a sub-class of it). More...

const SlicedGeometry3D *	GetUpdatedSlicedGeometry (unsigned int t=0)
	Convenience access method that returns an up-to-date SlicedGeometry3D. More...

void	SetGeometry (BaseGeometry *aGeometry3D) override
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

void	SetOrigin (const Point3D &origin) override
	Convenience method for setting the origin of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (const ScalarType aSpacing[])
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

virtual void	SetSpacing (mitk::Vector3D aSpacing)
	Convenience method for setting the spacing of the SlicedGeometry3D instances of all time steps. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual bool	IsEmptyTimeStep (unsigned int t) const
	Check whether the object contains data at the specified time step. More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Types
typedef std::lock_guard< std::mutex >	MutexHolder

Protected Member Functions
	mitkCloneMacro (Self)

int	GetSliceIndex (int s=0, int t=0, int n=0) const

int	GetVolumeIndex (int t=0, int n=0) const

void	ComputeOffsetTable ()

virtual bool	IsValidTimeStep (int t) const

void	Expand (unsigned int timeSteps) override
	Expand the TimeGeometry to a number of time steps. More...

virtual ImageDataItemPointer	AllocateSliceData (int s=0, int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	AllocateVolumeData (int t=0, int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

virtual ImageDataItemPointer	AllocateChannelData (int n=0, void *data=nullptr, ImportMemoryManagementType importMemoryManagement=CopyMemory) const

	Image ()

	Image (const Image &other)

	~Image () override

void	Clear () override
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

void	Initialize () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::SlicedData
	SlicedData ()

	SlicedData (const SlicedData &other)

	~SlicedData () override

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

virtual void	ClearData ()
	reset to non-initialized state, release memory More...

virtual void	InitializeEmpty ()
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Protected Attributes
ImageDataItemPointerArray	m_Channels

ImageDataItemPointerArray	m_Volumes

ImageDataItemPointerArray	m_Slices

std::mutex	m_ImageDataArraysLock

unsigned int	m_Dimension

unsigned int *	m_Dimensions

ImageDescriptor::Pointer	m_ImageDescriptor

size_t *	m_OffsetTable

ImageDataItemPointer	m_CompleteData

StatisticsHolderPointer	m_ImageStatistics

Protected Attributes inherited from mitk::SlicedData
RegionType	m_LargestPossibleRegion

RegionType	m_RequestedRegion

bool	m_RequestedRegionInitialized

RegionType	m_BufferedRegion

bool	m_UseLargestPossibleRegion

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Image class for storing multi-dimensional medical image data.

Image is the primary data class for pixel-based image data in MITK. It can be queried for header information, raw data vectors, or vtkImageData objects. If access to only part of the data is required, use the appropriate accessor classes (ImageReadAccessor, ImageWriteAccessor, ImagePixelReadAccessor, ImagePixelWriteAccessor) rather than direct data access.

Image organizes data hierarchically as:

Slices (s x 2D): individual 2D planes
Volumes (t x 3D): stacks of slices for each time step
Channels (n x ND): separate data arrays per channel (e.g., morphology in channel 0, velocity in channel 1)

All channels must share the same geometry (including dimensions). Only the pixel type may differ between channels.

For importing ITK images, use of mitk::ITKImageImport is recommended. See Adaptor Classes for details.

For more information, see MITK Image.

See also: mitk::SlicedData, mitk::BaseData; mitk::ImageReadAccessor, mitk::ImageWriteAccessor; mitk::ImagePixelReadAccessor, mitk::ImagePixelWriteAccessor; mitk::ImageVtkReadAccessor, mitk::ImageVtkWriteAccessor

Definition at line 75 of file mitkImage.h.

Member Typedef Documentation

◆ HistogramType

typedef itk::Statistics::Histogram<double> mitk::Image::HistogramType

Histogram type used for image statistics (double-precision).

Definition at line 96 of file mitkImage.h.

◆ ImageDataItemPointer

typedef itk::SmartPointer<ImageDataItem> mitk::Image::ImageDataItemPointer

Smart Pointer type to an ImageDataItem.

Definition at line 93 of file mitkImage.h.

◆ ImageDataItemPointerArray

typedef std::vector<ImageDataItemPointer> mitk::Image::ImageDataItemPointerArray

Vector container of SmartPointers to ImageDataItems.

For internal usage to allow convenient access to all slices via iterators.

See also: ImageDataItem

Definition at line 121 of file mitkImage.h.

◆ MutexHolder

typedef std::lock_guard<std::mutex> mitk::Image::MutexHolder

protected

Definition at line 742 of file mitkImage.h.

◆ StatisticsHolderPointer

typedef mitk::ImageStatisticsHolder* mitk::Image::StatisticsHolderPointer

Pointer type to the ImageStatisticsHolder.

Definition at line 99 of file mitkImage.h.

Member Enumeration Documentation

◆ ImportMemoryManagementType

enum mitk::Image::ImportMemoryManagementType

Defines how imported memory is managed when setting data on an Image.

This enum is evaluated by SetImportSlice, SetImportVolume, and SetImportChannel to decide ownership of the provided data buffer.

Enumerator
CopyMemory	Data is copied to a new memory block owned by the Image. The original buffer is not freed by Image.
ManageMemory	Data is referenced by the Image. The Image takes ownership and will free the buffer on deletion.
ReferenceMemory	Data is referenced by the Image. The Image does not free the buffer on deletion; the caller retains ownership.
DontManageMemory	Alias for ReferenceMemory.

Definition at line 107 of file mitkImage.h.

Constructor & Destructor Documentation

◆ Image() [1/2]

mitk::Image::Image ( )

protected

◆ Image() [2/2]

mitk::Image::Image ( const Image & other )

protected

◆ ~Image()

mitk::Image::~Image ( )

overrideprotected

Member Function Documentation

◆ AllocateChannelData()

virtual ImageDataItemPointer mitk::Image::AllocateChannelData	(	int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

◆ AllocateSliceData()

virtual ImageDataItemPointer mitk::Image::AllocateSliceData	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

◆ AllocateVolumeData()

virtual ImageDataItemPointer mitk::Image::AllocateVolumeData	(	int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

protectedvirtual

◆ AllocateZeroedVolume()

virtual void mitk::Image::AllocateZeroedVolume	(	int	t = `0`,
		int	n = `0`
	)

virtual

Allocate a zero-initialized volume at time t in channel n.

The image must already be initialized with a pixel type and dimensions (via any Initialize() overload) but must not yet have volume data set for the given time step and channel.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Precondition: Image must be initialized (IsInitialized() == true).; Image dimension must be between 1 and 3.; No volume data may already exist at (t, n).

Exceptions

mitk::Exception if any precondition is violated.

◆ Clear()

void mitk::Image::Clear ( )

overrideprotectedvirtual

Reset the data object by calling ClearData() and InitializeEmpty().

Warning: Only use in subclasses that have reimplemented ClearData() and InitializeEmpty(). Calling Clear() directly on BaseData will reset the object to a non-initialized, invalid state.

See also: ClearData, InitializeEmpty

Reimplemented from mitk::BaseData.

◆ Clone()

Pointer mitk::Image::Clone ( ) const

◆ ComputeOffsetTable()

void mitk::Image::ComputeOffsetTable ( )

protected

◆ Expand()

void mitk::Image::Expand ( unsigned int timeSteps )

overrideprotectedvirtual

Expand the TimeGeometry to a number of time steps.

The method expands the TimeGeometry to the given number of time steps, filling newly created elements with empty geometries. Sub-classes should override this method to handle the elongation of their data vectors, too.

Note: Shrinking is neither possible nor intended. If timeSteps is less than or equal to the current number of time steps, no action is taken.

Parameters

[in] timeSteps The desired number of time steps.

See also: TimeGeometry::Expand

Reimplemented from mitk::BaseData.

◆ GetChannelData()

virtual ImageDataItemPointer mitk::Image::GetChannelData	(	int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

Get the ImageDataItem for channel n.

Warning: For internal use only. Use ImageReadAccessor or ImageWriteAccessor for safe data access.

Parameters

[in]	n	Channel number (default: 0).
[in]	data	Optional pre-allocated data buffer (default: nullptr).
[in]	importMemoryManagement	Memory management policy (default: CopyMemory).

Returns: Smart pointer to the ImageDataItem, or nullptr if invalid.

◆ GetChannelDescriptor()

ChannelDescriptor mitk::Image::GetChannelDescriptor ( int id = 0 ) const

inline

Get the channel descriptor for channel id.

Parameters

[in] id The channel index (default: 0).

Returns: The ChannelDescriptor for the specified channel.

Definition at line 642 of file mitkImage.h.

◆ GetData() [1/2]

void* mitk::Image::GetData	(	int	t = `0`,
		int	n = `0`
	)

Get a raw pointer to the volume data at t in channel n without locking.

Returns the underlying voxel buffer for direct, unlocked access. No ImageReadAccessor or ImageWriteAccessor is created and the accessor lock list is left untouched. The caller is responsible for ensuring no concurrent SetVolume(), SetSlice(), or Initialize() call runs while the returned pointer is in use.

Use the accessor classes (ImageReadAccessor, ImageWriteAccessor) when lock-based concurrency control is required instead.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: Pointer to the start of the volume buffer, or nullptr if no volume data is available at (t, n).

See also: GetVolumeData, ImageReadAccessor, ImageWriteAccessor

◆ GetData() [2/2]

const void* mitk::Image::GetData	(	int	t = `0`,
		int	n = `0`
	)		const

Get a raw pointer to the volume data at t in channel n without locking.

Returns the underlying voxel buffer for direct, unlocked access. No ImageReadAccessor or ImageWriteAccessor is created and the accessor lock list is left untouched. The caller is responsible for ensuring no concurrent SetVolume(), SetSlice(), or Initialize() call runs while the returned pointer is in use.

Use the accessor classes (ImageReadAccessor, ImageWriteAccessor) when lock-based concurrency control is required instead.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: Pointer to the start of the volume buffer, or nullptr if no volume data is available at (t, n).

See also: GetVolumeData, ImageReadAccessor, ImageWriteAccessor

◆ GetDimension() [1/2]

unsigned int mitk::Image::GetDimension ( ) const

Get the number of dimensions of the image.

Returns: The image dimensionality (e.g., 2, 3, or 4).

Referenced by mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), and mitk::AccessItkImageFunctor< X, VDimension, T1, T2, T3 >::operator()().

◆ GetDimension() [2/2]

unsigned int mitk::Image::GetDimension ( int i ) const

Get the size of dimension i.

For example, i=0 gives the number of pixels in x-direction, i=1 in y-direction, i=2 in z-direction (number of slices), and i=3 the number of time steps.

Parameters

[in] i The dimension index.

Returns: The size of the requested dimension, or 1 if i is out of range.

See also: GetDimensions

◆ GetDimensions()

unsigned int* mitk::Image::GetDimensions ( ) const

Get the sizes of all dimensions as an integer array.

Returns: Pointer to the internal array of dimension sizes.

See also: GetDimension(int)

◆ GetImageDescriptor()

ImageDescriptor::Pointer mitk::Image::GetImageDescriptor ( ) const

inline

Get the image descriptor containing type and dimension information.

Returns: Smart pointer to the ImageDescriptor.

Definition at line 634 of file mitkImage.h.

◆ GetPixelType()

const mitk::PixelType mitk::Image::GetPixelType ( int n = 0 ) const

Returns the PixelType of channel n.

Parameters

[in] n The channel index (default: 0).

Returns: The PixelType describing the voxel data type and number of components.

See also: PixelType

Referenced by mitk::ImagePixelAccessor< TPixel, VDimension >::CheckData(), and mitk::ImagePixelReadAccessor< TPixel, VDimension >::GetConsecutivePixelsAsVector().

◆ GetSliceData()

virtual ImageDataItemPointer mitk::Image::GetSliceData	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

Get the ImageDataItem for slice s at time t in channel n.

Warning: For internal use only. Use ImageReadAccessor or ImageWriteAccessor for safe data access.

Parameters

[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).
[in]	data	Optional pre-allocated data buffer (default: nullptr).
[in]	importMemoryManagement	Memory management policy (default: CopyMemory).

Returns: Smart pointer to the ImageDataItem, or nullptr if invalid.

◆ GetSliceIndex()

int mitk::Image::GetSliceIndex	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

protected

◆ GetStatistics()

StatisticsHolderPointer mitk::Image::GetStatistics ( ) const

inline

Get the ImageStatisticsHolder that provides statistics for this image.

All statistics query methods (min, max, scalar 2nd, etc.) are available through the returned ImageStatisticsHolder object.

Returns: Pointer to the ImageStatisticsHolder.

See also: ImageStatisticsHolder

Definition at line 737 of file mitkImage.h.

◆ GetVolumeData()

virtual ImageDataItemPointer mitk::Image::GetVolumeData	(	int	t = `0`,
		int	n = `0`,
		void *	data = `nullptr`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)		const

virtual

Get the ImageDataItem for the volume at time t in channel n.

Warning: For internal use only. Use ImageReadAccessor or ImageWriteAccessor for safe data access.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).
[in]	data	Optional pre-allocated data buffer (default: nullptr).
[in]	importMemoryManagement	Memory management policy (default: CopyMemory).

Returns: Smart pointer to the ImageDataItem, or nullptr if invalid.

◆ GetVolumeIndex()

int mitk::Image::GetVolumeIndex	(	int	t = `0`,
		int	n = `0`
	)		const

protected

◆ GetVtkImageData() [1/2]

virtual vtkImageData* mitk::Image::GetVtkImageData	(	int	t = `0`,
		int	n = `0`
	)

virtual

Get a volume at a specific time step t of channel n as a vtkImageData.

If the image is not initialized, the method will attempt to trigger an update from the pipeline source.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: Pointer to the vtkImageData, or nullptr if the data is unavailable.

See also: ImageVtkReadAccessor, ImageVtkWriteAccessor

◆ GetVtkImageData() [2/2]

virtual const vtkImageData* mitk::Image::GetVtkImageData	(	int	t = `0`,
		int	n = `0`
	)		const

virtual

Get a volume at a specific time step t of channel n as a vtkImageData.

If the image is not initialized, the method will attempt to trigger an update from the pipeline source.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: Pointer to the vtkImageData, or nullptr if the data is unavailable.

See also: ImageVtkReadAccessor, ImageVtkWriteAccessor

◆ Initialize() [1/8]

void mitk::Image::Initialize ( )

overrideprotected

Warning: Has to be called by every Initialize method!

◆ Initialize() [2/8]

virtual void mitk::Image::Initialize ( const mitk::Image * image )

virtual

Initialize (or re-initialize) image from another mitk::Image.

Only the header information is copied, not the data vector.

Parameters

[in] image The source image whose header to copy.

◆ Initialize() [3/8]

virtual void mitk::Image::Initialize ( const mitk::ImageDescriptor::Pointer inDesc )

virtual

Initialize (or re-initialize) image from an ImageDescriptor.

Parameters

[in] inDesc The image descriptor providing type and dimension information.

◆ Initialize() [4/8]

virtual void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		const mitk::BaseGeometry &	geometry,
		unsigned int	channels = `1`,
		int	tDim = `1`
	)

virtual

Initialize (or re-initialize) image from a BaseGeometry.

Parameters

[in]	type	The pixel type for the image.
[in]	geometry	The spatial geometry to use.
[in]	channels	Number of channels (default: 1).
[in]	tDim	Number of time steps (default: 1).

◆ Initialize() [5/8]

virtual void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		const mitk::TimeGeometry &	geometry,
		unsigned int	channels = `1`,
		int	tDim = `-1`
	)

virtual

Initialize (or re-initialize) image from a TimeGeometry.

Parameters

[in]	type	The pixel type for the image.
[in]	geometry	The time geometry providing spatial and temporal information.
[in]	channels	Number of channels (default: 1).
[in]	tDim	Override the time dimension if the value is > 0 (default: -1, meaning use the number of time steps from the TimeGeometry).

◆ Initialize() [6/8]

virtual void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		int	sDim,
		const mitk::PlaneGeometry &	geometry2d,
		unsigned int	channels = `1`,
		int	tDim = `1`
	)

virtual

Initialize (or re-initialize) image from a PlaneGeometry and number of slices.

The bounding box is initialized according to the width/height of the PlaneGeometry and sDim via SlicedGeometry3D::InitializeEvenlySpaced. The spacing is calculated from the PlaneGeometry.

Parameters

[in]	type	The pixel type for the image.
[in]	sDim	Number of slices.
[in]	geometry2d	The 2D plane geometry.
[in]	channels	Number of channels (default: 1).
[in]	tDim	Number of time steps (default: 1).

See also: SlicedGeometry3D::InitializeEvenlySpaced

◆ Initialize() [7/8]

virtual void mitk::Image::Initialize	(	const mitk::PixelType &	type,
		unsigned int	dimension,
		const unsigned int *	dimensions,
		unsigned int	channels = `1`
	)

virtual

Initialize (or re-initialize) image with pixel type and dimensions.

Creates a plane, evenly spaced geometry starting at origin (0,0,0).

Parameters

[in]	type	The pixel type for the image.
[in]	dimension	The number of dimensions (2, 3, or 4).
[in]	dimensions	Array of sizes for each dimension.
[in]	channels	Number of channels (default: 1).

Warning: Assumes a plane, evenly spaced geometry starting at (0,0,0).

◆ Initialize() [8/8]

virtual void mitk::Image::Initialize	(	vtkImageData *	vtkimagedata,
		int	channels = `1`,
		int	tDim = `-1`,
		int	sDim = `-1`,
		int	pDim = `-1`
	)

virtual

Initialize (or re-initialize) image from a vtkImageData.

Only the header is used, not the data vector. Use SetVolume(vtkimage->GetScalarPointer()) to transfer the pixel data.

Parameters

[in]	vtkimagedata	The VTK image providing header information.
[in]	channels	Number of channels (default: 1).
[in]	tDim	Override time dimension (default: -1, use VTK value).
[in]	sDim	Override z-space dimension (default: -1, use VTK value).
[in]	pDim	Override y-space dimension (default: -1, use VTK value).

◆ InitializeByItk()

template<typename itkImageType >

void mitk::Image::InitializeByItk	(	const itkImageType *	itkimage,
		int	channels = `1`,
		int	tDim = `-1`,
		int	sDim = `-1`
	)

inline

Initialize (or re-initialize) image from a templated ITK image.

Only the header (spacing, origin, direction, dimensions) is used, not the data vector. Use SetVolume(itkimage->GetBufferPointer()) to transfer data.

Template Parameters

itkImageType The ITK image type.

Parameters

[in]	itkimage	The ITK image providing header information.
[in]	channels	Number of channels (default: 1).
[in]	tDim	Override time dimension (default: -1, use ITK value).
[in]	sDim	Override z-space dimension (default: -1, use ITK value).

Definition at line 443 of file mitkImage.h.

References mitk::eps, mitk::FillVector3D(), mitk::BaseGeometry::GetIndexToWorldTransform(), mitk::SlicedGeometry3D::InitializeEvenlySpaced(), MITK_DEBUG, MITK_ERROR, MITK_WARN, mitk::ProportionalTimeGeometry::New(), mitk::BaseGeometry::SetOrigin(), and mitk::BaseGeometry::SetSpacing().

◆ IsChannelSet()

bool mitk::Image::IsChannelSet ( int n = 0 ) const

overridevirtual

Check whether channel n is set.

Parameters

[in] n Channel number (default: 0).

Returns: True if the channel data is available.

Implements mitk::SlicedData.

◆ IsRotated()

bool mitk::Image::IsRotated ( ) const

Check whether the image has a rotated geometry.

Returns true if the geometry's transformation matrix has non-zero off-diagonal elements larger than 1/1000 of the matrix trace.

Returns: True if the image geometry is rotated.

◆ IsSliceSet()

bool mitk::Image::IsSliceSet	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

overridevirtual

Check whether slice s at time t in channel n is set.

Parameters

[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the slice data is available.

Implements mitk::SlicedData.

◆ IsValidChannel()

virtual bool mitk::Image::IsValidChannel ( int n = 0 ) const

virtual

Check whether channel n is valid.

A valid channel has an index within the image bounds.

Parameters

[in] n Channel number (default: 0).

Returns: True if the specified channel is within the image bounds.

◆ IsValidSlice()

virtual bool mitk::Image::IsValidSlice	(	int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)		const

virtual

Check whether slice s at time t in channel n is valid.

A valid slice is one whose indices are within the image bounds.

Parameters

[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the specified slice is within the image bounds.

◆ IsValidTimeStep()

virtual bool mitk::Image::IsValidTimeStep ( int t ) const

protectedvirtual

◆ IsValidVolume()

virtual bool mitk::Image::IsValidVolume	(	int	t = `0`,
		int	n = `0`
	)		const

virtual

Check whether the volume at time t in channel n is valid.

A valid volume has indices within the image bounds.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the specified volume is within the image bounds.

◆ IsVolumeSet()

bool mitk::Image::IsVolumeSet	(	int	t = `0`,
		int	n = `0`
	)		const

overridevirtual

Check whether the volume at time t in channel n is set.

Parameters

[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True if the volume data is available.

Implements mitk::SlicedData.

◆ mitkClassMacro()

mitk::Image::mitkClassMacro	(	Image	,
		SlicedData
	)

◆ mitkCloneMacro()

mitk::Image::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::Image::New ( )

static

Referenced by mitk::CastToMitkImage(), mitk::ImageGenerator::GenerateGradientImage(), mitk::ImageGenerator::GenerateImageFromReference(), mitk::ImageGenerator::GenerateRandomImage(), mitk::PlanarFigureMaskGenerator::PlanarFigureMaskGenerator(), mitk::NonBlockingAlgorithm::SetItkImageAsMITKImagePointerParameter(), and mitk::CLUtil::Transform().

◆ PrintSelf()

void mitk::Image::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ SetChannel()

virtual bool mitk::Image::SetChannel	(	const void *	data,
		int	n = `0`
	)

virtual

Set data as the data for channel n.

The data is copied into an array managed by the Image. If the image should reference external data instead, use SetImportChannel with ImportMemoryManagementType set to ReferenceMemory.

Precondition: The caller must ensure data points to a buffer at least as large as one channel.

Parameters

[in]	data	Pointer to the channel data.
[in]	n	Channel number (default: 0).

Returns: True on success.

See also: SetImportChannel

◆ SetGeometry()

void mitk::Image::SetGeometry ( BaseGeometry * aGeometry3D )

overridevirtual

Set the geometry of the image.

Overrides BaseData::SetGeometry to handle SlicedGeometry3D and PlaneGeometry conversion.

Parameters

[in] aGeometry3D The geometry to set.

Reimplemented from mitk::BaseData.

◆ SetImportChannel()

virtual bool mitk::Image::SetImportChannel	(	void *	data,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data as the data for channel n with configurable memory management.

Precondition: The caller must ensure data points to a buffer at least as large as one channel.

Parameters

[in]	data	Pointer to the channel data.
[in]	n	Channel number (default: 0).
[in]	importMemoryManagement	Specifies how the data buffer is managed (default: CopyMemory).

Returns: True on success.

See also: SetChannel, ImportMemoryManagementType

◆ SetImportSlice()

virtual bool mitk::Image::SetImportSlice	(	void *	data,
		int	s = `0`,
		int	t = `0`,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data as slice s at time t in channel n with configurable memory management.

Precondition: The caller must ensure data points to a buffer at least as large as one slice.

Parameters

[in]	data	Pointer to the slice data.
[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).
[in]	importMemoryManagement	Specifies how the data buffer is managed (default: CopyMemory).

Returns: True on success.

See also: SetSlice, ImportMemoryManagementType

◆ SetImportVolume() [1/2]

virtual bool mitk::Image::SetImportVolume	(	const void *	const_data,
		int	t = `0`,
		int	n = `0`
	)

virtual

Set const_data as volume at time t in channel n (copy-only).

This overload always copies the data (equivalent to CopyMemory).

Parameters

[in]	const_data	Pointer to the const volume data to copy.
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True on success.

◆ SetImportVolume() [2/2]

virtual bool mitk::Image::SetImportVolume	(	void *	data,
		int	t = `0`,
		int	n = `0`,
		ImportMemoryManagementType	importMemoryManagement = `CopyMemory`
	)

virtual

Set data as volume at time t in channel n with configurable memory management.

Precondition: The caller must ensure data points to a buffer at least as large as one volume.

Parameters

[in]	data	Pointer to the volume data.
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).
[in]	importMemoryManagement	Specifies how the data buffer is managed (default: CopyMemory).

Returns: True on success.

See also: SetVolume, ImportMemoryManagementType

◆ SetSlice()

virtual bool mitk::Image::SetSlice	(	const void *	data,
		int	s = `0`,
		int	t = `0`,
		int	n = `0`
	)

virtual

Set data as slice s at time t in channel n.

The data is copied into an array managed by the Image. If the image should reference external data instead, use SetImportSlice with ImportMemoryManagementType set to ReferenceMemory.

Precondition: The caller must ensure data points to a buffer at least as large as one slice.

Parameters

[in]	data	Pointer to the slice data.
[in]	s	Slice index (default: 0).
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True on success.

See also: SetImportSlice, SetVolume

◆ SetVolume()

virtual bool mitk::Image::SetVolume	(	const void *	data,
		int	t = `0`,
		int	n = `0`
	)

virtual

Set data as volume at time t in channel n.

The data is copied into an array managed by the Image. If the image should reference external data instead, use SetImportVolume with ImportMemoryManagementType set to ReferenceMemory.

Precondition: The caller must ensure data points to a buffer at least as large as one volume.

Parameters

[in]	data	Pointer to the volume data.
[in]	t	Time step (default: 0).
[in]	n	Channel number (default: 0).

Returns: True on success.

See also: SetImportVolume, SetSlice

Definition at line 781 of file mitkImage.h.

The documentation for this class was generated from the following file:

mitkImage.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ HistogramType

◆ ImageDataItemPointer

◆ ImageDataItemPointerArray

◆ MutexHolder

◆ StatisticsHolderPointer

Member Enumeration Documentation

◆ ImportMemoryManagementType

Constructor & Destructor Documentation

◆ Image() [1/2]

◆ Image() [2/2]

◆ ~Image()

Member Function Documentation

◆ AllocateChannelData()

◆ AllocateSliceData()

◆ AllocateVolumeData()

◆ AllocateZeroedVolume()

◆ Clear()

◆ Clone()

◆ ComputeOffsetTable()

◆ Expand()

◆ GetChannelData()

◆ GetChannelDescriptor()

◆ GetData() [1/2]

◆ GetData() [2/2]

◆ GetDimension() [1/2]

◆ GetDimension() [2/2]

◆ GetDimensions()

◆ GetImageDescriptor()

◆ GetPixelType()

◆ GetSliceData()

◆ GetSliceIndex()

◆ GetStatistics()

◆ GetVolumeData()

◆ GetVolumeIndex()

◆ GetVtkImageData() [1/2]

◆ GetVtkImageData() [2/2]

◆ Initialize() [1/8]

◆ Initialize() [2/8]

◆ Initialize() [3/8]

◆ Initialize() [4/8]

◆ Initialize() [5/8]

◆ Initialize() [6/8]

◆ Initialize() [7/8]

◆ Initialize() [8/8]

◆ InitializeByItk()

◆ IsChannelSet()

◆ IsRotated()

◆ IsSliceSet()

◆ IsValidChannel()

◆ IsValidSlice()

◆ IsValidTimeStep()

◆ IsValidVolume()

◆ IsVolumeSet()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ PrintSelf()

◆ SetChannel()

◆ SetGeometry()

◆ SetImportChannel()

◆ SetImportSlice()

◆ SetImportVolume() [1/2]

◆ SetImportVolume() [2/2]

◆ SetSlice()

◆ SetVolume()

Member Data Documentation

◆ m_Channels

◆ m_CompleteData

◆ m_Dimension

◆ m_Dimensions

◆ m_ImageDataArraysLock

◆ m_ImageDescriptor
