Class holding the statistics information about a single mitk::Image. More...

#include <mitkImageStatisticsHolder.h>

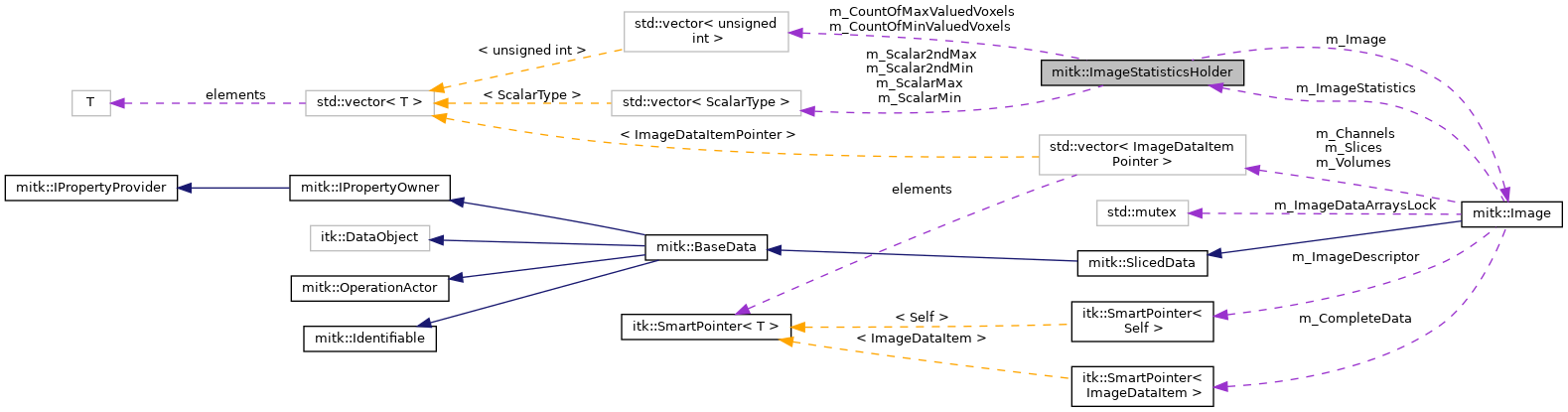

Collaboration diagram for mitk::ImageStatisticsHolder:

[legend]

Public Types
typedef itk::Statistics::Histogram< double >	HistogramType

Public Member Functions
	ImageStatisticsHolder (mitk::Image *image)
	Constructor. More...

virtual	~ImageStatisticsHolder ()
	Destructor. More...

virtual const HistogramType *	GetScalarHistogram (int t=0, unsigned int=0)
	Get the scalar histogram for the specified time step. More...

virtual ScalarType	GetScalarValueMin (int t=0, unsigned int component=0)
	Get the minimum scalar value. Recomputation performed only when necessary. More...

virtual ScalarType	GetScalarValueMax (int t=0, unsigned int component=0)
	Get the maximum scalar value. Recomputation performed only when necessary. More...

virtual ScalarType	GetScalarValue2ndMin (int t=0, unsigned int component=0)
	Get the second smallest scalar value. Recomputation performed only when necessary. More...

virtual mitk::ScalarType	GetScalarValueMinNoRecompute (unsigned int t=0) const
	Get the smallest scalar value without triggering recomputation. More...

virtual mitk::ScalarType	GetScalarValue2ndMinNoRecompute (unsigned int t=0) const
	Get the second smallest scalar value without triggering recomputation. More...

virtual ScalarType	GetScalarValue2ndMax (int t=0, unsigned int component=0)
	Get the second largest scalar value. Recomputation performed only when necessary. More...

virtual mitk::ScalarType	GetScalarValueMaxNoRecompute (unsigned int t=0)
	Get the largest scalar value without triggering recomputation. More...

virtual mitk::ScalarType	GetScalarValue2ndMaxNoRecompute (unsigned int t=0)
	Get the second largest scalar value without triggering recomputation. More...

mitk::ScalarType	GetCountOfMinValuedVoxels (int t=0, unsigned int component=0)
	Get the count of voxels with the smallest scalar value. Recomputation performed only when necessary. More...

mitk::ScalarType	GetCountOfMaxValuedVoxels (int t=0, unsigned int component=0)
	Get the count of voxels with the largest scalar value. Recomputation performed only when necessary. More...

virtual unsigned int	GetCountOfMaxValuedVoxelsNoRecompute (unsigned int t=0)
	Get the count of voxels with the largest scalar value without triggering recomputation. More...

virtual unsigned int	GetCountOfMinValuedVoxelsNoRecompute (unsigned int t=0) const
	Get the count of voxels with the smallest scalar value without triggering recomputation. More...

bool	IsValidTimeStep (int t) const
	Check whether the given time step is valid for the associated image. More...

Protected Member Functions
virtual void	ResetImageStatistics ()
	Reset all cached statistics values to their initial state. More...

virtual void	ComputeImageStatistics (int t=0, unsigned int component=0)
	Compute image statistics for the specified time step and component. More...

virtual void	Expand (unsigned int timeSteps)
	Expand internal statistics storage to accommodate the given number of time steps. More...

ImageTimeSelector::Pointer	GetTimeSelector ()
	Get an ImageTimeSelector configured with the associated image as input. More...

Protected Attributes
mitk::Image *	m_Image

itk::Object::Pointer	m_HistogramGeneratorObject

itk::Object::Pointer	m_TimeSelectorForExtremaObject

std::vector< unsigned int >	m_CountOfMinValuedVoxels

std::vector< unsigned int >	m_CountOfMaxValuedVoxels

std::vector< ScalarType >	m_ScalarMin

std::vector< ScalarType >	m_ScalarMax

std::vector< ScalarType >	m_Scalar2ndMin

std::vector< ScalarType >	m_Scalar2ndMax

itk::TimeStamp	m_LastRecomputeTimeStamp

Detailed Description

Class holding the statistics information about a single mitk::Image.

This computation was previously directly included in the definition and implementation of the mitk::Image class but for having a clear interface, all statistics computation is moved to the ImageStatisticsHolder class.

Each mitk::Image holds a normal pointer to its StatisticsHolder object. To get access to the methods, use the GetStatistics() method in mitk::Image class.

Minimum or maximum might be infinite values. 2nd minimum and maximum are guaranteed to be finite values.

See also: Image; Image::GetStatistics()

Definition at line 39 of file mitkImageStatisticsHolder.h.

Member Typedef Documentation

◆ HistogramType

typedef itk::Statistics::Histogram<double> mitk::ImageStatisticsHolder::HistogramType

Definition at line 52 of file mitkImageStatisticsHolder.h.

Constructor & Destructor Documentation

◆ ImageStatisticsHolder()

mitk::ImageStatisticsHolder::ImageStatisticsHolder ( mitk::Image * image )

Constructor.

Parameters

image The image whose statistics this holder manages.

◆ ~ImageStatisticsHolder()

virtual mitk::ImageStatisticsHolder::~ImageStatisticsHolder ( )

virtual

Destructor.

Member Function Documentation

◆ ComputeImageStatistics()

virtual void mitk::ImageStatisticsHolder::ComputeImageStatistics	(	int	t = `0`,
		unsigned int	component = `0`
	)

protectedvirtual

Compute image statistics for the specified time step and component.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

◆ Expand()

virtual void mitk::ImageStatisticsHolder::Expand ( unsigned int timeSteps )

protectedvirtual

Expand internal statistics storage to accommodate the given number of time steps.

Parameters

timeSteps The number of time steps to support.

◆ GetCountOfMaxValuedVoxels()

mitk::ScalarType mitk::ImageStatisticsHolder::GetCountOfMaxValuedVoxels	(	int	t = `0`,
		unsigned int	component = `0`
	)

Get the count of voxels with the largest scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The number of voxels having the maximum scalar value.

◆ GetCountOfMaxValuedVoxelsNoRecompute()

virtual unsigned int mitk::ImageStatisticsHolder::GetCountOfMaxValuedVoxelsNoRecompute ( unsigned int t = 0 )

inlinevirtual

Get the count of voxels with the largest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached count, or 0 if unavailable.

Definition at line 182 of file mitkImageStatisticsHolder.h.

◆ GetCountOfMinValuedVoxels()

mitk::ScalarType mitk::ImageStatisticsHolder::GetCountOfMinValuedVoxels	(	int	t = `0`,
		unsigned int	component = `0`
	)

Get the count of voxels with the smallest scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The number of voxels having the minimum scalar value.

◆ GetCountOfMinValuedVoxelsNoRecompute()

virtual unsigned int mitk::ImageStatisticsHolder::GetCountOfMinValuedVoxelsNoRecompute ( unsigned int t = 0 ) const

inlinevirtual

Get the count of voxels with the smallest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached count, or 0 if unavailable.

Definition at line 196 of file mitkImageStatisticsHolder.h.

◆ GetScalarHistogram()

virtual const HistogramType* mitk::ImageStatisticsHolder::GetScalarHistogram	(	int	t = `0`,
		unsigned int	= `0`
	)

virtual

Get the scalar histogram for the specified time step.

Parameters

t	The time step. Defaults to 0.

Returns: Pointer to the histogram, or nullptr if unavailable.

◆ GetScalarValue2ndMax()

virtual ScalarType mitk::ImageStatisticsHolder::GetScalarValue2ndMax	(	int	t = `0`,
		unsigned int	component = `0`
	)

virtual

Get the second largest scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The second largest scalar value at the given time step.

Postcondition: The returned value is always a finite value.

◆ GetScalarValue2ndMaxNoRecompute()

virtual mitk::ScalarType mitk::ImageStatisticsHolder::GetScalarValue2ndMaxNoRecompute ( unsigned int t = 0 )

inlinevirtual

Get the second largest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached second maximum scalar value, or NonpositiveMin if unavailable.

Definition at line 150 of file mitkImageStatisticsHolder.h.

◆ GetScalarValue2ndMin()

virtual ScalarType mitk::ImageStatisticsHolder::GetScalarValue2ndMin	(	int	t = `0`,
		unsigned int	component = `0`
	)

virtual

Get the second smallest scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The second smallest scalar value at the given time step.

Postcondition: The returned value is always a finite value.

◆ GetScalarValue2ndMinNoRecompute()

virtual mitk::ScalarType mitk::ImageStatisticsHolder::GetScalarValue2ndMinNoRecompute ( unsigned int t = 0 ) const

inlinevirtual

Get the second smallest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached second minimum scalar value, or max numeric limit if unavailable.

Postcondition: The returned value is always a finite value.

Definition at line 111 of file mitkImageStatisticsHolder.h.

◆ GetScalarValueMax()

virtual ScalarType mitk::ImageStatisticsHolder::GetScalarValueMax	(	int	t = `0`,
		unsigned int	component = `0`
	)

virtual

Get the maximum scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The maximum scalar value at the given time step.

◆ GetScalarValueMaxNoRecompute()

virtual mitk::ScalarType mitk::ImageStatisticsHolder::GetScalarValueMaxNoRecompute ( unsigned int t = 0 )

inlinevirtual

Get the largest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached maximum scalar value, or NonpositiveMin if unavailable.

Postcondition: The returned value is always a finite value.

Definition at line 136 of file mitkImageStatisticsHolder.h.

◆ GetScalarValueMin()

virtual ScalarType mitk::ImageStatisticsHolder::GetScalarValueMin	(	int	t = `0`,
		unsigned int	component = `0`
	)

virtual

Get the minimum scalar value. Recomputation performed only when necessary.

Parameters

t	The time step. Defaults to 0.
component	The component index for vector images. Defaults to 0.

Returns: The minimum scalar value at the given time step.

◆ GetScalarValueMinNoRecompute()

virtual mitk::ScalarType mitk::ImageStatisticsHolder::GetScalarValueMinNoRecompute ( unsigned int t = 0 ) const

inlinevirtual

Get the smallest scalar value without triggering recomputation.

Parameters

t	The time step. Defaults to 0.

Returns: The cached minimum scalar value, or max numeric limit if unavailable.

Definition at line 96 of file mitkImageStatisticsHolder.h.

◆ GetTimeSelector()

ImageTimeSelector::Pointer mitk::ImageStatisticsHolder::GetTimeSelector ( )

protected

Get an ImageTimeSelector configured with the associated image as input.

Returns: A new ImageTimeSelector instance.

◆ IsValidTimeStep()

bool mitk::ImageStatisticsHolder::IsValidTimeStep ( int t ) const

Check whether the given time step is valid for the associated image.

Parameters

t	The time step to check.

Returns: True if the time step is valid.

◆ ResetImageStatistics()

virtual void mitk::ImageStatisticsHolder::ResetImageStatistics ( )

protectedvirtual

Reset all cached statistics values to their initial state.

Member Data Documentation

◆ m_CountOfMaxValuedVoxels

std::vector<unsigned int> mitk::ImageStatisticsHolder::m_CountOfMaxValuedVoxels

mutableprotected

Definition at line 255 of file mitkImageStatisticsHolder.h.

◆ m_CountOfMinValuedVoxels

std::vector<unsigned int> mitk::ImageStatisticsHolder::m_CountOfMinValuedVoxels

mutableprotected

Definition at line 254 of file mitkImageStatisticsHolder.h.

◆ m_HistogramGeneratorObject

itk::Object::Pointer mitk::ImageStatisticsHolder::m_HistogramGeneratorObject

mutableprotected

Definition at line 251 of file mitkImageStatisticsHolder.h.

◆ m_Image

mitk::Image* mitk::ImageStatisticsHolder::m_Image

protected

Definition at line 249 of file mitkImageStatisticsHolder.h.

◆ m_LastRecomputeTimeStamp

itk::TimeStamp mitk::ImageStatisticsHolder::m_LastRecomputeTimeStamp

protected

Definition at line 261 of file mitkImageStatisticsHolder.h.

◆ m_Scalar2ndMax

std::vector<ScalarType> mitk::ImageStatisticsHolder::m_Scalar2ndMax

mutableprotected

Definition at line 259 of file mitkImageStatisticsHolder.h.

◆ m_Scalar2ndMin

std::vector<ScalarType> mitk::ImageStatisticsHolder::m_Scalar2ndMin

mutableprotected

Definition at line 258 of file mitkImageStatisticsHolder.h.

◆ m_ScalarMax

std::vector<ScalarType> mitk::ImageStatisticsHolder::m_ScalarMax

mutableprotected

Definition at line 257 of file mitkImageStatisticsHolder.h.

◆ m_ScalarMin

std::vector<ScalarType> mitk::ImageStatisticsHolder::m_ScalarMin

mutableprotected

Definition at line 256 of file mitkImageStatisticsHolder.h.

◆ m_TimeSelectorForExtremaObject

itk::Object::Pointer mitk::ImageStatisticsHolder::m_TimeSelectorForExtremaObject

mutableprotected

Definition at line 253 of file mitkImageStatisticsHolder.h.

The documentation for this class was generated from the following file:

mitkImageStatisticsHolder.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ HistogramType

Constructor & Destructor Documentation

◆ ImageStatisticsHolder()

◆ ~ImageStatisticsHolder()

Member Function Documentation

◆ ComputeImageStatistics()

◆ Expand()

◆ GetCountOfMaxValuedVoxels()

◆ GetCountOfMaxValuedVoxelsNoRecompute()

◆ GetCountOfMinValuedVoxels()

◆ GetCountOfMinValuedVoxelsNoRecompute()

◆ GetScalarHistogram()

◆ GetScalarValue2ndMax()

◆ GetScalarValue2ndMaxNoRecompute()

◆ GetScalarValue2ndMin()

◆ GetScalarValue2ndMinNoRecompute()

◆ GetScalarValueMax()

◆ GetScalarValueMaxNoRecompute()

◆ GetScalarValueMin()

◆ GetScalarValueMinNoRecompute()

◆ GetTimeSelector()

◆ IsValidTimeStep()

◆ ResetImageStatistics()

Member Data Documentation

◆ m_CountOfMaxValuedVoxels

◆ m_CountOfMinValuedVoxels

◆ m_HistogramGeneratorObject

◆ m_Image

◆ m_LastRecomputeTimeStamp

◆ m_Scalar2ndMax

◆ m_Scalar2ndMin

◆ m_ScalarMax

◆ m_ScalarMin

◆ m_TimeSelectorForExtremaObject
