Core

This category includes classes of the MITK Core module. More...

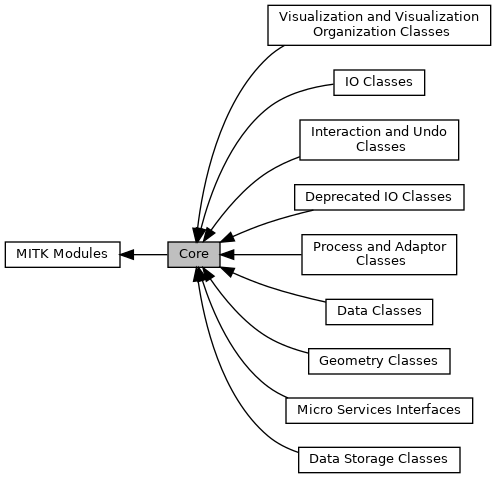

Collaboration diagram for Core:

Modules
	Geometry Classes
	This subcategory includes the geometry classes, which describe the geometry of the data in space and time.
	Micro Services Interfaces
	Classes (interfaces) in this category are explicitly designed for usage with the MITK Micro Services.
	Data Classes
	This subcategory includes the data classes, e.g., for images (mitk::Image), surfaces (mitk::Surface), vessel-trees (mitk::VesselTreeData), etc.
	IO Classes
	This subcategory includes the IO classes to read or write data objects.
	Data Storage Classes
	This subcategory includes the classes to store and retrieve objects from the mitk::DataStorage.
	Process and Adaptor Classes
	This category includes process (algorithm) classes developed specifically for mitk and (mainly) adaptor classes for the integration of algorithms from other toolkits (currently vtk, itk).
	Interaction and Undo Classes
	This category includes classes that support the developer to create software that allows the user to interact with the data.
	Visualization and Visualization Organization Classes
	This category includes renderwindows (currently one for OpenGL), renderers (currently only one, for OpenGL-based renderwindows), mappers and classes for navigating in the data.

Files
file	mitkFileSystem.h
	Portability header that provides a unified namespace alias for the C++ filesystem library.
file	mitkLexicalCast.h
	Provides a robust lexical cast from strings to numeric types with a fallback for edge-case values.
file	mitkLogBackend.h
	Declares the MITK-specific log backend with file logging, rolling log files, and integration with the ITK output window.
file	mitkPixelTypeList.h
	Compile-time type list infrastructure for pixel type dispatching in MITK.
file	mitkPixelTypeMultiplex.h
	Preprocessor macros that dispatch a templated function call based on an image's pixel component type at run time.
file	mitkPixelTypeTraits.h
	Compile-time type traits for resolving pixel component types, composite pixel types, and ITK image types from MITK pixel type information.
file	mitkPPArgCount.h
	Preprocessor utility macros for counting the number of variadic macro arguments at compile time.
file	mitkQuaternion.h
	Defines the mitk::Quaternion type alias for quaternion-based rotation representation.
file	mitkServiceInterface.h
	Provides the MITK_DECLARE_SERVICE_INTERFACE macro for registering C++ interfaces with both the CppMicroServices framework and (optionally) the Qt plugin system.

Classes
class	mitk::AnatomicalStructureColorPresets
	Provides anatomical structure color presets loaded from XML. More...
class	mitk::CoreServices
	Provides convenient static access to common MITK core service objects. More...
class	mitk::CoreServicePointer< S >
	RAII wrapper for core service objects. More...
class	mitk::Exception
	Base class for all MITK exceptions. More...
class	mitk::Identifiable
	Base class of identifiable objects. More...
class	mitk::UIDGenerator
	Generates unique identifier strings. More...
class	mitk::WeakPointer< T >
	A weak pointer that observes an itk::Object without preventing its deletion. More...

Enumerations
enum class	mitk::AntiAliasing : int { mitk::None , mitk::FastApproximate }
	Anti-aliasing methods for rendering. More...

Detailed Description

This category includes classes of the MITK Core module.

The MITK Core module contains abstractions for common data types and their geometries, I/O facilities for loading and saving data in various formats, infrastructures for handling user interaction and undo/redo operations, GUI toolkit independent visualization classes, and a generic service registry.

In almost all cases, additional MITK modules will make use of classes contained in the Core module.

Enumeration Type Documentation

AntiAliasing

enum mitk::AntiAliasing : int

strong

Anti-aliasing methods for rendering.

Enumerator
None	No anti-aliasing.
FastApproximate	Fast approximate anti-aliasing (FXAA).

Definition at line 21 of file mitkAntiAliasing.h.
