Data class for storing polygonal surfaces (vtkPolyData). More...

#include <mitkSurface.h>

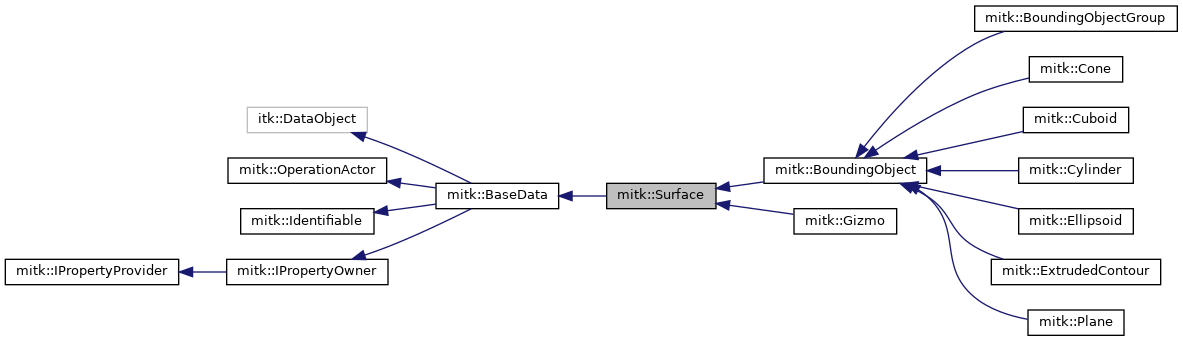

Inheritance diagram for mitk::Surface:

[legend]

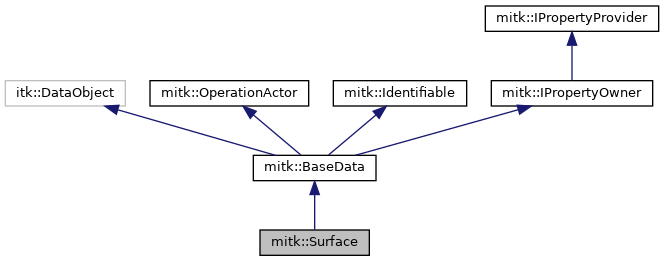

Collaboration diagram for mitk::Surface:

[legend]

Public Types
typedef itk::ImageRegion< 5 >	RegionType
	Region type used for pipeline region negotiation (5-dimensional). More...

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (Surface, BaseData)

Pointer	Clone () const

void	CalculateBoundingBox ()
	Compute the bounding box from all vtkPolyData objects across time steps. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information (geometry, region) from another data object. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this surface (e.g., OpSURFACECHANGED). More...

void	Expand (unsigned int timeSteps=1) override
	Expand the data to the given number of time steps. More...

const RegionType &	GetLargestPossibleRegion () const
	Get the largest possible region. More...

virtual const RegionType &	GetRequestedRegion () const
	Get the requested region. More...

unsigned int	GetSizeOfPolyDataSeries () const
	Get the number of vtkPolyData objects in the time series. More...

virtual vtkPolyData *	GetVtkPolyData (unsigned int t=0) const
	Get the vtkPolyData at time step t. More...

void	Graft (const DataObject *data) override
	Graft data and information from another data object. More...

bool	IsEmptyTimeStep (unsigned int t) const override
	Check whether time step t is empty (has no vtkPolyData). More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Print the surface information to the output stream. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Determine whether the requested region is outside the buffered region. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region to match another data object's requested region. More...

virtual void	SetRequestedRegion (Surface::RegionType *region)
	Set the requested region from a RegionType pointer. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region. More...

virtual void	SetVtkPolyData (vtkPolyData *polydata, unsigned int t=0)
	Set the vtkPolyData for time step t. More...

virtual void	Swap (Surface &other)
	Swap the contents of this surface with another surface. More...

void	Update () override
	Trigger an update of all vtkPolyData objects in the pipeline. More...

void	UpdateOutputInformation () override
	Update the output information (bounding box, geometry). More...

bool	VerifyRequestedRegion () override
	Verify that the requested region is within the largest possible region. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	mitkCloneMacro (Self)

	Surface ()

	~Surface () override

	Surface (const Surface &other)

Surface &	operator= (Surface other)

void	ClearData () override
	reset to non-initialized state, release memory More...

void	InitializeEmpty () override
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Additional Inherited Members
Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Data class for storing polygonal surfaces (vtkPolyData).

Surface wraps a time series of vtkPolyData objects, providing one vtkPolyData per time step. It integrates into the MITK pipeline by implementing the region-based pipeline methods from BaseData and supports undo/redo via ExecuteOperation.

See also: mitk::BaseData, vtkPolyData; mitk::SurfaceOperation

Definition at line 36 of file mitkSurface.h.

Member Typedef Documentation

◆ RegionType

typedef itk::ImageRegion<5> mitk::Surface::RegionType

Region type used for pipeline region negotiation (5-dimensional).

Definition at line 40 of file mitkSurface.h.

Constructor & Destructor Documentation

◆ Surface() [1/2]

mitk::Surface::Surface ( )

protected

◆ ~Surface()

mitk::Surface::~Surface ( )

overrideprotected

◆ Surface() [2/2]

mitk::Surface::Surface ( const Surface & other )

protected

Member Function Documentation

◆ CalculateBoundingBox()

void mitk::Surface::CalculateBoundingBox ( )

Compute the bounding box from all vtkPolyData objects across time steps.

Updates the geometry bounds for each time step based on the vtkPolyData content.

◆ ClearData()

void mitk::Surface::ClearData ( )

overrideprotectedvirtual

reset to non-initialized state, release memory

Reimplemented from mitk::BaseData.

◆ Clone()

Pointer mitk::Surface::Clone ( ) const

◆ CopyInformation()

void mitk::Surface::CopyInformation ( const itk::DataObject * data )

override

Copy information (geometry, region) from another data object.

Parameters

[in] data The data object to copy from. Must be castable to Surface.

Exceptions

mitk::Exception if data cannot be cast to Surface.

◆ ExecuteOperation()

void mitk::Surface::ExecuteOperation ( Operation * operation )

overridevirtual

Execute an operation on this surface (e.g., OpSURFACECHANGED).

Parameters

[in] operation The operation to execute. If the operation type is OpSURFACECHANGED, the contained vtkPolyData replaces the existing data at the specified time step.

See also: mitk::SurfaceOperation

Reimplemented from mitk::BaseData.

◆ Expand()

void mitk::Surface::Expand ( unsigned int timeSteps = 1 )

overridevirtual

Expand the data to the given number of time steps.

Resizes the internal vtkPolyData vector and the TimeGeometry. Does nothing if the current size already equals or exceeds timeSteps.

Parameters

[in] timeSteps The desired number of time steps (default: 1).

Reimplemented from mitk::BaseData.

◆ GetLargestPossibleRegion()

const RegionType& mitk::Surface::GetLargestPossibleRegion ( ) const

Get the largest possible region.

Returns: Const reference to the largest possible region. The time dimension is set to the number of time steps.

◆ GetRequestedRegion()

virtual const RegionType& mitk::Surface::GetRequestedRegion ( ) const

virtual

Get the requested region.

Returns: Const reference to the currently requested region.

◆ GetSizeOfPolyDataSeries()

unsigned int mitk::Surface::GetSizeOfPolyDataSeries ( ) const

Get the number of vtkPolyData objects in the time series.

Returns: The number of time steps stored.

◆ GetVtkPolyData()

virtual vtkPolyData* mitk::Surface::GetVtkPolyData ( unsigned int t = 0 ) const

virtual

Get the vtkPolyData at time step t.

If the data is not available but a source exists, the pipeline is updated to produce the requested time step.

Parameters

[in] t Time step (default: 0).

Returns: Pointer to the vtkPolyData, or nullptr if not available.

◆ Graft()

void mitk::Surface::Graft ( const DataObject * data )

override

Graft data and information from another data object.

Deep-copies all vtkPolyData objects from the source surface.

Parameters

[in] data The data object to graft from. Must be castable to Surface.

Exceptions

mitk::Exception if data cannot be cast to Surface.

◆ InitializeEmpty()

void mitk::Surface::InitializeEmpty ( )

overrideprotectedvirtual

Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry.

Reimplemented from mitk::BaseData.

◆ IsEmptyTimeStep()

bool mitk::Surface::IsEmptyTimeStep ( unsigned int t ) const

overridevirtual

Check whether time step t is empty (has no vtkPolyData).

Parameters

[in] t The time step to check.

Returns: True if the vtkPolyData at time step t is nullptr.

Reimplemented from mitk::BaseData.

◆ mitkClassMacro()

mitk::Surface::mitkClassMacro	(	Surface	,
		BaseData
	)

◆ mitkCloneMacro()

mitk::Surface::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::Surface::New ( )

static

◆ operator=()

Surface& mitk::Surface::operator= ( Surface other )

protected

◆ PrintSelf()

void mitk::Surface::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

override

Print the surface information to the output stream.

Parameters

[in,out]	os	The output stream.
[in]	indent	The indentation level.

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::Surface::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Determine whether the requested region is outside the buffered region.

Returns: True if any requested time step has no vtkPolyData.

Implements mitk::BaseData.

◆ SetRequestedRegion() [1/2]

void mitk::Surface::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Set the requested region to match another data object's requested region.

Parameters

[in] data The data object whose region to match. Must be castable to Surface.

Exceptions

mitk::Exception if data cannot be cast to Surface.

Implements mitk::BaseData.

◆ SetRequestedRegion() [2/2]

virtual void mitk::Surface::SetRequestedRegion ( Surface::RegionType * region )

virtual

Set the requested region from a RegionType pointer.

Parameters

[in] region Pointer to the region. Must not be nullptr.

Exceptions

mitk::Exception if region is nullptr.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::Surface::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Set the requested region to the largest possible region.

Implements mitk::BaseData.

◆ SetVtkPolyData()

virtual void mitk::Surface::SetVtkPolyData	(	vtkPolyData *	polydata,
		unsigned int	t = `0`
	)

virtual

Set the vtkPolyData for time step t.

The surface takes a reference to the provided polydata. If the same polydata object is already set at the given time step, no action is taken.

Parameters

[in]	polydata	The vtkPolyData to set.
[in]	t	Time step (default: 0). The surface is expanded if necessary.

◆ Swap()

virtual void mitk::Surface::Swap ( Surface & other )

virtual

Swap the contents of this surface with another surface.

Parameters

[in,out] other The surface to swap with.

◆ Update()

void mitk::Surface::Update ( )

override

Trigger an update of all vtkPolyData objects in the pipeline.

◆ UpdateOutputInformation()

void mitk::Surface::UpdateOutputInformation ( )

override

Update the output information (bounding box, geometry).

◆ VerifyRequestedRegion()

bool mitk::Surface::VerifyRequestedRegion ( )

overridevirtual

Verify that the requested region is within the largest possible region.

Returns: True if the requested region is valid.

Implements mitk::BaseData.

Reimplemented in mitk::BoundingObjectGroup.

The documentation for this class was generated from the following file:

mitkSurface.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ RegionType

Constructor & Destructor Documentation

◆ Surface() [1/2]

◆ ~Surface()

◆ Surface() [2/2]

Member Function Documentation

◆ CalculateBoundingBox()

◆ ClearData()

◆ Clone()

◆ CopyInformation()

◆ ExecuteOperation()

◆ Expand()

◆ GetLargestPossibleRegion()

◆ GetRequestedRegion()

◆ GetSizeOfPolyDataSeries()

◆ GetVtkPolyData()

◆ Graft()

◆ InitializeEmpty()

◆ IsEmptyTimeStep()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ operator=()

◆ PrintSelf()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetRequestedRegion() [1/2]

◆ SetRequestedRegion() [2/2]

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetVtkPolyData()

◆ Swap()

◆ Update()

◆ UpdateOutputInformation()

◆ VerifyRequestedRegion()
