Abstract data management class that organizes DataNode objects in a directed acyclic graph. More...

#include <mitkDataStorage.h>

Inheritance diagram for mitk::DataStorage:

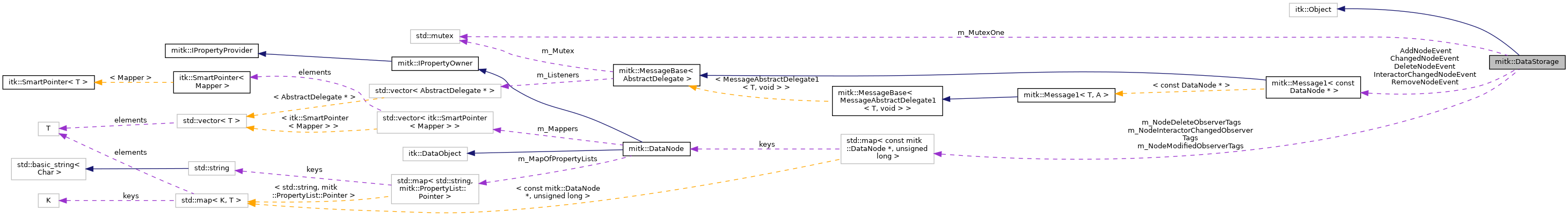

Collaboration diagram for mitk::DataStorage:

[legend]

Public Types
typedef itk::VectorContainer< unsigned int, DataNode::Pointer >	SetOfObjects
	Container type used as a result set of query operations such as GetSubset(). More...

typedef itk::VectorContainer< unsigned int, DataNode::ConstPointer >	ConstSetOfObjects
	Container type for const node pointers, used for input parameters where nodes are read-only. More...

typedef Message1< const DataNode * >	DataStorageEvent
	Event type used for all DataStorage notifications, carrying a const DataNode pointer. More...

Public Member Functions
	mitkClassMacroItkParent (DataStorage, itk::Object)

virtual void	Add (DataNode node, const DataStorage::SetOfObjects parents=nullptr)=0
	Add a DataNode to the storage, optionally with parent (source) nodes. More...

void	Add (DataNode node, DataNode parent)
	Convenience method to add a node with a single parent. More...

void	Add (DataNode node, const ConstSetOfObjects parents)
	Convenience overload for callers that hold only const node pointers for the parents. More...

virtual void	Remove (const DataNode *node)=0
	Remove a single node from the DataStorage. More...

virtual bool	Exists (const DataNode *node) const =0
	Check whether a node exists in the DataStorage. More...

void	Remove (const DataStorage::SetOfObjects *nodes)
	Remove a set of nodes from the DataStorage. More...

void	Remove (const ConstSetOfObjects *nodes)
	Remove a set of const-pointer nodes from the DataStorage. More...

SetOfObjects::ConstPointer	GetSubset (const NodePredicateBase *condition) const
	Return all nodes that satisfy the given predicate condition. More...

virtual SetOfObjects::ConstPointer	GetSources (const DataNode node, const NodePredicateBase condition=nullptr, bool onlyDirectSources=true) const =0
	Return the source (parent) nodes of a given node. More...

virtual SetOfObjects::ConstPointer	GetDerivations (const DataNode node, const NodePredicateBase condition=nullptr, bool onlyDirectDerivations=true) const =0
	Return the derived (child) nodes of a given node. More...

virtual SetOfObjects::ConstPointer	GetAll () const =0
	Return all nodes managed by this DataStorage. More...

DataNode *	GetNode (const NodePredicateBase *condition=nullptr) const
	Convenience method to get the first node that matches the predicate condition. More...

DataNode *	GetNamedNode (const char *name) const
	Convenience method to get the first node with a given name. More...

DataNode *	GetNamedNode (const std::string &name) const
	Convenience method to get the first node with a given name (std::string overload). More...

DataNode *	GetNamedDerivedNode (const char name, const DataNode sourceNode, bool onlyDirectDerivations=true) const
	Convenience method to get the first node with a given name that is derived from a source node. More...

template<class DataType >
DataType *	GetNamedObject (const char *name) const
	Convenience method to get the first data object of a given type with a given name. More...

template<class DataType >
DataType *	GetNamedObject (const std::string &name) const
	Convenience method to get the first data object of a given type with a given name (std::string overload). More...

template<class DataType >
DataType *	GetNamedDerivedObject (const char name, const DataNode sourceNode, bool onlyDirectDerivations=true) const
	Convenience method to get the first data object of a given type with a given name, derived from a source node. More...

std::string	GetUniqueName (const std::string &name, const DataNode *sourceNode=nullptr, bool onlyDirectDerivations=true) const
	Generate a unique node name by appending an incrementing number if necessary. More...

const DataNode::GroupTagList	GetGroupTags () const
	Return all group tags used across all nodes in the DataStorage. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const SetOfObjects input, const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry encompassing the given set of nodes. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const ConstSetOfObjects input, const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry for a set of const node pointers. More...

TimeGeometry::ConstPointer	ComputeBoundingGeometry3D (const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char *boolPropertyKey2=nullptr) const
	Compute the axis-parallel bounding geometry of all nodes in the DataStorage. More...

TimeGeometry::ConstPointer	ComputeVisibleBoundingGeometry3D (const BaseRenderer renderer=nullptr, const char boolPropertyKey=nullptr)
	Compute the axis-parallel bounding geometry of all visible nodes. More...

BoundingBox::Pointer	ComputeBoundingBox (const char boolPropertyKey=nullptr, const BaseRenderer renderer=nullptr, const char *boolPropertyKey2=nullptr)
	Compute the axis-parallel bounding box of all nodes in the DataStorage. More...

BoundingBox::Pointer	ComputeVisibleBoundingBox (const BaseRenderer renderer=nullptr, const char boolPropertyKey=nullptr)
	Compute the bounding box of all visible nodes. More...

TimeBounds	ComputeTimeBounds (const char boolPropertyKey, const BaseRenderer renderer, const char *boolPropertyKey2)
	Compute the time bounds of all nodes in the DataStorage. More...

TimeBounds	ComputeTimeBounds (const BaseRenderer renderer, const char boolPropertyKey)
	Compute the time bounds of all visible nodes. More...

void	BlockNodeModifiedEvents (bool block)
	Enable or disable suppression of ChangedNodeEvent emission. More...

Public Attributes
std::mutex	m_MutexOne
	Mutex for thread-safe operations on the DataStorage. More...

DataStorageEvent	AddNodeEvent
	Event emitted after a new node has been added to the DataStorage. More...

DataStorageEvent	RemoveNodeEvent
	Event emitted directly before a node is removed from the DataStorage. More...

DataStorageEvent	ChangedNodeEvent
	Event emitted after a managed node has been modified. More...

DataStorageEvent	DeleteNodeEvent
	Event emitted directly before a managed node is deleted. More...

DataStorageEvent	InteractorChangedNodeEvent
	Event emitted when the DataInteractor of a managed node changes. More...

Protected Member Functions
void	EmitAddNodeEvent (const DataNode *node)
	EmitAddNodeEvent emits the AddNodeEvent. More...

void	EmitRemoveNodeEvent (const DataNode *node)
	EmitRemoveNodeEvent emits the RemoveNodeEvent. More...

void	OnNodeInteractorChanged (itk::Object *caller, const itk::EventObject &event)

void	OnNodeModifiedOrDeleted (const itk::Object *caller, const itk::EventObject &event)
	OnNodeModified listens to modified events of DataNodes. More...

void	AddListeners (const DataNode *_Node)
	Adds a Modified-Listener to the given Node. More...

void	RemoveListeners (const DataNode *_Node)
	Removes a Modified-Listener from the given Node. More...

	DataStorage ()

	~DataStorage () override

SetOfObjects::ConstPointer	FilterSetOfObjects (const SetOfObjects set, const NodePredicateBase condition) const
	Filters a SetOfObjects by the condition. If no condition is provided, the original set is returned. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	Prints the contents of the DataStorage to os. Do not call directly, call ->Print() instead. More...

Protected Attributes
std::map< const DataNode *, unsigned long >	m_NodeModifiedObserverTags
	Saves Modified-Observer Tags for each node in order to remove the event listeners again. More...

std::map< const DataNode *, unsigned long >	m_NodeInteractorChangedObserverTags

std::map< const DataNode *, unsigned long >	m_NodeDeleteObserverTags
	Saves Delete-Observer Tags for each node in order to remove the event listeners again. More...

bool	m_BlockNodeModifiedEvents
	If this class changes nodes itself, set this to TRUE in order to suppress NodeChangedEvent to be emitted. More...

Detailed Description

Abstract data management class that organizes DataNode objects in a directed acyclic graph.

The DataStorage provides storage and retrieval functionality for DataNode objects. It tracks 'was created by' relationships by associating each node with a set of source (parent) nodes from which it was derived. This forms a non-cyclical directed graph data structure.

The DataStorage emits events when nodes are added (AddNodeEvent), removed (RemoveNodeEvent), modified (ChangedNodeEvent), or deleted (DeleteNodeEvent). It also provides methods for querying nodes by predicates (GetSubset), computing bounding geometries, and traversing source/derivation relationships.

This is an abstract base class. Use StandaloneDataStorage for a concrete implementation.

See also: StandaloneDataStorage, DataNode, NodePredicateBase

Definition at line 49 of file mitkDataStorage.h.

Member Typedef Documentation

◆ ConstSetOfObjects

typedef itk::VectorContainer<unsigned int, DataNode::ConstPointer> mitk::DataStorage::ConstSetOfObjects

Container type for const node pointers, used for input parameters where nodes are read-only.

Callers that hold only DataNode::ConstPointer can use this container to pass nodes to DataStorage operations without needing a const_cast at the call site. Internally, the DataStorage converts to mutable pointers at its ownership boundary, as it owns all nodes as mutable objects.

Definition at line 68 of file mitkDataStorage.h.

◆ DataStorageEvent

typedef Message1<const DataNode*> mitk::DataStorage::DataStorageEvent

Event type used for all DataStorage notifications, carrying a const DataNode pointer.

Definition at line 330 of file mitkDataStorage.h.

◆ SetOfObjects

typedef itk::VectorContainer<unsigned int, DataNode::Pointer> mitk::DataStorage::SetOfObjects

Container type used as a result set of query operations such as GetSubset().

Holds smart pointers to DataNode objects.

Definition at line 59 of file mitkDataStorage.h.

Constructor & Destructor Documentation

◆ DataStorage()

mitk::DataStorage::DataStorage ( )

protected

◆ ~DataStorage()

mitk::DataStorage::~DataStorage ( )

overrideprotected

Member Function Documentation

◆ Add() [1/3]

void mitk::DataStorage::Add	(	DataNode *	node,
		const ConstSetOfObjects *	parents
	)

Convenience overload for callers that hold only const node pointers for the parents.

Converts the ConstSetOfObjects to a SetOfObjects internally and delegates to the virtual Add() method.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parents	Optional set of const parent node pointers. May be nullptr.

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Add(DataNode*, const SetOfObjects*)

◆ Add() [2/3]

virtual void mitk::DataStorage::Add	(	DataNode *	node,
		const DataStorage::SetOfObjects *	parents = `nullptr`
	)

pure virtual

Add a DataNode to the storage, optionally with parent (source) nodes.

The node is added to the internal graph structure. If parents is provided, 'was created from' relationships are established between the node and its parents. After a successful addition, AddNodeEvent is emitted.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parents	Optional set of parent nodes. May be nullptr.

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Remove, AddNodeEvent

Implemented in mitk::StandaloneDataStorage.

◆ Add() [3/3]

void mitk::DataStorage::Add	(	DataNode *	node,
		DataNode *	parent
	)

Convenience method to add a node with a single parent.

Parameters

[in]	node	The DataNode to add. Must not be nullptr.
[in]	parent	The parent node. May be nullptr (equivalent to adding without parents).

Exceptions

std::invalid_argument if node is nullptr or already exists in the DataStorage.

See also: Add(DataNode*, const SetOfObjects*)

◆ AddListeners()

void mitk::DataStorage::AddListeners ( const DataNode * _Node )

protected

Adds a Modified-Listener to the given Node.

◆ BlockNodeModifiedEvents()

void mitk::DataStorage::BlockNodeModifiedEvents ( bool block )

Enable or disable suppression of ChangedNodeEvent emission.

When block is true, the DataStorage will not emit ChangedNodeEvent when a managed DataNode is modified. This is useful when performing batch property updates and you do not want observers to react to each individual change.

Parameters

[in] block If true, suppress ChangedNodeEvent; if false, re-enable it.

See also: ChangedNodeEvent

◆ ComputeBoundingBox()

BoundingBox::Pointer mitk::DataStorage::ComputeBoundingBox	(	const char *	boolPropertyKey = `nullptr`,
		const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey2 = `nullptr`
	)

Compute the axis-parallel bounding box of all nodes in the DataStorage.

Parameters

[in]	boolPropertyKey	Optional BoolProperty key; nodes where this is false are excluded.
[in]	renderer	Renderer context for property lookup.
[in]	boolPropertyKey2	A second BoolProperty condition applied in addition to the first.

Returns: The computed BoundingBox.

◆ ComputeBoundingGeometry3D() [1/3]

TimeGeometry::ConstPointer mitk::DataStorage::ComputeBoundingGeometry3D	(	const char *	boolPropertyKey = `nullptr`,
		const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey2 = `nullptr`
	)		const

Compute the axis-parallel bounding geometry of all nodes in the DataStorage.

Convenience overload that calls ComputeBoundingGeometry3D(GetAll(), ...).

Parameters

[in]	boolPropertyKey	Optional BoolProperty key; nodes where this is false are excluded.
[in]	renderer	Renderer context for property lookup.
[in]	boolPropertyKey2	A second BoolProperty condition applied in addition to the first.

Returns: The computed bounding TimeGeometry.

◆ ComputeBoundingGeometry3D() [2/3]

TimeGeometry::ConstPointer mitk::DataStorage::ComputeBoundingGeometry3D	(	const ConstSetOfObjects *	input,
		const char *	boolPropertyKey = `nullptr`,
		const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey2 = `nullptr`
	)		const

Compute the axis-parallel bounding geometry for a set of const node pointers.

Overload for callers that hold only DataNode::ConstPointer. Semantically identical to the SetOfObjects overload.

Parameters

[in]	input	Set of const node pointers. Must not be nullptr.
[in]	boolPropertyKey	Optional BoolProperty key; nodes where this is false are excluded.
[in]	renderer	Renderer context for property lookup.
[in]	boolPropertyKey2	A second BoolProperty condition applied in addition to the first.

Returns: The computed bounding TimeGeometry, or nullptr if no valid geometries are found.

Exceptions

std::invalid_argument if input is nullptr.

◆ ComputeBoundingGeometry3D() [3/3]

TimeGeometry::ConstPointer mitk::DataStorage::ComputeBoundingGeometry3D	(	const SetOfObjects *	input,
		const char *	boolPropertyKey = `nullptr`,
		const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey2 = `nullptr`
	)		const

Compute the axis-parallel bounding geometry encompassing the given set of nodes.

Nodes whose specified BoolProperty is false are excluded from the computation.

Parameters

[in]	input	Set of nodes to include. Must not be nullptr.
[in]	boolPropertyKey	Optional BoolProperty key; nodes where this is false are excluded.
[in]	renderer	Renderer context for property lookup.
[in]	boolPropertyKey2	A second BoolProperty condition applied in addition to the first.

Returns: The computed bounding TimeGeometry, or nullptr if no valid geometries are found.

Exceptions

std::invalid_argument if input is nullptr.

◆ ComputeTimeBounds() [1/2]

TimeBounds mitk::DataStorage::ComputeTimeBounds	(	const BaseRenderer *	renderer,
		const char *	boolPropertyKey
	)

inline

Compute the time bounds of all visible nodes.

Convenience method that calls ComputeTimeBounds("visible", renderer, boolPropertyKey).

Parameters

[in]	renderer	The renderer whose visibility property is checked.
[in]	boolPropertyKey	An additional BoolProperty condition.

Returns: The computed time bounds of visible nodes.

Definition at line 495 of file mitkDataStorage.h.

◆ ComputeTimeBounds() [2/2]

TimeBounds mitk::DataStorage::ComputeTimeBounds	(	const char *	boolPropertyKey,
		const BaseRenderer *	renderer,
		const char *	boolPropertyKey2
	)

Compute the time bounds of all nodes in the DataStorage.

Returns [-infinity, +infinity] only if all data objects have infinite lifespan. Otherwise, data objects with infinite lifespan are ignored, and the union of all finite time bounds is returned.

Parameters

[in]	boolPropertyKey	Optional BoolProperty key; nodes where this is false are excluded.
[in]	renderer	Renderer context for property lookup.
[in]	boolPropertyKey2	A second BoolProperty condition.

Returns: The computed time bounds as a TimeBounds (array of two ScalarType values).

◆ ComputeVisibleBoundingBox()

BoundingBox::Pointer mitk::DataStorage::ComputeVisibleBoundingBox	(	const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey = `nullptr`
	)

inline

Compute the bounding box of all visible nodes.

Convenience method that calls ComputeBoundingBox("visible", renderer, boolPropertyKey).

Parameters

[in]	renderer	The renderer whose visibility property is checked.
[in]	boolPropertyKey	An additional BoolProperty condition.

Returns: The computed BoundingBox of visible nodes.

Definition at line 464 of file mitkDataStorage.h.

◆ ComputeVisibleBoundingGeometry3D()

TimeGeometry::ConstPointer mitk::DataStorage::ComputeVisibleBoundingGeometry3D	(	const BaseRenderer *	renderer = `nullptr`,
		const char *	boolPropertyKey = `nullptr`
	)

Compute the axis-parallel bounding geometry of all visible nodes.

Convenience method that calls ComputeBoundingGeometry3D("visible", renderer, boolPropertyKey).

Parameters

[in]	renderer	The renderer whose visibility property is checked.
[in]	boolPropertyKey	An additional BoolProperty condition.

Returns: The computed bounding TimeGeometry of visible nodes.

◆ EmitAddNodeEvent()

void mitk::DataStorage::EmitAddNodeEvent ( const DataNode * node )

protected

EmitAddNodeEvent emits the AddNodeEvent.

This method should be called by subclasses to emit the AddNodeEvent

◆ EmitRemoveNodeEvent()

void mitk::DataStorage::EmitRemoveNodeEvent ( const DataNode * node )

protected

EmitRemoveNodeEvent emits the RemoveNodeEvent.

This method should be called by subclasses to emit the RemoveNodeEvent

◆ Exists()

virtual bool mitk::DataStorage::Exists ( const DataNode * node ) const

pure virtual

Check whether a node exists in the DataStorage.

Parameters

[in] node The node to check.

Returns: true if the node is present in the DataStorage.

Implemented in mitk::StandaloneDataStorage.

◆ FilterSetOfObjects()

SetOfObjects::ConstPointer mitk::DataStorage::FilterSetOfObjects	(	const SetOfObjects *	set,
		const NodePredicateBase *	condition
	)		const

protected

Filters a SetOfObjects by the condition. If no condition is provided, the original set is returned.

◆ GetAll()

virtual SetOfObjects::ConstPointer mitk::DataStorage::GetAll ( ) const

pure virtual

Return all nodes managed by this DataStorage.

Returns: A set containing all DataNodes currently in the storage.

See also: GetSubset

Implemented in mitk::StandaloneDataStorage.

◆ GetDerivations()

virtual SetOfObjects::ConstPointer mitk::DataStorage::GetDerivations	(	const DataNode *	node,
		const NodePredicateBase *	condition = `nullptr`,
		bool	onlyDirectDerivations = `true`
	)		const

pure virtual

Return the derived (child) nodes of a given node.

Returns nodes that were created from (derived from) the given node.

Parameters

[in]	node	The node whose derivations are queried.
[in]	condition	Optional predicate to filter results.
[in]	onlyDirectDerivations	If true (default), only direct children are returned. If false, the entire transitive derivation chain is traversed.

Returns: A set of derived DataNodes, possibly filtered by condition.

Exceptions

std::invalid_argument if node is nullptr.

See also: GetSources

Implemented in mitk::StandaloneDataStorage.

◆ GetGroupTags()

const DataNode::GroupTagList mitk::DataStorage::GetGroupTags ( ) const

Return all group tags used across all nodes in the DataStorage.

Group tags are identified by the presence of GroupTagProperty entries in the nodes' property lists.

Returns: A set of group tag name strings.

◆ GetNamedDerivedNode()

DataNode* mitk::DataStorage::GetNamedDerivedNode	(	const char *	name,
		const DataNode *	sourceNode,
		bool	onlyDirectDerivations = `true`
	)		const

Convenience method to get the first node with a given name that is derived from a source node.

Parameters

[in]	name	The node name to search for.
[in]	sourceNode	The parent node to search derivations of.
[in]	onlyDirectDerivations	If true, only direct derivations are searched.

Returns: The first matching DataNode, or nullptr if not found or name is nullptr.

See also: GetNamedNode, GetDerivations

◆ GetNamedDerivedObject()

template<class DataType >

DataType* mitk::DataStorage::GetNamedDerivedObject	(	const char *	name,
		const DataNode *	sourceNode,
		bool	onlyDirectDerivations = `true`
	)		const

inline

Convenience method to get the first data object of a given type with a given name, derived from a source node.

Template Parameters

DataType The expected data type (must inherit from BaseData).

Parameters

[in]	name	The node name to search for.
[in]	sourceNode	The parent node to search derivations of.
[in]	onlyDirectDerivations	If true, only direct derivations are searched.

Returns: Pointer to the data object cast to DataType, or nullptr if not found.

See also: GetNamedDerivedNode

Definition at line 288 of file mitkDataStorage.h.

References mitk::DataNode::GetData().

◆ GetNamedNode() [1/2]

DataNode* mitk::DataStorage::GetNamedNode ( const char * name ) const

Convenience method to get the first node with a given name.

Searches for a node whose "name" StringProperty matches name.

Parameters

[in] name The node name to search for.

Returns: The first matching DataNode, or nullptr if not found or name is nullptr.

See also: GetNamedDerivedNode

◆ GetNamedNode() [2/2]

DataNode* mitk::DataStorage::GetNamedNode ( const std::string & name ) const

inline

Convenience method to get the first node with a given name (std::string overload).

Parameters

[in] name The node name to search for.

Returns: The first matching DataNode, or nullptr if not found.

See also: GetNamedNode(const char*)

Definition at line 226 of file mitkDataStorage.h.

References GetNamedNode().

Referenced by GetNamedNode().

◆ GetNamedObject() [1/2]

template<class DataType >

DataType* mitk::DataStorage::GetNamedObject ( const char * name ) const

inline

Convenience method to get the first data object of a given type with a given name.

Searches for a named node and dynamic_casts its data to the requested type.

Template Parameters

DataType The expected data type (must inherit from BaseData).

Parameters

[in] name The node name to search for.

Returns: Pointer to the data object cast to DataType, or nullptr if not found.

See also: GetNamedNode

Definition at line 252 of file mitkDataStorage.h.

References mitk::DataNode::GetData().

◆ GetNamedObject() [2/2]

template<class DataType >

DataType* mitk::DataStorage::GetNamedObject ( const std::string & name ) const

inline

Convenience method to get the first data object of a given type with a given name (std::string overload).

Template Parameters

DataType The expected data type (must inherit from BaseData).

Parameters

[in] name The node name to search for.

Returns: Pointer to the data object cast to DataType, or nullptr if not found.

See also: GetNamedObject(const char*)

Definition at line 272 of file mitkDataStorage.h.

◆ GetNode()

DataNode* mitk::DataStorage::GetNode ( const NodePredicateBase * condition = nullptr ) const

Convenience method to get the first node that matches the predicate condition.

Parameters

[in] condition The predicate to evaluate. If nullptr, returns nullptr.

Returns: The first matching DataNode, or nullptr if none matches.

See also: GetSubset

◆ GetSources()

virtual SetOfObjects::ConstPointer mitk::DataStorage::GetSources	(	const DataNode *	node,
		const NodePredicateBase *	condition = `nullptr`,
		bool	onlyDirectSources = `true`
	)		const

pure virtual

Return the source (parent) nodes of a given node.

Parameters

[in]	node	The node whose sources are queried.
[in]	condition	Optional predicate to filter results.
[in]	onlyDirectSources	If true (default), only direct parents are returned. If false, the entire transitive source chain is traversed.

Returns: A set of source DataNodes, possibly filtered by condition.

Exceptions

std::invalid_argument if node is nullptr.

See also: GetDerivations

Implemented in mitk::StandaloneDataStorage.

◆ GetSubset()

SetOfObjects::ConstPointer mitk::DataStorage::GetSubset ( const NodePredicateBase * condition ) const

Return all nodes that satisfy the given predicate condition.

Conditions can test for data type, properties, source relationships, or combinations thereof (AND, OR, NOT) using the Composite Design Pattern (see NodePredicateBase).

To retrieve all nodes without filtering, use GetAll().

Parameters

[in] condition The predicate to evaluate. If nullptr, all nodes are returned.

Returns: A set of DataNode smart pointers that fulfill the condition.

See also: GetAll, GetNode, NodePredicateBase

◆ GetUniqueName()

std::string mitk::DataStorage::GetUniqueName	(	const std::string &	name,
		const DataNode *	sourceNode = `nullptr`,
		bool	onlyDirectDerivations = `true`
	)		const

Generate a unique node name by appending an incrementing number if necessary.

If the base name is already unique, it is returned as-is. Otherwise, the method appends " 2", " 3", etc., filling gaps in existing numbering to maintain a compact sequence. If a sourceNode is provided, uniqueness is checked only among its derived nodes; otherwise, all nodes in the DataStorage are considered.

Parameters

[in]	name	The base name to make unique.
[in]	sourceNode	Optional parent node restricting the search space.
[in]	onlyDirectDerivations	If true, only direct derivations of sourceNode are considered.

Returns: A unique name derived from the given base name.

◆ mitkClassMacroItkParent()

mitk::DataStorage::mitkClassMacroItkParent	(	DataStorage	,
		itk::Object
	)

◆ OnNodeInteractorChanged()

void mitk::DataStorage::OnNodeInteractorChanged	(	itk::Object *	caller,
		const itk::EventObject &	event
	)

protected

◆ OnNodeModifiedOrDeleted()

void mitk::DataStorage::OnNodeModifiedOrDeleted	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)

protected

OnNodeModified listens to modified events of DataNodes.

The node is hidden behind the caller parameter, which has to be casted first. If the cast succeeds the ChangedNodeEvent is emitted with this node.

◆ PrintSelf()

void mitk::DataStorage::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Prints the contents of the DataStorage to os. Do not call directly, call ->Print() instead.

◆ Remove() [1/3]

void mitk::DataStorage::Remove ( const ConstSetOfObjects * nodes )

Remove a set of const-pointer nodes from the DataStorage.

If nodes is nullptr, this method does nothing.

Parameters

[in] nodes The set of const node pointers to remove.

See also: Remove(const DataNode*)

◆ Remove() [2/3]

virtual void mitk::DataStorage::Remove ( const DataNode * node )

pure virtual

Remove a single node from the DataStorage.

The RemoveNodeEvent is emitted before the node is actually removed.

Parameters

[in] node The node to remove. If nullptr, the call is ignored.

See also: Add, RemoveNodeEvent

Implemented in mitk::StandaloneDataStorage.

◆ Remove() [3/3]

void mitk::DataStorage::Remove ( const DataStorage::SetOfObjects * nodes )

Remove a set of nodes from the DataStorage.

If nodes is nullptr, this method does nothing.

Parameters

[in] nodes The set of nodes to remove.

See also: Remove(const DataNode*)

◆ RemoveListeners()

void mitk::DataStorage::RemoveListeners ( const DataNode * _Node )

protected

Removes a Modified-Listener from the given Node.

Member Data Documentation

◆ AddNodeEvent

DataStorageEvent mitk::DataStorage::AddNodeEvent

Event emitted after a new node has been added to the DataStorage.

Register observers via AddNodeEvent.AddListener(myObject, MyObject::MyMethod). Unregister via AddNodeEvent.RemoveListener(myObject, MyObject::MyMethod). This event is thread-safe.

Definition at line 339 of file mitkDataStorage.h.

◆ ChangedNodeEvent

DataStorageEvent mitk::DataStorage::ChangedNodeEvent

Event emitted after a managed node has been modified.

The DataStorage internally listens to itk::ModifiedEvent on each node and forwards it through this event. Can be suppressed via BlockNodeModifiedEvents().

Register observers via ChangedNodeEvent.AddListener(myObject, MyObject::MyMethod). Unregister via ChangedNodeEvent.RemoveListener(myObject, MyObject::MyMethod). This event is thread-safe.

Definition at line 360 of file mitkDataStorage.h.

◆ DeleteNodeEvent

DataStorageEvent mitk::DataStorage::DeleteNodeEvent

Event emitted directly before a managed node is deleted.

The DataStorage internally listens to itk::DeleteEvent on each node and forwards it through this event.

Register observers via DeleteNodeEvent.AddListener(myObject, MyObject::MyMethod). Unregister via DeleteNodeEvent.RemoveListener(myObject, MyObject::MyMethod). This event is thread-safe.

Definition at line 372 of file mitkDataStorage.h.

◆ InteractorChangedNodeEvent

DataStorageEvent mitk::DataStorage::InteractorChangedNodeEvent

Event emitted when the DataInteractor of a managed node changes.

Forwards InteractorChangedEvent from individual nodes. This event is thread-safe.

Definition at line 380 of file mitkDataStorage.h.

◆ m_BlockNodeModifiedEvents

bool mitk::DataStorage::m_BlockNodeModifiedEvents

protected

If this class changes nodes itself, set this to TRUE in order to suppress NodeChangedEvent to be emitted.

Definition at line 555 of file mitkDataStorage.h.

◆ m_MutexOne

std::mutex mitk::DataStorage::m_MutexOne

mutable

Mutex for thread-safe operations on the DataStorage.

Definition at line 327 of file mitkDataStorage.h.

◆ m_NodeDeleteObserverTags

std::map<const DataNode *, unsigned long> mitk::DataStorage::m_NodeDeleteObserverTags

protected

Saves Delete-Observer Tags for each node in order to remove the event listeners again.

Definition at line 550 of file mitkDataStorage.h.

◆ m_NodeInteractorChangedObserverTags

std::map<const DataNode *, unsigned long> mitk::DataStorage::m_NodeInteractorChangedObserverTags

protected

Definition at line 546 of file mitkDataStorage.h.

◆ m_NodeModifiedObserverTags

std::map<const DataNode *, unsigned long> mitk::DataStorage::m_NodeModifiedObserverTags

protected

Saves Modified-Observer Tags for each node in order to remove the event listeners again.

Definition at line 544 of file mitkDataStorage.h.

◆ RemoveNodeEvent

DataStorageEvent mitk::DataStorage::RemoveNodeEvent

Event emitted directly before a node is removed from the DataStorage.

Register observers via RemoveNodeEvent.AddListener(myObject, MyObject::MyMethod). Unregister via RemoveNodeEvent.RemoveListener(myObject, MyObject::MyMethod). This event is thread-safe.

Definition at line 348 of file mitkDataStorage.h.

The documentation for this class was generated from the following file:

mitkDataStorage.h

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstSetOfObjects

◆ DataStorageEvent

◆ SetOfObjects

Constructor & Destructor Documentation

◆ DataStorage()

◆ ~DataStorage()

Member Function Documentation

◆ Add() [1/3]

◆ Add() [2/3]

◆ Add() [3/3]

◆ AddListeners()

◆ BlockNodeModifiedEvents()

◆ ComputeBoundingBox()

◆ ComputeBoundingGeometry3D() [1/3]

◆ ComputeBoundingGeometry3D() [2/3]

◆ ComputeBoundingGeometry3D() [3/3]

◆ ComputeTimeBounds() [1/2]

◆ ComputeTimeBounds() [2/2]

◆ ComputeVisibleBoundingBox()

◆ ComputeVisibleBoundingGeometry3D()

◆ EmitAddNodeEvent()

◆ EmitRemoveNodeEvent()

◆ Exists()

◆ FilterSetOfObjects()

◆ GetAll()

◆ GetDerivations()

◆ GetGroupTags()

◆ GetNamedDerivedNode()

◆ GetNamedDerivedObject()

◆ GetNamedNode() [1/2]

◆ GetNamedNode() [2/2]

◆ GetNamedObject() [1/2]

◆ GetNamedObject() [2/2]

◆ GetNode()

◆ GetSources()

◆ GetSubset()

◆ GetUniqueName()

◆ mitkClassMacroItkParent()

◆ OnNodeInteractorChanged()

◆ OnNodeModifiedOrDeleted()

◆ PrintSelf()

◆ Remove() [1/3]

◆ Remove() [2/3]

◆ Remove() [3/3]

◆ RemoveListeners()

Member Data Documentation

◆ AddNodeEvent

◆ ChangedNodeEvent

◆ DeleteNodeEvent

◆ InteractorChangedNodeEvent

◆ m_BlockNodeModifiedEvents

◆ m_MutexOne

◆ m_NodeDeleteObserverTags

◆ m_NodeInteractorChangedObserverTags

◆ m_NodeModifiedObserverTags

◆ RemoveNodeEvent
