Base class for interactors that operate on DataNodes. More...

#include <mitkDataInteractor.h>

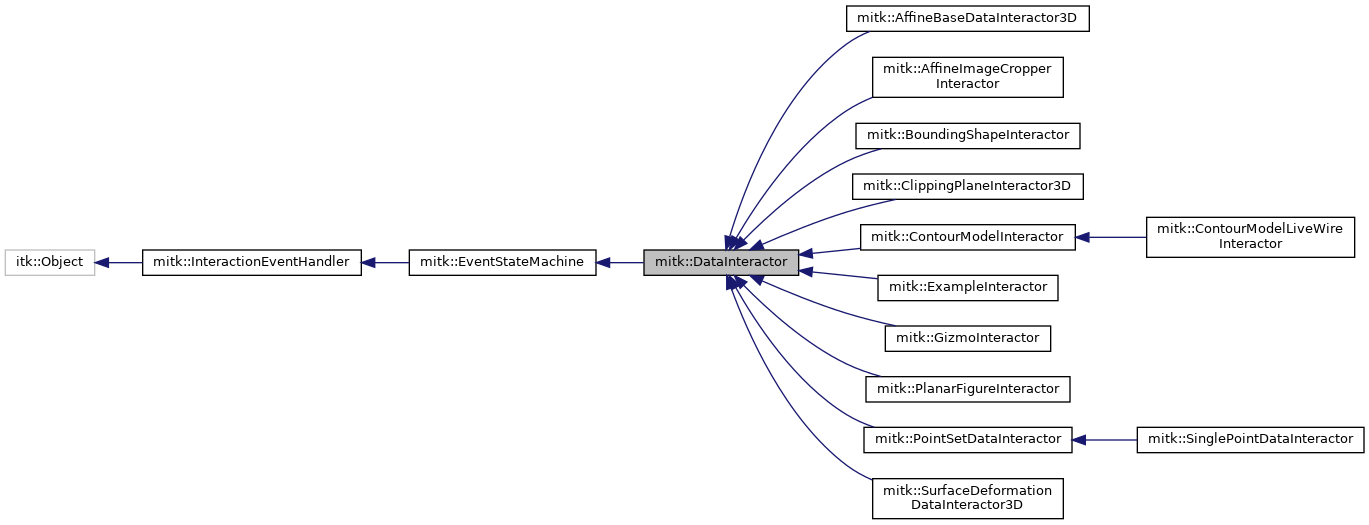

Inheritance diagram for mitk::DataInteractor:

[legend]

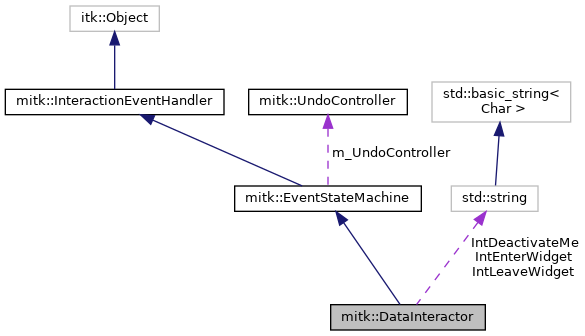

Collaboration diagram for mitk::DataInteractor:

[legend]

Public Member Functions
	mitkClassMacro (DataInteractor, EventStateMachine)

Pointer	Clone () const

DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...

virtual void	SetDataNode (DataNode *dataNode)
	Set the DataNode that this interactor operates on. More...

int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...

ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...

static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...

static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...

Protected Member Functions
	DataInteractor ()

	~DataInteractor () override

void	ConnectActionsAndFunctions () override
	Overwrite this function to connect actions from StateMachine description with functions. More...

virtual void	DataNodeChanged ()
	Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Base class for interactors that operate on DataNodes.

DataInteractor provides the interface required for an interactor to work together with the Dispatcher. Each DataInteractor is associated with exactly one DataNode and processes events according to its loaded state machine pattern.

To implement a new interactor, subclass DataInteractor and override ConnectActionsAndFunctions() to bind state machine action names to member functions.

The processing priority is determined by the "layer" property of the associated DataNode (higher layers are handled first).

See also: EventStateMachine; Dispatcher; DataNode

Definition at line 59 of file mitkDataInteractor.h.

Constructor & Destructor Documentation

◆ DataInteractor()

mitk::DataInteractor::DataInteractor ( )

protected

◆ ~DataInteractor()

mitk::DataInteractor::~DataInteractor ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::DataInteractor::Clone ( ) const

◆ ConnectActionsAndFunctions()

void mitk::DataInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Overwrite this function to connect actions from StateMachine description with functions.

Following example shows how to connect the 'addpoint' action from the StateMachine XML description using the CONNECT_FUNCTION macro with the AddPoint() function in the TestInteractor.

  void mitk::TestInteractor::ConnectActionsAndFunctions()
{
CONNECT_FUNCTION("addpoint", AddPoint);
}

Reimplemented from mitk::EventStateMachine.

Reimplemented in mitk::ContourModelLiveWireInteractor, mitk::ContourModelInteractor, mitk::PlanarFigureInteractor, mitk::SurfaceDeformationDataInteractor3D, mitk::ClippingPlaneInteractor3D, mitk::AffineImageCropperInteractor, mitk::AffineBaseDataInteractor3D, and mitk::PointSetDataInteractor.

◆ DataNodeChanged()

virtual void mitk::DataInteractor::DataNodeChanged ( )

protectedvirtual

Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode.

Note: New DataInteractors usually are expected to have the focus, but this only works if they have the highest Layer, since empty DataNodes have a layer of -1, the DataNode must be filled here in order to get a layer assigned.; Is also called when the DataNode is set to nullptr.

Reimplemented in mitk::SurfaceDeformationDataInteractor3D, mitk::ClippingPlaneInteractor3D, mitk::AffineImageCropperInteractor, mitk::AffineBaseDataInteractor3D, mitk::SinglePointDataInteractor, mitk::PointSetDataInteractor, and mitk::BoundingShapeInteractor.

◆ GetDataNode()

DataNode* mitk::DataInteractor::GetDataNode ( ) const

Get the DataNode associated with this interactor.

Returns: Pointer to the DataNode, or nullptr if none is set.

◆ GetLayer()

int mitk::DataInteractor::GetLayer ( ) const

Get the rendering layer of the associated DataNode.

The layer determines the priority in event dispatching (higher layers first).

Returns: The integer layer value, or -1 if no DataNode is set.

◆ GetMode()

ProcessEventMode mitk::DataInteractor::GetMode ( ) const

Get the current event processing mode from the state machine's current state.

The mode determines how the Dispatcher handles event distribution:

REGULAR: normal dispatching
PREFERINPUT: this interactor is preferred but others can still receive events
GRABINPUT: only this interactor receives events

Returns: The current ProcessEventMode.

◆ mitkClassMacro()

mitk::DataInteractor::mitkClassMacro	(	DataInteractor	,
		EventStateMachine
	)

◆ New()

static Pointer mitk::DataInteractor::New ( )

static

◆ NotifyResultReady()

virtual void mitk::DataInteractor::NotifyResultReady ( )

protectedvirtual

NotifyResultReady Sends ResultReady event via the mitk::DataNode.

Use to get notfied when the mitk::DataNode is in a ready state for further processing.

◆ NotifyStart()

virtual void mitk::DataInteractor::NotifyStart ( )

protectedvirtual

Sends StartInteraction event via the mitk::DataNode.

◆ SetDataNode()

virtual void mitk::DataInteractor::SetDataNode ( DataNode * dataNode )

virtual

Set the DataNode that this interactor operates on.

Removes the interactor from any previously associated DataNode, assigns this interactor to the new DataNode, and calls DataNodeChanged().

Parameters

[in] dataNode The DataNode to associate. Can be nullptr to detach.

Reimplemented in mitk::AffineBaseDataInteractor3D, and mitk::BoundingShapeInteractor.

Member Data Documentation

◆ IntDeactivateMe

const std::string mitk::DataInteractor::IntDeactivateMe

static

Internal signal name to request deactivation of this interactor.

Definition at line 63 of file mitkDataInteractor.h.

◆ IntEnterWidget

const std::string mitk::DataInteractor::IntEnterWidget

static

Internal signal name indicating the pointer entered the widget area.

Definition at line 67 of file mitkDataInteractor.h.

◆ IntLeaveWidget

const std::string mitk::DataInteractor::IntLeaveWidget

static

Internal signal name indicating the pointer left the widget area.

Definition at line 65 of file mitkDataInteractor.h.

The documentation for this class was generated from the following file:

mitkDataInteractor.h
