Interactor for manipulating bounding shapes (GeometryData). More...

#include <mitkBoundingShapeInteractor.h>

Inheritance diagram for mitk::BoundingShapeInteractor:

[legend]

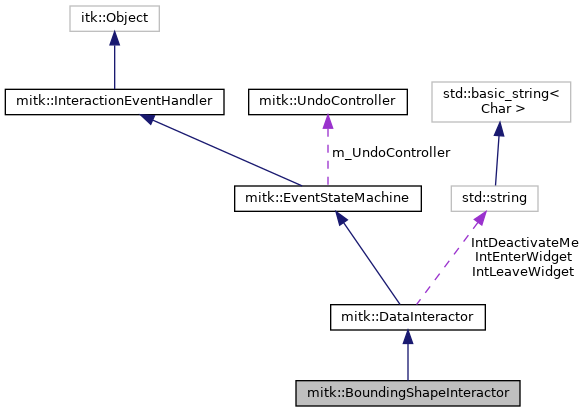

Collaboration diagram for mitk::BoundingShapeInteractor:

[legend]

Public Member Functions
	mitkClassMacro (BoundingShapeInteractor, DataInteractor)

Pointer	Clone () const

void	SetDataNode (DataNode *dataNode) override
	Set the data node this interactor operates on. More...

Public Member Functions inherited from mitk::DataInteractor
	mitkClassMacro (DataInteractor, EventStateMachine)

Pointer	Clone () const

DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...

int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...

ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static Pointer	New ()

Protected Member Functions
	BoundingShapeInteractor ()

	~BoundingShapeInteractor () override

void	ConnectActionsAndFunctions () override

void	DataNodeChanged () override
	Called when a DataNode has been set/changed. More...

void	HandlePositionChanged (const InteractionEvent *interactionEvent, Point3D &center, std::array< bool, 6 > &handleVisible)
	Updates the handle positions for the renderer of the given event and reports which handles are visible there. More...

virtual bool	CheckOverObject (const InteractionEvent *)
	Checks if the mouse pointer is over the object. More...

virtual bool	CheckOverHandles (const InteractionEvent *interactionEvent)
	Checks if the mouse pointer is over one of the assigned handles. More...

virtual void	SelectObject (StateMachineAction , InteractionEvent )
	Called if the mouse pointer is over the object indicated by a color change. More...

virtual void	DeselectObject (StateMachineAction , InteractionEvent )
	Called if the mouse pointer leaves the area of the object. More...

virtual void	SelectHandle (StateMachineAction , InteractionEvent )
	Called if the mouse pointer is over one of the handles indicated by a color change. More...

virtual void	TranslateObject (StateMachineAction , InteractionEvent )
	Performs a translation of the object relative to the mouse movement. More...

virtual void	ScaleObject (StateMachineAction , InteractionEvent )
	Performs a object shape change by influencing the scaling of the initial bounding box. More...

virtual void	InitInteraction (StateMachineAction , InteractionEvent interactionEvent)
	Initializes the movement, stores starting position. More...

virtual void	DeselectHandles (StateMachineAction , InteractionEvent interactionEvent)
	Deselects all Handles at the end of interaction. More...

virtual void	RestoreNodeProperties ()
	Restore default properties of bounding box and handles. More...

bool	InitMembers (InteractionEvent *interactionEvent)
	Initializes member variables. More...

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

void	ConnectActionsAndFunctions () override
	Overwrite this function to connect actions from StateMachine description with functions. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...

static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...

static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Interactor for manipulating bounding shapes (GeometryData).

Provides interactive translation and scaling of a bounding box through mouse-based handle manipulation. Inherits from DataInteractor, providing state machine and configurable input support.

The interactor manages 6 face handles that can be dragged to resize the bounding box, and supports translating the entire box by dragging the body. Visual feedback is provided through color changes on hover and selection.

See also: BoundingShapeCropper, BoundingShapeVtkMapper2D, BoundingShapeVtkMapper3D, DataInteractor

Definition at line 50 of file mitkBoundingShapeInteractor.h.

Constructor & Destructor Documentation

◆ BoundingShapeInteractor()

mitk::BoundingShapeInteractor::BoundingShapeInteractor ( )

protected

◆ ~BoundingShapeInteractor()

mitk::BoundingShapeInteractor::~BoundingShapeInteractor ( )

overrideprotected

Member Function Documentation

◆ CheckOverHandles()

virtual bool mitk::BoundingShapeInteractor::CheckOverHandles ( const InteractionEvent * interactionEvent )

protectedvirtual

Checks if the mouse pointer is over one of the assigned handles.

◆ CheckOverObject()

virtual bool mitk::BoundingShapeInteractor::CheckOverObject ( const InteractionEvent * )

protectedvirtual

Checks if the mouse pointer is over the object.

◆ Clone()

Pointer mitk::BoundingShapeInteractor::Clone ( ) const

◆ ConnectActionsAndFunctions()

void mitk::BoundingShapeInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::EventStateMachine.

◆ DataNodeChanged()

void mitk::BoundingShapeInteractor::DataNodeChanged ( )

overrideprotectedvirtual

Called when a DataNode has been set/changed.

Reimplemented from mitk::DataInteractor.

◆ DeselectHandles()

virtual void mitk::BoundingShapeInteractor::DeselectHandles	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Deselects all Handles at the end of interaction.

◆ DeselectObject()

virtual void mitk::BoundingShapeInteractor::DeselectObject	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Called if the mouse pointer leaves the area of the object.

◆ HandlePositionChanged()

void mitk::BoundingShapeInteractor::HandlePositionChanged	(	const InteractionEvent *	interactionEvent,
		Point3D &	center,
		std::array< bool, 6 > &	handleVisible
	)

protected

Updates the handle positions for the renderer of the given event and reports which handles are visible there.

In a 2D render window a handle is placed where its box face crosses the current slice and is visible only when that intersection exists; in the 3D render window handles sit at the face centers and are always visible. handleVisible is filled accordingly.

◆ InitInteraction()

virtual void mitk::BoundingShapeInteractor::InitInteraction	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Initializes the movement, stores starting position.

◆ InitMembers()

bool mitk::BoundingShapeInteractor::InitMembers ( InteractionEvent * interactionEvent )

protected

Initializes member variables.

◆ mitkClassMacro()

mitk::BoundingShapeInteractor::mitkClassMacro	(	BoundingShapeInteractor	,
		DataInteractor
	)

◆ New()

static Pointer mitk::BoundingShapeInteractor::New ( )

static

◆ RestoreNodeProperties()

virtual void mitk::BoundingShapeInteractor::RestoreNodeProperties ( )

protectedvirtual

Restore default properties of bounding box and handles.

◆ ScaleObject()

virtual void mitk::BoundingShapeInteractor::ScaleObject	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Performs a object shape change by influencing the scaling of the initial bounding box.

◆ SelectHandle()

virtual void mitk::BoundingShapeInteractor::SelectHandle	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Called if the mouse pointer is over one of the handles indicated by a color change.

◆ SelectObject()

virtual void mitk::BoundingShapeInteractor::SelectObject	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Called if the mouse pointer is over the object indicated by a color change.

◆ SetDataNode()

void mitk::BoundingShapeInteractor::SetDataNode ( DataNode * dataNode )

overridevirtual

Set the data node this interactor operates on.

Initializes default bounding shape properties on the node and sets up the interaction geometry.

Parameters

[in] dataNode The data node containing GeometryData to interact with.

Reimplemented from mitk::DataInteractor.

◆ TranslateObject()

virtual void mitk::BoundingShapeInteractor::TranslateObject	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Performs a translation of the object relative to the mouse movement.

The documentation for this class was generated from the following file:

mitkBoundingShapeInteractor.h
