mitk::InteractionEventHandler Class Reference

Base class for all objects that handle mitk::InteractionEvents. More...

#include <mitkInteractionEventHandler.h>

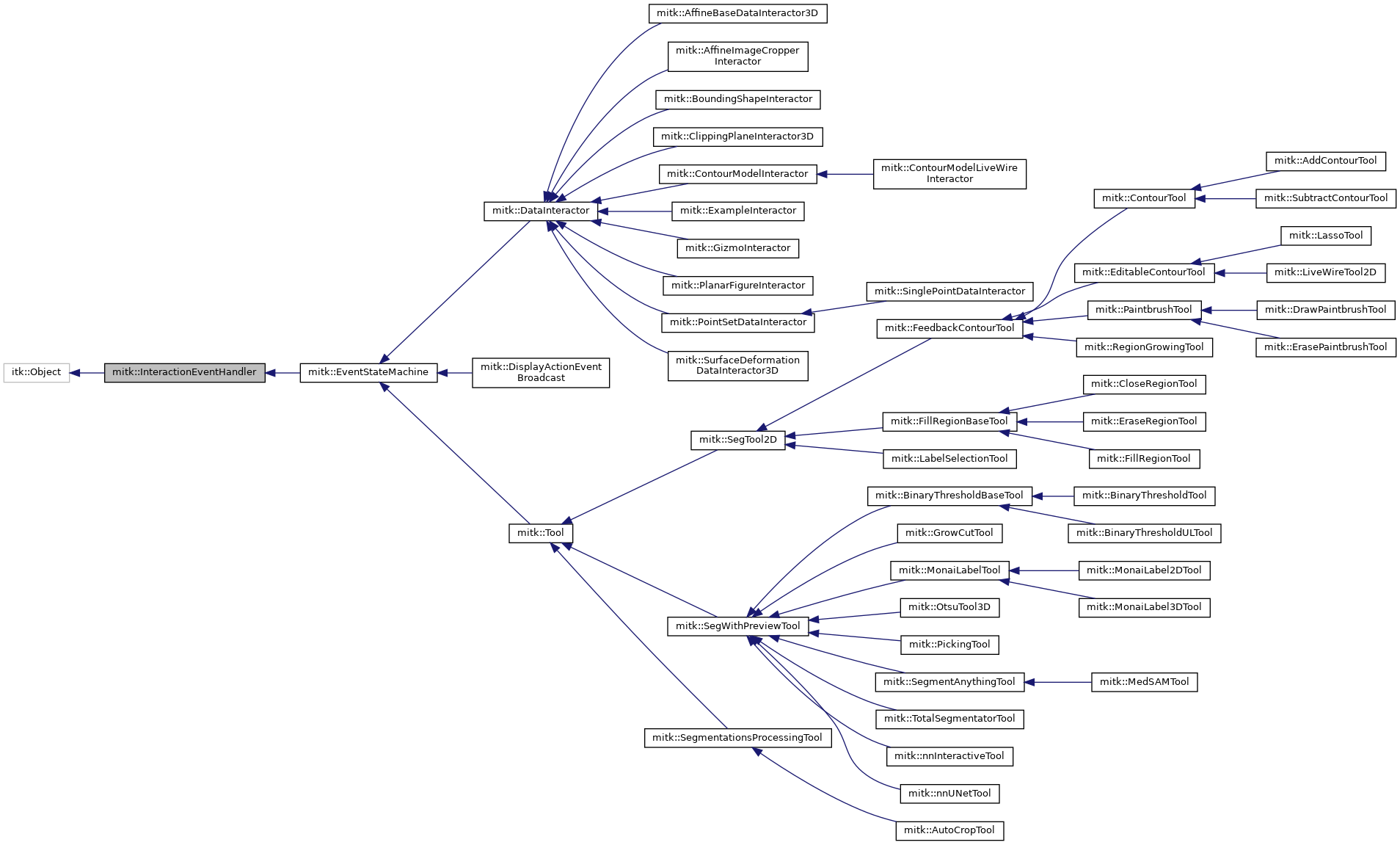

Inheritance diagram for mitk::InteractionEventHandler:

Collaboration diagram for mitk::InteractionEventHandler:

Public Member Functions
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...
bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...
EventConfig	GetEventConfig () const
	Returns the current configuration. More...
bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...
bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Protected Member Functions
	InteractionEventHandler ()
	~InteractionEventHandler () override
PropertyList::Pointer	GetAttributes () const
std::string	MapToEventVariant (InteractionEvent *interactionEvent)
virtual void	ConfigurationChanged ()

Detailed Description

Base class for all objects that handle mitk::InteractionEvents.

Provides an interface to load event configuration objects (EventConfig) that map raw interaction events to named event variants. These variant names are then matched against state machine transitions.

Configuration can be loaded from XML resource files or from pre-built EventConfig objects. Multiple configurations can be combined via AddEventConfig().

See also

EventStateMachine

EventConfig

Definition at line 50 of file mitkInteractionEventHandler.h.

Constructor & Destructor Documentation

InteractionEventHandler()

mitk::InteractionEventHandler::InteractionEventHandler ( )

protected

~InteractionEventHandler()

mitk::InteractionEventHandler::~InteractionEventHandler ( )

overrideprotected

Member Function Documentation

AddEventConfig() [1/2]

bool mitk::InteractionEventHandler::AddEventConfig

(

const EventConfig &

config

)

This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined.

See also

AddEventConfig(const std::string&, const Module*)

Parameters

config

The EventConfig object whose configuration should be added.

Returns

true if the configuration was successfully added, false otherwise.

AddEventConfig() [2/2]

bool mitk::InteractionEventHandler::AddEventConfig	(	const std::string &	filename,
		const us::Module *	module = nullptr
	)

This method extends the configuration.

The configuration from the resource provided is loaded and only the ones conflicting are replaced by the new one. This way several configuration files can be combined.

See also

AddEventConfig(const EventConfig&)

Parameters

filename	The resource name relative to the Interactions resource folder.
module	The module containing the resource. Defaults to the Mitk module.

Returns

true if the configuration was successfully added, false otherwise.

ConfigurationChanged()

virtual void mitk::InteractionEventHandler::ConfigurationChanged ( )

protectedvirtual

Is called whenever a new config object is set. Overwrite this method e.g. to initialize EventHandler with parameters in configuration file.

Reimplemented in mitk::PlanarFigureInteractor, mitk::DisplayActionEventBroadcast, and mitk::ExampleInteractor.

GetAttributes()

PropertyList::Pointer mitk::InteractionEventHandler::GetAttributes ( ) const

protected

Returns a PropertyList in which the parameters defined in the config file are listed.

GetEventConfig()

EventConfig mitk::InteractionEventHandler::GetEventConfig

(

)

const

Returns the current configuration.

Returns

A EventConfig object representing the current event configuration.

MapToEventVariant()

std::string mitk::InteractionEventHandler::MapToEventVariant ( InteractionEvent *  interactionEvent )

protected

mitkClassMacroItkParent()

mitk::InteractionEventHandler::mitkClassMacroItkParent	(	InteractionEventHandler	,
		itk::Object
	)

SetEventConfig() [1/2]

bool mitk::InteractionEventHandler::SetEventConfig

(

const EventConfig &

config

)

Loads a configuration from an EventConfig object.

Loads an event configuration from the given EventConfig object. This method will remove all existing configuration and replaces it with the new one.

See also

SetEventConfig(const std::string&, const Module*)

Parameters

config

The EventConfig object containing the new configuration.

Returns

true if the configuration was successfully loaded, false otherwise.

SetEventConfig() [2/2]

bool mitk::InteractionEventHandler::SetEventConfig	(	const std::string &	filename,
		const us::Module *	module = nullptr
	)

Loads a configuration from an XML resource.

Loads an event configuration from an XML resource file contained in the given module. Default is the Mitk module (core). The files have to be placed in the Resources/Interactions folder of their respective module. This method will remove all existing configuration and replaces it with the new one.

See also

SetEventConfig(const EventConfig&)

Parameters

filename	The resource name relative to the Interactions resource folder.
module	The module containing the resource. Defaults to the Mitk module.

Returns

true if the resource was successfully loaded, false otherwise.

---

The documentation for this class was generated from the following file:

• mitkInteractionEventHandler.h
