Provides state machine functionality for DataInteractors. More...

#include <mitkEventStateMachine.h>

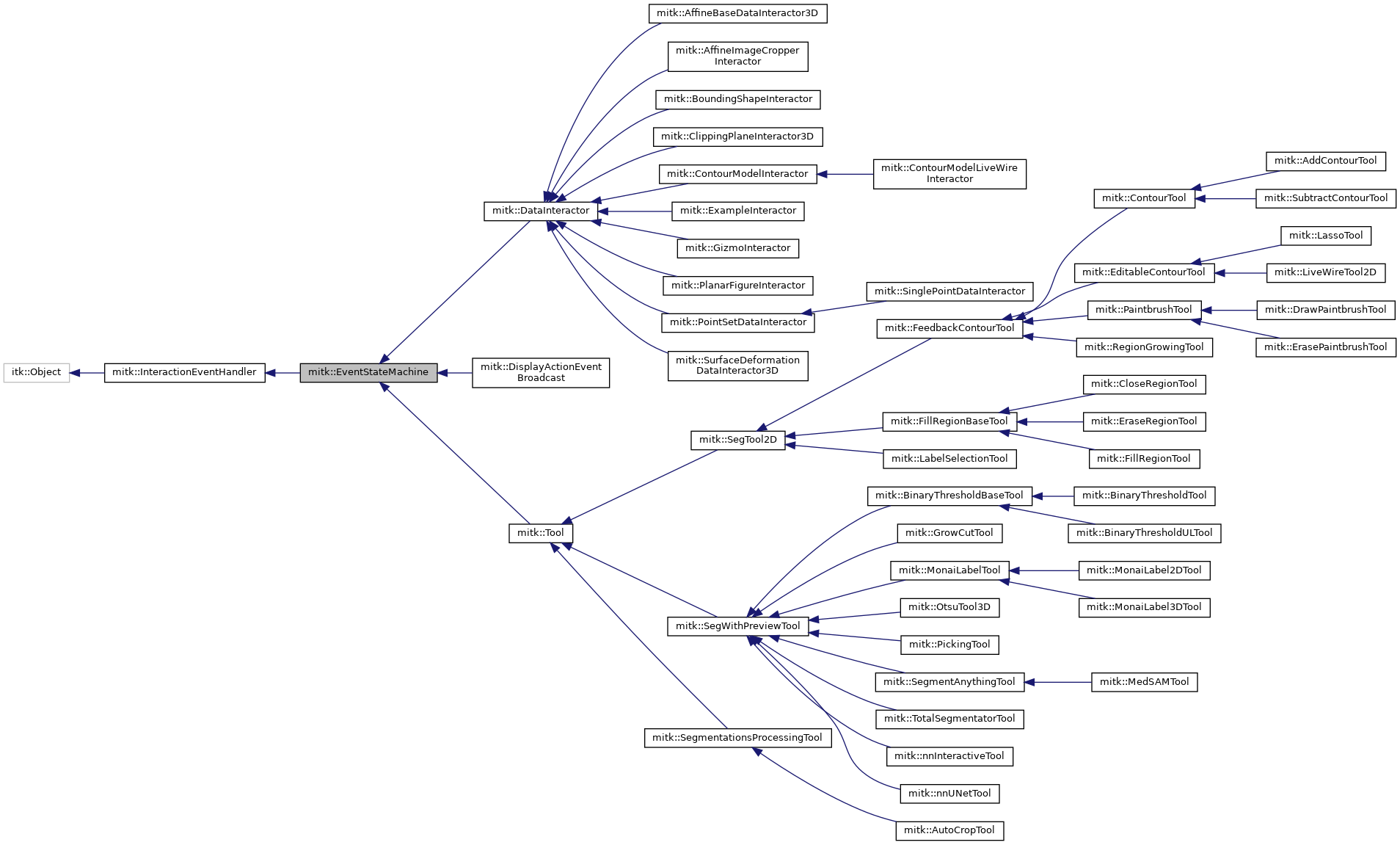

Inheritance diagram for mitk::EventStateMachine:

[legend]

Collaboration diagram for mitk::EventStateMachine:

[legend]

Public Types
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Member Functions
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Protected Types
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Member Functions
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual void	ConnectActionsAndFunctions ()

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Protected Attributes
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Provides state machine functionality for DataInteractors.

A state machine is created by loading an XML state machine pattern via LoadStateMachine(). It consists of states, transitions, and actions:

States represent the current status of the interaction.
Transitions are the means to switch between states; each is triggered by an event.
Actions are executed when a state change is performed.

Subclasses override ConnectActionsAndFunctions() to bind action names from the XML description to C++ member functions using the CONNECT_FUNCTION macro. Conditions can be bound similarly using the CONNECT_CONDITION macro.

See also: DataInteractor; InteractionEventHandler; Dispatcher

Definition at line 74 of file mitkEventStateMachine.h.

Member Typedef Documentation

◆ ActionFunctionDelegate

typedef MessageAbstractDelegate2<StateMachineAction *, InteractionEvent *, void> mitk::EventStateMachine::ActionFunctionDelegate

protected

Definition at line 128 of file mitkEventStateMachine.h.

◆ ConditionFunctionDelegate

typedef MessageAbstractDelegate1<const InteractionEvent *, bool> mitk::EventStateMachine::ConditionFunctionDelegate

protected

Definition at line 129 of file mitkEventStateMachine.h.

◆ StateMachineStateType

typedef itk::SmartPointer<StateMachineState> mitk::EventStateMachine::StateMachineStateType

Definition at line 79 of file mitkEventStateMachine.h.

Constructor & Destructor Documentation

◆ EventStateMachine()

mitk::EventStateMachine::EventStateMachine ( )

protected

◆ ~EventStateMachine()

mitk::EventStateMachine::~EventStateMachine ( )

overrideprotected

Member Function Documentation

◆ AddActionFunction()

void mitk::EventStateMachine::AddActionFunction	(	const std::string &	action,
		const ActionFunctionDelegate &	delegate
	)

protected

Connects action from StateMachine (String in XML file) with a function that is called when this action is to be executed.

◆ AddConditionFunction()

void mitk::EventStateMachine::AddConditionFunction	(	const std::string &	condition,
		const ConditionFunctionDelegate &	delegate
	)

protected

◆ CheckCondition()

virtual bool mitk::EventStateMachine::CheckCondition	(	const StateMachineCondition &	condition,
		const InteractionEvent *	interactionEvent
	)

protectedvirtual

◆ ConnectActionsAndFunctions()

virtual void mitk::EventStateMachine::ConnectActionsAndFunctions ( )

protectedvirtual

Is called after loading a statemachine. Overwrite this function in specific interactor implementations. Connect actions and functions using the CONNECT_FUNCTION macro within this function.

Reimplemented in mitk::Tool, mitk::RegionGrowingTool, mitk::PickingTool, mitk::PaintbrushTool, mitk::MonaiLabelTool, mitk::LiveWireTool2D, mitk::LassoTool, mitk::LabelSelectionTool, mitk::FillRegionBaseTool, mitk::EditableContourTool, mitk::ContourTool, mitk::ContourModelLiveWireInteractor, mitk::ContourModelInteractor, mitk::PlanarFigureInteractor, mitk::SurfaceDeformationDataInteractor3D, mitk::ClippingPlaneInteractor3D, mitk::AffineImageCropperInteractor, mitk::AffineBaseDataInteractor3D, mitk::PointSetDataInteractor, mitk::DisplayActionEventBroadcast, mitk::DataInteractor, mitk::BoundingShapeInteractor, and mitk::ExampleInteractor.

◆ EnableInteraction()

void mitk::EventStateMachine::EnableInteraction ( bool enable )

inline

Enable or disable the state machine.

When disabled, the state machine will not react to any events.

Parameters

[in] enable True to enable interaction, false to disable.

Definition at line 123 of file mitkEventStateMachine.h.

◆ EnableUndo()

void mitk::EventStateMachine::EnableUndo ( bool enable )

inline

Enable or disable the undo mechanism for this state machine.

Parameters

[in] enable True to enable undo, false to disable.

Definition at line 114 of file mitkEventStateMachine.h.

◆ ExecuteAction()

virtual void mitk::EventStateMachine::ExecuteAction	(	StateMachineAction *	action,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Looks up function that is associated with action and executes it. To implement your own execution scheme overwrite this in your DataInteractor.

◆ FilterEvents()

virtual bool mitk::EventStateMachine::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

protectedvirtual

Implements filter scheme for events. Standard implementation accepts events from 2d and 3d windows, and rejects events if DataNode is not visible.

Returns: true if event is accepted, else false

Overwrite this function to adapt for your own needs, for example to filter out events from 3d windows like this:

bool mitk::EventStateMachine::FilterEvents(InteractionEvent* interactionEvent, DataNode*dataNode)
{
  return interactionEvent->GetSender()->GetMapperID() == BaseRenderer::Standard2D; // only 2D mappers
}

or to enforce that the interactor only reacts when the corresponding DataNode is selected in the DataManager view..

Reimplemented in mitk::SegTool2D, mitk::DisplayActionEventBroadcast, mitk::PlanarFigureInteractor, and mitk::Tool.

◆ GetCurrentState()

StateMachineState* mitk::EventStateMachine::GetCurrentState ( ) const

protected

◆ GetExecutableTransition()

StateMachineTransition* mitk::EventStateMachine::GetExecutableTransition ( InteractionEvent * event )

protected

Returns the executable transition for the given event.

This method takes a list of transitions that correspond to the given event from the current state.

This method iterates through all transitions and checks all corresponding conditions. The results of each condition in stored in map, as other transitions may need the same condition again.

As soon as a transition is found for which all conditions are fulfilled, this instance is returned.

If a transition has no condition, it is automatically returned. If no executable transition is found, nullptr is returned.

◆ HandleEvent()

bool mitk::EventStateMachine::HandleEvent	(	InteractionEvent *	event,
		DataNode *	dataNode
	)

Process an incoming interaction event.

Receives an event from the Dispatcher, maps it to a variant via the EventConfig, checks if the current state has a matching transition, and if so, transitions to the next state and executes all associated actions.

Parameters

[in]	event	The interaction event to handle.
[in]	dataNode	The DataNode associated with this interactor.

Returns: true if the event was handled (a transition was executed), false otherwise.

Note: If a transition has multiple actions, true is returned as soon as one action succeeds. All actions within a transition should have consistent conditions.

◆ LoadStateMachine()

bool mitk::EventStateMachine::LoadStateMachine	(	const std::string &	filename,
		const us::Module *	module = `nullptr`
	)

Load a state machine pattern from an XML resource file.

The file must be located in the Resources/Interaction folder of the given module. Default is the Mitk module (core). After loading, ConnectActionsAndFunctions() is called to bind actions.

Parameters

[in]	filename	The resource filename (e.g. "PointSetInteraction.xml").
[in]	module	The module containing the resource. Defaults to the Mitk module.

Returns: true if the state machine was loaded successfully, false otherwise.

◆ mitkClassMacro()

mitk::EventStateMachine::mitkClassMacro	(	EventStateMachine	,
		InteractionEventHandler
	)

◆ ResetMouseCursor()

void mitk::EventStateMachine::ResetMouseCursor ( )

protected

Resets the mouse cursor to its original state.

Should be used by subclasses and from external application instead of using QmitkApplicationCursor directly to avoid conflicts.

◆ ResetToStartState()

void mitk::EventStateMachine::ResetToStartState ( )

protected

ResetToStartState Reset state machine to it initial starting state.

◆ SetMouseCursor()

void mitk::EventStateMachine::SetMouseCursor	(	const char *	xpm[],
		int	hotspotX,
		int	hotspotY
	)

protected

Sets the specified mouse cursor.

Use this in subclasses instead of using QmitkApplicationCursor directly.

Member Data Documentation

◆ m_IsActive

bool mitk::EventStateMachine::m_IsActive

protected

Definition at line 213 of file mitkEventStateMachine.h.

◆ m_UndoController

UndoController* mitk::EventStateMachine::m_UndoController

protected

Definition at line 215 of file mitkEventStateMachine.h.

◆ m_UndoEnabled

bool mitk::EventStateMachine::m_UndoEnabled

protected

Definition at line 216 of file mitkEventStateMachine.h.
