Event state machine that observes interaction events and broadcasts display action events. More...

#include <mitkDisplayActionEventBroadcast.h>

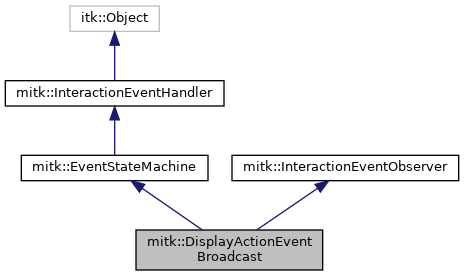

Inheritance diagram for mitk::DisplayActionEventBroadcast:

[legend]

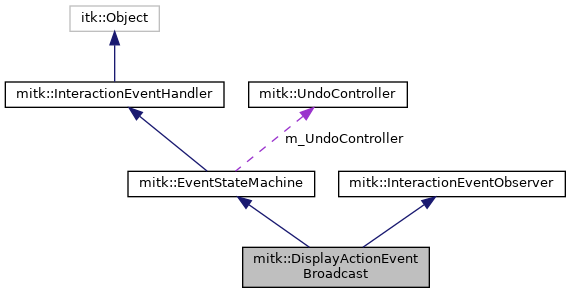

Collaboration diagram for mitk::DisplayActionEventBroadcast:

[legend]

Public Member Functions
	mitkClassMacro (DisplayActionEventBroadcast, EventStateMachine)

Pointer	Clone () const

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override
	Called for every InteractionEvent observed through the InteractionEventObserver interface. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()
	Disable this observer so it no longer receives notifications. More...

void	Enable ()
	Enable this observer so it receives notifications. More...

bool	IsEnabled () const
	Check whether this observer is currently enabled. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DisplayActionEventBroadcast ()
	Constructor. Connects actions and registers as a MicroService. More...

	~DisplayActionEventBroadcast () override
	Destructor. Unregisters the MicroService. More...

void	ConnectActionsAndFunctions () override
	Connect the action names from the state machine XML with member functions. More...

void	ConfigurationChanged () override
	Called when the event configuration is set or changed. More...

bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode) override
	Filter events by checking the sender renderer. More...

bool	CheckPositionEvent (const InteractionEvent *interactionEvent)
	Check if the given event is an InteractionPositionEvent. More...

bool	CheckRotationPossible (const InteractionEvent *interactionEvent)
	Check if rotation is possible given the current interaction state. More...

bool	CheckSwivelPossible (const InteractionEvent *interactionEvent)
	Check if swivel is possible given the current interaction state. More...

void	Init (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Initialize interaction coordinates at the start of a gesture. More...

void	Move (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplayMoveEvent based on mouse movement. More...

void	SetCrosshair (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplaySetCrosshairEvent at the current position. More...

void	Zoom (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplayZoomEvent based on mouse movement. More...

void	Scroll (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplayScrollEvent based on mouse movement. More...

void	ScrollOneUp (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplayScrollEvent to scroll one slice up. More...

void	ScrollOneDown (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplayScrollEvent to scroll one slice down. More...

void	AdjustLevelWindow (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Broadcast a DisplaySetLevelWindowEvent based on mouse movement. More...

void	StartRotation (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Begin a plane rotation interaction. More...

void	EndRotation (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	End a plane rotation interaction. More...

void	Rotate (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Perform a plane rotation based on mouse movement. More...

void	Swivel (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Perform a plane swivel based on mouse movement. More...

void	IncreaseTimeStep (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Increase the current time step by one. More...

void	DecreaseTimeStep (StateMachineAction stateMachineAction, InteractionEvent interactionEvent)
	Decrease the current time step by one. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Event state machine that observes interaction events and broadcasts display action events.

Connects the actions from the event state machine XML file with concrete functions of this class. The observed interaction events are mouse events that trigger certain actions according to an event configuration (e.g. PACS mode). These actions typically perform preprocessing and then broadcast a specific display action event (e.g. DisplayMoveEvent, DisplayZoomEvent).

Any instance that wants to react to the invoked events can call AddObserver() on a specific broadcast instance, providing an itkEventObject and an itkCommand.

See also: DisplayActionEventHandler DisplayActionEvents InteractionEventObserver

Definition at line 37 of file mitkDisplayActionEventBroadcast.h.

Constructor & Destructor Documentation

◆ DisplayActionEventBroadcast()

mitk::DisplayActionEventBroadcast::DisplayActionEventBroadcast ( )

protected

Constructor. Connects actions and registers as a MicroService.

◆ ~DisplayActionEventBroadcast()

mitk::DisplayActionEventBroadcast::~DisplayActionEventBroadcast ( )

overrideprotected

Destructor. Unregisters the MicroService.

Member Function Documentation

◆ AdjustLevelWindow()

void mitk::DisplayActionEventBroadcast::AdjustLevelWindow	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplaySetLevelWindowEvent based on mouse movement.

◆ CheckPositionEvent()

bool mitk::DisplayActionEventBroadcast::CheckPositionEvent ( const InteractionEvent * interactionEvent )

protected

Check if the given event is an InteractionPositionEvent.

Parameters

interactionEvent The event to check.

Returns: true if the event can be cast to InteractionPositionEvent.

◆ CheckRotationPossible()

bool mitk::DisplayActionEventBroadcast::CheckRotationPossible ( const InteractionEvent * interactionEvent )

protected

Check if rotation is possible given the current interaction state.

Parameters

interactionEvent The current interaction event.

Returns: true if rotation can be performed.

◆ CheckSwivelPossible()

bool mitk::DisplayActionEventBroadcast::CheckSwivelPossible ( const InteractionEvent * interactionEvent )

protected

Check if swivel is possible given the current interaction state.

Parameters

interactionEvent The current interaction event.

Returns: true if swivel can be performed.

◆ Clone()

Pointer mitk::DisplayActionEventBroadcast::Clone ( ) const

◆ ConfigurationChanged()

void mitk::DisplayActionEventBroadcast::ConfigurationChanged ( )

overrideprotectedvirtual

Called when the event configuration is set or changed.

Reads parameters from the configuration file and updates member variables accordingly (scroll direction, zoom factor, etc.).

Reimplemented from mitk::InteractionEventHandler.

◆ ConnectActionsAndFunctions()

void mitk::DisplayActionEventBroadcast::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Connect the action names from the state machine XML with member functions.

Reimplemented from mitk::EventStateMachine.

◆ DecreaseTimeStep()

void mitk::DisplayActionEventBroadcast::DecreaseTimeStep	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Decrease the current time step by one.

◆ EndRotation()

void mitk::DisplayActionEventBroadcast::EndRotation	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

End a plane rotation interaction.

◆ FilterEvents()

bool mitk::DisplayActionEventBroadcast::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

overrideprotectedvirtual

Filter events by checking the sender renderer.

Parameters

interactionEvent	The event whose sender is checked.
dataNode	Ignored in this implementation.

Returns: true if the sender is valid and uses a 2D renderer, false otherwise.

Reimplemented from mitk::EventStateMachine.

◆ IncreaseTimeStep()

void mitk::DisplayActionEventBroadcast::IncreaseTimeStep	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Increase the current time step by one.

◆ Init()

void mitk::DisplayActionEventBroadcast::Init	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Initialize interaction coordinates at the start of a gesture.

◆ mitkClassMacro()

mitk::DisplayActionEventBroadcast::mitkClassMacro	(	DisplayActionEventBroadcast	,
		EventStateMachine
	)

◆ Move()

void mitk::DisplayActionEventBroadcast::Move	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplayMoveEvent based on mouse movement.

◆ New()

static Pointer mitk::DisplayActionEventBroadcast::New ( )

static

◆ Notify()

void mitk::DisplayActionEventBroadcast::Notify	(	InteractionEvent *	interactionEvent,
		bool	isHandled
	)

overridevirtual

Called for every InteractionEvent observed through the InteractionEventObserver interface.

The interaction event is passed to the state machine in order to use its infrastructure for action dispatch.

Parameters

interactionEvent	The event that was observed and triggered this notification.
isHandled	Flag indicating whether a DataInteractor has already handled the event.

See also: InteractionEventObserver

Implements mitk::InteractionEventObserver.

◆ Rotate()

void mitk::DisplayActionEventBroadcast::Rotate	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Perform a plane rotation based on mouse movement.

◆ Scroll()

void mitk::DisplayActionEventBroadcast::Scroll	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplayScrollEvent based on mouse movement.

◆ ScrollOneDown()

void mitk::DisplayActionEventBroadcast::ScrollOneDown	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplayScrollEvent to scroll one slice down.

◆ ScrollOneUp()

void mitk::DisplayActionEventBroadcast::ScrollOneUp	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplayScrollEvent to scroll one slice up.

◆ SetCrosshair()

void mitk::DisplayActionEventBroadcast::SetCrosshair	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplaySetCrosshairEvent at the current position.

◆ StartRotation()

void mitk::DisplayActionEventBroadcast::StartRotation	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Begin a plane rotation interaction.

◆ Swivel()

void mitk::DisplayActionEventBroadcast::Swivel	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Perform a plane swivel based on mouse movement.

◆ Zoom()

void mitk::DisplayActionEventBroadcast::Zoom	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *	interactionEvent
	)

protected

Broadcast a DisplayZoomEvent based on mouse movement.

The documentation for this class was generated from the following file:

mitkDisplayActionEventBroadcast.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DisplayActionEventBroadcast()

◆ ~DisplayActionEventBroadcast()

Member Function Documentation

◆ AdjustLevelWindow()

◆ CheckPositionEvent()

◆ CheckRotationPossible()

◆ CheckSwivelPossible()

◆ Clone()

◆ ConfigurationChanged()

◆ ConnectActionsAndFunctions()

◆ DecreaseTimeStep()

◆ EndRotation()

◆ FilterEvents()

◆ IncreaseTimeStep()

◆ Init()

◆ mitkClassMacro()

◆ Move()

◆ New()

◆ Notify()

◆ Rotate()

◆ Scroll()

◆ ScrollOneDown()

◆ ScrollOneUp()

◆ SetCrosshair()

◆ StartRotation()

◆ Swivel()

◆ Zoom()
