mitk::InteractionPositionEvent Class Reference

Super class for all position-aware interaction events. More...

#include <mitkInteractionPositionEvent.h>

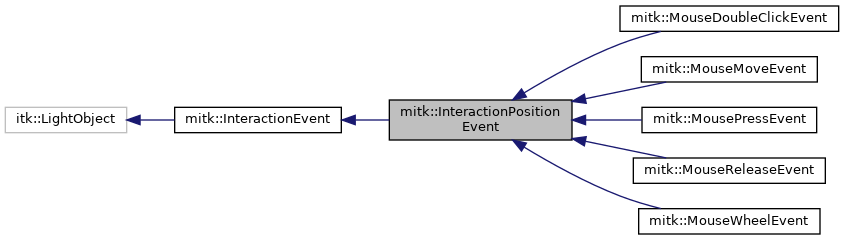

Inheritance diagram for mitk::InteractionPositionEvent:

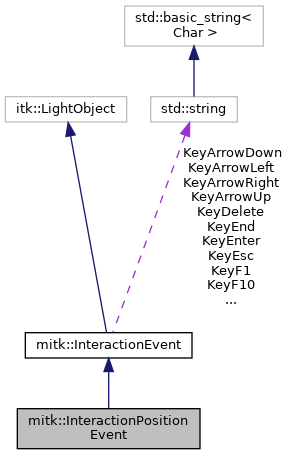

Collaboration diagram for mitk::InteractionPositionEvent:

Public Member Functions
	mitkClassMacro (InteractionPositionEvent, InteractionEvent)
	mitkNewMacro2Param (Self, BaseRenderer *, const Point2D &)
Point2D	GetPointerPositionOnScreen () const
	Get the pointer position in display (screen) coordinates. More...
Point3D	GetPositionInWorld () const
	Get the pointer position converted to 3D world coordinates. More...
bool	IsSuperClassOf (const InteractionEvent::Pointer &baseClass) const override
	Check if the provided event is an InteractionPositionEvent or derived. More...
Public Member Functions inherited from mitk::InteractionEvent
	mitkClassMacroItkParent (InteractionEvent, itk::LightObject)
	mitkNewMacro1Param (Self, BaseRenderer *)
void	SetSender (BaseRenderer *sender)
	Set the BaseRenderer that sent this event. More...
BaseRenderer *	GetSender () const
	Get the BaseRenderer that sent this event. More...

Protected Member Functions
	InteractionPositionEvent (BaseRenderer *baseRenderer, const Point2D &mousePosition)
	~InteractionPositionEvent () override
bool	IsEqual (const InteractionEvent &) const override
Protected Member Functions inherited from mitk::InteractionEvent
	InteractionEvent (BaseRenderer *)
	~InteractionEvent () override

Additional Inherited Members
Public Types inherited from mitk::InteractionEvent
enum	MouseButtons { NoButton , LeftMouseButton , RightMouseButton , MiddleMouseButton }
	Enumeration of mouse button states. More...
enum	ModifierKeys { NoKey , ShiftKey , ControlKey , AltKey }
	Enumeration of keyboard modifier keys. More...
Static Public Attributes inherited from mitk::InteractionEvent
static const std::string	KeyEsc
	String constants for special keys used in key events and state machine patterns. More...
static const std::string	KeyEnter
	"Enter" key constant. More...
static const std::string	KeyReturn
	"Return" key constant. More...
static const std::string	KeyDelete
	"Delete" key constant. More...
static const std::string	KeyArrowUp
	"ArrowUp" key constant. More...
static const std::string	KeyArrowDown
	"ArrowDown" key constant. More...
static const std::string	KeyArrowLeft
	"ArrowLeft" key constant. More...
static const std::string	KeyArrowRight
	"ArrowRight" key constant. More...
static const std::string	KeyF1
	"F1" key constant. More...
static const std::string	KeyF2
	"F2" key constant. More...
static const std::string	KeyF3
	"F3" key constant. More...
static const std::string	KeyF4
	"F4" key constant. More...
static const std::string	KeyF5
	"F5" key constant. More...
static const std::string	KeyF6
	"F6" key constant. More...
static const std::string	KeyF7
	"F7" key constant. More...
static const std::string	KeyF8
	"F8" key constant. More...
static const std::string	KeyF9
	"F9" key constant. More...
static const std::string	KeyF10
	"F10" key constant. More...
static const std::string	KeyF11
	"F11" key constant. More...
static const std::string	KeyF12
	"F12" key constant. More...
static const std::string	KeyPos1
	"Pos1" (Home) key constant. More...
static const std::string	KeyEnd
	"End" key constant. More...
static const std::string	KeyInsert
	"Insert" key constant. More...
static const std::string	KeyPageUp
	"PageUp" key constant. More...
static const std::string	KeyPageDown
	"PageDown" key constant. More...
static const std::string	KeySpace
	"Space" key constant. More...

Detailed Description

Super class for all position-aware interaction events.

This class stores the 2D pointer position (in display coordinates) relative to the BaseRenderer. On demand, it converts this to a 3D world coordinate via the renderer's DisplayToWorld() method.

See also

InteractionEvent

InteractionKeyEvent

Definition at line 40 of file mitkInteractionPositionEvent.h.

Constructor & Destructor Documentation

InteractionPositionEvent()

mitk::InteractionPositionEvent::InteractionPositionEvent ( BaseRenderer *  baseRenderer, const Point2D &  mousePosition  )

protected

~InteractionPositionEvent()

mitk::InteractionPositionEvent::~InteractionPositionEvent ( )

overrideprotected

Member Function Documentation

GetPointerPositionOnScreen()

Point2D mitk::InteractionPositionEvent::GetPointerPositionOnScreen

(

)

const

Get the pointer position in display (screen) coordinates.

Returns

The 2D pointer position in pixels.

GetPositionInWorld()

Point3D mitk::InteractionPositionEvent::GetPositionInWorld

(

)

const

Get the pointer position converted to 3D world coordinates.

The conversion is performed via the sender renderer's DisplayToWorld() method.

Returns

The 3D world position corresponding to the pointer position.

IsEqual()

bool mitk::InteractionPositionEvent::IsEqual ( const InteractionEvent &  ) const

overrideprotectedvirtual

Reimplemented from mitk::InteractionEvent.

Reimplemented in mitk::MouseWheelEvent, mitk::MouseReleaseEvent, mitk::MousePressEvent, mitk::MouseMoveEvent, and mitk::MouseDoubleClickEvent.

IsSuperClassOf()

bool mitk::InteractionPositionEvent::IsSuperClassOf ( const InteractionEvent::Pointer &  baseClass ) const

overridevirtual

Check if the provided event is an InteractionPositionEvent or derived.

Parameters

[in]

baseClass

The event to check.

Returns

true if baseClass is an InteractionPositionEvent or derived from it.

Reimplemented from mitk::InteractionEvent.

Reimplemented in mitk::MouseWheelEvent, mitk::MouseReleaseEvent, mitk::MousePressEvent, mitk::MouseMoveEvent, and mitk::MouseDoubleClickEvent.

mitkClassMacro()

mitk::InteractionPositionEvent::mitkClassMacro	(	InteractionPositionEvent	,
		InteractionEvent
	)

mitkNewMacro2Param()

mitk::InteractionPositionEvent::mitkNewMacro2Param	(	Self	,
		BaseRenderer *	,
		const Point2D &
	)

---

The documentation for this class was generated from the following file:

• mitkInteractionPositionEvent.h
