Interaction event class representing a mouse wheel scroll. More...

#include <mitkMouseWheelEvent.h>

Inheritance diagram for mitk::MouseWheelEvent:

[legend]

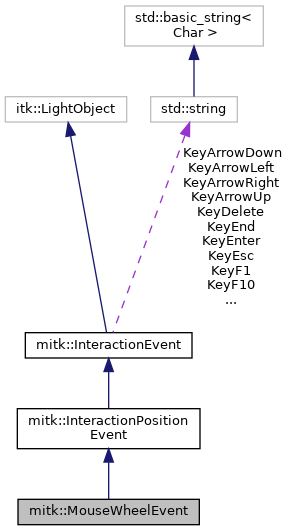

Collaboration diagram for mitk::MouseWheelEvent:

[legend]

Public Member Functions
	mitkClassMacro (MouseWheelEvent, InteractionPositionEvent) mitkNewMacro5Param(Self

BaseRenderer const Point2D int ModifierKeys	GetModifiers () const
	Get the active modifier keys (Shift, Ctrl, Alt, etc.). More...

MouseButtons	GetButtonStates () const
	Get the combined state of all mouse buttons at the time of the event. More...

void	SetModifiers (ModifierKeys modifiers)
	Set the active modifier keys. More...

void	SetButtonStates (MouseButtons buttons)
	Set the combined mouse button state. More...

int	GetWheelDelta () const
	Get the wheel scroll delta. More...

void	SetWheelDelta (int delta)
	Set the wheel scroll delta. More...

bool	IsSuperClassOf (const InteractionEvent::Pointer &baseClass) const override
	Check if the given event is an instance of this class or a subclass. More...

Public Member Functions inherited from mitk::InteractionPositionEvent
	mitkClassMacro (InteractionPositionEvent, InteractionEvent)

	mitkNewMacro2Param (Self, BaseRenderer *, const Point2D &)

Point2D	GetPointerPositionOnScreen () const
	Get the pointer position in display (screen) coordinates. More...

Point3D	GetPositionInWorld () const
	Get the pointer position converted to 3D world coordinates. More...

Public Member Functions inherited from mitk::InteractionEvent
	mitkClassMacroItkParent (InteractionEvent, itk::LightObject)

	mitkNewMacro1Param (Self, BaseRenderer *)

void	SetSender (BaseRenderer *sender)
	Set the BaseRenderer that sent this event. More...

BaseRenderer *	GetSender () const
	Get the BaseRenderer that sent this event. More...

Public Attributes
BaseRenderer const Point2D	MouseButtons

BaseRenderer const Point2D	ModifierKeys

Protected Member Functions
	MouseWheelEvent (BaseRenderer *=nullptr, const Point2D &mousePosition=Point2D(), MouseButtons buttonStates=NoButton, ModifierKeys modifiers=NoKey, int wheelDelta=0)

	~MouseWheelEvent () override

bool	IsEqual (const InteractionEvent &) const override
	Compare this event to another for equality. More...

Protected Member Functions inherited from mitk::InteractionPositionEvent
	InteractionPositionEvent (BaseRenderer *baseRenderer, const Point2D &mousePosition)

	~InteractionPositionEvent () override

Protected Member Functions inherited from mitk::InteractionEvent
	InteractionEvent (BaseRenderer *)

	~InteractionEvent () override

Additional Inherited Members
Public Types inherited from mitk::InteractionEvent
enum	MouseButtons { NoButton , LeftMouseButton , RightMouseButton , MiddleMouseButton }
	Enumeration of mouse button states. More...

enum	ModifierKeys { NoKey , ShiftKey , ControlKey , AltKey }
	Enumeration of keyboard modifier keys. More...

Static Public Attributes inherited from mitk::InteractionEvent
static const std::string	KeyEsc
	String constants for special keys used in key events and state machine patterns. More...

static const std::string	KeyEnter
	"Enter" key constant. More...

static const std::string	KeyReturn
	"Return" key constant. More...

static const std::string	KeyDelete
	"Delete" key constant. More...

static const std::string	KeyArrowUp
	"ArrowUp" key constant. More...

static const std::string	KeyArrowDown
	"ArrowDown" key constant. More...

static const std::string	KeyArrowLeft
	"ArrowLeft" key constant. More...

static const std::string	KeyArrowRight
	"ArrowRight" key constant. More...

static const std::string	KeyF1
	"F1" key constant. More...

static const std::string	KeyF2
	"F2" key constant. More...

static const std::string	KeyF3
	"F3" key constant. More...

static const std::string	KeyF4
	"F4" key constant. More...

static const std::string	KeyF5
	"F5" key constant. More...

static const std::string	KeyF6
	"F6" key constant. More...

static const std::string	KeyF7
	"F7" key constant. More...

static const std::string	KeyF8
	"F8" key constant. More...

static const std::string	KeyF9
	"F9" key constant. More...

static const std::string	KeyF10
	"F10" key constant. More...

static const std::string	KeyF11
	"F11" key constant. More...

static const std::string	KeyF12
	"F12" key constant. More...

static const std::string	KeyPos1
	"Pos1" (Home) key constant. More...

static const std::string	KeyEnd
	"End" key constant. More...

static const std::string	KeyInsert
	"Insert" key constant. More...

static const std::string	KeyPageUp
	"PageUp" key constant. More...

static const std::string	KeyPageDown
	"PageDown" key constant. More...

static const std::string	KeySpace
	"Space" key constant. More...

Detailed Description

Interaction event class representing a mouse wheel scroll.

Stores the mouse position, the scroll delta, the combined state of all mouse buttons, and any active modifier keys. Two MouseWheelEvent instances are considered equal if they scroll in the same direction (same sign of delta).

Note: A click with the middle mouse button should be handled with MousePressEvent, not MouseWheelEvent.

See also: MousePressEvent; InteractionPositionEvent

Definition at line 42 of file mitkMouseWheelEvent.h.

Constructor & Destructor Documentation

◆ MouseWheelEvent()

mitk::MouseWheelEvent::MouseWheelEvent	(	BaseRenderer *	= `nullptr`,
		const Point2D &	mousePosition = `Point2D()`,
		MouseButtons	buttonStates = `NoButton`,
		ModifierKeys	modifiers = `NoKey`,
		int	wheelDelta = `0`
	)

protected

◆ ~MouseWheelEvent()

mitk::MouseWheelEvent::~MouseWheelEvent ( )

overrideprotected

Member Function Documentation

◆ GetButtonStates()

MouseButtons mitk::MouseWheelEvent::GetButtonStates ( ) const

Get the combined state of all mouse buttons at the time of the event.

◆ GetModifiers()

BaseRenderer const Point2D int ModifierKeys mitk::MouseWheelEvent::GetModifiers ( ) const

Get the active modifier keys (Shift, Ctrl, Alt, etc.).

◆ GetWheelDelta()

int mitk::MouseWheelEvent::GetWheelDelta ( ) const

Get the wheel scroll delta.

Returns: Positive values indicate scrolling up/forward, negative values down/backward.

◆ IsEqual()

bool mitk::MouseWheelEvent::IsEqual ( const InteractionEvent & ) const

overrideprotectedvirtual

Compare this event to another for equality.

Two MouseWheelEvent instances are equal if they scroll in the same direction (same sign of wheel delta), have the same modifier keys, button states, and position.

Reimplemented from mitk::InteractionPositionEvent.

◆ IsSuperClassOf()

bool mitk::MouseWheelEvent::IsSuperClassOf ( const InteractionEvent::Pointer & baseClass ) const

overridevirtual

Check if the given event is an instance of this class or a subclass.

Returns: true if baseClass is a MouseWheelEvent.

Reimplemented from mitk::InteractionPositionEvent.

◆ mitkClassMacro()

mitk::MouseWheelEvent::mitkClassMacro	(	MouseWheelEvent	,
		InteractionPositionEvent
	)

◆ SetButtonStates()

void mitk::MouseWheelEvent::SetButtonStates ( MouseButtons buttons )

Set the combined mouse button state.

◆ SetModifiers()

void mitk::MouseWheelEvent::SetModifiers ( ModifierKeys modifiers )

Set the active modifier keys.

◆ SetWheelDelta()

void mitk::MouseWheelEvent::SetWheelDelta ( int delta )

Set the wheel scroll delta.

Parameters

delta Positive values indicate scrolling up/forward, negative values down/backward.

Member Data Documentation

◆ ModifierKeys

BaseRenderer const Point2D mitk::MouseWheelEvent::ModifierKeys

Definition at line 46 of file mitkMouseWheelEvent.h.

◆ MouseButtons

BaseRenderer const Point2D mitk::MouseWheelEvent::MouseButtons
