Base class for all interaction events in MITK. More...

#include <mitkInteractionEvent.h>

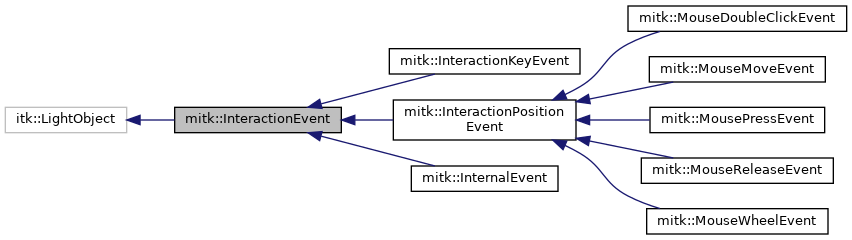

Inheritance diagram for mitk::InteractionEvent:

[legend]

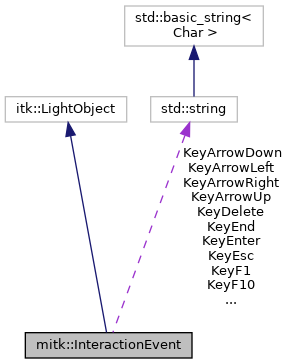

Collaboration diagram for mitk::InteractionEvent:

[legend]

Public Types
enum	MouseButtons { NoButton , LeftMouseButton , RightMouseButton , MiddleMouseButton }
	Enumeration of mouse button states. More...

enum	ModifierKeys { NoKey , ShiftKey , ControlKey , AltKey }
	Enumeration of keyboard modifier keys. More...

Public Member Functions
	mitkClassMacroItkParent (InteractionEvent, itk::LightObject)

	mitkNewMacro1Param (Self, BaseRenderer *)

void	SetSender (BaseRenderer *sender)
	Set the BaseRenderer that sent this event. More...

BaseRenderer *	GetSender () const
	Get the BaseRenderer that sent this event. More...

virtual bool	IsSuperClassOf (const InteractionEvent::Pointer &baseClass) const
	Check if the provided event is an instance of this class or a derived class. More...

Static Public Attributes

static const std::string	KeyEsc
	String constants for special keys used in key events and state machine patterns. More...

static const std::string	KeyEnter
	"Enter" key constant. More...

static const std::string	KeyReturn
	"Return" key constant. More...

static const std::string	KeyDelete
	"Delete" key constant. More...

static const std::string	KeyArrowUp
	"ArrowUp" key constant. More...

static const std::string	KeyArrowDown
	"ArrowDown" key constant. More...

static const std::string	KeyArrowLeft
	"ArrowLeft" key constant. More...

static const std::string	KeyArrowRight
	"ArrowRight" key constant. More...

static const std::string	KeyF1
	"F1" key constant. More...

static const std::string	KeyF2
	"F2" key constant. More...

static const std::string	KeyF3
	"F3" key constant. More...

static const std::string	KeyF4
	"F4" key constant. More...

static const std::string	KeyF5
	"F5" key constant. More...

static const std::string	KeyF6
	"F6" key constant. More...

static const std::string	KeyF7
	"F7" key constant. More...

static const std::string	KeyF8
	"F8" key constant. More...

static const std::string	KeyF9
	"F9" key constant. More...

static const std::string	KeyF10
	"F10" key constant. More...

static const std::string	KeyF11
	"F11" key constant. More...

static const std::string	KeyF12
	"F12" key constant. More...

static const std::string	KeyPos1
	"Pos1" (Home) key constant. More...

static const std::string	KeyEnd
	"End" key constant. More...

static const std::string	KeyInsert
	"Insert" key constant. More...

static const std::string	KeyPageUp
	"PageUp" key constant. More...

static const std::string	KeyPageDown
	"PageDown" key constant. More...

static const std::string	KeySpace
	"Space" key constant. More...

Protected Member Functions
	InteractionEvent (BaseRenderer *)

	~InteractionEvent () override

virtual bool	IsEqual (const InteractionEvent &other) const

Detailed Description

Base class for all interaction events in MITK.

InteractionEvent is the root of the interaction event hierarchy. Every interaction event carries a reference to the BaseRenderer that generated it (the "sender"). Subclasses add position information (InteractionPositionEvent), keyboard information (InteractionKeyEvent), or mouse button/wheel details.

Equality between events is checked via operator== which delegates to IsEqual(). Two events match if they agree on all attributes relevant for state machine transitions (e.g. mouse button, modifiers) while ignoring attributes like the exact pointer position.

See also: InteractionPositionEvent; InteractionKeyEvent; EventStateMachine; Dispatcher

Definition at line 45 of file mitkInteractionEvent.h.

Member Enumeration Documentation

◆ ModifierKeys

enum mitk::InteractionEvent::ModifierKeys

Enumeration of keyboard modifier keys.

Values can be combined with bitwise OR to represent multiple held modifiers.

Enumerator
NoKey	No modifier key.
ShiftKey	Shift key.
ControlKey	Control (Ctrl) key.
AltKey	Alt key.

Definition at line 92 of file mitkInteractionEvent.h.

◆ MouseButtons

enum mitk::InteractionEvent::MouseButtons

Enumeration of mouse button states.

Values can be combined with bitwise OR to represent multiple pressed buttons.

Enumerator
NoButton	No mouse button.
LeftMouseButton	Left mouse button.
RightMouseButton	Right mouse button.
MiddleMouseButton	Middle mouse button.

Definition at line 79 of file mitkInteractionEvent.h.

Constructor & Destructor Documentation

◆ InteractionEvent()

mitk::InteractionEvent::InteractionEvent ( BaseRenderer * )

protected

◆ ~InteractionEvent()

mitk::InteractionEvent::~InteractionEvent ( )

overrideprotected

Member Function Documentation

◆ GetSender()

BaseRenderer* mitk::InteractionEvent::GetSender ( ) const

Get the BaseRenderer that sent this event.

Returns: Pointer to the sending BaseRenderer.

◆ IsEqual()

virtual bool mitk::InteractionEvent::IsEqual ( const InteractionEvent & other ) const

protectedvirtual

Reimplemented in mitk::MouseWheelEvent, mitk::MouseReleaseEvent, mitk::MousePressEvent, mitk::MouseMoveEvent, mitk::MouseDoubleClickEvent, mitk::InternalEvent, mitk::InteractionPositionEvent, and mitk::InteractionKeyEvent.

◆ IsSuperClassOf()

virtual bool mitk::InteractionEvent::IsSuperClassOf ( const InteractionEvent::Pointer & baseClass ) const

virtual

Check if the provided event is an instance of this class or a derived class.

This up-cast check supports polymorphism at the state machine pattern (XML) level, allowing transitions to match on base event types.

Parameters

[in] baseClass The event to check.

Returns: true if baseClass is an InteractionEvent or derived from it.

Reimplemented in mitk::MouseWheelEvent, mitk::MouseReleaseEvent, mitk::MousePressEvent, mitk::MouseMoveEvent, mitk::MouseDoubleClickEvent, mitk::InternalEvent, mitk::InteractionPositionEvent, and mitk::InteractionKeyEvent.

◆ mitkClassMacroItkParent()

mitk::InteractionEvent::mitkClassMacroItkParent	(	InteractionEvent	,
		itk::LightObject
	)

◆ mitkNewMacro1Param()

mitk::InteractionEvent::mitkNewMacro1Param	(	Self	,
		BaseRenderer *
	)

◆ SetSender()

void mitk::InteractionEvent::SetSender ( BaseRenderer * sender )

Set the BaseRenderer that sent this event.

Parameters

[in] sender Pointer to the sending BaseRenderer.

Member Data Documentation

◆ KeyArrowDown

const std::string mitk::InteractionEvent::KeyArrowDown

static

"ArrowDown" key constant.

Definition at line 107 of file mitkInteractionEvent.h.

◆ KeyArrowLeft

const std::string mitk::InteractionEvent::KeyArrowLeft

static

"ArrowLeft" key constant.

Definition at line 108 of file mitkInteractionEvent.h.

◆ KeyArrowRight

const std::string mitk::InteractionEvent::KeyArrowRight

static

"ArrowRight" key constant.

Definition at line 109 of file mitkInteractionEvent.h.

◆ KeyArrowUp

const std::string mitk::InteractionEvent::KeyArrowUp

static

"ArrowUp" key constant.

Definition at line 106 of file mitkInteractionEvent.h.

◆ KeyDelete

const std::string mitk::InteractionEvent::KeyDelete

static

"Delete" key constant.

Definition at line 105 of file mitkInteractionEvent.h.

◆ KeyEnd

const std::string mitk::InteractionEvent::KeyEnd

static

"End" key constant.

Definition at line 125 of file mitkInteractionEvent.h.

◆ KeyEnter

const std::string mitk::InteractionEvent::KeyEnter

static

"Enter" key constant.

Definition at line 103 of file mitkInteractionEvent.h.

◆ KeyEsc

const std::string mitk::InteractionEvent::KeyEsc

static

String constants for special keys used in key events and state machine patterns.

"Escape" key constant.

Definition at line 102 of file mitkInteractionEvent.h.

◆ KeyF1

const std::string mitk::InteractionEvent::KeyF1

static

"F1" key constant.

Definition at line 111 of file mitkInteractionEvent.h.

◆ KeyF10

const std::string mitk::InteractionEvent::KeyF10

static

"F10" key constant.

Definition at line 120 of file mitkInteractionEvent.h.

◆ KeyF11

const std::string mitk::InteractionEvent::KeyF11

static

"F11" key constant.

Definition at line 121 of file mitkInteractionEvent.h.

◆ KeyF12

const std::string mitk::InteractionEvent::KeyF12

static

"F12" key constant.

Definition at line 122 of file mitkInteractionEvent.h.

◆ KeyF2

const std::string mitk::InteractionEvent::KeyF2

static

"F2" key constant.

Definition at line 112 of file mitkInteractionEvent.h.

◆ KeyF3

const std::string mitk::InteractionEvent::KeyF3

static

"F3" key constant.

Definition at line 113 of file mitkInteractionEvent.h.

◆ KeyF4

const std::string mitk::InteractionEvent::KeyF4

static

"F4" key constant.

Definition at line 114 of file mitkInteractionEvent.h.

◆ KeyF5

const std::string mitk::InteractionEvent::KeyF5

static

"F5" key constant.

Definition at line 115 of file mitkInteractionEvent.h.

◆ KeyF6

const std::string mitk::InteractionEvent::KeyF6

static

"F6" key constant.

Definition at line 116 of file mitkInteractionEvent.h.

◆ KeyF7

const std::string mitk::InteractionEvent::KeyF7

static

"F7" key constant.

Definition at line 117 of file mitkInteractionEvent.h.

◆ KeyF8

const std::string mitk::InteractionEvent::KeyF8

static

"F8" key constant.

Definition at line 118 of file mitkInteractionEvent.h.

◆ KeyF9

const std::string mitk::InteractionEvent::KeyF9

static

"F9" key constant.

Definition at line 119 of file mitkInteractionEvent.h.

◆ KeyInsert

const std::string mitk::InteractionEvent::KeyInsert

static

"Insert" key constant.

Definition at line 126 of file mitkInteractionEvent.h.

◆ KeyPageDown

const std::string mitk::InteractionEvent::KeyPageDown

static

"PageDown" key constant.

Definition at line 128 of file mitkInteractionEvent.h.

◆ KeyPageUp

const std::string mitk::InteractionEvent::KeyPageUp

static

"PageUp" key constant.

Definition at line 127 of file mitkInteractionEvent.h.

◆ KeyPos1

const std::string mitk::InteractionEvent::KeyPos1

static

"Pos1" (Home) key constant.

Definition at line 124 of file mitkInteractionEvent.h.

◆ KeyReturn

const std::string mitk::InteractionEvent::KeyReturn

static

"Return" key constant.

Definition at line 104 of file mitkInteractionEvent.h.

◆ KeySpace

const std::string mitk::InteractionEvent::KeySpace

static

"Space" key constant.

Definition at line 129 of file mitkInteractionEvent.h.

The documentation for this class was generated from the following file:

mitkInteractionEvent.h
