Central node class of the MITK data tree, associating a data object with properties and mappers. More...

#include <mitkDataNode.h>

Inheritance diagram for mitk::DataNode:

[legend]

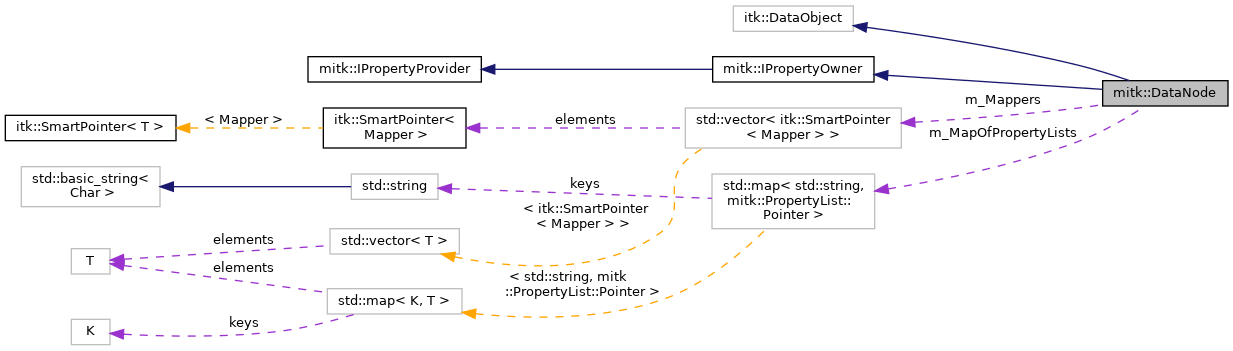

Collaboration diagram for mitk::DataNode:

[legend]

Public Types
typedef mitk::Geometry3D::Pointer	Geometry3DPointer
	Smart pointer type for Geometry3D. More...

typedef std::vector< itk::SmartPointer< Mapper > >	MapperVector
	Vector of Mapper smart pointers, indexed by MapperSlotId. More...

typedef std::map< std::string, mitk::PropertyList::Pointer >	MapOfPropertyLists
	Map from renderer name strings to renderer-specific PropertyList instances. More...

typedef std::vector< MapOfPropertyLists::key_type >	PropertyListKeyNames
	Vector of renderer name keys used in the MapOfPropertyLists. More...

typedef std::set< std::string >	GroupTagList
	Set of group tag name strings (keys of GroupTagProperty entries). More...

Public Member Functions
	mitkClassMacroItkParent (DataNode, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Retrieve a property as a const pointer (IPropertyProvider interface). More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Retrieve all property keys for a given context (IPropertyProvider interface). More...

std::vector< std::string >	GetPropertyContextNames () const override
	Retrieve all available property context names (IPropertyProvider interface). More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Retrieve a mutable property pointer (IPropertyOwner interface). More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the given context (IPropertyOwner interface). More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the given context (IPropertyOwner interface). More...

mitk::Mapper *	GetMapper (MapperSlotId id) const
	Get the Mapper for the given mapper slot, creating it on demand if necessary. More...

BaseData *	GetData () const
	Get the data object (instance of BaseData, e.g., an Image) managed by this DataNode. More...

template<typename T >
T *	GetDataAs () const
	Convenience method to get the data object cast to a specific type. More...

vtkLinearTransform *	GetVtkTransform (int t=0) const
	Get the transformation applied prior to displaying the data as a vtkTransform. More...

virtual void	SetData (mitk::BaseData *baseData)
	Set the data object (instance of BaseData, e.g., an Image) managed by this DataNode. More...

virtual void	SetDataInteractor (const DataInteractor::Pointer interactor)
	Set the DataInteractor associated with this node. More...

virtual DataInteractor::Pointer	GetDataInteractor () const
	Get the DataInteractor associated with this node. More...

mitk::DataNode &	operator= (const DataNode &right)
	Assignment operator. Creates a new DataNode with the data from right. More...

mitk::DataNode &	operator= (BaseData *right)
	Assignment operator. Creates a new DataNode with the given BaseData. More...

virtual void	SetMapper (MapperSlotId id, mitk::Mapper *mapper)
	Set a specific Mapper for the given mapper slot. More...

void	UpdateOutputInformation () override
	Update the output information by calling the source's UpdateOutputInformation(). More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region (no-op for DataNode). More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Check if the requested region is outside of the buffered region. More...

bool	VerifyRequestedRegion () override
	Verify that the requested region is valid. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object (no-op for DataNode). More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from another data object (no-op for DataNode). More...

PropertyListKeyNames	GetPropertyListNames () const
	The "names" used for (renderer-specific) PropertyLists in GetPropertyList(string). More...

void	SetProperty (const char propertyKey, BaseProperty property, const mitk::BaseRenderer *renderer=nullptr)
	Set the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value. More...

void	ReplaceProperty (const char propertyKey, BaseProperty property, const mitk::BaseRenderer *renderer=nullptr)
	Replace the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-reference. More...

void	AddProperty (const char propertyKey, BaseProperty property, const mitk::BaseRenderer *renderer=nullptr, bool overwrite=false)
	Add the property (instance of BaseProperty) if it does not exist (or always ifoverwrite istrue) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value. More...

mitk::PropertyList *	GetPropertyList (const mitk::BaseRenderer *renderer=nullptr) const
	Get the PropertyList of the renderer. If renderer is nullptr, the BaseRenderer-independent PropertyList of this DataNode is returned. More...

mitk::PropertyList *	GetPropertyList (const std::string &rendererName) const
	Get the PropertyList for a renderer identified by name. More...

void	ConcatenatePropertyList (PropertyList *pList, bool replace=false)
	Add values from another PropertyList. More...

mitk::BaseProperty *	GetProperty (const char propertyKey, const mitk::BaseRenderer renderer=nullptr, bool fallBackOnDataProperties=true) const
	Get the property (instance of BaseProperty) with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetProperty (itk::SmartPointer< T > &property, const char propertyKey, const mitk::BaseRenderer renderer=nullptr) const
	Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetProperty (T &property, const char propertyKey, const mitk::BaseRenderer *renderer=nullptr) const
	Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList. More...

template<typename T >
bool	GetPropertyValue (const char propertyKey, T &value, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for GenericProperty<T> properties. More...

GroupTagList	GetGroupTags () const
	Get a set of all group tags from this node's property list. More...

bool	GetBoolProperty (const char propertyKey, bool &boolValue, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for bool properties (instances of BoolProperty). More...

bool	GetIntProperty (const char propertyKey, int &intValue, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for int properties (instances of IntProperty). More...

bool	GetFloatProperty (const char propertyKey, float &floatValue, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for float properties (instances of FloatProperty). More...

bool	GetDoubleProperty (const char propertyKey, double &doubleValue, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for double properties (instances of DoubleProperty). More...

bool	GetStringProperty (const char propertyKey, std::string &string, const mitk::BaseRenderer renderer=nullptr) const
	Convenience access method for string properties (instances of StringProperty). More...

bool	GetColor (float rgb[3], const mitk::BaseRenderer renderer=nullptr, const char propertyKey="color") const
	Convenience access method for color properties (instances of ColorProperty). More...

bool	GetLevelWindow (mitk::LevelWindow &levelWindow, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="levelwindow") const
	Convenience access method for level-window properties (instances of LevelWindowProperty). More...

void	SetSelected (bool selected, const mitk::BaseRenderer *renderer=nullptr)
	Set the selection state of this node. More...

bool	IsSelected (const mitk::BaseRenderer *renderer=nullptr)
	Query whether this node is currently selected. More...

bool	GetName (std::string &nodeName, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="name") const
	Convenience access method for accessing the name of an object (instance of StringProperty with property-key "name") More...

virtual std::string	GetName () const
	Extra convenience access method for accessing the name of an object (instance of StringProperty with property-key "name"). More...

virtual void	SetName (const char *name)
	Extra convenience access method to set the name of an object. More...

virtual void	SetName (const std::string &name)
	Extra convenience access method to set the name of an object. More...

bool	GetVisibility (bool &visible, const mitk::BaseRenderer renderer, const char propertyKey="visible") const
	Convenience access method for visibility properties (instances of BoolProperty with property-key "visible") More...

bool	GetOpacity (float &opacity, const mitk::BaseRenderer renderer, const char propertyKey="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty). More...

bool	IsOn (const char propertyKey, const mitk::BaseRenderer renderer, bool defaultIsOn=true) const
	Convenience access method for boolean properties (instances of BoolProperty). Return value is the value of the property. If the property is not found, the value of defaultIsOn is returned. More...

bool	IsVisible (const mitk::BaseRenderer renderer, const char propertyKey="visible", bool defaultIsOn=true) const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

void	SetColor (const mitk::Color &color, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="color")
	Convenience method for setting color properties (instances of ColorProperty). More...

void	SetColor (float red, float green, float blue, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="color")
	Convenience method for setting color properties from individual RGB components. More...

void	SetColor (const float rgb[3], const mitk::BaseRenderer renderer=nullptr, const char propertyKey="color")
	Convenience method for setting color properties from a float array. More...

void	SetVisibility (bool visible, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="visible")
	Convenience method for setting visibility properties (instances of BoolProperty) More...

void	SetOpacity (float opacity, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="opacity")
	Convenience method for setting opacity properties (instances of FloatProperty). More...

void	SetLevelWindow (mitk::LevelWindow levelWindow, const mitk::BaseRenderer renderer=nullptr, const char propertyKey="levelwindow")
	Convenience method for setting level-window properties (instances of LevelWindowProperty). More...

void	SetIntProperty (const char propertyKey, int intValue, const mitk::BaseRenderer renderer=nullptr)
	Convenience method for setting int properties (instances of IntProperty). More...

void	SetBoolProperty (const char propertyKey, bool boolValue, const mitk::BaseRenderer renderer=nullptr)
	Convenience method for setting boolean properties (instances of BoolProperty). More...

void	SetFloatProperty (const char propertyKey, float floatValue, const mitk::BaseRenderer renderer=nullptr)
	Convenience method for setting float properties (instances of FloatProperty). More...

void	SetDoubleProperty (const char propertyKey, double doubleValue, const mitk::BaseRenderer renderer=nullptr)
	Convenience method for setting double properties (instances of DoubleProperty). More...

void	SetStringProperty (const char propertyKey, const char string, const mitk::BaseRenderer *renderer=nullptr)
	Convenience method for setting string properties (instances of StringProperty). More...

itk::ModifiedTimeType	GetMTime () const override
	Get the timestamp of the last change of the contents of this node or the referenced BaseData. More...

unsigned long	GetDataReferenceChangedTime () const
	Get the timestamp of the last change of the reference to the BaseData. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

static std::string	NO_NAME_VALUE ()
	Sentinel value indicating that a node name has not been set yet. More...

Protected Member Functions
	DataNode ()

	~DataNode () override

virtual void	PropertyListModified (const itk::Object *caller, const itk::EventObject &event)
	Invoked when the property list was modified. Calls Modified() of the DataNode. More...

Protected Attributes
MapperVector	m_Mappers
	Mapper-slots. More...

BaseData::Pointer	m_Data
	The data object (instance of BaseData, e.g., an Image) managed by this DataNode. More...

PropertyList::Pointer	m_PropertyList
	BaseRenderer-independent PropertyList. More...

MapOfPropertyLists	m_MapOfPropertyLists
	Map associating each BaseRenderer with its own PropertyList. More...

DataInteractor::Pointer	m_DataInteractor

itk::TimeStamp	m_DataReferenceChangedTime
	Timestamp of the last change of m_Data. More...

unsigned long	m_PropertyListModifiedObserverTag

Detailed Description

Central node class of the MITK data tree, associating a data object with properties and mappers.

A DataNode holds a reference to a BaseData object (e.g., an Image, Surface, or PointSet) along with a set of properties that control visualization and application behavior. Each DataNode can carry renderer-specific property lists in addition to its default (renderer-independent) PropertyList, enabling per-renderer customization of rendering parameters such as visibility, color, and opacity.

Mappers are created on demand for each mapper slot (e.g., 2D mapper, 3D mapper) via the CoreObjectFactory and are responsible for translating the node's data and properties into visual representations.

DataNodes are managed by a DataStorage, which organizes them in a directed acyclic graph with parent-child ("was created by") relationships.

See also: DataStorage, BaseData, Mapper, PropertyList, BaseRenderer

Warning: Change in semantics of SetProperty() since Aug 25th 2006. Check your usage of this method if you do more with properties than just call SetProperty( "key", new SomeProperty("value") ).

Definition at line 71 of file mitkDataNode.h.

Member Typedef Documentation

◆ Geometry3DPointer

typedef mitk::Geometry3D::Pointer mitk::DataNode::Geometry3DPointer

Smart pointer type for Geometry3D.

Definition at line 75 of file mitkDataNode.h.

◆ GroupTagList

typedef std::set<std::string> mitk::DataNode::GroupTagList

Set of group tag name strings (keys of GroupTagProperty entries).

Definition at line 83 of file mitkDataNode.h.

◆ MapOfPropertyLists

typedef std::map<std::string, mitk::PropertyList::Pointer> mitk::DataNode::MapOfPropertyLists

Map from renderer name strings to renderer-specific PropertyList instances.

Definition at line 79 of file mitkDataNode.h.

◆ MapperVector

typedef std::vector<itk::SmartPointer<Mapper> > mitk::DataNode::MapperVector

Vector of Mapper smart pointers, indexed by MapperSlotId.

Definition at line 77 of file mitkDataNode.h.

◆ PropertyListKeyNames

typedef std::vector<MapOfPropertyLists::key_type> mitk::DataNode::PropertyListKeyNames

Vector of renderer name keys used in the MapOfPropertyLists.

Definition at line 81 of file mitkDataNode.h.

Constructor & Destructor Documentation

◆ DataNode()

mitk::DataNode::DataNode ( )

protected

◆ ~DataNode()

mitk::DataNode::~DataNode ( )

overrideprotected

Member Function Documentation

◆ AddProperty()

void mitk::DataNode::AddProperty	(	const char *	propertyKey,
		BaseProperty *	property,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

Add the property (instance of BaseProperty) if it does not exist (or always ifoverwrite istrue) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value.

Foroverwrite ==false the property isnot changed if it already exists. Foroverwrite ==true the method is identical to SetProperty.

See also: SetProperty; GetProperty; m_PropertyList; m_MapOfPropertyLists

◆ ConcatenatePropertyList()

void mitk::DataNode::ConcatenatePropertyList	(	PropertyList *	pList,
		bool	replace = `false`
	)

Add values from another PropertyList.

Overwrites values in m_PropertyList only when possible (i.e. when types are compatible). If you want to allow for object type changes (replacing a "visible":BoolProperty with "visible":IntProperty, set replace .

Parameters

replace	true: if
pList	contains a property "visible" of type ColorProperty and our m_PropertyList also has a "visible" property of a different type (e.g. BoolProperty), change the type, i.e. replace the objects behind the pointer.

See also: SetProperty; ReplaceProperty; m_PropertyList

◆ CopyInformation()

void mitk::DataNode::CopyInformation ( const itk::DataObject * data )

override

Copy information from another data object (no-op for DataNode).

Parameters

[in] data The data object to copy information from.

◆ GetBoolProperty()

bool mitk::DataNode::GetBoolProperty	(	const char *	propertyKey,
		bool &	boolValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

Convenience access method for bool properties (instances of BoolProperty).

Parameters

[in]	propertyKey	The key of the BoolProperty.
[out]	boolValue	Receives the boolean value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found.

See also: SetBoolProperty, IsOn

◆ GetColor()

bool mitk::DataNode::GetColor	(	float	rgb[3],
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"color"`
	)		const

Convenience access method for color properties (instances of ColorProperty).

Parameters

[out]	rgb	Array of 3 floats receiving the RGB color values.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.
[in]	propertyKey	The key of the ColorProperty (default: "color").

Returns: true if the property was found.

See also: SetColor

◆ GetConstProperty()

BaseProperty::ConstPointer mitk::DataNode::GetConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)		const

overridevirtual

Retrieve a property as a const pointer (IPropertyProvider interface).

Looks up the property first in the context-specific PropertyList identified by contextName (i.e., a renderer name). If not found and fallBackOnDefaultContext is true (or contextName is empty), the default PropertyList and then the data object's properties are searched.

Parameters

[in]	propertyKey	The key of the property to retrieve.
[in]	contextName	Renderer name context. Empty string means the default context.
[in]	fallBackOnDefaultContext	If true, falls back to the default PropertyList when the property is not found in the specified context.

Returns: The property, or nullptr if not found.

See also: GetNonConstProperty, GetProperty

Implements mitk::IPropertyProvider.

◆ GetData()

BaseData* mitk::DataNode::GetData ( ) const

Get the data object (instance of BaseData, e.g., an Image) managed by this DataNode.

Referenced by mitk::TNodePredicateDataType< T >::CheckNode(), mitk::DataStorage::GetNamedDerivedObject(), and mitk::DataStorage::GetNamedObject().

◆ GetDataAs()

template<typename T >

T* mitk::DataNode::GetDataAs ( ) const

inline

Convenience method to get the data object cast to a specific type.

Performs a dynamic_cast of the data returned by GetData() to the requested type.

Template Parameters

T	The target data type (must inherit from BaseData).

Returns: Pointer to the data object cast to T, or nullptr if the cast fails or no data is set.

See also: GetData

Definition at line 196 of file mitkDataNode.h.

◆ GetDataInteractor()

virtual DataInteractor::Pointer mitk::DataNode::GetDataInteractor ( ) const

virtual

Get the DataInteractor associated with this node.

Returns: The current DataInteractor, or nullptr if none is set.

See also: SetDataInteractor

◆ GetDataReferenceChangedTime()

unsigned long mitk::DataNode::GetDataReferenceChangedTime ( ) const

inline

Get the timestamp of the last change of the reference to the BaseData.

Definition at line 845 of file mitkDataNode.h.

◆ GetDoubleProperty()

bool mitk::DataNode::GetDoubleProperty	(	const char *	propertyKey,
		double &	doubleValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

Convenience access method for double properties (instances of DoubleProperty).

If there is no DoubleProperty for the given propertyKey, the method falls back to looking for a corresponding FloatProperty instance and promoting its value to double.

Parameters

[in]	propertyKey	The key of the DoubleProperty (or FloatProperty).
[out]	doubleValue	Receives the double value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found (either as DoubleProperty or FloatProperty).

See also: SetDoubleProperty, GetFloatProperty

◆ GetFloatProperty()

bool mitk::DataNode::GetFloatProperty	(	const char *	propertyKey,
		float &	floatValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

Convenience access method for float properties (instances of FloatProperty).

Parameters

[in]	propertyKey	The key of the FloatProperty.
[out]	floatValue	Receives the float value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found.

See also: SetFloatProperty

◆ GetGroupTags()

GroupTagList mitk::DataNode::GetGroupTags ( ) const

Get a set of all group tags from this node's property list.

◆ GetIntProperty()

bool mitk::DataNode::GetIntProperty	(	const char *	propertyKey,
		int &	intValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

Convenience access method for int properties (instances of IntProperty).

Parameters

[in]	propertyKey	The key of the IntProperty.
[out]	intValue	Receives the integer value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found.

See also: SetIntProperty

◆ GetLevelWindow()

bool mitk::DataNode::GetLevelWindow	(	mitk::LevelWindow &	levelWindow,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"levelwindow"`
	)		const

Convenience access method for level-window properties (instances of LevelWindowProperty).

Parameters

[out]	levelWindow	Receives the LevelWindow value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.
[in]	propertyKey	The key of the LevelWindowProperty (default: "levelwindow").

Returns: true if the property was found.

See also: SetLevelWindow

◆ GetMapper()

mitk::Mapper* mitk::DataNode::GetMapper ( MapperSlotId id ) const

Get the Mapper for the given mapper slot, creating it on demand if necessary.

Each mapper slot corresponds to a specific rendering context (e.g., 2D or 3D). If no mapper exists yet for the given slot, one is created via CoreObjectFactory.

Parameters

[in] id The mapper slot identifier.

Returns: Pointer to the mapper, or nullptr if no mapper could be created.

See also: SetMapper

◆ GetMTime()

itk::ModifiedTimeType mitk::DataNode::GetMTime ( ) const

override

Get the timestamp of the last change of the contents of this node or the referenced BaseData.

◆ GetName() [1/2]

virtual std::string mitk::DataNode::GetName ( ) const

inlinevirtual

Extra convenience access method for accessing the name of an object (instance of StringProperty with property-key "name").

This method does not take the renderer specific propertylists into account, because the name of an object should never be renderer specific.

Returns: a std::string with the name of the object (content of "name" Property). If there is no "name" Property, an empty string will be returned.

Definition at line 601 of file mitkDataNode.h.

References mitk::StringProperty::GetValue().

◆ GetName() [2/2]

bool mitk::DataNode::GetName	(	std::string &	nodeName,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"name"`
	)		const

inline

Convenience access method for accessing the name of an object (instance of StringProperty with property-key "name")

Returns: true property was found

Definition at line 585 of file mitkDataNode.h.

◆ GetNonConstProperty()

BaseProperty* mitk::DataNode::GetNonConstProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `true`
	)

overridevirtual

Retrieve a mutable property pointer (IPropertyOwner interface).

Behaves like GetConstProperty() but returns a non-const pointer.

Parameters

[in]	propertyKey	The key of the property to retrieve.
[in]	contextName	Renderer name context. Empty string means the default context.
[in]	fallBackOnDefaultContext	If true, falls back to the default PropertyList when the property is not found in the specified context.

Returns: A mutable pointer to the property, or nullptr if not found.

See also: GetConstProperty

Implements mitk::IPropertyOwner.

◆ GetOpacity()

bool mitk::DataNode::GetOpacity	(	float &	opacity,
		const mitk::BaseRenderer *	renderer,
		const char *	propertyKey = `"opacity"`
	)		const

Convenience access method for opacity properties (instances of FloatProperty).

Parameters

[out]	opacity	Receives the opacity value (0.0 to 1.0) if the property is found.
[in]	renderer	The renderer whose PropertyList is checked first.
[in]	propertyKey	The key of the FloatProperty (default: "opacity").

Returns: true if the property was found.

See also: SetOpacity

◆ GetProperty() [1/3]

mitk::BaseProperty* mitk::DataNode::GetProperty	(	const char *	propertyKey,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		bool	fallBackOnDataProperties = `true`
	)		const

Get the property (instance of BaseProperty) with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList.

If renderer is nullptr or the propertyKey cannot be found in the PropertyList specific to renderer or is disabled there, the BaseRenderer-independent PropertyList of this DataNode is queried.

If fallBackOnDataProperties is true, the data property list is queried as a last resort.

See also: GetPropertyList; m_PropertyList; m_MapOfPropertyLists

◆ GetProperty() [2/3]

template<typename T >

bool mitk::DataNode::GetProperty	(	itk::SmartPointer< T > &	property,
		const char *	propertyKey,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

inline

Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList.

If renderer is nullptr or the propertyKey cannot be found in the PropertyList specific to renderer or is disabled there, the BaseRenderer-independent PropertyList of this DataNode is queried.

See also: GetPropertyList; m_PropertyList; m_MapOfPropertyLists

Definition at line 418 of file mitkDataNode.h.

◆ GetProperty() [3/3]

template<typename T >

bool mitk::DataNode::GetProperty	(	T *&	property,
		const char *	propertyKey,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

inline

Get the property of type T with key propertyKey from the PropertyList of the renderer, if available there, otherwise use the BaseRenderer-independent PropertyList.

If renderer is nullptr or the propertyKey cannot be found in the PropertyList specific to renderer or is disabled there, the BaseRenderer-independent PropertyList of this DataNode is queried.

See also: GetPropertyList; m_PropertyList; m_MapOfPropertyLists

Definition at line 438 of file mitkDataNode.h.

◆ GetPropertyContextNames()

std::vector<std::string> mitk::DataNode::GetPropertyContextNames ( ) const

overridevirtual

Retrieve all available property context names (IPropertyProvider interface).

Returns the names of all renderer-specific PropertyLists that have been created for this node. These names correspond to BaseRenderer names.

Returns: A vector of context name strings.

Implements mitk::IPropertyProvider.

◆ GetPropertyKeys()

std::vector<std::string> mitk::DataNode::GetPropertyKeys	(	const std::string &	contextName = `""`,
		bool	includeDefaultContext = `false`
	)		const

overridevirtual

Retrieve all property keys for a given context (IPropertyProvider interface).

Parameters

[in]	contextName	Renderer name context. Empty string returns keys from the default PropertyList.
[in]	includeDefaultContext	If true, keys from the default PropertyList are included in addition to the context-specific keys.

Returns: A vector of property key strings.

Implements mitk::IPropertyProvider.

◆ GetPropertyList() [1/2]

mitk::PropertyList* mitk::DataNode::GetPropertyList ( const mitk::BaseRenderer * renderer = nullptr ) const

Get the PropertyList of the renderer. If renderer is nullptr, the BaseRenderer-independent PropertyList of this DataNode is returned.

See also: GetProperty; m_PropertyList; m_MapOfPropertyLists

◆ GetPropertyList() [2/2]

mitk::PropertyList* mitk::DataNode::GetPropertyList ( const std::string & rendererName ) const

Get the PropertyList for a renderer identified by name.

If rendererName is empty, the BaseRenderer-independent PropertyList is returned. If no PropertyList exists yet for the given renderer name, a new empty one is created.

Parameters

[in] rendererName The name of the renderer. Empty string returns the default list.

Returns: The PropertyList for the specified renderer.

See also: GetPropertyList(const mitk::BaseRenderer*), GetPropertyListNames

◆ GetPropertyListNames()

PropertyListKeyNames mitk::DataNode::GetPropertyListNames ( ) const

The "names" used for (renderer-specific) PropertyLists in GetPropertyList(string).

All possible values for the "renderer" parameters of the diverse GetProperty/List() methods.

◆ GetPropertyValue()

template<typename T >

bool mitk::DataNode::GetPropertyValue	(	const char *	propertyKey,
		T &	value,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

inline

Convenience access method for GenericProperty<T> properties.

Retrieves the value of a GenericProperty<T> identified by propertyKey.

Template Parameters

T	The value type of the GenericProperty.

Parameters

[in]	propertyKey	The key of the property to look up.
[out]	value	Receives the property value if found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found and successfully cast to GenericProperty<T>.

Definition at line 456 of file mitkDataNode.h.

References mitk::GenericProperty< T >::GetValue().

◆ GetStringProperty()

bool mitk::DataNode::GetStringProperty	(	const char *	propertyKey,
		std::string &	string,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)		const

Convenience access method for string properties (instances of StringProperty).

Parameters

[in]	propertyKey	The key of the StringProperty.
[out]	string	Receives the string value if the property is found.
[in]	renderer	If non-null, the renderer-specific PropertyList is checked first.

Returns: true if the property was found.

See also: SetStringProperty

◆ GetVisibility()

bool mitk::DataNode::GetVisibility	(	bool &	visible,
		const mitk::BaseRenderer *	renderer,
		const char *	propertyKey = `"visible"`
	)		const

inline

Convenience access method for visibility properties (instances of BoolProperty with property-key "visible")

Returns: true property was found

See also: IsVisible

Definition at line 661 of file mitkDataNode.h.

◆ GetVtkTransform()

vtkLinearTransform* mitk::DataNode::GetVtkTransform ( int t = 0 ) const

Get the transformation applied prior to displaying the data as a vtkTransform.

Convenience shortcut for GetData()->GetGeometry(t)->GetVtkTransform().

◆ IsOn()

bool mitk::DataNode::IsOn	(	const char *	propertyKey,
		const mitk::BaseRenderer *	renderer,
		bool	defaultIsOn = `true`
	)		const

inline

Convenience access method for boolean properties (instances of BoolProperty). Return value is the value of the property. If the property is not found, the value of defaultIsOn is returned.

Thus, the return value has a different meaning than in the GetBoolProperty method!

See also: GetBoolProperty

Definition at line 686 of file mitkDataNode.h.

◆ IsSelected()

bool mitk::DataNode::IsSelected ( const mitk::BaseRenderer * renderer = nullptr )

Query whether this node is currently selected.

Parameters

[in] renderer If non-null, the renderer-specific "selected" property is checked.

Returns: true if the node is selected, false if unselected or the property is missing.

See also: SetSelected

◆ IsVisible()

bool mitk::DataNode::IsVisible	(	const mitk::BaseRenderer *	renderer,
		const char *	propertyKey = `"visible"`,
		bool	defaultIsOn = `true`
	)		const

inline

Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found.

Thus, the return value has a different meaning than in the GetVisibility method!

See also: GetVisibility; IsOn

Definition at line 705 of file mitkDataNode.h.

◆ mitkClassMacroItkParent()

mitk::DataNode::mitkClassMacroItkParent	(	DataNode	,
		itk::DataObject
	)

◆ New()

static Pointer mitk::DataNode::New ( )

static

◆ NO_NAME_VALUE()

static std::string mitk::DataNode::NO_NAME_VALUE ( )

inlinestatic

Sentinel value indicating that a node name has not been set yet.

Returns: The string "No Name!".

Definition at line 613 of file mitkDataNode.h.

◆ operator=() [1/2]

mitk::DataNode& mitk::DataNode::operator= ( BaseData * right )

Assignment operator. Creates a new DataNode with the given BaseData.

Parameters

[in] right The BaseData to assign.

Returns: Reference to a newly created DataNode.

◆ operator=() [2/2]

mitk::DataNode& mitk::DataNode::operator= ( const DataNode & right )

Assignment operator. Creates a new DataNode with the data from right.

Parameters

[in] right The source DataNode to copy data from.

Returns: Reference to a newly created DataNode.

◆ PropertyListModified()

virtual void mitk::DataNode::PropertyListModified	(	const itk::Object *	caller,
		const itk::EventObject &	event
	)

protectedvirtual

Invoked when the property list was modified. Calls Modified() of the DataNode.

◆ RemoveProperty()

void mitk::DataNode::RemoveProperty	(	const std::string &	propertyKey,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Remove a property from the given context (IPropertyOwner interface).

Parameters

[in]	propertyKey	The key of the property to remove. Must not be empty.
[in]	contextName	Renderer name context. Empty string targets the default PropertyList.
[in]	fallBackOnDefaultContext	If true, falls back to the default PropertyList when the specified context is not found.

Exceptions

mitk::Exception if propertyKey is empty or the context is unknown and fallBackOnDefaultContext is false.

Implements mitk::IPropertyOwner.

◆ ReplaceProperty()

void mitk::DataNode::ReplaceProperty	(	const char *	propertyKey,
		BaseProperty *	property,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Replace the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-reference.

If renderer is nullptr the property is set in the BaseRenderer-independent PropertyList of this DataNode.

See also: GetProperty; m_PropertyList; m_MapOfPropertyLists

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::DataNode::RequestedRegionIsOutsideOfTheBufferedRegion ( )

override

Check if the requested region is outside of the buffered region.

Returns: Always returns false for DataNode.

◆ SetBoolProperty()

void mitk::DataNode::SetBoolProperty	(	const char *	propertyKey,
		bool	boolValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Convenience method for setting boolean properties (instances of BoolProperty).

Parameters

[in]	propertyKey	The key of the BoolProperty.
[in]	boolValue	The boolean value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.

See also: GetBoolProperty

◆ SetColor() [1/3]

void mitk::DataNode::SetColor	(	const float	rgb[3],
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"color"`
	)

Convenience method for setting color properties from a float array.

Parameters

[in]	rgb	Array of 3 floats (red, green, blue), each in range 0.0 to 1.0.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.
[in]	propertyKey	The key of the ColorProperty (default: "color").

See also: GetColor

◆ SetColor() [2/3]

void mitk::DataNode::SetColor	(	const mitk::Color &	color,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"color"`
	)

Convenience method for setting color properties (instances of ColorProperty).

Parameters

[in]	color	The color value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.
[in]	propertyKey	The key of the ColorProperty (default: "color").

See also: GetColor

◆ SetColor() [3/3]

void mitk::DataNode::SetColor	(	float	red,
		float	green,
		float	blue,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"color"`
	)

Convenience method for setting color properties from individual RGB components.

Parameters

[in]	red	Red component (0.0 to 1.0).
[in]	green	Green component (0.0 to 1.0).
[in]	blue	Blue component (0.0 to 1.0).
[in]	renderer	If non-null, set in the renderer-specific PropertyList.
[in]	propertyKey	The key of the ColorProperty (default: "color").

See also: GetColor

◆ SetData()

virtual void mitk::DataNode::SetData ( mitk::BaseData * baseData )

virtual

Set the data object (instance of BaseData, e.g., an Image) managed by this DataNode.

Prior set properties are kept if previous data of the node already exists and has the same type as the new data to be set. Otherwise, the default properties are used. In case that previous data already exists, the property list of the data node is cleared before setting new default properties.

Warning: the actor-mode of the vtkInteractor does not work any more, if the transform of the data-tree-node is connected to the transform of the basedata via vtkTransform->SetInput.

◆ SetDataInteractor()

virtual void mitk::DataNode::SetDataInteractor ( const DataInteractor::Pointer interactor )

virtual

Set the DataInteractor associated with this node.

Replaces any previously set interactor and fires an InteractorChangedEvent.

Parameters

[in] interactor The new DataInteractor, or nullptr to clear the interactor.

See also: GetDataInteractor, InteractorChangedEvent

◆ SetDoubleProperty()

void mitk::DataNode::SetDoubleProperty	(	const char *	propertyKey,
		double	doubleValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Convenience method for setting double properties (instances of DoubleProperty).

Note: If a FloatProperty with the same key already exists, a warning is issued.

Parameters

[in]	propertyKey	The key of the DoubleProperty.
[in]	doubleValue	The double value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.

See also: GetDoubleProperty

◆ SetFloatProperty()

void mitk::DataNode::SetFloatProperty	(	const char *	propertyKey,
		float	floatValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Convenience method for setting float properties (instances of FloatProperty).

Note: If a DoubleProperty with the same key already exists, a warning is issued.

Parameters

[in]	propertyKey	The key of the FloatProperty.
[in]	floatValue	The float value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.

See also: GetFloatProperty

◆ SetIntProperty()

void mitk::DataNode::SetIntProperty	(	const char *	propertyKey,
		int	intValue,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Convenience method for setting int properties (instances of IntProperty).

Parameters

[in]	propertyKey	The key of the IntProperty.
[in]	intValue	The integer value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.

See also: GetIntProperty

◆ SetLevelWindow()

void mitk::DataNode::SetLevelWindow	(	mitk::LevelWindow	levelWindow,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"levelwindow"`
	)

Convenience method for setting level-window properties (instances of LevelWindowProperty).

Parameters

[in]	levelWindow	The LevelWindow value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.
[in]	propertyKey	The key of the LevelWindowProperty (default: "levelwindow").

See also: GetLevelWindow

◆ SetMapper()

virtual void mitk::DataNode::SetMapper	(	MapperSlotId	id,
		mitk::Mapper *	mapper
	)

virtual

Set a specific Mapper for the given mapper slot.

Parameters

[in]	id	The mapper slot identifier (e.g., 2D or 3D rendering).
[in]	mapper	The Mapper instance to set. If non-null, its DataNode reference is updated.

See also: GetMapper

◆ SetName() [1/2]

virtual void mitk::DataNode::SetName ( const char * name )

inlinevirtual

Extra convenience access method to set the name of an object.

If the data has already a "name" property, the name will be stored in it. Otherwise, the name will be stored in the non-renderer-specific PropertyList in a StringProperty named "name".

Definition at line 624 of file mitkDataNode.h.

References mitk::StringProperty::SetValue().

◆ SetName() [2/2]

virtual void mitk::DataNode::SetName ( const std::string & name )

inlinevirtual

Extra convenience access method to set the name of an object.

See also: SetName(const char*)

Definition at line 654 of file mitkDataNode.h.

References SetName().

Referenced by SetName().

◆ SetOpacity()

void mitk::DataNode::SetOpacity	(	float	opacity,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"opacity"`
	)

Convenience method for setting opacity properties (instances of FloatProperty).

Parameters

[in]	opacity	The opacity value (0.0 fully transparent to 1.0 fully opaque).
[in]	renderer	If non-null, set in the renderer-specific PropertyList.
[in]	propertyKey	The key of the FloatProperty (default: "opacity").

See also: GetOpacity

◆ SetProperty() [1/2]

void mitk::DataNode::SetProperty	(	const char *	propertyKey,
		BaseProperty *	property,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Set the property (instance of BaseProperty) with key propertyKey in the PropertyList of the renderer (if nullptr, use BaseRenderer-independent PropertyList). This is set-by-value.

Warning: Change in semantics since Aug 25th 2006. Check your usage of this method if you do more with properties than just call SetProperty( "key", new SomeProperty("value") ).

See also: GetProperty; m_PropertyList; m_MapOfPropertyLists

◆ SetProperty() [2/2]

void mitk::DataNode::SetProperty	(	const std::string &	propertyKey,
		BaseProperty *	property,
		const std::string &	contextName = `""`,
		bool	fallBackOnDefaultContext = `false`
	)

overridevirtual

Set a property in the given context (IPropertyOwner interface).

Parameters

[in]	propertyKey	The key under which to store the property. Must not be empty.
[in]	property	The property instance to store.
[in]	contextName	Renderer name context. Empty string targets the default PropertyList.
[in]	fallBackOnDefaultContext	If true, falls back to the default PropertyList when the specified context is not found.

Exceptions

mitk::Exception if propertyKey is empty or the context is unknown and fallBackOnDefaultContext is false.

Implements mitk::IPropertyOwner.

◆ SetRequestedRegion()

void mitk::DataNode::SetRequestedRegion ( const itk::DataObject * data )

override

Set the requested region from another data object (no-op for DataNode).

Parameters

[in] data The data object to copy the requested region from.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::DataNode::SetRequestedRegionToLargestPossibleRegion ( )

override

Set the requested region to the largest possible region (no-op for DataNode).

◆ SetSelected()

void mitk::DataNode::SetSelected	(	bool	selected,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Set the selection state of this node.

Sets the "selected" BoolProperty. If it does not exist, it is created. A ModifiedEvent is invoked if the selection state changes.

Parameters

[in]	selected	The new selection state.
[in]	renderer	If non-null, the property is set in the renderer-specific PropertyList.

See also: IsSelected

◆ SetStringProperty()

void mitk::DataNode::SetStringProperty	(	const char *	propertyKey,
		const char *	string,
		const mitk::BaseRenderer *	renderer = `nullptr`
	)

Convenience method for setting string properties (instances of StringProperty).

Parameters

[in]	propertyKey	The key of the StringProperty.
[in]	string	The string value to set.
[in]	renderer	If non-null, set in the renderer-specific PropertyList.

See also: GetStringProperty

◆ SetVisibility()

void mitk::DataNode::SetVisibility	(	bool	visible,
		const mitk::BaseRenderer *	renderer = `nullptr`,
		const char *	propertyKey = `"visible"`
	)

Convenience method for setting visibility properties (instances of BoolProperty)

Parameters

visible	If set to true, the data will be rendered. If false, the render will skip this data.
renderer	Specify a renderer if the visibility shall be specific to a renderer
propertyKey	Can be used to specify a user defined name of the visibility property.

◆ UpdateOutputInformation()

void mitk::DataNode::UpdateOutputInformation ( )

override

Update the output information by calling the source's UpdateOutputInformation().

◆ VerifyRequestedRegion()

bool mitk::DataNode::VerifyRequestedRegion ( )

override

Verify that the requested region is valid.

Returns: Always returns true for DataNode.

Member Data Documentation

◆ m_Data

BaseData::Pointer mitk::DataNode::m_Data

protected

The data object (instance of BaseData, e.g., an Image) managed by this DataNode.

Definition at line 862 of file mitkDataNode.h.

◆ m_DataInteractor

DataInteractor::Pointer mitk::DataNode::m_DataInteractor

protected

Definition at line 875 of file mitkDataNode.h.

◆ m_DataReferenceChangedTime

itk::TimeStamp mitk::DataNode::m_DataReferenceChangedTime

protected

Timestamp of the last change of m_Data.

Definition at line 878 of file mitkDataNode.h.

◆ m_MapOfPropertyLists

MapOfPropertyLists mitk::DataNode::m_MapOfPropertyLists

mutableprotected

Map associating each BaseRenderer with its own PropertyList.

Definition at line 873 of file mitkDataNode.h.

◆ m_Mappers

MapperVector mitk::DataNode::m_Mappers

mutableprotected

Mapper-slots.

Definition at line 856 of file mitkDataNode.h.

◆ m_PropertyList

PropertyList::Pointer mitk::DataNode::m_PropertyList

protected

BaseRenderer-independent PropertyList.

Properties herein can be overwritten specifically for each BaseRenderer by the BaseRenderer-specific properties defined in m_MapOfPropertyLists.

Definition at line 870 of file mitkDataNode.h.

◆ m_PropertyListModifiedObserverTag

unsigned long mitk::DataNode::m_PropertyListModifiedObserverTag

protected

Definition at line 880 of file mitkDataNode.h.

The documentation for this class was generated from the following file:

mitkDataNode.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Geometry3DPointer

◆ GroupTagList

◆ MapOfPropertyLists

◆ MapperVector

◆ PropertyListKeyNames

Constructor & Destructor Documentation

◆ DataNode()

◆ ~DataNode()

Member Function Documentation

◆ AddProperty()

◆ ConcatenatePropertyList()

◆ CopyInformation()

◆ GetBoolProperty()

◆ GetColor()

◆ GetConstProperty()

◆ GetData()

◆ GetDataAs()

◆ GetDataInteractor()

◆ GetDataReferenceChangedTime()

◆ GetDoubleProperty()

◆ GetFloatProperty()

◆ GetGroupTags()

◆ GetIntProperty()

◆ GetLevelWindow()

◆ GetMapper()

◆ GetMTime()

◆ GetName() [1/2]

◆ GetName() [2/2]

◆ GetNonConstProperty()

◆ GetOpacity()

◆ GetProperty() [1/3]

◆ GetProperty() [2/3]

◆ GetProperty() [3/3]

◆ GetPropertyContextNames()

◆ GetPropertyKeys()

◆ GetPropertyList() [1/2]

◆ GetPropertyList() [2/2]

◆ GetPropertyListNames()

◆ GetPropertyValue()

◆ GetStringProperty()

◆ GetVisibility()

◆ GetVtkTransform()

◆ IsOn()

◆ IsSelected()

◆ IsVisible()

◆ mitkClassMacroItkParent()

◆ New()

◆ NO_NAME_VALUE()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ PropertyListModified()

◆ RemoveProperty()

◆ ReplaceProperty()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SetBoolProperty()

◆ SetColor() [1/3]

◆ SetColor() [2/3]

◆ SetColor() [3/3]

◆ SetData()

◆ SetDataInteractor()

◆ SetDoubleProperty()

◆ SetFloatProperty()

◆ SetIntProperty()

◆ SetLevelWindow()

◆ SetMapper()

◆ SetName() [1/2]

◆ SetName() [2/2]

◆ SetOpacity()

◆ SetProperty() [1/2]

◆ SetProperty() [2/2]

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetSelected()
