Template class for generating properties for simple value types (int, float, bool, etc.). More...

#include <mitkGenericProperty.h>

Inheritance diagram for mitk::GenericProperty< T >:

[legend]

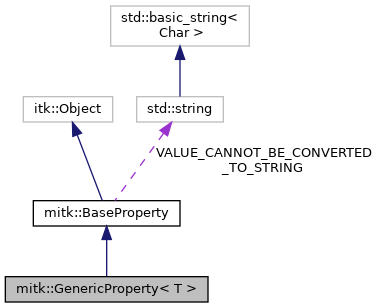

Collaboration diagram for mitk::GenericProperty< T >:

[legend]

Public Types
typedef T	ValueType
	The type of the value stored by this property. More...

Public Member Functions
	mitkClassMacro (GenericProperty, BaseProperty)

	mitkNewMacro1Param (GenericProperty< T >, T)

Pointer	Clone () const

virtual void	SetValue (T _arg)
	Set the property value. More...

virtual T	GetValue () const
	Get the property value. More...

std::string	GetValueAsString () const override
	Return the property value as a string. More...

bool	ToJSON (nlohmann::json &) const override
	Serialize property value to JSON. More...

bool	FromJSON (const nlohmann::json &) override
	Deserialize property value from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Protected Member Functions
	GenericProperty ()

	GenericProperty (T x)

	GenericProperty (const GenericProperty &other)

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
T	m_Value

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

template<typename T>
class mitk::GenericProperty< T >

Template class for generating properties for simple value types (int, float, bool, etc.).

This class template can be instantiated for all classes/internal types that fulfill these requirements:

an operator<< so that the property value can be put into a std::stringstream
an operator== so that two properties can be checked for equality

Note: You must use the macros mitkDeclareGenericProperty and mitkDefineGenericProperty to provide specializations for concrete types (e.g. BoolProperty). See mitkProperties.h for examples. If you don't use these macros, GetNameOfClass() will return "GenericProperty", which will break serialization.

Template Parameters

T	The value type stored by this property.

See also: BaseProperty; mitkDeclareGenericProperty; mitkDefineGenericProperty

Definition at line 46 of file mitkGenericProperty.h.

Member Typedef Documentation

◆ ValueType

template<typename T >

typedef T mitk::GenericProperty< T >::ValueType

The type of the value stored by this property.

Definition at line 54 of file mitkGenericProperty.h.

Constructor & Destructor Documentation

◆ GenericProperty() [1/3]

template<typename T >

mitk::GenericProperty< T >::GenericProperty ( )

inlineprotected

Definition at line 109 of file mitkGenericProperty.h.

◆ GenericProperty() [2/3]

template<typename T >

mitk::GenericProperty< T >::GenericProperty ( T x )

inlineprotected

Definition at line 110 of file mitkGenericProperty.h.

◆ GenericProperty() [3/3]

template<typename T >

mitk::GenericProperty< T >::GenericProperty ( const GenericProperty< T > & other )

inlineprotected

Definition at line 111 of file mitkGenericProperty.h.

Member Function Documentation

◆ Clone()

template<typename T >

Pointer mitk::GenericProperty< T >::Clone ( ) const

◆ FromJSON()

template<typename T >

bool mitk::GenericProperty< T >::FromJSON ( const nlohmann::json & )

inlineoverridevirtual

Deserialize property value from JSON.

The base GenericProperty template does not support JSON deserialization. Concrete specializations (via mitkDefineGenericProperty) override this to provide actual deserialization.

Returns: Always false in the base template.

Implements mitk::BaseProperty.

Definition at line 101 of file mitkGenericProperty.h.

◆ GetValue()

template<typename T >

virtual T mitk::GenericProperty< T >::GetValue ( ) const

virtual

Get the property value.

Returns: The current value.

Referenced by mitk::NonBlockingAlgorithm::GetParameter(), mitk::PropertyList::GetPropertyValue(), mitk::DataNode::GetPropertyValue(), and mitk::Annotation::GetPropertyValue().

◆ GetValueAsString()

template<typename T >

std::string mitk::GenericProperty< T >::GetValueAsString ( ) const

inlineoverridevirtual

Return the property value as a string.

Uses operator<< to stream the value into a stringstream.

Returns: A string representation of the property value.

Reimplemented from mitk::BaseProperty.

Definition at line 71 of file mitkGenericProperty.h.

◆ mitkClassMacro()

template<typename T >

mitk::GenericProperty< T >::mitkClassMacro	(	GenericProperty< T >	,
		BaseProperty
	)

◆ mitkCloneMacro()

template<typename T >

mitk::GenericProperty< T >::mitkCloneMacro ( Self )

protected

◆ mitkNewMacro1Param()

template<typename T >

mitk::GenericProperty< T >::mitkNewMacro1Param	(	GenericProperty< T >	,
		T
	)

◆ operator=()

template<typename T >

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetValue()

template<typename T >

virtual void mitk::GenericProperty< T >::SetValue ( T _arg )

virtual

Set the property value.

Parameters

[in] _arg The new value.

◆ ToJSON()

template<typename T >

bool mitk::GenericProperty< T >::ToJSON ( nlohmann::json & ) const

inlineoverridevirtual

Serialize property value to JSON.

The base GenericProperty template does not support JSON serialization. Concrete specializations (via mitkDefineGenericProperty) override this to provide actual serialization.

Returns: Always false in the base template.

Implements mitk::BaseProperty.

Definition at line 87 of file mitkGenericProperty.h.

Member Data Documentation

◆ m_Value

template<typename T >

T mitk::GenericProperty< T >::m_Value

protected

Definition at line 112 of file mitkGenericProperty.h.

The documentation for this class was generated from the following file:

mitkGenericProperty.h
