mitk::CoreObjectFactory Class Reference

The central factory for creating mappers and setting default properties for MITK core data types. More...

#include <mitkCoreObjectFactory.h>

Inheritance diagram for mitk::CoreObjectFactory:

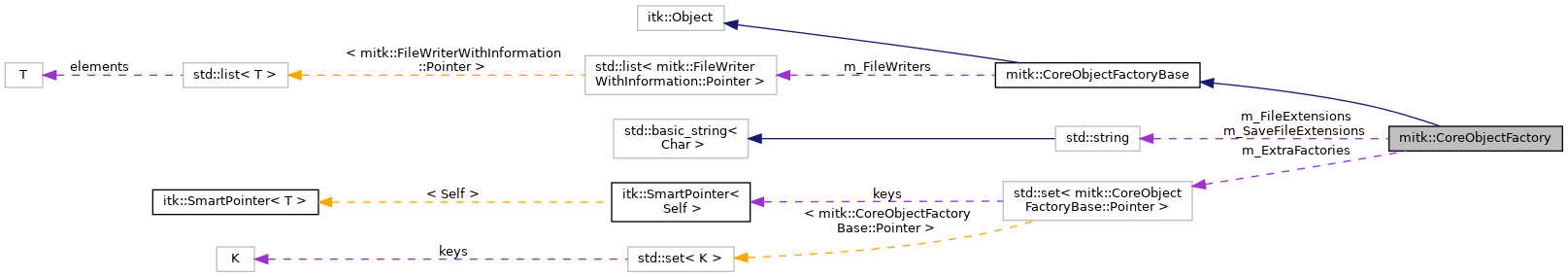

Collaboration diagram for mitk::CoreObjectFactory:

Public Member Functions
	mitkClassMacro (CoreObjectFactory, CoreObjectFactoryBase)
Mapper::Pointer	CreateMapper (mitk::DataNode *node, MapperSlotId slotId) override
	Create a mapper for the given data node and mapper slot. More...
void	SetDefaultProperties (mitk::DataNode *node) override
	Set default properties on the given data node. More...
virtual void	MapEvent (const mitk::Event *event, const int eventID)
	Map a legacy event to an internal event ID. More...
virtual void	RegisterExtraFactory (CoreObjectFactoryBase *factory)
	Register an additional module-specific object factory. More...
virtual void	UnRegisterExtraFactory (CoreObjectFactoryBase *factory)
	Unregister a previously registered extra factory. More...
	~CoreObjectFactory () override
	Destructor. More...
Public Member Functions inherited from mitk::CoreObjectFactoryBase
	mitkClassMacroItkParent (CoreObjectFactoryBase, itk::Object)
virtual const char *	GetITKSourceVersion () const
	Get the ITK source version string. More...
virtual const char *	GetDescription () const
	Get a human-readable description of this factory. More...

Static Public Member Functions
static Pointer	New ()
static Pointer	GetInstance ()
	Return the singleton instance of the CoreObjectFactory. More...

Protected Types
typedef std::set< mitk::CoreObjectFactoryBase::Pointer >	ExtraFactoriesContainer

Protected Member Functions
	CoreObjectFactory ()
	Constructor. More...

Protected Attributes
ExtraFactoriesContainer	m_ExtraFactories

Detailed Description

The central factory for creating mappers and setting default properties for MITK core data types.

Implements the CoreObjectFactoryBase interface. Additional module-specific factories can be registered via RegisterExtraFactory() to extend the set of supported mappers and default properties.

See also

CoreObjectFactoryBase

Definition at line 33 of file mitkCoreObjectFactory.h.

Member Typedef Documentation

ExtraFactoriesContainer

typedef std::set<mitk::CoreObjectFactoryBase::Pointer> mitk::CoreObjectFactory::ExtraFactoriesContainer

protected

Definition at line 89 of file mitkCoreObjectFactory.h.

Constructor & Destructor Documentation

~CoreObjectFactory()

mitk::CoreObjectFactory::~CoreObjectFactory ( )

override

Destructor.

CoreObjectFactory()

mitk::CoreObjectFactory::CoreObjectFactory ( )

protected

Constructor.

Member Function Documentation

CreateMapper()

Mapper::Pointer mitk::CoreObjectFactory::CreateMapper ( mitk::DataNode *  node, MapperSlotId  slotId  )

overridevirtual

Create a mapper for the given data node and mapper slot.

Parameters

node	The data node requiring a mapper.
slotId	The mapper slot (2D or 3D).

Returns

A new mapper instance, or nullptr if no mapper is available.

Implements mitk::CoreObjectFactoryBase.

GetInstance()

static Pointer mitk::CoreObjectFactory::GetInstance ( )

static

Return the singleton instance of the CoreObjectFactory.

Returns

The singleton pointer.

MapEvent()

virtual void mitk::CoreObjectFactory::MapEvent ( const mitk::Event *  event, const int  eventID  )

virtual

Map a legacy event to an internal event ID.

Parameters

event	The event to map.
eventID	The internal event identifier.

mitkClassMacro()

mitk::CoreObjectFactory::mitkClassMacro	(	CoreObjectFactory	,
		CoreObjectFactoryBase
	)

New()

static Pointer mitk::CoreObjectFactory::New ( )

static

RegisterExtraFactory()

virtual void mitk::CoreObjectFactory::RegisterExtraFactory ( CoreObjectFactoryBase *  factory )

virtual

Register an additional module-specific object factory.

The extra factory's mappers and default properties become available through this CoreObjectFactory.

Parameters

factory

The factory to register.

SetDefaultProperties()

void mitk::CoreObjectFactory::SetDefaultProperties ( mitk::DataNode *  node )

overridevirtual

Set default properties on the given data node.

Parameters

node	The data node to configure with default rendering properties.

Implements mitk::CoreObjectFactoryBase.

UnRegisterExtraFactory()

virtual void mitk::CoreObjectFactory::UnRegisterExtraFactory ( CoreObjectFactoryBase *  factory )

virtual

Unregister a previously registered extra factory.

Parameters

factory

The factory to remove.

Member Data Documentation

m_ExtraFactories

ExtraFactoriesContainer mitk::CoreObjectFactory::m_ExtraFactories

protected

Definition at line 91 of file mitkCoreObjectFactory.h.

---

The documentation for this class was generated from the following file:

• mitkCoreObjectFactory.h
