Property for storing a mitk::LevelWindow value. More...

#include <mitkLevelWindowProperty.h>

Inheritance diagram for mitk::LevelWindowProperty:

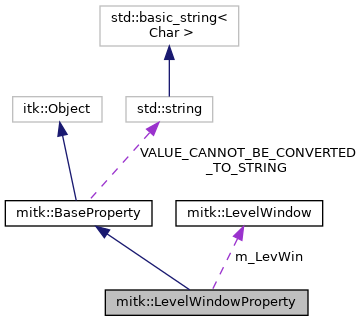

Collaboration diagram for mitk::LevelWindowProperty:

[legend]

Public Types
typedef LevelWindow	ValueType
	The type of the value stored by this property. More...

Public Member Functions
	mitkClassMacro (LevelWindowProperty, BaseProperty)

Pointer	Clone () const

	mitkNewMacro1Param (LevelWindowProperty, const mitk::LevelWindow &)

	~LevelWindowProperty () override

const mitk::LevelWindow &	GetLevelWindow () const
	Get the level window value. More...

const mitk::LevelWindow &	GetValue () const
	Get the level window value (alias for GetLevelWindow()). More...

void	SetLevelWindow (const LevelWindow &levWin)
	Set the level window value. More...

void	SetValue (const ValueType &levWin)
	Set the level window value (alias for SetLevelWindow()). More...

std::string	GetValueAsString () const override
	Return the level window as a human-readable string. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the level window value to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the level window value from JSON. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	LevelWindowProperty ()

	LevelWindowProperty (const LevelWindowProperty &other)

	LevelWindowProperty (const mitk::LevelWindow &levWin)

	mitkCloneMacro (LevelWindowProperty)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Protected Attributes
LevelWindow	m_LevWin

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for storing a mitk::LevelWindow value.

Holds the level/window settings used for intensity windowing during image rendering. The level defines the center of the window, and the window defines its width.

Note: If you want to apply the mitk::LevelWindowProperty to an mitk::Image, make sure to set the mitk::RenderingModeProperty to a mode which supports level window (e.g. LOOKUPTABLE_LEVELWINDOW_COLOR). Check the documentation of mitk::RenderingModeProperty. For a code example see mitkImageVtkMapper2DLevelWindowTest.cpp in Core/Code/Testing.

See also: BaseProperty; LevelWindow; RenderingModeProperty

Definition at line 37 of file mitkLevelWindowProperty.h.

Member Typedef Documentation

◆ ValueType

typedef LevelWindow mitk::LevelWindowProperty::ValueType

The type of the value stored by this property.

Definition at line 58 of file mitkLevelWindowProperty.h.

Constructor & Destructor Documentation

◆ LevelWindowProperty() [1/3]

mitk::LevelWindowProperty::LevelWindowProperty ( )

protected

◆ LevelWindowProperty() [2/3]

mitk::LevelWindowProperty::LevelWindowProperty ( const LevelWindowProperty & other )

protected

◆ LevelWindowProperty() [3/3]

mitk::LevelWindowProperty::LevelWindowProperty ( const mitk::LevelWindow & levWin )

protected

◆ ~LevelWindowProperty()

mitk::LevelWindowProperty::~LevelWindowProperty ( )

override

Member Function Documentation

◆ Clone()

Pointer mitk::LevelWindowProperty::Clone ( ) const

◆ FromJSON()

bool mitk::LevelWindowProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the level window value from JSON.

Parameters

[in] j The JSON object containing the LevelWindow data.

Returns: Always true.

Implements mitk::BaseProperty.

◆ GetLevelWindow()

const mitk::LevelWindow& mitk::LevelWindowProperty::GetLevelWindow ( ) const

Get the level window value.

Returns: A const reference to the stored LevelWindow.

◆ GetValue()

const mitk::LevelWindow& mitk::LevelWindowProperty::GetValue ( ) const

Get the level window value (alias for GetLevelWindow()).

Returns: A const reference to the stored LevelWindow.

◆ GetValueAsString()

std::string mitk::LevelWindowProperty::GetValueAsString ( ) const

overridevirtual

Return the level window as a human-readable string.

Format: "L:<level> W:<window>".

Returns: A string representation of the level and window values.

Reimplemented from mitk::BaseProperty.

◆ mitkClassMacro()

mitk::LevelWindowProperty::mitkClassMacro	(	LevelWindowProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::LevelWindowProperty::mitkCloneMacro ( LevelWindowProperty )

protected

◆ mitkNewMacro1Param()

mitk::LevelWindowProperty::mitkNewMacro1Param	(	LevelWindowProperty	,
		const mitk::LevelWindow &
	)

◆ New()

static Pointer mitk::LevelWindowProperty::New ( )

static

◆ operator=()

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ SetLevelWindow()

void mitk::LevelWindowProperty::SetLevelWindow ( const LevelWindow & levWin )

Set the level window value.

Marks the property as modified if the new value differs from the current one.

Parameters

[in] levWin The new LevelWindow to set.

◆ SetValue()

void mitk::LevelWindowProperty::SetValue ( const ValueType & levWin )

Set the level window value (alias for SetLevelWindow()).

Parameters

[in] levWin The new LevelWindow to set.

◆ ToJSON()

bool mitk::LevelWindowProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the level window value to JSON.

Parameters

[out] j The JSON object to write the value into.

Returns: Always true.

Implements mitk::BaseProperty.

Member Data Documentation

◆ m_LevWin

LevelWindow mitk::LevelWindowProperty::m_LevWin

protected

Definition at line 40 of file mitkLevelWindowProperty.h.

The documentation for this class was generated from the following file:

mitkLevelWindowProperty.h
