Data structure which stores a set of points. More...

#include <mitkPointSet.h>

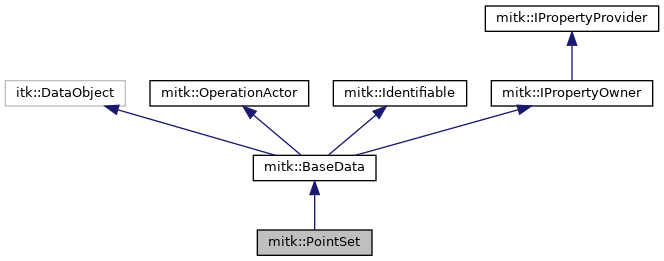

Inheritance diagram for mitk::PointSet:

[legend]

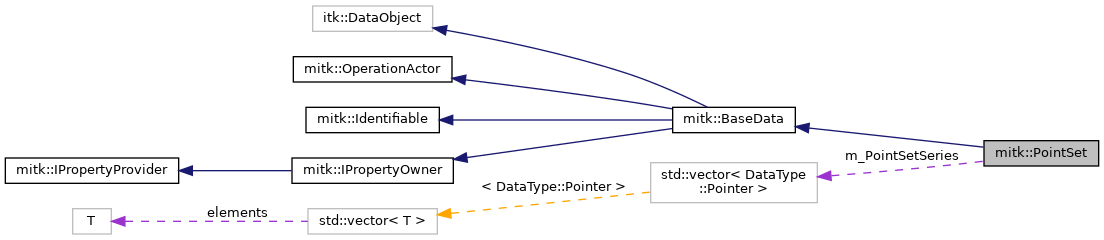

Collaboration diagram for mitk::PointSet:

[legend]

Classes
struct	CellDataType
	Data associated with a cell in the mesh. More...

struct	PointDataType
	Data associated with each point in the PointSet. More...

Public Types
typedef mitk::ScalarType	CoordinateType
	Scalar type for point coordinates. More...

typedef mitk::ScalarType	InterpolationWeightType
	Scalar type for interpolation weights. More...

typedef std::vector< unsigned int >	SelectedLinesType
	Type for storing indices of selected lines between points. More...

typedef SelectedLinesType::iterator	SelectedLinesIter
	Iterator for SelectedLinesType. More...

typedef itk::DefaultDynamicMeshTraits< PointDataType, PointDimension, MaxTopologicalDimension, CoordinateType, InterpolationWeightType, CellDataType >	MeshTraits

typedef itk::Mesh< PointDataType, PointDimension, MeshTraits >	MeshType

typedef MeshType	DataType

typedef Point3D	PointType

typedef DataType::PointIdentifier	PointIdentifier

typedef DataType::PointsContainer	PointsContainer

typedef DataType::PointsContainerIterator	PointsIterator

typedef DataType::PointsContainer::ConstIterator	PointsConstIterator

typedef DataType::PointDataContainer	PointDataContainer

typedef DataType::PointDataContainerIterator	PointDataIterator

typedef DataType::PointDataContainerIterator	PointDataConstIterator

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (PointSet, BaseData)

Pointer	Clone () const

void	Expand (unsigned int timeSteps) override
	Expand the PointSet to the given number of time steps. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this PointSet. More...

virtual int	GetSize (unsigned int t=0) const
	Get the number of points at time step t. More...

virtual unsigned int	GetPointSetSeriesSize () const
	Get the number of time steps in the point set series. More...

virtual DataType::Pointer	GetPointSet (int t=0) const
	Get the underlying itk::Mesh at time step t. More...

PointsIterator	Begin (int t=0)
	Get an iterator pointing to the first point at time step t. More...

PointsConstIterator	Begin (int t=0) const
	Get an iterator pointing to the first point at time step t. More...

PointsIterator	End (int t=0)
	Get an iterator pointing past the last point at time step t. More...

PointsConstIterator	End (int t=0) const
	Get an iterator pointing past the last point at time step t. More...

PointsIterator	GetMaxId (int t=0)
	Get an iterator to the element with the maximum ID at time step t. More...

PointType	GetPoint (PointIdentifier id, int t=0) const
	Get the point with the given ID in world coordinates. More...

bool	GetPointIfExists (PointIdentifier id, PointType *point, int t=0) const
	Get the point with the given ID if it exists. More...

void	SetPoint (PointIdentifier id, PointType point, int t=0)
	Set (overwrite) the point with the given ID in world coordinates. More...

void	SetPoint (PointIdentifier id, PointType point, PointSpecificationType spec, int t=0)
	Set (overwrite) the point with the given ID and PointSpecificationType. More...

void	InsertPoint (PointIdentifier id, PointType point, int t=0)
	Insert a point with the given ID in world coordinates. More...

void	InsertPoint (PointIdentifier id, PointType point, PointSpecificationType spec, int t)
	Insert a point with the given ID, world coordinates, and PointSpecificationType. More...

PointIdentifier	InsertPoint (PointType point, int t=0)
	Insert a point with an automatically assigned ID (max ID + 1). More...

bool	RemovePointIfExists (PointIdentifier id, int t=0)
	Remove the point with the given ID at time step t, if it exists. More...

PointsIterator	RemovePointAtEnd (int t=0)
	Remove the point with the maximum ID at time step t. More...

bool	SwapPointPosition (PointIdentifier id, bool moveUpwards, int t=0)
	Swap a point with its neighbor in the ordered container. More...

virtual int	SearchSelectedPoint (int t=0) const
	Search for a selected point and return its ID. More...

virtual void	ClearSelection ()
	Deselect all points in all time steps. More...

virtual bool	IndexExists (int position, int t=0) const
	Check whether a point exists at the given position (index). More...

virtual bool	GetSelectInfo (int position, int t=0) const
	Get the selection state of the point at the given position. More...

virtual void	SetSelectInfo (int position, bool selected, int t=0)
	Set the selection state of the point at the given position. More...

virtual PointSpecificationType	GetSpecificationTypeInfo (int position, int t) const
	Get the PointSpecificationType of the point at the given position. More...

virtual int	GetNumberOfSelected (int t=0) const
	Get the number of selected points at time step t. More...

int	SearchPoint (Point3D point, ScalarType distance, int t=0) const
	Search for the closest point within a given distance. More...

bool	IsEmptyTimeStep (unsigned int t) const override
	Check whether the point set is empty at time step t. More...

void	UpdateOutputInformation () override
	Update the output information (bounding box, geometry). More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Set the requested region to the largest possible region (no-op for PointSet). More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Check whether the requested region is outside the buffered region. More...

bool	VerifyRequestedRegion () override
	Verify that the requested region is valid. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Set the requested region from another data object (no-op for PointSet). More...

virtual void	OnPointSetChange ()
	Hook method called when the point set content changes. More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

virtual void	Clear ()
	Reset the data object by calling ClearData() and InitializeEmpty(). More...

virtual bool	IsEmpty () const
	Check whether the object contains data at any time step. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const unsigned int	PointDimension
	Points are 3-dimensional. More...

static const unsigned int	MaxTopologicalDimension
	Maximum topological dimension of mesh cells. More...

Protected Types
typedef std::vector< DataType::Pointer >	PointSetSeries

Protected Member Functions
	mitkCloneMacro (Self)

	PointSet ()

	PointSet (const PointSet &other)

	~PointSet () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	print content of the object to os More...

void	ClearData () override
	reset to non-initialized state, release memory More...

void	InitializeEmpty () override
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

bool	SwapPointContents (PointIdentifier id1, PointIdentifier id2, int t=0)
	swaps point coordinates and point data of the points with identifiers id1 and id2 More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Protected Attributes
PointSetSeries	m_PointSetSeries

DataType::PointsContainer::Pointer	m_EmptyPointsContainer

bool	m_CalculateBoundingBox
	flag to indicate the right time to call SetBounds More...

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

Data structure which stores a set of points.

3D points are grouped within a point set; for time resolved usage, one point set is created and maintained per time step. A point entry consists of the point coordinates and point data.

The point data includes a point ID (unique identifier to address this point within the point set), the selection state of the point and the type of the point.

For further information about different point types see mitk::PointSpecificationType in mitkVector.h.

Inserting a point is accompanied by an event, containing an index. The new point is inserted into the list at the specified position. At the same time an internal ID is generated and stored for the point. Points at specific time steps are accessed by specifying the time step number (which defaults to 0).

The points of itk::PointSet stores the points in a pointContainer (MapContainer). The points are best accessed by using a ConstIterator (as defined in MapContainer); avoid access via index.

The class internally uses an itk::Mesh for each time step.

mitkPointSetDisplayOptions

The default mappers for this data structure are mitk::PointSetVtkMapper2D and mitk::PointSetVtkMapper3D. See these classes for display options which can can be set via properties.

Events

PointSet issues the following events, for which observers can register (the below events are grouped into a class hierarchy as indicated by indentation level; e.g. PointSetSizeChangeEvent comprises PointSetAddEvent and PointSetRemoveEvent):

PointSetEvent subsumes all PointSet events PointSetMoveEvent issued when a point of the PointSet is moved PointSetSizeChangeEvent subsumes add and remove events PointSetAddEvent issued when a point is added to the PointSet PointSetRemoveEvent issued when a point is removed from the PointSet

Definition at line 70 of file mitkPointSet.h.

Member Typedef Documentation

◆ CoordinateType

typedef mitk::ScalarType mitk::PointSet::CoordinateType

Scalar type for point coordinates.

Definition at line 80 of file mitkPointSet.h.

◆ DataType

typedef MeshType mitk::PointSet::DataType

Definition at line 141 of file mitkPointSet.h.

◆ InterpolationWeightType

typedef mitk::ScalarType mitk::PointSet::InterpolationWeightType

Scalar type for interpolation weights.

Definition at line 83 of file mitkPointSet.h.

◆ MeshTraits

typedef itk::DefaultDynamicMeshTraits<PointDataType, PointDimension, MaxTopologicalDimension, CoordinateType, InterpolationWeightType, CellDataType> mitk::PointSet::MeshTraits

Definition at line 138 of file mitkPointSet.h.

◆ MeshType

typedef itk::Mesh<PointDataType, PointDimension, MeshTraits> mitk::PointSet::MeshType

Definition at line 139 of file mitkPointSet.h.

◆ PointDataConstIterator

typedef DataType::PointDataContainerIterator mitk::PointSet::PointDataConstIterator

Definition at line 149 of file mitkPointSet.h.

◆ PointDataContainer

typedef DataType::PointDataContainer mitk::PointSet::PointDataContainer

Definition at line 147 of file mitkPointSet.h.

◆ PointDataIterator

typedef DataType::PointDataContainerIterator mitk::PointSet::PointDataIterator

Definition at line 148 of file mitkPointSet.h.

◆ PointIdentifier

typedef DataType::PointIdentifier mitk::PointSet::PointIdentifier

Definition at line 143 of file mitkPointSet.h.

◆ PointsConstIterator

typedef DataType::PointsContainer::ConstIterator mitk::PointSet::PointsConstIterator

Definition at line 146 of file mitkPointSet.h.

◆ PointsContainer

typedef DataType::PointsContainer mitk::PointSet::PointsContainer

Definition at line 144 of file mitkPointSet.h.

◆ PointSetSeries

typedef std::vector<DataType::Pointer> mitk::PointSet::PointSetSeries

protected

Definition at line 469 of file mitkPointSet.h.

◆ PointsIterator

typedef DataType::PointsContainerIterator mitk::PointSet::PointsIterator

Definition at line 145 of file mitkPointSet.h.

◆ PointType

typedef Point3D mitk::PointSet::PointType

Definition at line 142 of file mitkPointSet.h.

◆ SelectedLinesIter

typedef SelectedLinesType::iterator mitk::PointSet::SelectedLinesIter

Iterator for SelectedLinesType.

Definition at line 120 of file mitkPointSet.h.

◆ SelectedLinesType

typedef std::vector<unsigned int> mitk::PointSet::SelectedLinesType

Type for storing indices of selected lines between points.

For example, given points A, B, and C: index 0 is the line between A and B, index 1 is between B and C, and index 2 between C and A.

Definition at line 117 of file mitkPointSet.h.

Constructor & Destructor Documentation

◆ PointSet() [1/2]

mitk::PointSet::PointSet ( )

protected

◆ PointSet() [2/2]

mitk::PointSet::PointSet ( const PointSet & other )

protected

◆ ~PointSet()

mitk::PointSet::~PointSet ( )

overrideprotected

Member Function Documentation

◆ Begin() [1/2]

PointsIterator mitk::PointSet::Begin ( int t = 0 )

Get an iterator pointing to the first point at time step t.

Parameters

[in] t Time step (default: 0).

Returns: A PointsIterator to the first point, or End() if the time step is out of range.

◆ Begin() [2/2]

PointsConstIterator mitk::PointSet::Begin ( int t = 0 ) const

Get an iterator pointing to the first point at time step t.

Parameters

[in] t Time step (default: 0).

Returns: A PointsIterator to the first point, or End() if the time step is out of range.

◆ ClearData()

void mitk::PointSet::ClearData ( )

overrideprotectedvirtual

reset to non-initialized state, release memory

Reimplemented from mitk::BaseData.

◆ ClearSelection()

virtual void mitk::PointSet::ClearSelection ( )

virtual

Deselect all points in all time steps.

◆ Clone()

Pointer mitk::PointSet::Clone ( ) const

◆ End() [1/2]

PointsIterator mitk::PointSet::End ( int t = 0 )

Get an iterator pointing past the last point at time step t.

Parameters

[in] t Time step (default: 0).

Returns: A PointsIterator past the last point.

◆ End() [2/2]

PointsConstIterator mitk::PointSet::End ( int t = 0 ) const

Get an iterator pointing past the last point at time step t.

Parameters

[in] t Time step (default: 0).

Returns: A PointsIterator past the last point.

◆ ExecuteOperation()

void mitk::PointSet::ExecuteOperation ( Operation * operation )

overridevirtual

Execute an operation on this PointSet.

Supports OpINSERT, OpMOVE, OpREMOVE, OpSELECTPOINT, OpDESELECTPOINT, OpSETPOINTTYPE, OpMOVEPOINTUP, and OpMOVEPOINTDOWN.

Parameters

[in] operation The operation to execute. Must be a PointOperation.

See also: mitk::PointOperation, mitk::OperationActor

Reimplemented from mitk::BaseData.

◆ Expand()

void mitk::PointSet::Expand ( unsigned int timeSteps )

overridevirtual

Expand the PointSet to the given number of time steps.

Creates new empty point containers for the additional time steps.

Parameters

[in] timeSteps The desired number of time steps.

Reimplemented from mitk::BaseData.

◆ GetMaxId()

PointsIterator mitk::PointSet::GetMaxId ( int t = 0 )

Get an iterator to the element with the maximum ID at time step t.

Parameters

[in] t Time step (default: 0).

Returns: A PointsIterator to the max-ID element, or End() if the PointSet is empty or the time step is out of range.

◆ GetNumberOfSelected()

virtual int mitk::PointSet::GetNumberOfSelected ( int t = 0 ) const

virtual

Get the number of selected points at time step t.

Parameters

[in] t Time step (default: 0).

Returns: The number of selected points.

◆ GetPoint()

PointType mitk::PointSet::GetPoint	(	PointIdentifier	id,
		int	t = `0`
	)		const

Get the point with the given ID in world coordinates.

If the ID does not exist, returns (0, 0, 0).

Parameters

[in]	id	The point identifier.
[in]	t	Time step (default: 0).

Returns: The point in world coordinates.

◆ GetPointIfExists()

bool mitk::PointSet::GetPointIfExists	(	PointIdentifier	id,
		PointType *	point,
		int	t = `0`
	)		const

Get the point with the given ID if it exists.

If a point exists for the ID, it is written to point (in world coordinates) and the method returns true. Otherwise returns false.

Parameters

[in]	id	The point identifier.
[out]	point	Receives the point coordinates on success.
[in]	t	Time step (default: 0).

Returns: True if the point was found, false otherwise.

◆ GetPointSet()

virtual DataType::Pointer mitk::PointSet::GetPointSet ( int t = 0 ) const

virtual

Get the underlying itk::Mesh at time step t.

Parameters

[in] t Time step (default: 0).

Returns: Smart pointer to the mesh data, or nullptr if t is out of range.

◆ GetPointSetSeriesSize()

virtual unsigned int mitk::PointSet::GetPointSetSeriesSize ( ) const

virtual

Get the number of time steps in the point set series.

Returns: The number of time steps.

◆ GetSelectInfo()

virtual bool mitk::PointSet::GetSelectInfo	(	int	position,
		int	t = `0`
	)		const

virtual

Get the selection state of the point at the given position.

Parameters

[in]	position	The point index.
[in]	t	Time step (default: 0).

Returns: True if the point is selected, false otherwise.

◆ GetSize()

virtual int mitk::PointSet::GetSize ( unsigned int t = 0 ) const

virtual

Get the number of points at time step t.

Parameters

[in] t Time step (default: 0).

Returns: The number of points, or 0 if the time step is out of range.

◆ GetSpecificationTypeInfo()

virtual PointSpecificationType mitk::PointSet::GetSpecificationTypeInfo	(	int	position,
		int	t
	)		const

virtual

Get the PointSpecificationType of the point at the given position.

Parameters

[in]	position	The point index.
[in]	t	Time step.

Returns: The point specification type, or PTUNDEFINED if the point does not exist.

◆ IndexExists()

virtual bool mitk::PointSet::IndexExists	(	int	position,
		int	t = `0`
	)		const

virtual

Check whether a point exists at the given position (index).

Parameters

[in]	position	The point index to check.
[in]	t	Time step (default: 0).

Returns: True if a point exists at the given position.

◆ InitializeEmpty()

void mitk::PointSet::InitializeEmpty ( )

overrideprotectedvirtual

Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry.

Reimplemented from mitk::BaseData.

◆ InsertPoint() [1/3]

void mitk::PointSet::InsertPoint	(	PointIdentifier	id,
		PointType	point,
		int	t = `0`
	)

Insert a point with the given ID in world coordinates.

Unlike SetPoint, this uses the container's InsertElement, which preserves existing elements at other indices.

Parameters

[in]	id	The point identifier.
[in]	point	The point in world coordinates.
[in]	t	Time step (default: 0).

◆ InsertPoint() [2/3]

void mitk::PointSet::InsertPoint	(	PointIdentifier	id,
		PointType	point,
		PointSpecificationType	spec,
		int	t
	)

Insert a point with the given ID, world coordinates, and PointSpecificationType.

If t is beyond the current number of time steps the PointSet is automatically expanded to accommodate it, matching the behaviour of SetPoint() and the other InsertPoint() overloads.

Parameters

[in]	id	The point identifier.
[in]	point	The point in world coordinates.
[in]	spec	The point specification type.
[in]	t	Time step.

◆ InsertPoint() [3/3]

PointIdentifier mitk::PointSet::InsertPoint	(	PointType	point,
		int	t = `0`
	)

Insert a point with an automatically assigned ID (max ID + 1).

Parameters

[in]	point	The point in world coordinates.
[in]	t	Time step (default: 0).

Returns: The identifier assigned to the new point.

◆ IsEmptyTimeStep()

bool mitk::PointSet::IsEmptyTimeStep ( unsigned int t ) const

overridevirtual

Check whether the point set is empty at time step t.

Parameters

[in] t The time step to check.

Returns: True if the PointSet is initialized and has zero points at time step t.

Reimplemented from mitk::BaseData.

◆ mitkClassMacro()

mitk::PointSet::mitkClassMacro	(	PointSet	,
		BaseData
	)

◆ mitkCloneMacro()

mitk::PointSet::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::PointSet::New ( )

static

◆ OnPointSetChange()

virtual void mitk::PointSet::OnPointSetChange ( )

inlinevirtual

Hook method called when the point set content changes.

Subclasses can override this to react to modifications.

Definition at line 451 of file mitkPointSet.h.

◆ PrintSelf()

void mitk::PointSet::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

print content of the object to os

◆ RemovePointAtEnd()

PointsIterator mitk::PointSet::RemovePointAtEnd ( int t = 0 )

Remove the point with the maximum ID at time step t.

Parameters

[in] t Time step (default: 0).

Returns: An iterator to the new last point, or End() if the set is empty.

◆ RemovePointIfExists()

bool mitk::PointSet::RemovePointIfExists	(	PointIdentifier	id,
		int	t = `0`
	)

Remove the point with the given ID at time step t, if it exists.

Parameters

[in]	id	The point identifier.
[in]	t	Time step (default: 0).

Returns: True if the point was found and removed, false otherwise.

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::PointSet::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Check whether the requested region is outside the buffered region.

Returns: Always returns false for PointSet.

Implements mitk::BaseData.

◆ SearchPoint()

int mitk::PointSet::SearchPoint	(	Point3D	point,
		ScalarType	distance,
		int	t = `0`
	)		const

Search for the closest point within a given distance.

Parameters

[in]	point	The search position in world coordinates.
[in]	distance	The search radius in mm.
[in]	t	Time step (default: 0).

Returns: The ID of the closest point within distance, or -1 if no point was found.

◆ SearchSelectedPoint()

virtual int mitk::PointSet::SearchSelectedPoint ( int t = 0 ) const

virtual

Search for a selected point and return its ID.

Parameters

[in] t Time step (default: 0).

Returns: The ID of the first selected point, or -1 if none is found.

◆ SetPoint() [1/2]

void mitk::PointSet::SetPoint	(	PointIdentifier	id,
		PointType	point,
		int	t = `0`
	)

Set (overwrite) the point with the given ID in world coordinates.

If the time step does not exist, the PointSet is expanded. The point data is initialized with default values (unselected, PTUNDEFINED).

Parameters

[in]	id	The point identifier.
[in]	point	The point in world coordinates.
[in]	t	Time step (default: 0).

◆ SetPoint() [2/2]

void mitk::PointSet::SetPoint	(	PointIdentifier	id,
		PointType	point,
		PointSpecificationType	spec,
		int	t = `0`
	)

Set (overwrite) the point with the given ID and PointSpecificationType.

Parameters

[in]	id	The point identifier.
[in]	point	The point in world coordinates.
[in]	spec	The point specification type.
[in]	t	Time step (default: 0).

◆ SetRequestedRegion()

void mitk::PointSet::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Set the requested region from another data object (no-op for PointSet).

Parameters

[in] data The data object (unused).

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::PointSet::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Set the requested region to the largest possible region (no-op for PointSet).

Implements mitk::BaseData.

◆ SetSelectInfo()

virtual void mitk::PointSet::SetSelectInfo	(	int	position,
		bool	selected,
		int	t = `0`
	)

virtual

Set the selection state of the point at the given position.

Parameters

[in]	position	The point index.
[in]	selected	True to select, false to deselect.
[in]	t	Time step (default: 0).

◆ SwapPointContents()

bool mitk::PointSet::SwapPointContents	(	PointIdentifier	id1,
		PointIdentifier	id2,
		int	t = `0`
	)

protected

swaps point coordinates and point data of the points with identifiers id1 and id2

◆ SwapPointPosition()

bool mitk::PointSet::SwapPointPosition	(	PointIdentifier	id,
		bool	moveUpwards,
		int	t = `0`
	)

Swap a point with its neighbor in the ordered container.

If moveUpwards is true, the point at id is swapped with the point at id-1; otherwise with the point at id+1.

Parameters

[in]	id	The point identifier.
[in]	moveUpwards	If true, swap with the preceding point; otherwise swap with the following point.
[in]	t	Time step (default: 0).

Returns: True if the swap was successful, false if the neighbor does not exist.

◆ UpdateOutputInformation()

void mitk::PointSet::UpdateOutputInformation ( )

override

Update the output information (bounding box, geometry).

◆ VerifyRequestedRegion()

bool mitk::PointSet::VerifyRequestedRegion ( )

overridevirtual

Verify that the requested region is valid.

Returns: Always returns true for PointSet.

Implements mitk::BaseData.

Member Data Documentation

◆ m_CalculateBoundingBox

bool mitk::PointSet::m_CalculateBoundingBox

protected

flag to indicate the right time to call SetBounds

Definition at line 478 of file mitkPointSet.h.

◆ m_EmptyPointsContainer

DataType::PointsContainer::Pointer mitk::PointSet::m_EmptyPointsContainer

protected

Definition at line 473 of file mitkPointSet.h.

◆ m_PointSetSeries

PointSetSeries mitk::PointSet::m_PointSetSeries

protected

Definition at line 471 of file mitkPointSet.h.

◆ MaxTopologicalDimension

const unsigned int mitk::PointSet::MaxTopologicalDimension

static

Maximum topological dimension of mesh cells.

Definition at line 89 of file mitkPointSet.h.

◆ PointDimension

const unsigned int mitk::PointSet::PointDimension

static

Points are 3-dimensional.

Definition at line 86 of file mitkPointSet.h.

The documentation for this class was generated from the following file:

mitkPointSet.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

mitkPointSetDisplayOptions

Events

Member Typedef Documentation

◆ CoordinateType

◆ DataType

◆ InterpolationWeightType

◆ MeshTraits

◆ MeshType

◆ PointDataConstIterator

◆ PointDataContainer

◆ PointDataIterator

◆ PointIdentifier

◆ PointsConstIterator

◆ PointsContainer

◆ PointSetSeries

◆ PointsIterator

◆ PointType

◆ SelectedLinesIter

◆ SelectedLinesType

Constructor & Destructor Documentation

◆ PointSet() [1/2]

◆ PointSet() [2/2]

◆ ~PointSet()

Member Function Documentation

◆ Begin() [1/2]

◆ Begin() [2/2]

◆ ClearData()

◆ ClearSelection()

◆ Clone()

◆ End() [1/2]

◆ End() [2/2]

◆ ExecuteOperation()

◆ Expand()

◆ GetMaxId()

◆ GetNumberOfSelected()

◆ GetPoint()

◆ GetPointIfExists()

◆ GetPointSet()

◆ GetPointSetSeriesSize()

◆ GetSelectInfo()

◆ GetSize()

◆ GetSpecificationTypeInfo()

◆ IndexExists()

◆ InitializeEmpty()

◆ InsertPoint() [1/3]

◆ InsertPoint() [2/3]

◆ InsertPoint() [3/3]

◆ IsEmptyTimeStep()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ OnPointSetChange()

◆ PrintSelf()

◆ RemovePointAtEnd()

◆ RemovePointIfExists()

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SearchPoint()

◆ SearchSelectedPoint()

◆ SetPoint() [1/2]

◆ SetPoint() [2/2]

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetSelectInfo()

◆ SwapPointContents()

◆ SwapPointPosition()

◆ UpdateOutputInformation()

◆ VerifyRequestedRegion()

Member Data Documentation

◆ m_CalculateBoundingBox

◆ m_EmptyPointsContainer

◆ m_PointSetSeries
