Vtk-based 2D mapper for PointSet. More...

#include <mitkPointSetVtkMapper2D.h>

Inheritance diagram for mitk::PointSetVtkMapper2D:

[legend]

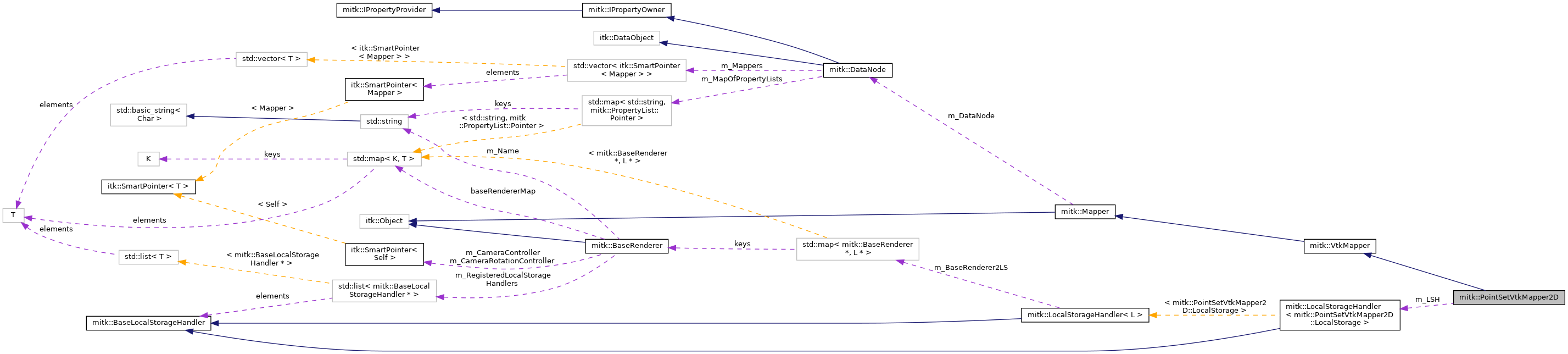

Collaboration diagram for mitk::PointSetVtkMapper2D:

[legend]

Classes
class	LocalStorage
	Internal class holding the mapper, actor, etc. for each of the 3 2D render windows. More...

Public Member Functions
	mitkClassMacro (PointSetVtkMapper2D, VtkMapper)

Pointer	Clone () const

virtual const mitk::PointSet *	GetInput () const
	Returns the PointSet input data object of this mapper. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Returns the vtkPropAssembly containing all VTK actors for the given renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Sets default properties for point set visualization in 2D. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows. More...

Protected Member Functions
	PointSetVtkMapper2D ()
	Constructor. More...

	~PointSetVtkMapper2D () override
	Destructor. More...

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Applies the color and opacity properties and calls CreateVTKRenderObjects. More...

void	ResetMapper (BaseRenderer *renderer) override
	Called in mitk::Mapper::Update to reset the mapper. More...

virtual void	CreateVTKRenderObjects (mitk::BaseRenderer *renderer)
	Fills the VTK objects; only called when the point set has been changed. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

Protected Attributes
bool	m_ShowContour

bool	m_CloseContour

bool	m_ShowPoints

bool	m_ShowDistances

int	m_DistancesDecimalDigits

bool	m_ShowAngles

bool	m_ShowDistantLines

int	m_LineWidth

int	m_PointLineWidth

float	m_Point2DSize

int	m_IDShapeProperty

bool	m_FillShape

float	m_DistanceToPlane

bool	m_FixedSizeOnScreen

int	m_Resolution

bool	m_KeepShapeWhenSelected

bool	m_ShowSelectedContour

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Vtk-based 2D mapper for PointSet.

Due to the need of different colors for selected and unselected points and the facts, that we also have a contour and labels for the points, the vtk structure is build up the following way:

We have three PolyData, one selected, and one unselected and one for a contour between the points. Each one is connected to an own PolyDataMapper and an Actor. The different color for the unselected and selected state and for the contour is read from properties.

This mapper has several additional functionalities, such as rendering a contour between points, calculating and displaying distances or angles between points.

Point Representation

The points are displayed as small glyphs of configurable shape (see property "PointSet.2D.shape"). The size of these glyphs is given in world units. That means, the size or shape of those glyphs is independent of the BaseGeometry object that you assign to the PointSet. As for all other objects, positions of points will be transformed into the world via the Geometry's index-to-world transform.

Then the three Actors are combined inside a vtkPropAssembly and this object is returned in GetProp() and so hooked up into the rendering pipeline.

Applicable Properties

Properties that can be set for point sets and influence the PointSetVTKMapper2D are:

"line width": (IntProperty 2) // line width of the line from one point to another
"point line width": (IntProperty 1) // line width of the cross marking a point
"point 2D size": (FloatProperty 6) // size of the glyph marking a point (diameter, in world units!)
"show contour": (BoolProperty false) // enable contour rendering between points (lines)
"close contour": (BoolProperty false) // if enabled, the open strip is closed (first point connected with last point)
"show points": (BoolProperty true) // show or hide points
"show distances": (BoolProperty false) // show or hide distance measure
"distance decimal digits": (IntProperty 2) // set the number of decimal digits to be shown when rendering the distance information
"show angles": (BoolProperty false) // show or hide angle measurement
"show distant lines": (BoolProperty false) // show the line between to points from a distant view (equals "always on top" option)
"layer": (IntProperty 1) // default is drawing pointset above images (they have a default layer of 0)
"PointSet.2D.shape" (EnumerationProperty Cross) // provides different shapes marking a point 0 = "None", 1 = "Vertex", 2 = "Dash", 3 = "Cross", 4 = "ThickCross", 5 = "Triangle", 6 = "Square", 7 = "Circle", 8 = "Diamond", 9 = "Arrow", 10 = "ThickArrow", 11 = "HookedArrow", 12 = "Cross"
"PointSet.2D.fill shape": (BoolProperty false) // fill or do not fill the glyph shape
"Pointset.2D.distance to plane": (FloatProperty 4.0) //In the 2D render window, points are rendered which lie within a certain distance to the current plane. They are projected on the current plane and scaled according to their distance. Point markers appear smaller as the plane moves away from their true location. The distance threshold can be adjusted by this float property, which ables the user to delineate the points that lie exactly on the plane. (+/- rounding error)

Other Properties used here but not defined in this class:

"selectedcolor": (ColorProperty (1.0f, 0.0f, 0.0f)) // default color of the selected pointset e.g. the current point is red
"contourcolor" : (ColorProperty (1.0f, 0.0f, 0.0f)) // default color for the contour is red
"color": (ColorProperty (1.0f, 1.0f, 0.0f)) // default color of the (unselected) pointset is yellow
"opacity": (FloatProperty 1.0) // opacity of point set, contours
"label": (StringProperty nullptr) // a label can be defined for each point, which is rendered in proximity to the point

See also: PointSetVtkMapper3D; PointSet

Definition at line 120 of file mitkPointSetVtkMapper2D.h.

Constructor & Destructor Documentation

◆ PointSetVtkMapper2D()

mitk::PointSetVtkMapper2D::PointSetVtkMapper2D ( )

protected

Constructor.

◆ ~PointSetVtkMapper2D()

mitk::PointSetVtkMapper2D::~PointSetVtkMapper2D ( )

overrideprotected

Destructor.

Member Function Documentation

◆ Clone()

Pointer mitk::PointSetVtkMapper2D::Clone ( ) const

◆ CreateVTKRenderObjects()

virtual void mitk::PointSetVtkMapper2D::CreateVTKRenderObjects ( mitk::BaseRenderer * renderer )

protectedvirtual

Fills the VTK objects; only called when the point set has been changed.

This function iterates over the input point set and determines the glyphs which lie in a specific range around the current slice. Those glyphs are rendered using a specific shape defined in vtk glyph source to mark each point. The shape can be changed in MITK using the property "PointSet.2D.shape".

There were issues when rendering vtk glyphs in the 2D-render windows. By default, the glyphs are rendered within the x-y plane in each 2D-render window, so you would only see them from the side in the sagittal and coronal 2D-render window. The solution to this is to rotate the glyphs in order to be orthogonal to the current view vector. To achieve this, the rotation (vtktransform) of the current PlaneGeometry is applied to the orientation of the glyphs.

Parameters

renderer the renderer for which the VTK render objects are created.

◆ GenerateDataForRenderer()

void mitk::PointSetVtkMapper2D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Applies the color and opacity properties and calls CreateVTKRenderObjects.

Parameters

renderer the renderer for which data is generated.

Reimplemented from mitk::Mapper.

◆ GetInput()

virtual const mitk::PointSet* mitk::PointSetVtkMapper2D::GetInput ( ) const

virtual

Returns the PointSet input data object of this mapper.

Returns: The associated PointSet, or nullptr if no data is set.

◆ GetVtkProp()

vtkProp* mitk::PointSetVtkMapper2D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Returns the vtkPropAssembly containing all VTK actors for the given renderer.

Parameters

renderer the renderer for which to retrieve the VTK prop.

Returns: The vtkPropAssembly that aggregates all rendering actors.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::PointSetVtkMapper2D::mitkClassMacro	(	PointSetVtkMapper2D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::PointSetVtkMapper2D::New ( )

static

◆ ResetMapper()

void mitk::PointSetVtkMapper2D::ResetMapper ( BaseRenderer * renderer )

overrideprotectedvirtual

Called in mitk::Mapper::Update to reset the mapper.

If TimeGeometry or time step is not valid for the point set, the mapper is reset so that nothing is displayed (e.g. toggles visibility of the prop assembly off).

Parameters

renderer the renderer for which the mapper is reset.

Reimplemented from mitk::Mapper.

◆ SetDefaultProperties()

static void mitk::PointSetVtkMapper2D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Sets default properties for point set visualization in 2D.

Parameters

node	the data node to configure.
renderer	the renderer for which properties should be set, or nullptr for global defaults.
overwrite	if true, existing properties will be overwritten.

Member Data Documentation

◆ m_CloseContour

bool mitk::PointSetVtkMapper2D::m_CloseContour

protected

Definition at line 256 of file mitkPointSetVtkMapper2D.h.

◆ m_DistancesDecimalDigits

int mitk::PointSetVtkMapper2D::m_DistancesDecimalDigits

protected

Definition at line 259 of file mitkPointSetVtkMapper2D.h.

◆ m_DistanceToPlane

float mitk::PointSetVtkMapper2D::m_DistanceToPlane

protected

Definition at line 267 of file mitkPointSetVtkMapper2D.h.

◆ m_FillShape

bool mitk::PointSetVtkMapper2D::m_FillShape

protected

Definition at line 266 of file mitkPointSetVtkMapper2D.h.

◆ m_FixedSizeOnScreen

bool mitk::PointSetVtkMapper2D::m_FixedSizeOnScreen

protected

Definition at line 268 of file mitkPointSetVtkMapper2D.h.

◆ m_IDShapeProperty

int mitk::PointSetVtkMapper2D::m_IDShapeProperty

protected

Definition at line 265 of file mitkPointSetVtkMapper2D.h.

◆ m_KeepShapeWhenSelected

bool mitk::PointSetVtkMapper2D::m_KeepShapeWhenSelected

protected

Definition at line 270 of file mitkPointSetVtkMapper2D.h.

◆ m_LineWidth

int mitk::PointSetVtkMapper2D::m_LineWidth

protected

Definition at line 262 of file mitkPointSetVtkMapper2D.h.

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::PointSetVtkMapper2D::m_LSH

The LocalStorageHandler holds all (three) LocalStorages for the three 2D render windows.

Definition at line 214 of file mitkPointSetVtkMapper2D.h.

◆ m_Point2DSize

float mitk::PointSetVtkMapper2D::m_Point2DSize

protected

Definition at line 264 of file mitkPointSetVtkMapper2D.h.

◆ m_PointLineWidth

int mitk::PointSetVtkMapper2D::m_PointLineWidth

protected

Definition at line 263 of file mitkPointSetVtkMapper2D.h.

◆ m_Resolution

int mitk::PointSetVtkMapper2D::m_Resolution

protected

Definition at line 269 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowAngles

bool mitk::PointSetVtkMapper2D::m_ShowAngles

protected

Definition at line 260 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowContour

bool mitk::PointSetVtkMapper2D::m_ShowContour

protected

Definition at line 255 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowDistances

bool mitk::PointSetVtkMapper2D::m_ShowDistances

protected

Definition at line 258 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowDistantLines

bool mitk::PointSetVtkMapper2D::m_ShowDistantLines

protected

Definition at line 261 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowPoints

bool mitk::PointSetVtkMapper2D::m_ShowPoints

protected

Definition at line 257 of file mitkPointSetVtkMapper2D.h.

◆ m_ShowSelectedContour

bool mitk::PointSetVtkMapper2D::m_ShowSelectedContour

protected

Definition at line 271 of file mitkPointSetVtkMapper2D.h.

The documentation for this class was generated from the following file:

mitkPointSetVtkMapper2D.h

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Point Representation

Applicable Properties

Constructor & Destructor Documentation

◆ PointSetVtkMapper2D()

◆ ~PointSetVtkMapper2D()

Member Function Documentation

◆ Clone()

◆ CreateVTKRenderObjects()

◆ GenerateDataForRenderer()

◆ GetInput()

◆ GetVtkProp()

◆ mitkClassMacro()

◆ New()

◆ ResetMapper()

◆ SetDefaultProperties()

Member Data Documentation

◆ m_CloseContour

◆ m_DistancesDecimalDigits

◆ m_DistanceToPlane

◆ m_FillShape

◆ m_FixedSizeOnScreen

◆ m_IDShapeProperty

◆ m_KeepShapeWhenSelected

◆ m_LineWidth

◆ m_LSH

◆ m_Point2DSize

◆ m_PointLineWidth

◆ m_Resolution

◆ m_ShowAngles

◆ m_ShowContour

◆ m_ShowDistances

◆ m_ShowDistantLines

◆ m_ShowPoints

◆ m_ShowSelectedContour
