Vtk-based 3D mapper for PointSet. More...

#include <mitkPointSetVtkMapper3D.h>

Inheritance diagram for mitk::PointSetVtkMapper3D:

[legend]

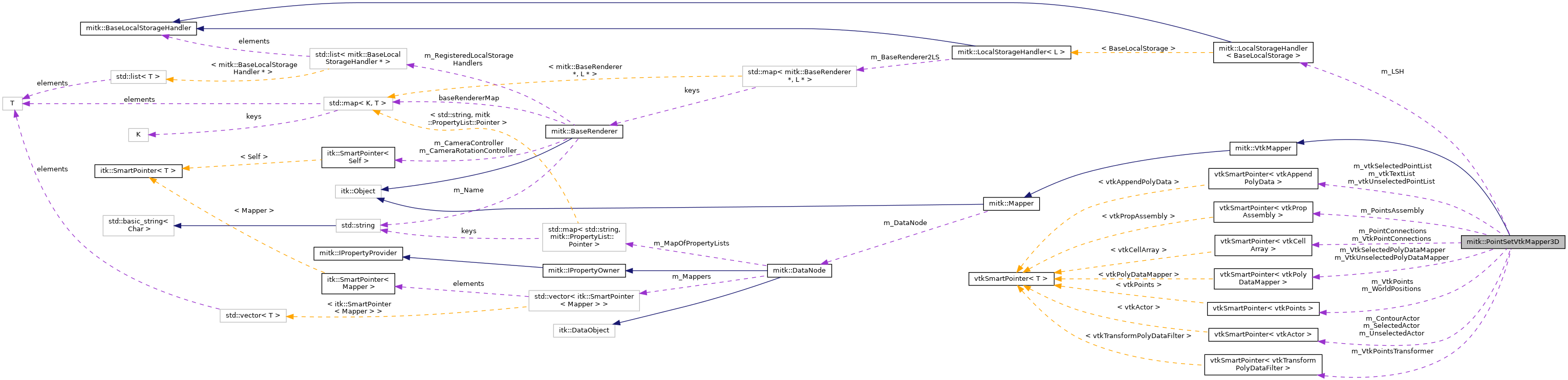

Collaboration diagram for mitk::PointSetVtkMapper3D:

[legend]

Public Member Functions
	mitkClassMacro (PointSetVtkMapper3D, VtkMapper)

Pointer	Clone () const

virtual const mitk::PointSet *	GetInput ()
	Returns the PointSet input data object of this mapper. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Returns the vtkPropAssembly containing all VTK actors for the given renderer. More...

void	UpdateVtkTransform (mitk::BaseRenderer *renderer) override
	Intentionally empty; transform is handled internally. More...

void	ReleaseGraphicsResources (mitk::BaseRenderer *renderer) override
	Releases VTK graphics resources associated with the given renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Sets default properties for point set visualization in 3D. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH

Protected Member Functions
	PointSetVtkMapper3D ()
	Constructor. More...

	~PointSetVtkMapper3D () override
	Destructor. More...

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generates the VTK rendering data for the given renderer. More...

void	ResetMapper (BaseRenderer *renderer) override
	Resets the mapper by hiding the prop assembly. More...

virtual void	ApplyAllProperties (mitk::BaseRenderer renderer, vtkActor actor)
	Applies color and opacity properties to the given actor. More...

virtual void	CreateContour (vtkPoints points, vtkCellArray connections)
	Creates a tube-based contour connecting the given points. More...

virtual void	CreateVTKRenderObjects ()
	Creates the VTK render objects (spheres, cubes, etc.) for each point. More...

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

Protected Attributes
vtkSmartPointer< vtkPoints >	m_WorldPositions
	All point positions, already in world coordinates. More...

vtkSmartPointer< vtkCellArray >	m_PointConnections
	All connections between two points (used for contour drawing) More...

vtkSmartPointer< vtkAppendPolyData >	m_vtkSelectedPointList

vtkSmartPointer< vtkAppendPolyData >	m_vtkUnselectedPointList

vtkSmartPointer< vtkPoints >	m_VtkPoints

vtkSmartPointer< vtkCellArray >	m_VtkPointConnections

vtkSmartPointer< vtkTransformPolyDataFilter >	m_VtkPointsTransformer

vtkSmartPointer< vtkPolyDataMapper >	m_VtkSelectedPolyDataMapper

vtkSmartPointer< vtkPolyDataMapper >	m_VtkUnselectedPolyDataMapper

vtkSmartPointer< vtkActor >	m_SelectedActor

vtkSmartPointer< vtkActor >	m_UnselectedActor

vtkSmartPointer< vtkActor >	m_ContourActor

vtkSmartPointer< vtkPropAssembly >	m_PointsAssembly

vtkSmartPointer< vtkAppendPolyData >	m_vtkTextList

unsigned int	m_NumberOfSelectedAdded

unsigned int	m_NumberOfUnselectedAdded

ScalarType	m_PointSize

ScalarType	m_ContourRadius

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

Vtk-based 3D mapper for PointSet.

Due to the need of different colors for selected and unselected points and the facts, that we also have a contour and labels for the points, the vtk structure is build up the following way:

We have two AppendPolyData, one selected, and one unselected and one for a contour between the points. Each one is connected to an own PolyDataMapper and an Actor. The different color for the unselected and selected state and for the contour is read from properties.

"unselectedcolor", "selectedcolor" and "contourcolor" are the strings, that are looked for. Point labels are added besides the selected or the deselected points.

Then the three Actors are combined inside a vtkPropAssembly and this object is returned in GetProp() and so hooked up into the rendering pipeline.

Properties that can be set for point sets and influence the PointSetVTKMapper3D are:

"color": (ColorProperty*) Color of the point set
"Opacity": (FloatProperty) Opacity of the point set
"show contour": (BoolProperty) If the contour of the points are visible
"contourSizeProp": (FloatProperty) Contour size of the points

The default properties are:

"line width": (IntProperty 2)
"pointsize": (FloatProperty 1.0)
"selectedcolor": (ColorProperty (1.0f, 0.0f, 0.0f)) red
"color": (ColorProperty (1.0f, 1.0f, 0.0f)) yellow
"show contour": (BoolProperty false)
"contourcolor": (ColorProperty (1.0f, 0.0f, 0.0f))
"contoursize": (FloatProperty 0.5)
"close contour": (BoolProperty false)
"show points": (BoolProperty true)
"updateDataOnRender": (BoolProperty true)

Other properties looked for are:

"show contour": if set to on, lines between the points are shown
"close contour": if set to on, the open strip is closed (first point connected with last point)
"pointsize": size of the points mapped (diameter of a sphere, in world coordinates!)
"label": text of the Points to show besides points
"contoursize": size of the contour drawn between the points (if not set, the pointsize is taken)

See also: PointSetVtkMapper2D; PointSet

Definition at line 88 of file mitkPointSetVtkMapper3D.h.

Constructor & Destructor Documentation

◆ PointSetVtkMapper3D()

mitk::PointSetVtkMapper3D::PointSetVtkMapper3D ( )

protected

Constructor.

◆ ~PointSetVtkMapper3D()

mitk::PointSetVtkMapper3D::~PointSetVtkMapper3D ( )

overrideprotected

Destructor.

Member Function Documentation

◆ ApplyAllProperties()

virtual void mitk::PointSetVtkMapper3D::ApplyAllProperties	(	mitk::BaseRenderer *	renderer,
		vtkActor *	actor
	)

protectedvirtual

Applies color and opacity properties to the given actor.

Parameters

renderer	the renderer from which to read properties.
actor	the VTK actor to apply properties to.

Reimplemented in mitk::SplineVtkMapper3D.

◆ Clone()

Pointer mitk::PointSetVtkMapper3D::Clone ( ) const

◆ CreateContour()

virtual void mitk::PointSetVtkMapper3D::CreateContour	(	vtkPoints *	points,
		vtkCellArray *	connections
	)

protectedvirtual

Creates a tube-based contour connecting the given points.

Parameters

points	the VTK points to connect.
connections	the VTK cell array defining point connectivity.

◆ CreateVTKRenderObjects()

virtual void mitk::PointSetVtkMapper3D::CreateVTKRenderObjects ( )

protectedvirtual

Creates the VTK render objects (spheres, cubes, etc.) for each point.

◆ GenerateDataForRenderer()

void mitk::PointSetVtkMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * renderer )

overrideprotectedvirtual

Generates the VTK rendering data for the given renderer.

Parameters

renderer the renderer for which data is generated.

Reimplemented from mitk::Mapper.

Reimplemented in mitk::SplineVtkMapper3D.

◆ GetInput()

virtual const mitk::PointSet* mitk::PointSetVtkMapper3D::GetInput ( )

virtual

Returns the PointSet input data object of this mapper.

Returns: The associated PointSet, or nullptr if no data is set.

◆ GetVtkProp()

vtkProp* mitk::PointSetVtkMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Returns the vtkPropAssembly containing all VTK actors for the given renderer.

Overwritten from VtkMapper to return a vtkPropAssembly which is much faster than a vtkAssembly.

Parameters

renderer the renderer for which to retrieve the VTK prop.

Returns: The vtkPropAssembly that aggregates all rendering actors.

Implements mitk::VtkMapper.

Reimplemented in mitk::SplineVtkMapper3D.

◆ mitkClassMacro()

mitk::PointSetVtkMapper3D::mitkClassMacro	(	PointSetVtkMapper3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::PointSetVtkMapper3D::New ( )

static

◆ ReleaseGraphicsResources()

void mitk::PointSetVtkMapper3D::ReleaseGraphicsResources ( mitk::BaseRenderer * renderer )

overridevirtual

Releases VTK graphics resources associated with the given renderer.

Parameters

renderer the renderer whose resources should be released.

Reimplemented from mitk::VtkMapper.

◆ ResetMapper()

void mitk::PointSetVtkMapper3D::ResetMapper ( BaseRenderer * renderer )

overrideprotectedvirtual

Resets the mapper by hiding the prop assembly.

Parameters

renderer the renderer for which the mapper is reset.

Reimplemented from mitk::Mapper.

◆ SetDefaultProperties()

static void mitk::PointSetVtkMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Sets default properties for point set visualization in 3D.

Parameters

node	the data node to configure.
renderer	the renderer for which properties should be set, or nullptr for global defaults.
overwrite	if true, existing properties will be overwritten.

◆ UpdateVtkTransform()

void mitk::PointSetVtkMapper3D::UpdateVtkTransform ( mitk::BaseRenderer * renderer )

overridevirtual

Intentionally empty; transform is handled internally.

Parameters

renderer the renderer whose transform would be updated.

Reimplemented from mitk::VtkMapper.

Reimplemented in mitk::SplineVtkMapper3D.

Member Data Documentation

◆ m_ContourActor

vtkSmartPointer<vtkActor> mitk::PointSetVtkMapper3D::m_ContourActor

protected

Definition at line 189 of file mitkPointSetVtkMapper3D.h.

◆ m_ContourRadius

ScalarType mitk::PointSetVtkMapper3D::m_ContourRadius

protected

Definition at line 202 of file mitkPointSetVtkMapper3D.h.

◆ m_LSH

LocalStorageHandler<BaseLocalStorage> mitk::PointSetVtkMapper3D::m_LSH

Definition at line 133 of file mitkPointSetVtkMapper3D.h.

◆ m_NumberOfSelectedAdded

unsigned int mitk::PointSetVtkMapper3D::m_NumberOfSelectedAdded

protected

Definition at line 197 of file mitkPointSetVtkMapper3D.h.

◆ m_NumberOfUnselectedAdded

unsigned int mitk::PointSetVtkMapper3D::m_NumberOfUnselectedAdded

protected

Definition at line 198 of file mitkPointSetVtkMapper3D.h.

◆ m_PointConnections

vtkSmartPointer<vtkCellArray> mitk::PointSetVtkMapper3D::m_PointConnections

protected

All connections between two points (used for contour drawing)

Definition at line 174 of file mitkPointSetVtkMapper3D.h.

◆ m_PointsAssembly

vtkSmartPointer<vtkPropAssembly> mitk::PointSetVtkMapper3D::m_PointsAssembly

protected

Definition at line 191 of file mitkPointSetVtkMapper3D.h.

◆ m_PointSize

ScalarType mitk::PointSetVtkMapper3D::m_PointSize

protected

Definition at line 201 of file mitkPointSetVtkMapper3D.h.

◆ m_SelectedActor

vtkSmartPointer<vtkActor> mitk::PointSetVtkMapper3D::m_SelectedActor

protected

Definition at line 187 of file mitkPointSetVtkMapper3D.h.

◆ m_UnselectedActor

vtkSmartPointer<vtkActor> mitk::PointSetVtkMapper3D::m_UnselectedActor

protected

Definition at line 188 of file mitkPointSetVtkMapper3D.h.

◆ m_VtkPointConnections

vtkSmartPointer<vtkCellArray> mitk::PointSetVtkMapper3D::m_VtkPointConnections

protected

Definition at line 180 of file mitkPointSetVtkMapper3D.h.

◆ m_VtkPoints

vtkSmartPointer<vtkPoints> mitk::PointSetVtkMapper3D::m_VtkPoints

protected

Definition at line 179 of file mitkPointSetVtkMapper3D.h.

◆ m_VtkPointsTransformer

vtkSmartPointer<vtkTransformPolyDataFilter> mitk::PointSetVtkMapper3D::m_VtkPointsTransformer

protected

Definition at line 182 of file mitkPointSetVtkMapper3D.h.

◆ m_vtkSelectedPointList

vtkSmartPointer<vtkAppendPolyData> mitk::PointSetVtkMapper3D::m_vtkSelectedPointList

protected

Definition at line 176 of file mitkPointSetVtkMapper3D.h.

◆ m_VtkSelectedPolyDataMapper

vtkSmartPointer<vtkPolyDataMapper> mitk::PointSetVtkMapper3D::m_VtkSelectedPolyDataMapper

protected

Definition at line 184 of file mitkPointSetVtkMapper3D.h.

◆ m_vtkTextList

vtkSmartPointer<vtkAppendPolyData> mitk::PointSetVtkMapper3D::m_vtkTextList

protected

Definition at line 194 of file mitkPointSetVtkMapper3D.h.

◆ m_vtkUnselectedPointList

vtkSmartPointer<vtkAppendPolyData> mitk::PointSetVtkMapper3D::m_vtkUnselectedPointList

protected

Definition at line 177 of file mitkPointSetVtkMapper3D.h.

◆ m_VtkUnselectedPolyDataMapper

vtkSmartPointer<vtkPolyDataMapper> mitk::PointSetVtkMapper3D::m_VtkUnselectedPolyDataMapper

protected

Definition at line 185 of file mitkPointSetVtkMapper3D.h.

◆ m_WorldPositions

vtkSmartPointer<vtkPoints> mitk::PointSetVtkMapper3D::m_WorldPositions

protected

All point positions, already in world coordinates.

Definition at line 172 of file mitkPointSetVtkMapper3D.h.

The documentation for this class was generated from the following file:

mitkPointSetVtkMapper3D.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PointSetVtkMapper3D()

◆ ~PointSetVtkMapper3D()

Member Function Documentation

◆ ApplyAllProperties()

◆ Clone()

◆ CreateContour()

◆ CreateVTKRenderObjects()

◆ GenerateDataForRenderer()

◆ GetInput()

◆ GetVtkProp()

◆ mitkClassMacro()

◆ New()

◆ ReleaseGraphicsResources()

◆ ResetMapper()

◆ SetDefaultProperties()

◆ UpdateVtkTransform()

Member Data Documentation

◆ m_ContourActor

◆ m_ContourRadius

◆ m_LSH

◆ m_NumberOfSelectedAdded

◆ m_NumberOfUnselectedAdded

◆ m_PointConnections

◆ m_PointsAssembly

◆ m_PointSize

◆ m_SelectedActor

◆ m_UnselectedActor

◆ m_VtkPointConnections

◆ m_VtkPoints

◆ m_VtkPointsTransformer

◆ m_vtkSelectedPointList

◆ m_VtkSelectedPolyDataMapper

◆ m_vtkTextList

◆ m_vtkUnselectedPointList

◆ m_VtkUnselectedPolyDataMapper

◆ m_WorldPositions
