mitk::Point< TCoordRep, NPointDimension > Class Template Reference

MITK point type extending itk::Point with additional constructors and utility methods. More...

#include <mitkPoint.h>

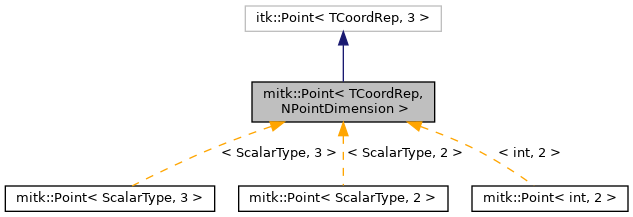

Inheritance diagram for mitk::Point< TCoordRep, NPointDimension >:

Collaboration diagram for mitk::Point< TCoordRep, NPointDimension >:

Public Member Functions
	Point ()
	Default constructor. More...
template<typename TPointValueType >
	Point (const Point< TPointValueType, NPointDimension > &r)
	Pass-through constructors for the Array base class. More...
template<typename TPointValueType >
	Point (const TPointValueType r[NPointDimension])
template<typename TPointValueType >
	Point (const TPointValueType &v)
	Point (const mitk::Point< TCoordRep, NPointDimension > &r)
Point &	operator= (const mitk::Point< TCoordRep, NPointDimension > &)=default
	Point (const TCoordRep r[NPointDimension])
	Point (const TCoordRep &v)
	Point (const itk::Point< TCoordRep, NPointDimension > &p)
template<typename... Args, typename = std::enable_if_t<(sizeof...(Args) == NPointDimension)>>
	Point (Args... args)
template<typename ArrayType >
void	FillPoint (const ArrayType &array)
	Copy elements from an array into this point. More...
template<typename ArrayType >
void	ToArray (ArrayType array) const
	Copy the values stored in this point into an array. More...

Detailed Description

template<class TCoordRep, unsigned int NPointDimension = 3>
class mitk::Point< TCoordRep, NPointDimension >

MITK point type extending itk::Point with additional constructors and utility methods.

Provides constructors for various input types and utility methods for copying to/from array types.

Template Parameters

TCoordRep	Coordinate representation type (e.g. double, float).
NPointDimension	Number of dimensions (default: 3).

Definition at line 48 of file mitkPoint.h.

Constructor & Destructor Documentation

Point() [1/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

mitk::Point< TCoordRep, NPointDimension >::Point ( )

inlineexplicit

Default constructor.

Definition at line 52 of file mitkPoint.h.

Point() [2/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename TPointValueType >

mitk::Point< TCoordRep, NPointDimension >::Point ( const Point< TPointValueType, NPointDimension > &  r )

inlineexplicit

Pass-through constructors for the Array base class.

Definition at line 55 of file mitkPoint.h.

Point() [3/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename TPointValueType >

mitk::Point< TCoordRep, NPointDimension >::Point ( const TPointValueType  r[NPointDimension] )

inlineexplicit

Definition at line 60 of file mitkPoint.h.

Point() [4/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename TPointValueType >

mitk::Point< TCoordRep, NPointDimension >::Point ( const TPointValueType &  v )

inlineexplicit

Definition at line 65 of file mitkPoint.h.

Point() [5/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

mitk::Point< TCoordRep, NPointDimension >::Point ( const mitk::Point< TCoordRep, NPointDimension > &  r )

inline

Definition at line 69 of file mitkPoint.h.

Point() [6/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

mitk::Point< TCoordRep, NPointDimension >::Point ( const TCoordRep  r[NPointDimension] )

inline

Definition at line 74 of file mitkPoint.h.

Point() [7/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

mitk::Point< TCoordRep, NPointDimension >::Point ( const TCoordRep &  v )

inline

Definition at line 75 of file mitkPoint.h.

Point() [8/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

mitk::Point< TCoordRep, NPointDimension >::Point ( const itk::Point< TCoordRep, NPointDimension > &  p )

inline

Definition at line 76 of file mitkPoint.h.

Point() [9/9]

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename... Args, typename = std::enable_if_t<(sizeof...(Args) == NPointDimension)>>

mitk::Point< TCoordRep, NPointDimension >::Point ( Args...  args )

inlineexplicit

Definition at line 83 of file mitkPoint.h.

Member Function Documentation

FillPoint()

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename ArrayType >

void mitk::Point< TCoordRep, NPointDimension >::FillPoint ( const ArrayType &  array )

inline

Copy elements from an array into this point.

Note that this method will assign doubles to floats without complaining!

Parameters

[in]

array

The array whose values shall be copied. Must overload [] operator.

Definition at line 97 of file mitkPoint.h.

operator=()

template<class TCoordRep , unsigned int NPointDimension = 3>

Point& mitk::Point< TCoordRep, NPointDimension >::operator= ( const mitk::Point< TCoordRep, NPointDimension > &  )

default

ToArray()

template<class TCoordRep , unsigned int NPointDimension = 3>

template<typename ArrayType >

void mitk::Point< TCoordRep, NPointDimension >::ToArray ( ArrayType  array ) const

inline

Copy the values stored in this point into an array.

Parameters

[out]

array

The array which should store the values of this point.

Definition at line 110 of file mitkPoint.h.

---

The documentation for this class was generated from the following file:

• mitkPoint.h
