Property for storing enumeration-like values identified by id and name. More...

#include <mitkEnumerationProperty.h>

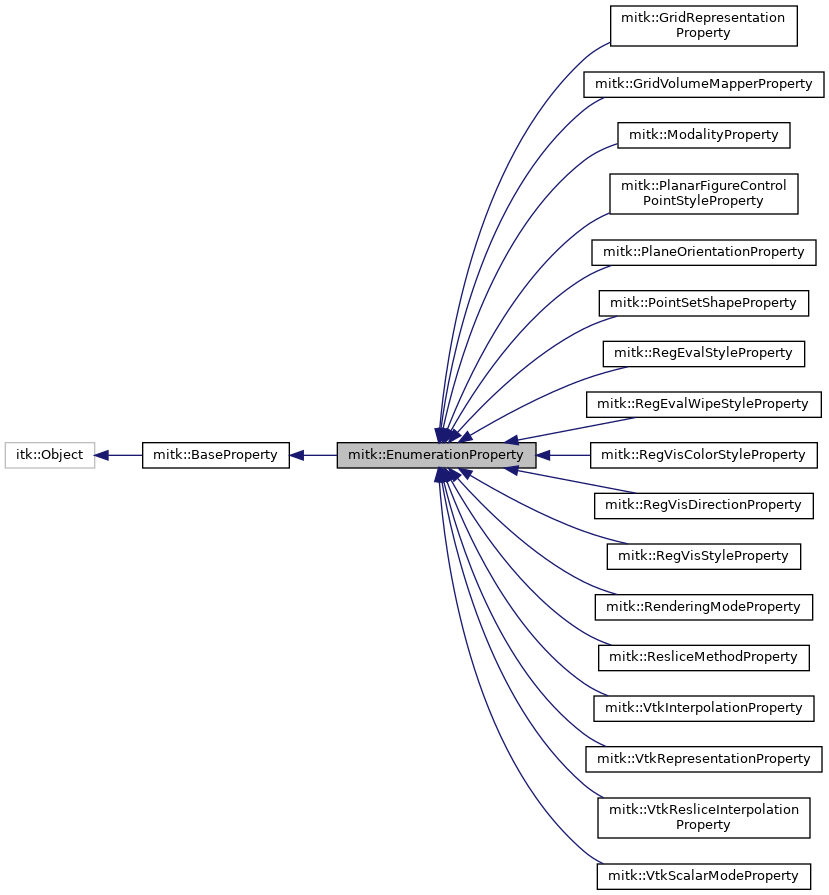

Inheritance diagram for mitk::EnumerationProperty:

[legend]

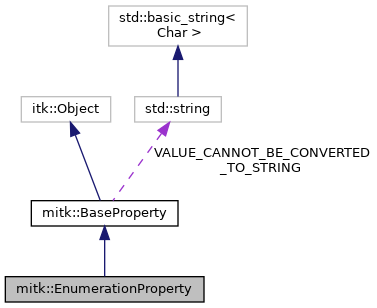

Collaboration diagram for mitk::EnumerationProperty:

[legend]

Public Types
typedef unsigned int	IdType
	Unsigned integer type used as unique enumeration value identifier. More...

typedef std::map< IdType, std::string >	EnumIdsContainerType
	Map type storing id-to-name mappings. More...

typedef std::map< std::string, IdType >	EnumStringsContainerType
	Map type storing name-to-id mappings. More...

typedef EnumIdsContainerType::const_iterator	EnumConstIterator
	Const iterator type for iterating over enumeration values. More...

Public Member Functions
	mitkClassMacro (EnumerationProperty, BaseProperty)

Pointer	Clone () const

virtual bool	AddEnum (const std::string &name, const IdType &id)
	Add an enumeration value. More...

virtual bool	SetValue (const std::string &name)
	Set the current value of the enumeration by name. More...

virtual bool	SetValue (const IdType &id)
	Set the current value of the enumeration by id. More...

virtual IdType	GetValueAsId () const
	Get the id of the currently selected enumeration value. More...

std::string	GetValueAsString () const override
	Get the name of the currently selected enumeration value. More...

virtual void	Clear ()
	Remove all enumeration values and reset the current selection. More...

virtual EnumIdsContainerType::size_type	Size () const
	Get the number of defined enumeration values. More...

virtual EnumConstIterator	Begin () const
	Get an iterator to the first enumeration value. More...

virtual EnumConstIterator	End () const
	Get an iterator past the last enumeration value. More...

virtual std::string	GetEnumString (const IdType &id) const
	Get the name string for a given enumeration id. More...

virtual IdType	GetEnumId (const std::string &name) const
	Get the id for a given enumeration name. More...

virtual bool	IsValidEnumerationValue (const IdType &id) const
	Check whether a given id corresponds to a valid enumeration value. More...

virtual bool	IsValidEnumerationValue (const std::string &name) const
	Check whether a given name corresponds to a valid enumeration value. More...

const EnumIdsContainerType &	GetEnumIds () const
	Get a const reference to the id-to-name map. More...

const EnumStringsContainerType &	GetEnumStrings () const
	Get a const reference to the name-to-id map. More...

EnumIdsContainerType &	GetEnumIds ()
	Get a mutable reference to the id-to-name map. More...

EnumStringsContainerType &	GetEnumStrings ()
	Get a mutable reference to the name-to-id map. More...

bool	ToJSON (nlohmann::json &j) const override
	Serialize the current enumeration value to JSON. More...

bool	FromJSON (const nlohmann::json &j) override
	Deserialize the enumeration value from JSON. More...

EnumerationProperty &	operator= (const EnumerationProperty &)=delete

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

Public Member Functions inherited from mitk::BaseProperty
	mitkClassMacroItkParent (BaseProperty, itk::Object)

Pointer	Clone () const

bool	operator== (const BaseProperty &property) const
	Compare two properties for equality. More...

BaseProperty &	operator= (const BaseProperty &property)
	Assign a property value to this instance. More...

bool	AssignProperty (const BaseProperty &property)
	Assign a property value to this instance and report success. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	EnumerationProperty ()

	EnumerationProperty (const EnumerationProperty &)

bool	IsEqual (const BaseProperty &property) const override

bool	Assign (const BaseProperty &property) override

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::BaseProperty
	BaseProperty ()

	BaseProperty (const BaseProperty &other)

	~BaseProperty () override

Additional Inherited Members
Static Public Attributes inherited from mitk::BaseProperty
static const std::string	VALUE_CANNOT_BE_CONVERTED_TO_STRING
	Default return value for properties that cannot be converted to a string. More...

Detailed Description

Property for storing enumeration-like values identified by id and name.

This class may be used to store properties similar to C++ enumeration values. Each enumeration value is identified by a unique id and a unique name. You must add enumeration values before using the Get/SetValue methods.

To use this class, create a subclass that adds the possible enumeration values in its constructor. You should override AddEnum() as protected so that users cannot add invalid enumeration values.

See also: VtkRepresentationProperty; VtkInterpolationProperty; BaseProperty

Definition at line 38 of file mitkEnumerationProperty.h.

Member Typedef Documentation

◆ EnumConstIterator

typedef EnumIdsContainerType::const_iterator mitk::EnumerationProperty::EnumConstIterator

Const iterator type for iterating over enumeration values.

Definition at line 55 of file mitkEnumerationProperty.h.

◆ EnumIdsContainerType

typedef std::map<IdType, std::string> mitk::EnumerationProperty::EnumIdsContainerType

Map type storing id-to-name mappings.

Definition at line 49 of file mitkEnumerationProperty.h.

◆ EnumStringsContainerType

typedef std::map<std::string, IdType> mitk::EnumerationProperty::EnumStringsContainerType

Map type storing name-to-id mappings.

Definition at line 52 of file mitkEnumerationProperty.h.

◆ IdType

typedef unsigned int mitk::EnumerationProperty::IdType

Unsigned integer type used as unique enumeration value identifier.

Definition at line 46 of file mitkEnumerationProperty.h.

Constructor & Destructor Documentation

◆ EnumerationProperty() [1/2]

mitk::EnumerationProperty::EnumerationProperty ( )

protected

Default constructor. The current value of the enumeration is undefined.

◆ EnumerationProperty() [2/2]

mitk::EnumerationProperty::EnumerationProperty ( const EnumerationProperty & )

protected

Member Function Documentation

◆ AddEnum()

virtual bool mitk::EnumerationProperty::AddEnum	(	const std::string &	name,
		const IdType &	id
	)

virtual

Add an enumeration value.

The name and id provided must both be unique. If either already exists, the value is not added and false is returned.

Parameters

[in]	name	The unique name of the enumeration value.
[in]	id	The unique id of the enumeration value.

Returns: true if the name/id combination was successfully added, false if either name or id already exists.

Reimplemented in mitk::PlanarFigureControlPointStyleProperty, mitk::RegVisStyleProperty, mitk::RegVisDirectionProperty, mitk::RegVisColorStyleProperty, mitk::RegEvalWipeStyleProperty, mitk::RegEvalStyleProperty, mitk::GridVolumeMapperProperty, mitk::GridRepresentationProperty, mitk::VtkScalarModeProperty, mitk::VtkResliceInterpolationProperty, mitk::VtkRepresentationProperty, mitk::VtkInterpolationProperty, mitk::RenderingModeProperty, mitk::PointSetShapeProperty, and mitk::PlaneOrientationProperty.

◆ Assign()

bool mitk::EnumerationProperty::Assign ( const BaseProperty & )

overrideprotectedvirtual

Override this method in subclasses to implement a meaningful assignment. The property argument is guaranteed to be castable to the type of the implementing subclass.

Warning: This is not yet exception aware/safe and if this method returns false, this property's state might be undefined.

Returns: True if the argument could be assigned to this property.

Implements mitk::BaseProperty.

◆ Begin()

virtual EnumConstIterator mitk::EnumerationProperty::Begin ( ) const

virtual

Get an iterator to the first enumeration value.

Iterator dereferences to a pair where first is the id and second is the name.

Returns: A const iterator to the beginning of the enumeration values.

◆ Clear()

virtual void mitk::EnumerationProperty::Clear ( )

virtual

Remove all enumeration values and reset the current selection.

◆ Clone()

Pointer mitk::EnumerationProperty::Clone ( ) const

◆ End()

virtual EnumConstIterator mitk::EnumerationProperty::End ( ) const

virtual

Get an iterator past the last enumeration value.

Returns: A const iterator pointing past the end of the enumeration values.

◆ FromJSON()

bool mitk::EnumerationProperty::FromJSON ( const nlohmann::json & j )

overridevirtual

Deserialize the enumeration value from JSON.

Reads a string from JSON and sets the enumeration value by name.

Note: Classes deriving from EnumerationProperty are covered by this implementation and do not need to override this method again.

Parameters

[in] j The JSON string value to read from.

Returns: Always true.

Exceptions

mitk::Exception if the JSON string is not a valid enumeration value.

Implements mitk::BaseProperty.

◆ GetEnumId()

virtual IdType mitk::EnumerationProperty::GetEnumId ( const std::string & name ) const

virtual

Get the id for a given enumeration name.

Parameters

[in] name The enumeration name for which to retrieve the id.

Returns: The id of the enumeration value. If the name is invalid, the return value is 0.

◆ GetEnumIds() [1/2]

EnumIdsContainerType& mitk::EnumerationProperty::GetEnumIds ( )

Get a mutable reference to the id-to-name map.

Returns: The map of enumeration ids to names.

◆ GetEnumIds() [2/2]

const EnumIdsContainerType& mitk::EnumerationProperty::GetEnumIds ( ) const

Get a const reference to the id-to-name map.

Returns: The map of enumeration ids to names.

◆ GetEnumString()

virtual std::string mitk::EnumerationProperty::GetEnumString ( const IdType & id ) const

virtual

Get the name string for a given enumeration id.

Parameters

[in] id The id for which to retrieve the name.

Returns: The name of the enumeration value. If the id is invalid, the return value is the string "invalid enum id or enums empty".

◆ GetEnumStrings() [1/2]

EnumStringsContainerType& mitk::EnumerationProperty::GetEnumStrings ( )

Get a mutable reference to the name-to-id map.

Returns: The map of enumeration names to ids.

◆ GetEnumStrings() [2/2]

const EnumStringsContainerType& mitk::EnumerationProperty::GetEnumStrings ( ) const

Get a const reference to the name-to-id map.

Returns: The map of enumeration names to ids.

◆ GetValueAsId()

virtual IdType mitk::EnumerationProperty::GetValueAsId ( ) const

virtual

Get the id of the currently selected enumeration value.

Returns: The id of the current value. If no value has been set, the return value is unspecified.

◆ GetValueAsString()

std::string mitk::EnumerationProperty::GetValueAsString ( ) const

overridevirtual

Get the name of the currently selected enumeration value.

Returns: The name string of the current value. If no value has been set, the return value is unspecified.

Reimplemented from mitk::BaseProperty.

◆ IsEqual()

bool mitk::EnumerationProperty::IsEqual ( const BaseProperty & property ) const

overrideprotectedvirtual

Override this method in subclasses to implement a meaningful comparison. The property argument is guaranteed to be castable to the type of the implementing subclass.

Implements mitk::BaseProperty.

◆ IsValidEnumerationValue() [1/2]

virtual bool mitk::EnumerationProperty::IsValidEnumerationValue ( const IdType & id ) const

virtual

Check whether a given id corresponds to a valid enumeration value.

Parameters

[in] id The id to check.

Returns: true if the id is valid, false otherwise.

◆ IsValidEnumerationValue() [2/2]

virtual bool mitk::EnumerationProperty::IsValidEnumerationValue ( const std::string & name ) const

virtual

Check whether a given name corresponds to a valid enumeration value.

Parameters

[in] name The name to check.

Returns: true if the name is valid, false otherwise.

◆ mitkClassMacro()

mitk::EnumerationProperty::mitkClassMacro	(	EnumerationProperty	,
		BaseProperty
	)

◆ mitkCloneMacro()

mitk::EnumerationProperty::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::EnumerationProperty::New ( )

static

◆ operator=() [1/2]

BaseProperty& mitk::BaseProperty::operator=

Assign a property value to this instance.

Performs a polymorphic assignment from the given property. The assignment succeeds only if the source and target properties are of the same type. The subclass-specific Assign() method is called to perform the actual value copy.

Subclasses must implement Assign(const BaseProperty&) and call the superclass Assign method for proper handling. The copy assignment operator of the subclass should be disabled and the base class operator should be made visible using "using" statements.

Parameters

[in] property The property whose value should be assigned to this instance.

Returns: A reference to this property.

See also: AssignProperty; Assign

◆ operator=() [2/2]

EnumerationProperty& mitk::EnumerationProperty::operator= ( const EnumerationProperty & )

delete

◆ SetValue() [1/2]

virtual bool mitk::EnumerationProperty::SetValue ( const IdType & id )

virtual

Set the current value of the enumeration by id.

Parameters

[in] id The id of the enumeration value to set.

Returns: true if the value was successfully set (id is valid), false otherwise.

◆ SetValue() [2/2]

virtual bool mitk::EnumerationProperty::SetValue ( const std::string & name )

virtual

Set the current value of the enumeration by name.

Parameters

[in] name The name of the enumeration value to set.

Returns: true if the value was successfully set (name is valid), false otherwise.

◆ Size()

virtual EnumIdsContainerType::size_type mitk::EnumerationProperty::Size ( ) const

virtual

Get the number of defined enumeration values.

Returns: The count of registered enumeration values.

◆ ToJSON()

bool mitk::EnumerationProperty::ToJSON ( nlohmann::json & j ) const

overridevirtual

Serialize the current enumeration value to JSON.

Writes the current enumeration value name as a JSON string.

Note: Classes deriving from EnumerationProperty are covered by this implementation and do not need to override this method again.

Parameters

[out] j The JSON value to write into.

Returns: Always true.

Implements mitk::BaseProperty.

The documentation for this class was generated from the following file:

mitkEnumerationProperty.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ EnumConstIterator

◆ EnumIdsContainerType

◆ EnumStringsContainerType

◆ IdType

Constructor & Destructor Documentation

◆ EnumerationProperty() [1/2]

◆ EnumerationProperty() [2/2]

Member Function Documentation

◆ AddEnum()

◆ Assign()

◆ Begin()

◆ Clear()

◆ Clone()

◆ End()

◆ FromJSON()

◆ GetEnumId()

◆ GetEnumIds() [1/2]

◆ GetEnumIds() [2/2]

◆ GetEnumString()

◆ GetEnumStrings() [1/2]

◆ GetEnumStrings() [2/2]

◆ GetValueAsId()

◆ GetValueAsString()

◆ IsEqual()

◆ IsValidEnumerationValue() [1/2]

◆ IsValidEnumerationValue() [2/2]

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ SetValue() [1/2]

◆ SetValue() [2/2]

◆ Size()

◆ ToJSON()
