Describes the geometry of a plane object. More...

#include <mitkPlaneGeometry.h>

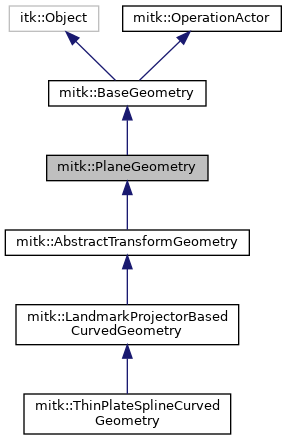

Inheritance diagram for mitk::PlaneGeometry:

[legend]

Collaboration diagram for mitk::PlaneGeometry:

[legend]

Public Member Functions
	mitkClassMacro (PlaneGeometry, BaseGeometry)

Pointer	Clone () const

virtual void	IndexToWorld (const Point2D &pt_units, Point2D &pt_mm) const
	Convert 2D index coordinates (units) to 2D world coordinates (mm). More...

virtual void	WorldToIndex (const Point2D &pt_mm, Point2D &pt_units) const
	Convert 2D world coordinates (mm) to 2D index coordinates (units). More...

virtual void	IndexToWorld (const mitk::Vector2D &vec_units, mitk::Vector2D &vec_mm) const
	Convert 2D index coordinates of a vector to world coordinates (mm). More...

virtual void	WorldToIndex (const mitk::Vector2D &vec_mm, mitk::Vector2D &vec_units) const
	Convert world coordinates (mm) of a 2D vector to continuous index coordinates. More...

virtual void	InitializeStandardPlane (const BaseGeometry *geometry3D, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry. More...

virtual void	InitializeStandardPlane (const BaseGeometry *geometry3D, bool top, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, bool frontside=true, bool rotated=false)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const AffineTransform3D *transform=nullptr, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to transform (default: identity) given width and height in units. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const Vector3D &spacing, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize plane with orientation AnatomicalPlane (default: axial) given width, height and spacing. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const Vector3D &rightVector, const Vector3D &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by width and height in pixels, right-/down-vector (itk) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const VnlVector &rightVector, const VnlVector &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by width and height in pixels, right-/down-vector (vnl) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (const Vector3D &rightVector, const Vector3D &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by right-/down-vector (itk) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (const VnlVector &rightVector, const VnlVector &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by right-/down-vector (vnl) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializePlane (const Point3D &origin, const Vector3D &normal)
	Initialize plane by origin and normal (size is 1.0 mm in all directions, direction of right-/down-vector valid but undefined). More...

void	SetMatrixByVectors (const VnlVector &rightVector, const VnlVector &downVector, ScalarType thickness=1.0)
	Initialize plane by right-/down-vector. More...

Vector3D	GetNormal () const
	Get the normal vector of the plane. More...

VnlVector	GetNormalVnl () const
	Get the normal vector of the plane as a VnlVector. More...

virtual ScalarType	SignedDistance (const Point3D &pt3d_mm) const
	Compute the signed distance of a point from the plane. More...

virtual bool	IsAbove (const Point3D &pt3d_mm, bool considerBoundingBox=false) const
	Determine whether a point is above (in the normal direction of) the plane. More...

ScalarType	DistanceFromPlane (const Point3D &pt3d_mm) const
	Unsigned distance of a point from the infinite plane. More...

ScalarType	SignedDistanceFromPlane (const Point3D &pt3d_mm) const
	Signed distance of the point from the plane (bounding-box not considered) More...

ScalarType	DistanceFromPlane (const PlaneGeometry *plane) const
	Distance of the plane from another plane (bounding-box not considered) More...

ScalarType	SignedDistanceFromPlane (const PlaneGeometry *plane) const
	Signed distance of the plane from another plane (bounding-box not considered) More...

bool	IntersectionLine (const PlaneGeometry *plane, Line3D &crossline) const
	Calculate the intersecting line of two planes. More...

unsigned int	IntersectWithPlane2D (const PlaneGeometry *plane, Point2D &lineFrom, Point2D &lineTo) const
	Calculate two points where another plane intersects the border of this plane. More...

double	Angle (const PlaneGeometry *plane) const
	Calculate the angle between two planes. More...

double	Angle (const Line3D &line) const
	Calculate the angle between the plane and a line. More...

bool	IntersectionPoint (const Line3D &line, Point3D &intersectionPoint) const
	Calculate intersection point between the plane and a line. More...

bool	IntersectionPointParam (const Line3D &line, double &t) const
	Calculate line parameter of intersection point between the plane and a line. More...

bool	IsParallel (const PlaneGeometry *plane) const
	Returns whether the plane is parallel to another plane. More...

bool	IsOnPlane (const Point3D &point) const
	Returns whether the point is on the plane (bounding-box not considered) More...

bool	IsOnPlane (const Line3D &line) const
	Returns whether the line is on the plane (bounding-box not considered) More...

bool	IsOnPlane (const PlaneGeometry *plane) const
	Returns whether the plane is on the plane (bounding-box not considered) More...

Point3D	ProjectPointOntoPlane (const Point3D &pt) const
	Returns the lot from the point to the plane. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation to re-orient or reposition the plane. More...

virtual bool	Map (const mitk::Point3D &pt3d_mm, mitk::Point2D &pt2d_mm) const
	Project a 3D point given in mm (pt3d_mm) onto the 2D geometry. The result is a 2D point in mm (pt2d_mm). More...

virtual void	Map (const mitk::Point2D &pt2d_mm, mitk::Point3D &pt3d_mm) const
	Converts a 2D point given in mm (pt2d_mm) relative to the upper-left corner of the geometry into the corresponding world-coordinate (a 3D point in mm, pt3d_mm). More...

virtual void	SetSizeInUnits (mitk::ScalarType width, mitk::ScalarType height)
	Set the width and height of this 2D-geometry in units by calling SetBounds. This does not change the extent in mm! More...

virtual bool	Project (const mitk::Point3D &pt3d_mm, mitk::Point3D &projectedPt3d_mm) const
	Project a 3D point given in mm (pt3d_mm) onto the 2D geometry. The result is a 3D point in mm (projectedPt3d_mm). More...

virtual bool	Map (const mitk::Point3D &atPt3d_mm, const mitk::Vector3D &vec3d_mm, mitk::Vector2D &vec2d_mm) const
	Project a 3D vector given in mm (vec3d_mm) onto the 2D geometry. The result is a 2D vector in mm (vec2d_mm). More...

virtual void	Map (const mitk::Point2D &atPt2d_mm, const mitk::Vector2D &vec2d_mm, mitk::Vector3D &vec3d_mm) const
	Converts a 2D vector given in mm (vec2d_mm) relative to the upper-left corner of the geometry into the corresponding world-coordinate (a 3D vector in mm, vec3d_mm). More...

virtual bool	Project (const mitk::Vector3D &vec3d_mm, mitk::Vector3D &projectedVec3d_mm) const
	Project a 3D vector given in mm (vec3d_mm) onto the 2D geometry. The result is a 3D vector in mm (projectedVec3d_mm). More...

ScalarType	Distance (const Point3D &pt3d_mm) const
	Unsigned distance of a point from the geometry. More...

void	SetReferenceGeometry (const mitk::BaseGeometry *geometry)
	Set the geometrical frame of reference in which this PlaneGeometry is placed. More...

const BaseGeometry *	GetReferenceGeometry () const
	Get the geometrical frame of reference for this PlaneGeometry. More...

bool	HasReferenceGeometry () const
	Check whether a reference geometry has been set. More...

Public Member Functions inherited from mitk::BaseGeometry
	mitkClassMacroItkParent (BaseGeometry, itk::Object)

Pointer	Clone () const

Point3D	GetOrigin () const
	Get the origin of the geometry in world coordinates (mm). More...

void	SetOrigin (const Point3D &origin)
	Set the origin of the geometry in world coordinates (mm). More...

mitk::Vector3D	GetSpacing () const
	Get the spacing (voxel size) in mm per unit for each axis. More...

void	SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)
	Set the spacing (voxel size) for each axis. More...

VnlVector	GetOriginVnl () const
	Get the origin as a VNL vector. More...

virtual unsigned int	GetFrameOfReferenceID () const
	Get the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual void	SetFrameOfReferenceID (unsigned int _arg)
	Set the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual unsigned long	GetIndexToWorldTransformLastModified () const
	Get the last-modified timestamp of the IndexToWorldTransform. More...

void	Modified () const override
	Overloaded Modified() to support the ModifiedLock mechanism. More...

virtual bool	IsValid () const
	Check whether this geometry is in a valid state. More...

void	Initialize ()
	Initialize the geometry to default values. More...

void	InitializeGeometry (Self *newGeometry) const
	Copy the essential geometry properties into another instance. More...

mitk::AffineTransform3D *	GetIndexToWorldTransform ()
	Get the affine transform that maps index coordinates to world coordinates. More...

const mitk::AffineTransform3D *	GetIndexToWorldTransform () const
	Get the affine transform that maps index coordinates to world coordinates (const). More...

void	SetIndexToWorldTransform (mitk::AffineTransform3D *transform)
	Set the affine transform for index-to-world coordinate mapping. More...

void	SetIndexToWorldTransformByVtkMatrix (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4. More...

void	SetIndexToWorldTransformWithoutChangingSpacing (mitk::AffineTransform3D *transform)
	Set the IndexToWorldTransform while preserving the current spacing. More...

void	SetIndexToWorldTransformByVtkMatrixWithoutChangingSpacing (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4 while preserving spacing. More...

vtkMatrix4x4 *	GetVtkMatrix ()
	Get the IndexToWorldTransform as a 4x4 VTK matrix. More...

const vtkMatrix4x4 *	GetVtkMatrix () const
	Get the IndexToWorldTransform as a 4x4 VTK matrix (const). More...

vtkLinearTransform *	GetVtkTransform () const
	Get the IndexToWorldTransform as a vtkLinearTransform. More...

void	SetIdentity ()
	Reset the geometry to identity. More...

void	Compose (const TransformType *other, bool pre=false)
	Compose the IndexToWorldTransform with another transform. More...

void	Compose (const vtkMatrix4x4 *vtkmatrix, bool pre=false)
	Compose the IndexToWorldTransform with a vtkMatrix4x4. More...

void	Translate (const Vector3D &vector)
	Translate the origin by a given vector. More...

void	WorldToIndex (const mitk::Point3D &pt_mm, mitk::Point3D &pt_units) const
	Convert world coordinates (mm) of a point to continuous index coordinates. More...

void	WorldToIndex (const mitk::Vector3D &vec_mm, mitk::Vector3D &vec_units) const
	Convert world coordinates (mm) of a vector to continuous index coordinates. More...

template<unsigned int VIndexDimension>
void	WorldToIndex (const mitk::Point3D &pt_mm, itk::Index< VIndexDimension > &index) const
	Convert world coordinates (mm) of a point to discrete (integer) index coordinates. More...

void	IndexToWorld (const mitk::Vector3D &vec_units, mitk::Vector3D &vec_mm) const
	Convert index coordinates of a vector to world coordinates (mm). More...

void	IndexToWorld (const mitk::Point3D &pt_units, mitk::Point3D &pt_mm) const
	Convert continuous or discrete index coordinates of a point to world coordinates (mm). More...

template<unsigned int VIndexDimension>
void	IndexToWorld (const itk::Index< VIndexDimension > &index, mitk::Point3D &pt_mm) const
	Convert discrete (itk::Index) index coordinates of a point to world coordinates (mm). More...

template<class TCoordRep >
void	ItkPhysicalPointToWorld (const itk::Point< TCoordRep, 3 > &itkPhysicalPoint, mitk::Point3D &pt_mm) const
	Convert an ITK physical point to MITK world coordinates. More...

template<class TCoordRep >
void	WorldToItkPhysicalPoint (const mitk::Point3D &pt_mm, itk::Point< TCoordRep, 3 > &itkPhysicalPoint) const
	Convert MITK world coordinates to ITK physical coordinates. More...

virtual const BoundingBoxType *	GetBoundingBox ()
	Get the bounding box in index/unit coordinates. More...

const BoundsArrayType	GetBounds () const
	Get the bounding box bounds as a BoundsArrayType in index/unit coordinates. More...

void	SetBounds (const BoundsArrayType &bounds)
	Set the bounding box in index/unit coordinates. More...

void	SetFloatBounds (const float bounds[6])
	Set the bounding box via a float array. More...

void	SetFloatBounds (const double bounds[6])
	Set the bounding box via a double array. More...

VnlVector	GetMatrixColumn (unsigned int direction) const
	Get a column of the IndexToWorldTransform matrix as a VnlVector. More...

mitk::BoundingBox::Pointer	CalculateBoundingBoxRelativeToTransform (const mitk::AffineTransform3D *transform) const
	Calculate a bounding box relative to a given transform. More...

ScalarType	GetExtent (unsigned int direction) const
	Set the time bounds (in ms) More...

ScalarType	GetExtentInMM (int direction) const
	Get the extent of the bounding box in mm along the specified direction. More...

Vector3D	GetAxisVector (unsigned int direction) const
	Get a vector along the bounding box in the specified direction in mm. More...

virtual bool	Is2DConvertable ()
	Check if this geometry can be converted to 2D without information loss. More...

Point3D	GetCenter () const
	Get the center of the bounding box in world coordinates (mm). More...

double	GetDiagonalLength2 () const
	Get the squared length of the bounding-box diagonal in mm. More...

double	GetDiagonalLength () const
	Get the length of the bounding-box diagonal in mm. More...

Point3D	GetCornerPoint (int id) const
	Get the position of corner number id in world coordinates. More...

Point3D	GetCornerPoint (bool xFront=true, bool yFront=true, bool zFront=true) const
	Get the position of a corner in world coordinates. More...

void	SetExtentInMM (int direction, ScalarType extentInMM)
	Set the extent of the bounding box in mm along the specified direction. More...

bool	IsInside (const mitk::Point3D &p) const
	Test whether a point (world coordinates, mm) lies inside the bounding box. More...

bool	IsIndexInside (const mitk::Point3D &index) const
	Test whether a point in continuous index coordinates lies inside the bounding box. More...

template<unsigned int VIndexDimension>
bool	IsIndexInside (const itk::Index< VIndexDimension > &index) const
	Test whether a discrete ITK index lies inside the bounding box. More...

Point3D	ClampPoint (const Point3D &point) const
	Clamp a point to lie within the geometry's world-coordinate bounds. More...

virtual void	ChangeImageGeometryConsideringOriginOffset (const bool isAnImageGeometry)
	Switch between image geometry and normal geometry with origin correction. More...

virtual bool	GetImageGeometry () const
	Query whether this geometry refers to an image. More...

virtual void	SetImageGeometry (bool _arg)
	Define that this BaseGeometry refers to an image. More...

virtual void	ImageGeometryOn ()
	Toggle macro for ImageGeometry (ImageGeometryOn/ImageGeometryOff). More...

virtual void	ImageGeometryOff ()

const GeometryTransformHolder *	GetGeometryTransformHolder () const
	Get the internal GeometryTransformHolder. More...

void	MapAxesToOrientations (int axes[]) const
	Map geometry axes to anatomical orientations (sagittal, coronal, axial). More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

static bool	CheckRotationMatrix (AffineTransform3D *transform, double epsilon=1e-6)
	Check if matrix is a rotation matrix: More...

Protected Member Functions
	PlaneGeometry ()

	PlaneGeometry (const PlaneGeometry &other)

	~PlaneGeometry () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	PreSetSpacing (const mitk::Vector3D &aSpacing) override
	PreSetSpacing. More...

void	CheckBounds (const BoundsArrayType &bounds) override
	CheckBounds. More...

void	CheckIndexToWorldTransform (mitk::AffineTransform3D *transform) override
	CheckIndexToWorldTransform. More...

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::BaseGeometry
	BaseGeometry ()

	BaseGeometry (const BaseGeometry &other)

	~BaseGeometry () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

virtual unsigned int	GetNDimensions () const

bool	IsBoundingBoxNull () const

bool	IsIndexToWorldTransformNull () const

void	SetVtkMatrixDeepCopy (vtkTransform *vtktransform)

void	_SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)

Protected Attributes
const mitk::BaseGeometry *	m_ReferenceGeometry

Additional Inherited Members
Public Types inherited from mitk::BaseGeometry
typedef GeometryTransformHolder::TransformType	TransformType
	Affine transform type used for index-to-world mapping. More...

typedef itk::BoundingBox< unsigned long, 3, ScalarType >	BoundingBoxType
	3D bounding box type parameterized with ScalarType. More...

typedef BoundingBoxType::BoundsArrayType	BoundsArrayType
	Fixed-size array of six ScalarType values representing axis-aligned bounds [xmin,xmax,ymin,ymax,zmin,zmax]. More...

typedef BoundingBoxType::Pointer	BoundingBoxPointer
	Smart-pointer type for BoundingBoxType. More...

Static Protected Member Functions inherited from mitk::BaseGeometry
static const std::string	GetTransformAsString (TransformType *transformType)

Detailed Description

Describes the geometry of a plane object.

Describes a two-dimensional manifold, i.e., to put it simply, an object that can be described using a 2D coordinate-system.

PlaneGeometry can map points between 3D world coordinates (in mm) and the described 2D coordinate-system (in mm) by first projecting the 3D point onto the 2D manifold and then calculating the 2D-coordinates (in mm). These 2D-mm-coordinates can be further converted into 2D-unit-coordinates (e.g., pixels), giving a parameter representation of the object with parameter values inside a rectangle (e.g., [0,0]..[width, height]), which is the bounding box (bounding range in z-direction always [0]..[1]).

A PlaneGeometry describes the 2D representation within a 3D object (derived from BaseGeometry). For example, a single CT-image (slice) is 2D in the sense that you can access the pixels using 2D-coordinates, but is also 3D, as the pixels are really voxels, thus have an extension (thickness) in the 3rd dimension.

Optionally, a reference BaseGeometry can be specified, which usually would be the geometry associated with the underlying dataset. This is currently used for calculating the intersection of inclined / rotated planes (represented as PlaneGeometry) with the bounding box of the associated BaseGeometry.

Warning: The PlaneGeometry are not necessarily up-to-date and not even initialized. As described in the previous paragraph, one of the Generate-/Copy-/UpdateOutputInformation methods have to initialize it. mitk::BaseData::GetPlaneGeometry() makes sure, that the PlaneGeometry is up-to-date before returning it (by setting the update extent appropriately and calling UpdateOutputInformation).

Rule: everything is in mm (or ms for temporal information) if not stated otherwise.

Describes a two-dimensional, rectangular plane

Definition at line 74 of file mitkPlaneGeometry.h.

Constructor & Destructor Documentation

◆ PlaneGeometry() [1/2]

mitk::PlaneGeometry::PlaneGeometry ( )

protected

◆ PlaneGeometry() [2/2]

mitk::PlaneGeometry::PlaneGeometry ( const PlaneGeometry & other )

protected

◆ ~PlaneGeometry()

mitk::PlaneGeometry::~PlaneGeometry ( )

overrideprotected

Member Function Documentation

◆ Angle() [1/2]

double mitk::PlaneGeometry::Angle ( const Line3D & line ) const

Calculate the angle between the plane and a line.

Returns: angle in radiants

◆ Angle() [2/2]

double mitk::PlaneGeometry::Angle ( const PlaneGeometry * plane ) const

Calculate the angle between two planes.

Returns: angle in radiants

◆ CheckBounds()

void mitk::PlaneGeometry::CheckBounds ( const BoundsArrayType & bounds )

overrideprotectedvirtual

CheckBounds.

This function is called in SetBounds. Assertions can be implemented in this function (see PlaneGeometry.cpp). If you implement this function in a subclass, make sure, that all classes were your class inherits from have an implementation of CheckBounds (e.g. inheritance BaseGeometry <- A <- B. Implementation of CheckBounds in class B needs implementation in A as

Reimplemented from mitk::BaseGeometry.

◆ CheckIndexToWorldTransform()

void mitk::PlaneGeometry::CheckIndexToWorldTransform ( mitk::AffineTransform3D * transform )

overrideprotectedvirtual

CheckIndexToWorldTransform.

This function is called in SetIndexToWorldTransform. Assertions can be implemented in this function (see

Reimplemented from mitk::BaseGeometry.

◆ CheckRotationMatrix()

static bool mitk::PlaneGeometry::CheckRotationMatrix	(	AffineTransform3D *	transform,
		double	epsilon = `1e-6`
	)

static

Check if matrix is a rotation matrix:

determinant is 1?
R*R^T is ID? Output warning otherwise.

◆ Clone()

Pointer mitk::PlaneGeometry::Clone ( ) const

◆ Distance()

ScalarType mitk::PlaneGeometry::Distance ( const Point3D & pt3d_mm ) const

inline

Unsigned distance of a point from the geometry.

Returns the absolute value of SignedDistance(). The bounding box is not considered for the underlying plane distance calculation.

Parameters

[in] pt3d_mm Point in world coordinates (mm).

Returns: Unsigned distance in mm.

See also: SignedDistance

Definition at line 559 of file mitkPlaneGeometry.h.

◆ DistanceFromPlane() [1/2]

ScalarType mitk::PlaneGeometry::DistanceFromPlane ( const PlaneGeometry * plane ) const

inline

Distance of the plane from another plane (bounding-box not considered)

Result is 0 if planes are not parallel.

Definition at line 361 of file mitkPlaneGeometry.h.

◆ DistanceFromPlane() [2/2]

ScalarType mitk::PlaneGeometry::DistanceFromPlane ( const Point3D & pt3d_mm ) const

Unsigned distance of a point from the infinite plane.

The bounding box is not considered.

Parameters

[in] pt3d_mm Point in world coordinates (mm).

Returns: Distance in mm (always >= 0).

◆ ExecuteOperation()

void mitk::PlaneGeometry::ExecuteOperation ( Operation * operation )

overridevirtual

Execute an operation to re-orient or reposition the plane.

Handles operations such as OpORIENT (re-orientation via PlaneOperation) in addition to the standard operations inherited from BaseGeometry.

Parameters

[in] operation The operation to execute.

Reimplemented from mitk::BaseGeometry.

◆ GetNormal()

Vector3D mitk::PlaneGeometry::GetNormal ( ) const

Get the normal vector of the plane.

The normal is the third column of the IndexToWorldTransform matrix, representing the direction perpendicular to the plane surface.

Returns: Normal vector in world coordinates.

◆ GetNormalVnl()

VnlVector mitk::PlaneGeometry::GetNormalVnl ( ) const

Get the normal vector of the plane as a VnlVector.

Returns: Normal as a VnlVector.

See also: GetNormal

◆ GetReferenceGeometry()

const BaseGeometry* mitk::PlaneGeometry::GetReferenceGeometry ( ) const

Get the geometrical frame of reference for this PlaneGeometry.

Returns: Const pointer to the reference geometry, or nullptr if not set.

◆ HasReferenceGeometry()

bool mitk::PlaneGeometry::HasReferenceGeometry ( ) const

Check whether a reference geometry has been set.

Returns: true if a non-null reference geometry is available.

◆ IndexToWorld() [1/2]

virtual void mitk::PlaneGeometry::IndexToWorld	(	const mitk::Vector2D &	vec_units,
		mitk::Vector2D &	vec_mm
	)		const

virtual

Convert 2D index coordinates of a vector to world coordinates (mm).

Parameters

[in]	vec_units	Vector in index coordinates.
[out]	vec_mm	Vector in world coordinates (mm).

Reimplemented in mitk::AbstractTransformGeometry.

◆ IndexToWorld() [2/2]

virtual void mitk::PlaneGeometry::IndexToWorld	(	const Point2D &	pt_units,
		Point2D &	pt_mm
	)		const

virtual

Convert 2D index coordinates (units) to 2D world coordinates (mm).

Uses the in-plane extent ratio (ExtentInMM / Extent) per axis.

Parameters

[in]	pt_units	2D point in index/unit coordinates.
[out]	pt_mm	2D point in world coordinates (mm).

Reimplemented in mitk::AbstractTransformGeometry.

◆ InitializePlane()

virtual void mitk::PlaneGeometry::InitializePlane	(	const Point3D &	origin,
		const Vector3D &	normal
	)

virtual

Initialize plane by origin and normal (size is 1.0 mm in all directions, direction of right-/down-vector valid but undefined).

Warning: This function can only produce righthanded coordinate orientation, not lefthanded.

◆ InitializeStandardPlane() [1/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	const BaseGeometry *	geometry3D,
		AnatomicalPlane	planeorientation = `AnatomicalPlane::Axial`,
		ScalarType	zPosition = `0`,
		bool	frontside = `true`,
		bool	rotated = `false`,
		bool	top = `true`
	)

virtual

Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry.

Warning: A former version of this method created a geometry with unit spacing. For unit spacing use

// for in-plane unit spacing:
thisgeometry->SetSizeInUnits(thisgeometry->GetExtentInMM(0),
  thisgeometry->GetExtentInMM(1));
// additionally, for unit spacing in normal direction (former version
// did not do this):
thisgeometry->SetExtentInMM(2, 1.0);

◆ InitializeStandardPlane() [2/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	const BaseGeometry *	geometry3D,
		bool	top,
		AnatomicalPlane	planeorientation = `AnatomicalPlane::Axial`,
		bool	frontside = `true`,
		bool	rotated = `false`
	)

virtual

Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry.

Parameters

geometry3D
top	if true, create plane at top, otherwise at bottom (for AnatomicalPlane Axial, for other plane locations respectively)
planeorientation
frontside
rotated

◆ InitializeStandardPlane() [3/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	const Vector3D &	rightVector,
		const Vector3D &	downVector,
		const Vector3D *	spacing = `nullptr`
	)

virtual

Initialize plane by right-/down-vector (itk) and spacing (default: 1.0 mm in all directions).

The length of the right-/-down-vector is used as width/height in units, respectively. Then, the vectors are normalized and multiplied by the respective spacing before they are set in the matrix.

◆ InitializeStandardPlane() [4/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	const VnlVector &	rightVector,
		const VnlVector &	downVector,
		const Vector3D *	spacing = `nullptr`
	)

virtual

Initialize plane by right-/down-vector (vnl) and spacing (default: 1.0 mm in all directions).

The length of the right-/-down-vector is used as width/height in units, respectively. Then, the vectors are normalized and multiplied by the respective spacing before they are set in the matrix.

◆ InitializeStandardPlane() [5/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	ScalarType	width,
		ScalarType	height,
		const AffineTransform3D *	transform = `nullptr`,
		AnatomicalPlane	planeorientation = `AnatomicalPlane::Axial`,
		ScalarType	zPosition = `0`,
		bool	frontside = `true`,
		bool	rotated = `false`,
		bool	top = `true`
	)

virtual

Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to transform (default: identity) given width and height in units.

Rotated means rotated by 180 degrees (1/2 rotation) within the plane. Rotation by 90 degrees (1/4 rotation) is not implemented as of now.

Frontside/Backside: Viewed from below = frontside in the axial case; (radiologist's view versus neuro-surgeon's view, see: http://www.itk.org/Wiki/images/e/ed/DICOM-OrientationDiagram-Radiologist-vs-NeuroSurgeon.png ) Viewed from front = frontside in the coronal case; Viewed from left = frontside in the sagittal case.

Cave/Caution: Currently only RPI, LAI, LPS and RAS in the three standard planes are covered, i.e. 12 cases of 144: 3 standard planes * 48 coordinate orientations = 144 cases.

◆ InitializeStandardPlane() [6/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	ScalarType	width,
		ScalarType	height,
		const Vector3D &	rightVector,
		const Vector3D &	downVector,
		const Vector3D *	spacing = `nullptr`
	)

virtual

Initialize plane by width and height in pixels, right-/down-vector (itk) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions).

The vectors are normalized and multiplied by the respective spacing before they are set in the matrix.

This overloaded version of InitializeStandardPlane() creates only righthanded coordinate orientations, unless spacing contains 1 or 3 negative entries.

◆ InitializeStandardPlane() [7/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	ScalarType	width,
		ScalarType	height,
		const Vector3D &	spacing,
		AnatomicalPlane	planeorientation = `AnatomicalPlane::Axial`,
		ScalarType	zPosition = `0`,
		bool	frontside = `true`,
		bool	rotated = `false`,
		bool	top = `true`
	)

virtual

Initialize plane with orientation AnatomicalPlane (default: axial) given width, height and spacing.

◆ InitializeStandardPlane() [8/8]

virtual void mitk::PlaneGeometry::InitializeStandardPlane	(	ScalarType	width,
		ScalarType	height,
		const VnlVector &	rightVector,
		const VnlVector &	downVector,
		const Vector3D *	spacing = `nullptr`
	)

virtual

Initialize plane by width and height in pixels, right-/down-vector (vnl) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions).

The vectors are normalized and multiplied by the respective spacing before they are set in the matrix.

This overloaded version of InitializeStandardPlane() creates only righthanded coordinate orientations, unless spacing contains 1 or 3 negative entries.

◆ IntersectionLine()

bool mitk::PlaneGeometry::IntersectionLine	(	const PlaneGeometry *	plane,
		Line3D &	crossline
	)		const

Calculate the intersecting line of two planes.

Returns: true planes are intersecting; false planes do not intersect

◆ IntersectionPoint()

bool mitk::PlaneGeometry::IntersectionPoint	(	const Line3D &	line,
		Point3D &	intersectionPoint
	)		const

Calculate intersection point between the plane and a line.

Parameters

line
intersectionPoint	intersection point

Returns: true if unique intersection exists, i.e., if line is not on or parallel to the plane

◆ IntersectionPointParam()

bool mitk::PlaneGeometry::IntersectionPointParam	(	const Line3D &	line,
		double &	t
	)		const

Calculate line parameter of intersection point between the plane and a line.

Parameters

line
t	parameter of line: intersection point is line.GetPoint()+t*line.GetDirection()

Returns: true if unique intersection exists, i.e., if line is not on or parallel to the plane

◆ IntersectWithPlane2D()

unsigned int mitk::PlaneGeometry::IntersectWithPlane2D	(	const PlaneGeometry *	plane,
		Point2D &	lineFrom,
		Point2D &	lineTo
	)		const

Calculate two points where another plane intersects the border of this plane.

Returns: number of intersection points (0..2). First intersection point (if existing) is returned in lineFrom, second in lineTo.

◆ IsAbove()

virtual bool mitk::PlaneGeometry::IsAbove	(	const Point3D &	pt3d_mm,
		bool	considerBoundingBox = `false`
	)		const

virtual

Determine whether a point is above (in the normal direction of) the plane.

Parameters

[in]	pt3d_mm	Point in world coordinates (mm).
[in]	considerBoundingBox	If true, points outside the bounding box are always considered "not above".

Returns: true if the point is above the plane.

Reimplemented in mitk::AbstractTransformGeometry.

◆ IsOnPlane() [1/3]

bool mitk::PlaneGeometry::IsOnPlane ( const Line3D & line ) const

Returns whether the line is on the plane (bounding-box not considered)

◆ IsOnPlane() [2/3]

bool mitk::PlaneGeometry::IsOnPlane ( const PlaneGeometry * plane ) const

Returns whether the plane is on the plane (bounding-box not considered)

Returns: true if the normal vector of the planes point to the same or the exactly oposit direction and the distance of the planes is < eps

◆ IsOnPlane() [3/3]

bool mitk::PlaneGeometry::IsOnPlane ( const Point3D & point ) const

Returns whether the point is on the plane (bounding-box not considered)

◆ IsParallel()

bool mitk::PlaneGeometry::IsParallel ( const PlaneGeometry * plane ) const

Returns whether the plane is parallel to another plane.

Returns: true iff the normal vectors both point to the same or exactly oposit direction

◆ Map() [1/4]

virtual void mitk::PlaneGeometry::Map	(	const mitk::Point2D &	atPt2d_mm,
		const mitk::Vector2D &	vec2d_mm,
		mitk::Vector3D &	vec3d_mm
	)		const

virtual

Converts a 2D vector given in mm (vec2d_mm) relative to the upper-left corner of the geometry into the corresponding world-coordinate (a 3D vector in mm, vec3d_mm).

To convert a 2D vector given in units (e.g., pixels in case of an image) into a 2D vector given in mm (as required by this method), use IndexToWorld.

Reimplemented in mitk::AbstractTransformGeometry.

◆ Map() [2/4]

virtual void mitk::PlaneGeometry::Map	(	const mitk::Point2D &	pt2d_mm,
		mitk::Point3D &	pt3d_mm
	)		const

virtual

Converts a 2D point given in mm (pt2d_mm) relative to the upper-left corner of the geometry into the corresponding world-coordinate (a 3D point in mm, pt3d_mm).

To convert a 2D point given in units (e.g., pixels in case of an image) into a 2D point given in mm (as required by this method), use IndexToWorld.

Reimplemented in mitk::AbstractTransformGeometry.

◆ Map() [3/4]

virtual bool mitk::PlaneGeometry::Map	(	const mitk::Point3D &	atPt3d_mm,
		const mitk::Vector3D &	vec3d_mm,
		mitk::Vector2D &	vec2d_mm
	)		const

virtual

Project a 3D vector given in mm (vec3d_mm) onto the 2D geometry. The result is a 2D vector in mm (vec2d_mm).

The result is a 2D vector in mm (vec2d_mm) relative to the upper-left corner of the geometry. To convert this point into units (e.g., pixels in case of an image), use WorldToIndex.

Returns: true projection was possible

See also: Project(const mitk::Vector3D &vec3d_mm, mitk::Vector3D &projectedVec3d_mm)

Reimplemented in mitk::AbstractTransformGeometry.

◆ Map() [4/4]

virtual bool mitk::PlaneGeometry::Map	(	const mitk::Point3D &	pt3d_mm,
		mitk::Point2D &	pt2d_mm
	)		const

virtual

Project a 3D point given in mm (pt3d_mm) onto the 2D geometry. The result is a 2D point in mm (pt2d_mm).

The result is a 2D point in mm (pt2d_mm) relative to the upper-left corner of the geometry. To convert this point into units (e.g., pixels in case of an image), use WorldToIndex.

Returns: true projection was possible

See also: Project(const mitk::Point3D &pt3d_mm, mitk::Point3D &projectedPt3d_mm)

Reimplemented in mitk::AbstractTransformGeometry.

◆ mitkClassMacro()

mitk::PlaneGeometry::mitkClassMacro	(	PlaneGeometry	,
		BaseGeometry
	)

◆ mitkCloneMacro()

mitk::PlaneGeometry::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::PlaneGeometry::New ( )

static

Method for creation through the object factory.

◆ PreSetSpacing()

void mitk::PlaneGeometry::PreSetSpacing ( const mitk::Vector3D & aSpacing )

inlineoverrideprotectedvirtual

PreSetSpacing.

These virtual function allows a different beahiour in subclasses. Do implement them in every subclass of BaseGeometry. If not needed, use {Superclass::PreSetSpacing();};

Reimplemented from mitk::BaseGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry.

Definition at line 602 of file mitkPlaneGeometry.h.

◆ PrintSelf()

void mitk::PlaneGeometry::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

◆ Project() [1/2]

virtual bool mitk::PlaneGeometry::Project	(	const mitk::Point3D &	pt3d_mm,
		mitk::Point3D &	projectedPt3d_mm
	)		const

virtual

Project a 3D point given in mm (pt3d_mm) onto the 2D geometry. The result is a 3D point in mm (projectedPt3d_mm).

Returns: true projection was possible

Reimplemented in mitk::AbstractTransformGeometry.

◆ Project() [2/2]

virtual bool mitk::PlaneGeometry::Project	(	const mitk::Vector3D &	vec3d_mm,
		mitk::Vector3D &	projectedVec3d_mm
	)		const

virtual

Project a 3D vector given in mm (vec3d_mm) onto the 2D geometry. The result is a 3D vector in mm (projectedVec3d_mm).

Returns: true projection was possible

Reimplemented in mitk::AbstractTransformGeometry.

◆ ProjectPointOntoPlane()

Point3D mitk::PlaneGeometry::ProjectPointOntoPlane ( const Point3D & pt ) const

Returns the lot from the point to the plane.

◆ SetMatrixByVectors()

void mitk::PlaneGeometry::SetMatrixByVectors	(	const VnlVector &	rightVector,
		const VnlVector &	downVector,
		ScalarType	thickness = `1.0`
	)

Initialize plane by right-/down-vector.

Warning: The vectors are set into the matrix as they are, without normalization! This function creates a righthanded IndexToWorldTransform, only a negative thickness could still make it lefthanded.

◆ SetReferenceGeometry()

void mitk::PlaneGeometry::SetReferenceGeometry ( const mitk::BaseGeometry * geometry )

Set the geometrical frame of reference in which this PlaneGeometry is placed.

This is typically the BaseGeometry of the underlying dataset (e.g., an Image). It is used for bounding-box intersection calculations of inclined / rotated planes. Setting it is optional.

Parameters

[in] geometry The reference geometry (may be nullptr to clear).

◆ SetSizeInUnits()

virtual void mitk::PlaneGeometry::SetSizeInUnits	(	mitk::ScalarType	width,
		mitk::ScalarType	height
	)

virtual

Set the width and height of this 2D-geometry in units by calling SetBounds. This does not change the extent in mm!

For an image, this is the number of pixels in x-/y-direction.

Note: In contrast to calling SetBounds directly, this does not change the extent in mm!

◆ SignedDistance()

virtual ScalarType mitk::PlaneGeometry::SignedDistance ( const Point3D & pt3d_mm ) const

virtual

Compute the signed distance of a point from the plane.

The sign indicates which side of the plane the point lies on. If the point is within the bounding box but on the plane, the result is 0. If the point is outside the bounding box, the distance to the nearest in-bounds point on the plane is returned.

Parameters

[in] pt3d_mm Point in world coordinates (mm).

Returns: Signed distance in mm.

◆ SignedDistanceFromPlane() [1/2]

ScalarType mitk::PlaneGeometry::SignedDistanceFromPlane ( const PlaneGeometry * plane ) const

inline

Signed distance of the plane from another plane (bounding-box not considered)

Result is 0 if planes are not parallel.

Definition at line 368 of file mitkPlaneGeometry.h.

References mitk::BaseGeometry::GetOrigin().

◆ SignedDistanceFromPlane() [2/2]

ScalarType mitk::PlaneGeometry::SignedDistanceFromPlane ( const Point3D & pt3d_mm ) const

inline

Signed distance of the point from the plane (bounding-box not considered)

0 : point is in the direction of the direction vector.

Definition at line 345 of file mitkPlaneGeometry.h.

References GetOrigin().

◆ WorldToIndex() [1/2]

virtual void mitk::PlaneGeometry::WorldToIndex	(	const mitk::Vector2D &	vec_mm,
		mitk::Vector2D &	vec_units
	)		const

virtual

Convert world coordinates (mm) of a 2D vector to continuous index coordinates.

Parameters

[in]	vec_mm	Vector in world coordinates (mm).
[out]	vec_units	Vector in continuous index coordinates.

Reimplemented in mitk::AbstractTransformGeometry.

◆ WorldToIndex() [2/2]

virtual void mitk::PlaneGeometry::WorldToIndex	(	const Point2D &	pt_mm,
		Point2D &	pt_units
	)		const

virtual

Convert 2D world coordinates (mm) to 2D index coordinates (units).

Inverse of IndexToWorld(Point2D, Point2D).

Parameters

[in]	pt_mm	2D point in world coordinates (mm).
[out]	pt_units	2D point in index/unit coordinates.

Reimplemented in mitk::AbstractTransformGeometry.

Member Data Documentation

◆ m_ReferenceGeometry

const mitk::BaseGeometry* mitk::PlaneGeometry::m_ReferenceGeometry

protected

Definition at line 594 of file mitkPlaneGeometry.h.

The documentation for this class was generated from the following file:

mitkPlaneGeometry.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PlaneGeometry() [1/2]

◆ PlaneGeometry() [2/2]

◆ ~PlaneGeometry()

Member Function Documentation

◆ Angle() [1/2]

◆ Angle() [2/2]

◆ CheckBounds()

◆ CheckIndexToWorldTransform()

◆ CheckRotationMatrix()

◆ Clone()

◆ Distance()

◆ DistanceFromPlane() [1/2]

◆ DistanceFromPlane() [2/2]

◆ ExecuteOperation()

◆ GetNormal()

◆ GetNormalVnl()

◆ GetReferenceGeometry()

◆ HasReferenceGeometry()

◆ IndexToWorld() [1/2]

◆ IndexToWorld() [2/2]

◆ InitializePlane()

◆ InitializeStandardPlane() [1/8]

◆ InitializeStandardPlane() [2/8]

◆ InitializeStandardPlane() [3/8]

◆ InitializeStandardPlane() [4/8]

◆ InitializeStandardPlane() [5/8]

◆ InitializeStandardPlane() [6/8]

◆ InitializeStandardPlane() [7/8]

◆ InitializeStandardPlane() [8/8]

◆ IntersectionLine()

◆ IntersectionPoint()

◆ IntersectionPointParam()

◆ IntersectWithPlane2D()

◆ IsAbove()

◆ IsOnPlane() [1/3]

◆ IsOnPlane() [2/3]

◆ IsOnPlane() [3/3]

◆ IsParallel()

◆ Map() [1/4]

◆ Map() [2/4]

◆ Map() [3/4]

◆ Map() [4/4]

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ PreSetSpacing()

◆ PrintSelf()

◆ Project() [1/2]

◆ Project() [2/2]

◆ ProjectPointOntoPlane()

◆ SetMatrixByVectors()

◆ SetReferenceGeometry()

◆ SetSizeInUnits()

◆ SignedDistance()

◆ SignedDistanceFromPlane() [1/2]

◆ SignedDistanceFromPlane() [2/2]

◆ WorldToIndex() [1/2]

◆ WorldToIndex() [2/2]

Member Data Documentation

◆ m_ReferenceGeometry
