Geometry describing a curved 2D manifold in 3D space via a vtkAbstractTransform. More...

#include <mitkAbstractTransformGeometry.h>

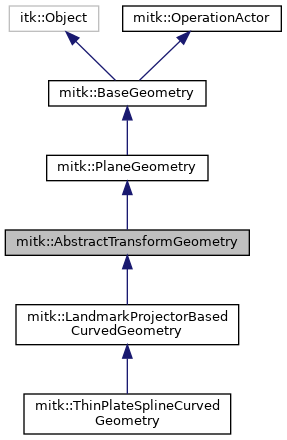

Inheritance diagram for mitk::AbstractTransformGeometry:

[legend]

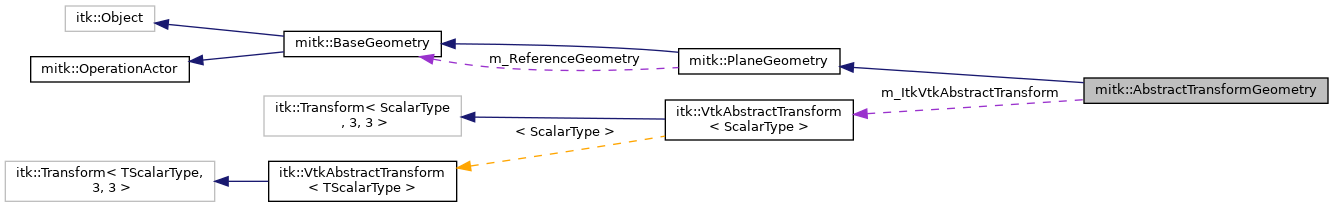

Collaboration diagram for mitk::AbstractTransformGeometry:

[legend]

Public Member Functions
	mitkClassMacro (AbstractTransformGeometry, PlaneGeometry)

Pointer	Clone () const

virtual vtkAbstractTransform *	GetVtkAbstractTransform () const
	Get the underlying vtkAbstractTransform. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time, accounting for the transform. More...

virtual const PlaneGeometry *	GetPlane ()
	Get the planar rectangle used as the 2D parameter space. More...

bool	Project (const mitk::Point3D &pt3d_mm, mitk::Point3D &projectedPt3d_mm) const override
	Project a 3D point onto the curved surface. More...

bool	Project (const mitk::Vector3D &vec3d_mm, mitk::Vector3D &projectedVec3d_mm) const override
	Project a 3D vector onto the curved surface. More...

bool	Map (const mitk::Point3D &pt3d_mm, mitk::Point2D &pt2d_mm) const override
	Map a 3D world point onto the 2D parameter space. More...

void	Map (const mitk::Point2D &pt2d_mm, mitk::Point3D &pt3d_mm) const override
	Map a 2D parameter-space point to 3D world coordinates. More...

bool	Map (const mitk::Point3D &atPt3d_mm, const mitk::Vector3D &vec3d_mm, mitk::Vector2D &vec2d_mm) const override
	Map a 3D vector at a given 3D point to a 2D parameter-space vector. More...

void	Map (const mitk::Point2D &atPt2d_mm, const mitk::Vector2D &vec2d_mm, mitk::Vector3D &vec3d_mm) const override
	Map a 2D parameter-space vector to a 3D world vector. More...

void	IndexToWorld (const mitk::Point2D &pt_units, mitk::Point2D &pt_mm) const override
	Convert 2D index coordinates to 2D world coordinates via the internal plane. More...

void	WorldToIndex (const mitk::Point2D &pt_mm, mitk::Point2D &pt_units) const override
	Convert 2D world coordinates to 2D index coordinates via the internal plane. More...

void	IndexToWorld (const mitk::Vector2D &vec_units, mitk::Vector2D &vec_mm) const override
	Convert 2D index coordinates of a vector to world coordinates (mm). More...

void	WorldToIndex (const mitk::Vector2D &vec_mm, mitk::Vector2D &vec_units) const override
	Convert world coordinates (mm) of a 2D vector to continuous index coordinates. More...

bool	IsAbove (const Point3D &pt3d_mm, bool considerBoundingBox=false) const override
	Determine whether a point is above the curved plane. More...

virtual mitk::ScalarType	GetParametricExtentInMM (int direction) const
	Get the parametric extent in mm for a given direction. More...

virtual const itk::Transform< mitk::ScalarType, 3, 3 > *	GetParametricTransform () const
	Get the parametric transform (the ITK wrapper around the vtkAbstractTransform). More...

virtual void	SetOversampling (mitk::ScalarType oversampling)
	Multiply the parametric bounds by an oversampling factor. More...

virtual void	CalculateFrameGeometry ()
	Compute the frame geometry (IndexToWorldTransform + bounds) around the curved surface. More...

virtual void	SetFrameGeometry (const mitk::BaseGeometry *frameGeometry)
	Set the frame geometry explicitly. More...

virtual const BoundingBox *	GetParametricBoundingBox ()
	Get the parametric bounding box. More...

const BoundingBox::BoundsArrayType &	GetParametricBounds () const
	Get the parametric bounds array. More...

mitk::ScalarType	GetParametricExtent (int direction) const
	Get the parametric extent in a given direction (in index/unit coordinates). More...

Public Member Functions inherited from mitk::PlaneGeometry
	mitkClassMacro (PlaneGeometry, BaseGeometry)

Pointer	Clone () const

virtual void	InitializeStandardPlane (const BaseGeometry *geometry3D, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry. More...

virtual void	InitializeStandardPlane (const BaseGeometry *geometry3D, bool top, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, bool frontside=true, bool rotated=false)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to BaseGeometry (default: identity). Spacing also taken from BaseGeometry. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const AffineTransform3D *transform=nullptr, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize a plane with orientation AnatomicalPlane (default: axial) with respect to transform (default: identity) given width and height in units. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const Vector3D &spacing, AnatomicalPlane planeorientation=AnatomicalPlane::Axial, ScalarType zPosition=0, bool frontside=true, bool rotated=false, bool top=true)
	Initialize plane with orientation AnatomicalPlane (default: axial) given width, height and spacing. More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const Vector3D &rightVector, const Vector3D &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by width and height in pixels, right-/down-vector (itk) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (ScalarType width, ScalarType height, const VnlVector &rightVector, const VnlVector &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by width and height in pixels, right-/down-vector (vnl) to describe orientation in world-space (vectors will be normalized) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (const Vector3D &rightVector, const Vector3D &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by right-/down-vector (itk) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializeStandardPlane (const VnlVector &rightVector, const VnlVector &downVector, const Vector3D *spacing=nullptr)
	Initialize plane by right-/down-vector (vnl) and spacing (default: 1.0 mm in all directions). More...

virtual void	InitializePlane (const Point3D &origin, const Vector3D &normal)
	Initialize plane by origin and normal (size is 1.0 mm in all directions, direction of right-/down-vector valid but undefined). More...

void	SetMatrixByVectors (const VnlVector &rightVector, const VnlVector &downVector, ScalarType thickness=1.0)
	Initialize plane by right-/down-vector. More...

Vector3D	GetNormal () const
	Get the normal vector of the plane. More...

VnlVector	GetNormalVnl () const
	Get the normal vector of the plane as a VnlVector. More...

virtual ScalarType	SignedDistance (const Point3D &pt3d_mm) const
	Compute the signed distance of a point from the plane. More...

ScalarType	DistanceFromPlane (const Point3D &pt3d_mm) const
	Unsigned distance of a point from the infinite plane. More...

ScalarType	SignedDistanceFromPlane (const Point3D &pt3d_mm) const
	Signed distance of the point from the plane (bounding-box not considered) More...

ScalarType	DistanceFromPlane (const PlaneGeometry *plane) const
	Distance of the plane from another plane (bounding-box not considered) More...

ScalarType	SignedDistanceFromPlane (const PlaneGeometry *plane) const
	Signed distance of the plane from another plane (bounding-box not considered) More...

bool	IntersectionLine (const PlaneGeometry *plane, Line3D &crossline) const
	Calculate the intersecting line of two planes. More...

unsigned int	IntersectWithPlane2D (const PlaneGeometry *plane, Point2D &lineFrom, Point2D &lineTo) const
	Calculate two points where another plane intersects the border of this plane. More...

double	Angle (const PlaneGeometry *plane) const
	Calculate the angle between two planes. More...

double	Angle (const Line3D &line) const
	Calculate the angle between the plane and a line. More...

bool	IntersectionPoint (const Line3D &line, Point3D &intersectionPoint) const
	Calculate intersection point between the plane and a line. More...

bool	IntersectionPointParam (const Line3D &line, double &t) const
	Calculate line parameter of intersection point between the plane and a line. More...

bool	IsParallel (const PlaneGeometry *plane) const
	Returns whether the plane is parallel to another plane. More...

bool	IsOnPlane (const Point3D &point) const
	Returns whether the point is on the plane (bounding-box not considered) More...

bool	IsOnPlane (const Line3D &line) const
	Returns whether the line is on the plane (bounding-box not considered) More...

bool	IsOnPlane (const PlaneGeometry *plane) const
	Returns whether the plane is on the plane (bounding-box not considered) More...

Point3D	ProjectPointOntoPlane (const Point3D &pt) const
	Returns the lot from the point to the plane. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation to re-orient or reposition the plane. More...

virtual void	SetSizeInUnits (mitk::ScalarType width, mitk::ScalarType height)
	Set the width and height of this 2D-geometry in units by calling SetBounds. This does not change the extent in mm! More...

ScalarType	Distance (const Point3D &pt3d_mm) const
	Unsigned distance of a point from the geometry. More...

void	SetReferenceGeometry (const mitk::BaseGeometry *geometry)
	Set the geometrical frame of reference in which this PlaneGeometry is placed. More...

const BaseGeometry *	GetReferenceGeometry () const
	Get the geometrical frame of reference for this PlaneGeometry. More...

bool	HasReferenceGeometry () const
	Check whether a reference geometry has been set. More...

Public Member Functions inherited from mitk::BaseGeometry
	mitkClassMacroItkParent (BaseGeometry, itk::Object)

Pointer	Clone () const

Point3D	GetOrigin () const
	Get the origin of the geometry in world coordinates (mm). More...

void	SetOrigin (const Point3D &origin)
	Set the origin of the geometry in world coordinates (mm). More...

mitk::Vector3D	GetSpacing () const
	Get the spacing (voxel size) in mm per unit for each axis. More...

void	SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)
	Set the spacing (voxel size) for each axis. More...

VnlVector	GetOriginVnl () const
	Get the origin as a VNL vector. More...

virtual unsigned int	GetFrameOfReferenceID () const
	Get the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual void	SetFrameOfReferenceID (unsigned int _arg)
	Set the DICOM FrameOfReferenceID referring to the world coordinate system. More...

virtual unsigned long	GetIndexToWorldTransformLastModified () const
	Get the last-modified timestamp of the IndexToWorldTransform. More...

void	Modified () const override
	Overloaded Modified() to support the ModifiedLock mechanism. More...

virtual bool	IsValid () const
	Check whether this geometry is in a valid state. More...

void	Initialize ()
	Initialize the geometry to default values. More...

void	InitializeGeometry (Self *newGeometry) const
	Copy the essential geometry properties into another instance. More...

mitk::AffineTransform3D *	GetIndexToWorldTransform ()
	Get the affine transform that maps index coordinates to world coordinates. More...

const mitk::AffineTransform3D *	GetIndexToWorldTransform () const
	Get the affine transform that maps index coordinates to world coordinates (const). More...

void	SetIndexToWorldTransform (mitk::AffineTransform3D *transform)
	Set the affine transform for index-to-world coordinate mapping. More...

void	SetIndexToWorldTransformByVtkMatrix (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4. More...

void	SetIndexToWorldTransformWithoutChangingSpacing (mitk::AffineTransform3D *transform)
	Set the IndexToWorldTransform while preserving the current spacing. More...

void	SetIndexToWorldTransformByVtkMatrixWithoutChangingSpacing (vtkMatrix4x4 *vtkmatrix)
	Set the IndexToWorldTransform via a vtkMatrix4x4 while preserving spacing. More...

vtkMatrix4x4 *	GetVtkMatrix ()
	Get the IndexToWorldTransform as a 4x4 VTK matrix. More...

const vtkMatrix4x4 *	GetVtkMatrix () const
	Get the IndexToWorldTransform as a 4x4 VTK matrix (const). More...

vtkLinearTransform *	GetVtkTransform () const
	Get the IndexToWorldTransform as a vtkLinearTransform. More...

void	SetIdentity ()
	Reset the geometry to identity. More...

void	Compose (const TransformType *other, bool pre=false)
	Compose the IndexToWorldTransform with another transform. More...

void	Compose (const vtkMatrix4x4 *vtkmatrix, bool pre=false)
	Compose the IndexToWorldTransform with a vtkMatrix4x4. More...

void	Translate (const Vector3D &vector)
	Translate the origin by a given vector. More...

void	WorldToIndex (const mitk::Point3D &pt_mm, mitk::Point3D &pt_units) const
	Convert world coordinates (mm) of a point to continuous index coordinates. More...

void	WorldToIndex (const mitk::Vector3D &vec_mm, mitk::Vector3D &vec_units) const
	Convert world coordinates (mm) of a vector to continuous index coordinates. More...

template<unsigned int VIndexDimension>
void	WorldToIndex (const mitk::Point3D &pt_mm, itk::Index< VIndexDimension > &index) const
	Convert world coordinates (mm) of a point to discrete (integer) index coordinates. More...

void	IndexToWorld (const mitk::Vector3D &vec_units, mitk::Vector3D &vec_mm) const
	Convert index coordinates of a vector to world coordinates (mm). More...

void	IndexToWorld (const mitk::Point3D &pt_units, mitk::Point3D &pt_mm) const
	Convert continuous or discrete index coordinates of a point to world coordinates (mm). More...

template<unsigned int VIndexDimension>
void	IndexToWorld (const itk::Index< VIndexDimension > &index, mitk::Point3D &pt_mm) const
	Convert discrete (itk::Index) index coordinates of a point to world coordinates (mm). More...

template<class TCoordRep >
void	ItkPhysicalPointToWorld (const itk::Point< TCoordRep, 3 > &itkPhysicalPoint, mitk::Point3D &pt_mm) const
	Convert an ITK physical point to MITK world coordinates. More...

template<class TCoordRep >
void	WorldToItkPhysicalPoint (const mitk::Point3D &pt_mm, itk::Point< TCoordRep, 3 > &itkPhysicalPoint) const
	Convert MITK world coordinates to ITK physical coordinates. More...

virtual const BoundingBoxType *	GetBoundingBox ()
	Get the bounding box in index/unit coordinates. More...

const BoundsArrayType	GetBounds () const
	Get the bounding box bounds as a BoundsArrayType in index/unit coordinates. More...

void	SetBounds (const BoundsArrayType &bounds)
	Set the bounding box in index/unit coordinates. More...

void	SetFloatBounds (const float bounds[6])
	Set the bounding box via a float array. More...

void	SetFloatBounds (const double bounds[6])
	Set the bounding box via a double array. More...

VnlVector	GetMatrixColumn (unsigned int direction) const
	Get a column of the IndexToWorldTransform matrix as a VnlVector. More...

mitk::BoundingBox::Pointer	CalculateBoundingBoxRelativeToTransform (const mitk::AffineTransform3D *transform) const
	Calculate a bounding box relative to a given transform. More...

ScalarType	GetExtent (unsigned int direction) const
	Set the time bounds (in ms) More...

ScalarType	GetExtentInMM (int direction) const
	Get the extent of the bounding box in mm along the specified direction. More...

Vector3D	GetAxisVector (unsigned int direction) const
	Get a vector along the bounding box in the specified direction in mm. More...

virtual bool	Is2DConvertable ()
	Check if this geometry can be converted to 2D without information loss. More...

Point3D	GetCenter () const
	Get the center of the bounding box in world coordinates (mm). More...

double	GetDiagonalLength2 () const
	Get the squared length of the bounding-box diagonal in mm. More...

double	GetDiagonalLength () const
	Get the length of the bounding-box diagonal in mm. More...

Point3D	GetCornerPoint (int id) const
	Get the position of corner number id in world coordinates. More...

Point3D	GetCornerPoint (bool xFront=true, bool yFront=true, bool zFront=true) const
	Get the position of a corner in world coordinates. More...

void	SetExtentInMM (int direction, ScalarType extentInMM)
	Set the extent of the bounding box in mm along the specified direction. More...

bool	IsInside (const mitk::Point3D &p) const
	Test whether a point (world coordinates, mm) lies inside the bounding box. More...

bool	IsIndexInside (const mitk::Point3D &index) const
	Test whether a point in continuous index coordinates lies inside the bounding box. More...

template<unsigned int VIndexDimension>
bool	IsIndexInside (const itk::Index< VIndexDimension > &index) const
	Test whether a discrete ITK index lies inside the bounding box. More...

Point3D	ClampPoint (const Point3D &point) const
	Clamp a point to lie within the geometry's world-coordinate bounds. More...

virtual void	ChangeImageGeometryConsideringOriginOffset (const bool isAnImageGeometry)
	Switch between image geometry and normal geometry with origin correction. More...

virtual bool	GetImageGeometry () const
	Query whether this geometry refers to an image. More...

virtual void	SetImageGeometry (bool _arg)
	Define that this BaseGeometry refers to an image. More...

virtual void	ImageGeometryOn ()
	Toggle macro for ImageGeometry (ImageGeometryOn/ImageGeometryOff). More...

virtual void	ImageGeometryOff ()

const GeometryTransformHolder *	GetGeometryTransformHolder () const
	Get the internal GeometryTransformHolder. More...

void	MapAxesToOrientations (int axes[]) const
	Map geometry axes to anatomical orientations (sagittal, coronal, axial). More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::PlaneGeometry
static Pointer	New ()

static bool	CheckRotationMatrix (AffineTransform3D *transform, double epsilon=1e-6)
	Check if matrix is a rotation matrix: More...

Protected Member Functions
	AbstractTransformGeometry ()

	AbstractTransformGeometry (const AbstractTransformGeometry &other)

	~AbstractTransformGeometry () override

virtual void	SetVtkAbstractTransform (vtkAbstractTransform *aVtkAbstractTransform)
	Set the vtkAbstractTransform (stored in m_VtkAbstractTransform) More...

virtual void	SetPlane (const mitk::PlaneGeometry *aPlane)
	Set the rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by ExternAbstractTransformGeometry. More...

virtual void	SetParametricBounds (const BoundingBox::BoundsArrayType &bounds)
	Set the parametric bounds. More...

void	PreSetSpacing (const mitk::Vector3D &aSpacing) override
	PreSetSpacing. More...

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::PlaneGeometry
	PlaneGeometry ()

	PlaneGeometry (const PlaneGeometry &other)

	~PlaneGeometry () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	PreSetSpacing (const mitk::Vector3D &aSpacing) override
	PreSetSpacing. More...

void	CheckBounds (const BoundsArrayType &bounds) override
	CheckBounds. More...

void	CheckIndexToWorldTransform (mitk::AffineTransform3D *transform) override
	CheckIndexToWorldTransform. More...

	mitkCloneMacro (Self)

Protected Member Functions inherited from mitk::BaseGeometry
	BaseGeometry ()

	BaseGeometry (const BaseGeometry &other)

	~BaseGeometry () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

virtual unsigned int	GetNDimensions () const

bool	IsBoundingBoxNull () const

bool	IsIndexToWorldTransformNull () const

void	SetVtkMatrixDeepCopy (vtkTransform *vtktransform)

void	_SetSpacing (const mitk::Vector3D &aSpacing, bool enforceSetSpacing=false)

Protected Attributes
mitk::PlaneGeometry::Pointer	m_Plane
	The rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by AbstractTransformGeometry. More...

itk::VtkAbstractTransform< ScalarType >::Pointer	m_ItkVtkAbstractTransform

mitk::BaseGeometry::Pointer	m_FrameGeometry

mitk::BoundingBox::Pointer	m_ParametricBoundingBox

Protected Attributes inherited from mitk::PlaneGeometry
const mitk::BaseGeometry *	m_ReferenceGeometry

Additional Inherited Members
Public Types inherited from mitk::BaseGeometry
typedef GeometryTransformHolder::TransformType	TransformType
	Affine transform type used for index-to-world mapping. More...

typedef itk::BoundingBox< unsigned long, 3, ScalarType >	BoundingBoxType
	3D bounding box type parameterized with ScalarType. More...

typedef BoundingBoxType::BoundsArrayType	BoundsArrayType
	Fixed-size array of six ScalarType values representing axis-aligned bounds [xmin,xmax,ymin,ymax,zmin,zmax]. More...

typedef BoundingBoxType::Pointer	BoundingBoxPointer
	Smart-pointer type for BoundingBoxType. More...

Static Protected Member Functions inherited from mitk::BaseGeometry
static const std::string	GetTransformAsString (TransformType *transformType)

Detailed Description

Geometry describing a curved 2D manifold in 3D space via a vtkAbstractTransform.

AbstractTransformGeometry combines a PlaneGeometry (m_Plane), which defines the 2D parameter rectangle, with a vtkAbstractTransform (m_VtkAbstractTransform), which maps the planar rectangle into an arbitrary 2D manifold embedded in 3D space.

The workflow is: 2D parameter coordinates are first mapped through the PlaneGeometry into 3D coordinates, and those 3D coordinates are then transformed by the vtkAbstractTransform to produce the final world coordinates on the curved surface.

Note: This class provides read-only access to the vtkAbstractTransform and the m_Plane. For full external write access, use ExternAbstractTransformGeometry.; The bounds of the PlaneGeometry serve as the parametric bounds.

See also: PlaneGeometry, ExternAbstractTransformGeometry

Definition at line 46 of file mitkAbstractTransformGeometry.h.

Constructor & Destructor Documentation

◆ AbstractTransformGeometry() [1/2]

mitk::AbstractTransformGeometry::AbstractTransformGeometry ( )

protected

◆ AbstractTransformGeometry() [2/2]

mitk::AbstractTransformGeometry::AbstractTransformGeometry ( const AbstractTransformGeometry & other )

protected

◆ ~AbstractTransformGeometry()

mitk::AbstractTransformGeometry::~AbstractTransformGeometry ( )

overrideprotected

Member Function Documentation

◆ CalculateFrameGeometry()

virtual void mitk::AbstractTransformGeometry::CalculateFrameGeometry ( )

virtual

Compute the frame geometry (IndexToWorldTransform + bounds) around the curved surface.

If no frame geometry has been set explicitly, this derives one from the internal PlaneGeometry's bounding box.

See also: SetFrameGeometry

◆ Clone()

Pointer mitk::AbstractTransformGeometry::Clone ( ) const

◆ GetMTime()

itk::ModifiedTimeType mitk::AbstractTransformGeometry::GetMTime ( ) const

override

Get the modification time, accounting for the transform.

Returns the later of this geometry's own MTime and the vtkAbstractTransform's MTime.

Returns: The effective modification time.

◆ GetParametricBoundingBox()

virtual const BoundingBox* mitk::AbstractTransformGeometry::GetParametricBoundingBox ( )

virtual

Get the parametric bounding box.

Returns: Const pointer to the parametric BoundingBox.

◆ GetParametricBounds()

const BoundingBox::BoundsArrayType& mitk::AbstractTransformGeometry::GetParametricBounds ( ) const

Get the parametric bounds array.

Returns: Reference to the BoundsArrayType [xmin,xmax,ymin,ymax,zmin,zmax] of the parametric bounding box.

◆ GetParametricExtent()

mitk::ScalarType mitk::AbstractTransformGeometry::GetParametricExtent ( int direction ) const

Get the parametric extent in a given direction (in index/unit coordinates).

Parameters

[in] direction The axis (0, 1, or 2).

Returns: The parametric extent.

Exceptions

mitk::Exception if direction is out of range.

◆ GetParametricExtentInMM()

virtual mitk::ScalarType mitk::AbstractTransformGeometry::GetParametricExtentInMM ( int direction ) const

virtual

Get the parametric extent in mm for a given direction.

Delegates to the internal PlaneGeometry's GetExtentInMM().

Parameters

[in] direction The axis (0, 1, or 2).

Returns: The parametric extent in mm.

Precondition: m_Plane must not be null.

◆ GetParametricTransform()

virtual const itk::Transform<mitk::ScalarType, 3, 3>* mitk::AbstractTransformGeometry::GetParametricTransform ( ) const

virtual

Get the parametric transform (the ITK wrapper around the vtkAbstractTransform).

Returns: Const pointer to the itk::Transform.

◆ GetPlane()

virtual const PlaneGeometry* mitk::AbstractTransformGeometry::GetPlane ( )

virtual

Get the planar rectangle used as the 2D parameter space.

The bounds of this PlaneGeometry define the parametric domain that is mapped through the vtkAbstractTransform.

Returns: Const pointer to the internal PlaneGeometry.

◆ GetVtkAbstractTransform()

virtual vtkAbstractTransform* mitk::AbstractTransformGeometry::GetVtkAbstractTransform ( ) const

virtual

Get the underlying vtkAbstractTransform.

Returns: Pointer to the vtkAbstractTransform that maps the planar parameter space into the curved 3D manifold.

◆ IndexToWorld() [1/2]

void mitk::AbstractTransformGeometry::IndexToWorld	(	const mitk::Point2D &	pt_units,
		mitk::Point2D &	pt_mm
	)		const

overridevirtual

Convert 2D index coordinates to 2D world coordinates via the internal plane.

Parameters

[in]	pt_units	2D point in index coordinates.
[out]	pt_mm	2D point in world coordinates (mm).

Reimplemented from mitk::PlaneGeometry.

◆ IndexToWorld() [2/2]

void mitk::AbstractTransformGeometry::IndexToWorld	(	const mitk::Vector2D &	vec_units,
		mitk::Vector2D &	vec_mm
	)		const

overridevirtual

Convert 2D index coordinates of a vector to world coordinates (mm).

Parameters

[in]	vec_units	Vector in index coordinates.
[out]	vec_mm	Vector in world coordinates (mm).

Reimplemented from mitk::PlaneGeometry.

◆ IsAbove()

bool mitk::AbstractTransformGeometry::IsAbove	(	const Point3D &	pt3d_mm,
		bool	considerBoundingBox = `false`
	)		const

overridevirtual

Determine whether a point is above the curved plane.

Applies the inverse transform to obtain parametric coordinates and checks whether the z-component exceeds the parametric bounds.

Parameters

[in]	pt3d_mm	Point in world coordinates (mm).
[in]	considerBoundingBox	Unused in this implementation.

Returns: true if the point is above the curved surface.

Reimplemented from mitk::PlaneGeometry.

◆ Map() [1/4]

void mitk::AbstractTransformGeometry::Map	(	const mitk::Point2D &	atPt2d_mm,
		const mitk::Vector2D &	vec2d_mm,
		mitk::Vector3D &	vec3d_mm
	)		const

overridevirtual

Map a 2D parameter-space vector to a 3D world vector.

Parameters

[in]	atPt2d_mm	Application point in 2D parameter space (mm).
[in]	vec2d_mm	2D vector (mm).
[out]	vec3d_mm	Resulting 3D world vector (mm).

Reimplemented from mitk::PlaneGeometry.

◆ Map() [2/4]

void mitk::AbstractTransformGeometry::Map	(	const mitk::Point2D &	pt2d_mm,
		mitk::Point3D &	pt3d_mm
	)		const

overridevirtual

Map a 2D parameter-space point to 3D world coordinates.

Delegates to the PlaneGeometry's Map(), then applies the vtkAbstractTransform.

Parameters

[in]	pt2d_mm	2D point in parameter space (mm).
[out]	pt3d_mm	Resulting 3D world point (mm).

Reimplemented from mitk::PlaneGeometry.

◆ Map() [3/4]

bool mitk::AbstractTransformGeometry::Map	(	const mitk::Point3D &	atPt3d_mm,
		const mitk::Vector3D &	vec3d_mm,
		mitk::Vector2D &	vec2d_mm
	)		const

overridevirtual

Map a 3D vector at a given 3D point to a 2D parameter-space vector.

Parameters

[in]	atPt3d_mm	Application point in world coordinates (mm).
[in]	vec3d_mm	3D vector (mm).
[out]	vec2d_mm	Mapped 2D vector in parameter space (mm).

Returns: true if the mapping was possible.

Reimplemented from mitk::PlaneGeometry.

◆ Map() [4/4]

bool mitk::AbstractTransformGeometry::Map	(	const mitk::Point3D &	pt3d_mm,
		mitk::Point2D &	pt2d_mm
	)		const

overridevirtual

Map a 3D world point onto the 2D parameter space.

Applies the inverse vtkAbstractTransform, then delegates to the internal PlaneGeometry's Map().

Parameters

[in]	pt3d_mm	Point in world coordinates (mm).
[out]	pt2d_mm	Mapped 2D point in parameter space (mm).

Returns: true if the point lies within the parametric bounds.

Reimplemented from mitk::PlaneGeometry.

◆ mitkClassMacro()

mitk::AbstractTransformGeometry::mitkClassMacro	(	AbstractTransformGeometry	,
		PlaneGeometry
	)

◆ mitkCloneMacro()

mitk::AbstractTransformGeometry::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::AbstractTransformGeometry::New ( )

static

◆ PreSetSpacing()

void mitk::AbstractTransformGeometry::PreSetSpacing ( const mitk::Vector3D & aSpacing )

inlineoverrideprotectedvirtual

PreSetSpacing.

These virtual function allows a different beahiour in subclasses. Do implement them in every subclass of BaseGeometry. If not needed, use {Superclass::PreSetSpacing();};

Reimplemented from mitk::BaseGeometry.

Reimplemented in mitk::ThinPlateSplineCurvedGeometry, and mitk::LandmarkProjectorBasedCurvedGeometry.

Definition at line 319 of file mitkAbstractTransformGeometry.h.

◆ Project() [1/2]

bool mitk::AbstractTransformGeometry::Project	(	const mitk::Point3D &	pt3d_mm,
		mitk::Point3D &	projectedPt3d_mm
	)		const

overridevirtual

Project a 3D point onto the curved surface.

Maps the point to 2D parameter space and back, yielding the closest point on the manifold.

Parameters

[in]	pt3d_mm	Point in world coordinates (mm).
[out]	projectedPt3d_mm	The projected point on the surface (mm).

Returns: true if the projected point lies within the parametric bounds.

Reimplemented from mitk::PlaneGeometry.

◆ Project() [2/2]

bool mitk::AbstractTransformGeometry::Project	(	const mitk::Vector3D &	vec3d_mm,
		mitk::Vector3D &	projectedVec3d_mm
	)		const

overridevirtual

Project a 3D vector onto the curved surface.

Warning: Not yet satisfactorily implemented; throws an exception.

Parameters

[in]	vec3d_mm	The vector to project (mm).
[out]	projectedVec3d_mm	The projected vector (mm).

Returns: true if projection was possible.

Reimplemented from mitk::PlaneGeometry.

◆ SetFrameGeometry()

virtual void mitk::AbstractTransformGeometry::SetFrameGeometry ( const mitk::BaseGeometry * frameGeometry )

virtual

Set the frame geometry explicitly.

The frame geometry provides the standard BaseGeometry (IndexToWorldTransform and bounding box) as a hint for the region within which interpolation should occur.

Parameters

[in] frameGeometry The frame geometry to use (may be nullptr to clear).

See also: CalculateFrameGeometry

Reimplemented in mitk::LandmarkProjectorBasedCurvedGeometry.

◆ SetOversampling()

virtual void mitk::AbstractTransformGeometry::SetOversampling ( mitk::ScalarType oversampling )

virtual

Multiply the parametric bounds by an oversampling factor.

Scales the upper bounds of the parametric bounding box (derived from m_Plane) by the given factor. This change is applied immediately and is not linked to future changes of m_Plane bounds.

Parameters

[in] oversampling The oversampling factor.

Precondition: m_Plane must not be null.

◆ SetParametricBounds()

virtual void mitk::AbstractTransformGeometry::SetParametricBounds ( const BoundingBox::BoundsArrayType & bounds )

protectedvirtual

Set the parametric bounds.

Protected in this class, made public in some sub-classes, e.g., ExternAbstractTransformGeometry.

◆ SetPlane()

virtual void mitk::AbstractTransformGeometry::SetPlane ( const mitk::PlaneGeometry * aPlane )

protectedvirtual

Set the rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by ExternAbstractTransformGeometry.

Protected in this class, made public in ExternAbstractTransformGeometry.

Note: The bounds of the PlaneGeometry are used as the parametric bounds.; The PlaneGeometry is cloned, not linked/referenced.

◆ SetVtkAbstractTransform()

virtual void mitk::AbstractTransformGeometry::SetVtkAbstractTransform ( vtkAbstractTransform * aVtkAbstractTransform )

protectedvirtual

Set the vtkAbstractTransform (stored in m_VtkAbstractTransform)

Protected in this class, made public in ExternAbstractTransformGeometry.

◆ WorldToIndex() [1/2]

void mitk::AbstractTransformGeometry::WorldToIndex	(	const mitk::Point2D &	pt_mm,
		mitk::Point2D &	pt_units
	)		const

overridevirtual

Convert 2D world coordinates to 2D index coordinates via the internal plane.

Parameters

[in]	pt_mm	2D point in world coordinates (mm).
[out]	pt_units	2D point in index coordinates.

Reimplemented from mitk::PlaneGeometry.

◆ WorldToIndex() [2/2]

void mitk::AbstractTransformGeometry::WorldToIndex	(	const mitk::Vector2D &	vec_mm,
		mitk::Vector2D &	vec_units
	)		const

overridevirtual

Convert world coordinates (mm) of a 2D vector to continuous index coordinates.

Parameters

[in]	vec_mm	Vector in world coordinates (mm).
[out]	vec_units	Vector in continuous index coordinates.

Reimplemented from mitk::PlaneGeometry.

Member Data Documentation

◆ m_FrameGeometry

mitk::BaseGeometry::Pointer mitk::AbstractTransformGeometry::m_FrameGeometry

protected

Definition at line 302 of file mitkAbstractTransformGeometry.h.

◆ m_ItkVtkAbstractTransform

itk::VtkAbstractTransform<ScalarType>::Pointer mitk::AbstractTransformGeometry::m_ItkVtkAbstractTransform

protected

Definition at line 300 of file mitkAbstractTransformGeometry.h.

◆ m_ParametricBoundingBox

mitk::BoundingBox::Pointer mitk::AbstractTransformGeometry::m_ParametricBoundingBox

mutableprotected

Definition at line 311 of file mitkAbstractTransformGeometry.h.

◆ m_Plane

mitk::PlaneGeometry::Pointer mitk::AbstractTransformGeometry::m_Plane

protected

The rectangular area that is used for transformation by m_VtkAbstractTransform and therewith defines the 2D manifold described by AbstractTransformGeometry.

Definition at line 298 of file mitkAbstractTransformGeometry.h.

The documentation for this class was generated from the following file:

mitkAbstractTransformGeometry.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AbstractTransformGeometry() [1/2]

◆ AbstractTransformGeometry() [2/2]

◆ ~AbstractTransformGeometry()

Member Function Documentation

◆ CalculateFrameGeometry()

◆ Clone()

◆ GetMTime()

◆ GetParametricBoundingBox()

◆ GetParametricBounds()

◆ GetParametricExtent()

◆ GetParametricExtentInMM()

◆ GetParametricTransform()

◆ GetPlane()

◆ GetVtkAbstractTransform()

◆ IndexToWorld() [1/2]

◆ IndexToWorld() [2/2]

◆ IsAbove()

◆ Map() [1/4]

◆ Map() [2/4]

◆ Map() [3/4]

◆ Map() [4/4]

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ PreSetSpacing()

◆ Project() [1/2]

◆ Project() [2/2]

◆ SetFrameGeometry()

◆ SetOversampling()

◆ SetParametricBounds()

◆ SetPlane()

◆ SetVtkAbstractTransform()

◆ WorldToIndex() [1/2]

◆ WorldToIndex() [2/2]

Member Data Documentation

◆ m_FrameGeometry

◆ m_ItkVtkAbstractTransform

◆ m_ParametricBoundingBox

◆ m_Plane
