Simplifies connecting display action event observers to a DisplayActionEventBroadcast. More...
#include <mitkDisplayActionEventHandler.h>
Public Types | |
| using | OberserverTagType = unsigned long |
| Tag type used to identify registered observers. More... | |
Public Member Functions | |
| virtual | ~DisplayActionEventHandler () |
| Destructor. Removes all registered observers. More... | |
| void | SetObservableBroadcast (DisplayActionEventBroadcast *observableBroadcast) |
| Set the DisplayActionEventBroadcast instance to observe. More... | |
| OberserverTagType | ConnectDisplayActionEvent (const DisplayActionEvent &displayActionEvent, const StdFunctionCommand::ActionFunction &actionFunction, const StdFunctionCommand::FilterFunction &filterFunction=[](const itk::EventObject &) { return true;}) |
| Register an observer for a specific display action event. More... | |
| void | DisconnectObserver (OberserverTagType observerTag) |
| Remove an observer identified by its tag. More... | |
| const std::vector< OberserverTagType > & | GetAllObserverTags () |
| Get all currently registered observer tags. More... | |
| void | InitActions (std::string prefixFilter="") |
| Initialize pre-defined display actions and connect them to the broadcast. More... | |
Protected Member Functions | |
| virtual void | InitActionsImpl (const std::string &prefixFilter="") |
| Override in sub-classes to define default display action connections. More... | |
Protected Attributes | |
| WeakPointer< DisplayActionEventBroadcast > | m_ObservableBroadcast |
| std::vector< OberserverTagType > | m_ObserverTags |
Detailed Description
Simplifies connecting display action event observers to a DisplayActionEventBroadcast.
Use SetObservableBroadcast() to define which broadcast instance to observe, then ConnectDisplayActionEvent() to register event-command pairs. Each observer consists of a DisplayActionEvent (itkEventObject) and a StdFunctionCommand (itkCommand) that is created internally from the supplied std::function objects.
- See also
- DisplayActionEventBroadcast DisplayActionEvents StdFunctionCommand
Definition at line 37 of file mitkDisplayActionEventHandler.h.
Member Typedef Documentation
◆ OberserverTagType
| using mitk::DisplayActionEventHandler::OberserverTagType = unsigned long |
Tag type used to identify registered observers.
Definition at line 42 of file mitkDisplayActionEventHandler.h.
Constructor & Destructor Documentation
◆ ~DisplayActionEventHandler()
|
virtual |
Destructor. Removes all registered observers.
Member Function Documentation
◆ ConnectDisplayActionEvent()
| OberserverTagType mitk::DisplayActionEventHandler::ConnectDisplayActionEvent | ( | const DisplayActionEvent & | displayActionEvent, |
| const StdFunctionCommand::ActionFunction & | actionFunction, | ||
| const StdFunctionCommand::FilterFunction & | filterFunction = [](const itk::EventObject &) { return true;} |
||
| ) |
Register an observer for a specific display action event.
Creates a StdFunctionCommand from the given action and filter functions, adds it as an observer to the broadcast, and stores its tag.
- Precondition
- The observable broadcast must have been set via SetObservableBroadcast().
- Exceptions
-
mitk::Exception if the observable is null.
- Parameters
-
displayActionEvent The event type to observe. actionFunction The function to execute when the event occurs. filterFunction Optional filter checked before execution (defaults to always true).
- Returns
- A tag identifying the newly created observer.
◆ DisconnectObserver()
| void mitk::DisplayActionEventHandler::DisconnectObserver | ( | OberserverTagType | observerTag | ) |
Remove an observer identified by its tag.
If the tag is not found in the internal list, nothing happens.
- Precondition
- The observable broadcast must have been set.
- Exceptions
-
mitk::Exception if the observable is null.
- Parameters
-
observerTag The tag identifying the observer to remove.
◆ GetAllObserverTags()
|
inline |
Get all currently registered observer tags.
- Returns
- A const reference to the vector of observer tags.
Definition at line 95 of file mitkDisplayActionEventHandler.h.
◆ InitActions()
| void mitk::DisplayActionEventHandler::InitActions | ( | std::string | prefixFilter = "" | ) |
Initialize pre-defined display actions and connect them to the broadcast.
Removes all currently connected observers, then calls InitActionsImpl() to let sub-classes define their specific set of actions.
- Precondition
- The observable broadcast must have been set.
- Exceptions
-
mitk::Exception if the observable is null.
- Parameters
-
prefixFilter Only react to / send changes to renderers whose name starts with this prefix.
◆ InitActionsImpl()
|
protectedvirtual |
Override in sub-classes to define default display action connections.
- Parameters
-
prefixFilter Only react to / send changes to renderers whose name starts with this prefix.

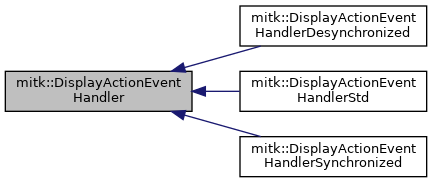

Reimplemented in mitk::DisplayActionEventHandlerSynchronized, mitk::DisplayActionEventHandlerStd, and mitk::DisplayActionEventHandlerDesynchronized.
◆ SetObservableBroadcast()
| void mitk::DisplayActionEventHandler::SetObservableBroadcast | ( | DisplayActionEventBroadcast * | observableBroadcast | ) |
Set the DisplayActionEventBroadcast instance to observe.
This class receives events from the given broadcast and triggers the corresponding action functions.
- Postcondition
- If the same broadcast was already set, nothing changes.
- If a different broadcast was already set, all previously registered observers are removed.
- Parameters
-
observableBroadcast The broadcast instance to observe.
Member Data Documentation
◆ m_ObservableBroadcast
|
protected |
Definition at line 119 of file mitkDisplayActionEventHandler.h.
◆ m_ObserverTags
|
protected |
Definition at line 120 of file mitkDisplayActionEventHandler.h.
The documentation for this class was generated from the following file:
