mitk::DisplayActionEventHandlerSynchronized Class Reference
Handler that connects synchronized display actions across all renderers. More...
#include <mitkDisplayActionEventHandlerSynchronized.h>
Inheritance diagram for mitk::DisplayActionEventHandlerSynchronized:

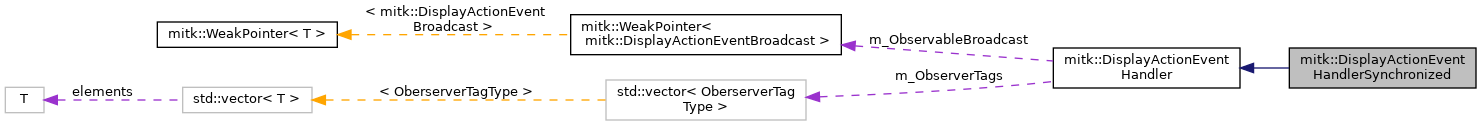

Collaboration diagram for mitk::DisplayActionEventHandlerSynchronized:
Protected Member Functions | |
| void | InitActionsImpl (const std::string &prefixFilter="") override |
| Initialize synchronized display actions for all renderers. More... | |
Additional Inherited Members | |
 Public Types inherited from mitk::DisplayActionEventHandler | |
| using | OberserverTagType = unsigned long |
| Tag type used to identify registered observers. More... | |
| Public Member Functions inherited from mitk::DisplayActionEventHandler | |
| virtual | ~DisplayActionEventHandler () |
| Destructor. Removes all registered observers. More... | |
| void | SetObservableBroadcast (DisplayActionEventBroadcast *observableBroadcast) |
| Set the DisplayActionEventBroadcast instance to observe. More... | |
| OberserverTagType | ConnectDisplayActionEvent (const DisplayActionEvent &displayActionEvent, const StdFunctionCommand::ActionFunction &actionFunction, const StdFunctionCommand::FilterFunction &filterFunction=[](const itk::EventObject &) { return true;}) |
| Register an observer for a specific display action event. More... | |
| void | DisconnectObserver (OberserverTagType observerTag) |
| Remove an observer identified by its tag. More... | |
| const std::vector< OberserverTagType > & | GetAllObserverTags () |
| Get all currently registered observer tags. More... | |
| void | InitActions (std::string prefixFilter="") |
| Initialize pre-defined display actions and connect them to the broadcast. More... | |
| Protected Attributes inherited from mitk::DisplayActionEventHandler | |
| WeakPointer< DisplayActionEventBroadcast > | m_ObservableBroadcast |
| std::vector< OberserverTagType > | m_ObserverTags |
Detailed Description
Handler that connects synchronized display actions across all renderers.
All renderers react to the same display action events. Camera moves, zooms, and scrolls are propagated to every renderer managed by the same RenderingManager.
Definition at line 32 of file mitkDisplayActionEventHandlerSynchronized.h.
Member Function Documentation
◆ InitActionsImpl()
|
overrideprotectedvirtual |
Initialize synchronized display actions for all renderers.
- Precondition
- The observable broadcast must have been set.
- Exceptions
-
mitk::Exception if the observable is null.
- Parameters
-
prefixFilter Only react to / send changes to renderers whose name starts with this prefix.
Reimplemented from mitk::DisplayActionEventHandler.
The documentation for this class was generated from the following file:
