Manager for coordinating the rendering process. More...

#include <mitkRenderingManager.h>

Inheritance diagram for mitk::RenderingManager:

[legend]

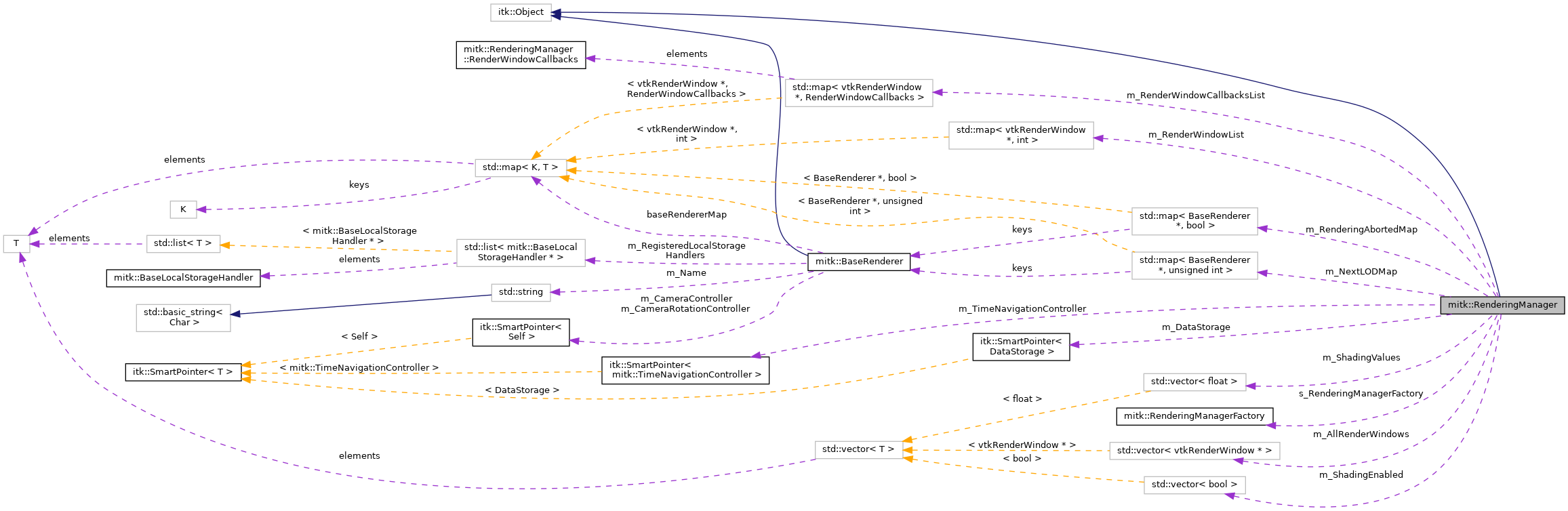

Collaboration diagram for mitk::RenderingManager:

[legend]

Classes
struct	RenderWindowCallbacks

Public Types
enum	RequestType { REQUEST_UPDATE_ALL , REQUEST_UPDATE_2DWINDOWS , REQUEST_UPDATE_3DWINDOWS }
	Enumeration of update request types. More...

typedef std::vector< vtkRenderWindow * >	RenderWindowVector

typedef std::vector< float >	FloatVector

typedef std::vector< bool >	BoolVector

typedef itk::SmartPointer< DataStorage >	DataStoragePointer

Public Member Functions
	mitkClassMacroItkParent (RenderingManager, itk::Object)

void	AddRenderWindow (vtkRenderWindow *renderWindow)
	Register a vtkRenderWindow with this RenderingManager. More...

void	RemoveRenderWindow (vtkRenderWindow *renderWindow)
	Unregister a vtkRenderWindow from this RenderingManager. More...

const RenderWindowVector &	GetAllRegisteredRenderWindows ()
	Get all registered vtkRenderWindows. More...

void	RequestUpdate (vtkRenderWindow *renderWindow)
	Request a deferred update for the specified render window. More...

void	ForceImmediateUpdate (vtkRenderWindow *renderWindow)
	Immediately execute a synchronous update of the specified render window. More...

void	RequestUpdateAll (RequestType type=REQUEST_UPDATE_ALL)
	Request a deferred update for all registered render windows. More...

void	ForceImmediateUpdateAll (RequestType type=REQUEST_UPDATE_ALL)
	Immediately execute a synchronous update for all registered render windows. More...

virtual void	InitializeViewsByBoundingObjects (const DataStorage *dataStorage)
	Initialize the render windows by the aggregated geometry of all objects that are held in the data storage. More...

virtual void	InitializeViewByBoundingObjects (vtkRenderWindow renderWindow, const DataStorage dataStorage, bool resetCamera=true)
	Initialize the given render window by the aggregated geometry of all objects that are held in the data storage. More...

virtual bool	InitializeViews (const BaseGeometry *geometry, RequestType type=REQUEST_UPDATE_ALL, bool resetCamera=true)
	Initialize the render windows specified by "type" to the given geometry. More...

virtual bool	InitializeViews (const TimeGeometry *geometry, RequestType type=REQUEST_UPDATE_ALL, bool resetCamera=true)
	Initialize the render windows specified by "type" to the given geometry. More...

virtual bool	InitializeViews (RequestType type=REQUEST_UPDATE_ALL)
	Initialize the render windows specified by "type" to the default viewing direction without updating the geometry information. More...

virtual bool	InitializeView (vtkRenderWindow renderWindow, const BaseGeometry geometry, bool resetCamera=true)
	Initialize the specified render window to the given geometry. More...

virtual bool	InitializeView (vtkRenderWindow renderWindow, const TimeGeometry geometry, bool resetCamera=true)
	Initialize the specified render window to the given geometry. More...

virtual bool	InitializeView (vtkRenderWindow *renderWindow)
	Initialize the specified render window to the default viewing direction without updating the geometry information. More...

const TimeNavigationController *	GetTimeNavigationController () const

TimeNavigationController *	GetTimeNavigationController ()

	~RenderingManager () override
	Destructor. Unregisters all render windows and removes callbacks. More...

virtual void	ExecutePendingRequests ()
	Execute all pending rendering requests. More...

bool	IsRendering () const
	Check whether any registered render window is currently rendering. More...

void	AbortRendering ()
	Abort all in-progress renderings by setting the abort flag on active render windows. More...

virtual void	SetLODIncreaseBlocked (bool _arg)
	Set whether LOD increase is blocked globally. More...

virtual bool	GetLODIncreaseBlocked ()
	Get whether LOD increase is blocked globally. More...

virtual void	LODIncreaseBlockedOn ()
	Toggle LOD increase blocking. More...

virtual void	LODIncreaseBlockedOff ()

virtual void	SetLODAbortMechanismEnabled (bool _arg)
	Set whether the LOD abort mechanism is enabled. More...

virtual bool	GetLODAbortMechanismEnabled ()
	Get whether the LOD abort mechanism is enabled. More...

virtual void	LODAbortMechanismEnabledOn ()
	Toggle the LOD abort mechanism. More...

virtual void	LODAbortMechanismEnabledOff ()

virtual void	StartOrResetTimer ()
	Start or reset a timer for a pending high-resolution rendering request. Subclasses should override. More...

void	ExecutePendingHighResRenderingRequest ()
	Execute any pending high-resolution rendering requests. Called from a timer callback in subclasses. More...

virtual void	DoStartRendering ()
	Hook called when rendering starts. Override in subclasses. More...

virtual void	DoMonitorRendering ()
	Hook called to monitor rendering progress. Override in subclasses. More...

virtual void	DoFinishAbortRendering ()
	Hook called when rendering abort is finished. Override in subclasses. More...

int	GetNextLOD (BaseRenderer *renderer)
	Get the next LOD level for the given renderer. More...

void	SetMaximumLOD (unsigned int max)
	Set the maximum LOD level. More...

void	SetShading (bool state, unsigned int lod)
	Enable or disable shading for a specific LOD level. More...

bool	GetShading (unsigned int lod)
	Get the shading state for a specific LOD level. More...

void	SetClippingPlaneStatus (bool status)
	Enable or disable the clipping plane. More...

bool	GetClippingPlaneStatus ()
	Get the clipping plane status. More...

void	SetShadingValues (float ambient, float diffuse, float specular, float specpower)
	Set the shading values for rendering. More...

FloatVector &	GetShadingValues ()
	Get the current shading values. More...

PropertyList::Pointer	GetPropertyList () const
	Get the internal property list used for global rendering settings. More...

BaseProperty *	GetProperty (const char *propertyKey) const
	Get a property from the internal property list. More...

void	SetProperty (const char propertyKey, BaseProperty propertyValue)
	Set or add a property in the internal property list. More...

void	SetDataStorage (DataStorage *storage)
	Setter for internal DataStorage. More...

virtual DataStorage *	GetDataStorage ()
	Getter for internal DataStorage. More...

virtual DataStorage *	GetDataStorage () const

void	SetRenderWindowFocus (vtkRenderWindow *focusWindow)
	Sets a flag to the given renderwindow to indicated that it has the focus e.g. has been clicked recently. More...

virtual vtkRenderWindow *	GetFocusedRenderWindow ()

void	SetConstrainedPanningZooming (bool constrain)

virtual bool	GetConstrainedPanningZooming () const

void	SetAntiAliasing (AntiAliasing antiAliasing)

virtual AntiAliasing	GetAntiAliasing () const

Static Public Member Functions
static Pointer	New ()
	Create a new RenderingManager instance via the registered factory. More...

static void	SetFactory (RenderingManagerFactory *factory)
	Set the factory that produces platform-specific RenderingManager instances. More...

static const RenderingManagerFactory *	GetFactory ()
	Get the factory that produces platform-specific RenderingManager instances. More...

static bool	HasFactory ()
	Check whether a factory has already been set. More...

static RenderingManager *	GetInstance ()
	Get the RenderingManager singleton instance. More...

static bool	IsInstantiated ()
	Check whether the singleton instance already exists. More...

Protected Types
enum	{ RENDERING_INACTIVE , RENDERING_REQUESTED , RENDERING_INPROGRESS }

typedef std::map< BaseRenderer *, unsigned int >	RendererIntMap

typedef std::map< BaseRenderer *, bool >	RendererBoolMap

typedef std::map< vtkRenderWindow *, int >	RenderWindowList

typedef std::map< vtkRenderWindow *, RenderWindowCallbacks >	RenderWindowCallbacksList

Protected Member Functions
	RenderingManager ()

virtual void	GenerateRenderingRequestEvent ()=0

virtual void	InitializePropertyList ()

Static Protected Member Functions
static void	RenderingStartCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)

static void	RenderingProgressCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)

static void	RenderingEndCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)

Protected Attributes
bool	m_UpdatePending

RendererBoolMap	m_RenderingAbortedMap

RendererIntMap	m_NextLODMap

unsigned int	m_MaxLOD

bool	m_LODIncreaseBlocked

bool	m_LODAbortMechanismEnabled

BoolVector	m_ShadingEnabled

bool	m_ClippingPlaneEnabled

FloatVector	m_ShadingValues

RenderWindowList	m_RenderWindowList

RenderWindowVector	m_AllRenderWindows

RenderWindowCallbacksList	m_RenderWindowCallbacksList

itk::SmartPointer< TimeNavigationController >	m_TimeNavigationController

PropertyList::Pointer	m_PropertyList

DataStoragePointer	m_DataStorage

bool	m_ConstrainedPanningZooming

Static Protected Attributes
static RenderingManager::Pointer	s_Instance

static RenderingManagerFactory *	s_RenderingManagerFactory

Detailed Description

Manager for coordinating the rendering process.

RenderingManager is a central instance retrieving and executing RenderWindow update requests. Its main purpose is to coordinate distributed requests which cannot be aware of each other - lacking the knowledge of whether they are really necessary or not. For example, two objects might determine that a specific RenderWindow needs to be updated. This would result in one unnecessary update, if both executed the update on their own.

The RenderingManager addresses this by letting each such object request an update, and waiting for other objects to possibly issue the same request. The actual update will then only be executed at a well-defined point in the main event loop (this may be each time after event processing is done).

Convenience methods for updating all RenderWindows which have been registered with the RenderingManager exist. If these methods are not used, it is not required to register (add) RenderWindows prior to using the RenderingManager.

The methods ForceImmediateUpdate() and ForceImmediateUpdateAll() can be used to force the RenderWindow update execution without any delay, bypassing the request functionality.

The interface of RenderingManager is platform independent. Platform specific subclasses have to be implemented, though, to supply an appropriate event issuing for controlling the update execution process. See method documentation for a description of how this can be done.

See also: TestingRenderingManager An "empty" RenderingManager implementation which can be used in tests etc.

Definition at line 74 of file mitkRenderingManager.h.

Member Typedef Documentation

◆ BoolVector

typedef std::vector<bool> mitk::RenderingManager::BoolVector

Definition at line 81 of file mitkRenderingManager.h.

◆ DataStoragePointer

typedef itk::SmartPointer<DataStorage> mitk::RenderingManager::DataStoragePointer

Definition at line 83 of file mitkRenderingManager.h.

◆ FloatVector

typedef std::vector<float> mitk::RenderingManager::FloatVector

Definition at line 80 of file mitkRenderingManager.h.

◆ RendererBoolMap

typedef std::map<BaseRenderer *, bool> mitk::RenderingManager::RendererBoolMap

protected

Definition at line 494 of file mitkRenderingManager.h.

◆ RendererIntMap

typedef std::map<BaseRenderer *, unsigned int> mitk::RenderingManager::RendererIntMap

protected

Definition at line 493 of file mitkRenderingManager.h.

◆ RenderWindowCallbacksList

typedef std::map<vtkRenderWindow *, RenderWindowCallbacks> mitk::RenderingManager::RenderWindowCallbacksList

protected

Definition at line 526 of file mitkRenderingManager.h.

◆ RenderWindowList

typedef std::map<vtkRenderWindow *, int> mitk::RenderingManager::RenderWindowList

protected

Definition at line 516 of file mitkRenderingManager.h.

◆ RenderWindowVector

typedef std::vector<vtkRenderWindow *> mitk::RenderingManager::RenderWindowVector

Definition at line 79 of file mitkRenderingManager.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
RENDERING_INACTIVE
RENDERING_REQUESTED
RENDERING_INPROGRESS

Definition at line 476 of file mitkRenderingManager.h.

◆ RequestType

enum mitk::RenderingManager::RequestType

Enumeration of update request types.

Enumerator
REQUEST_UPDATE_ALL	Update all render windows.
REQUEST_UPDATE_2DWINDOWS	Update only 2D render windows.
REQUEST_UPDATE_3DWINDOWS	Update only 3D render windows.

Definition at line 88 of file mitkRenderingManager.h.

Constructor & Destructor Documentation

◆ ~RenderingManager()

mitk::RenderingManager::~RenderingManager ( )

override

Destructor. Unregisters all render windows and removes callbacks.

◆ RenderingManager()

mitk::RenderingManager::RenderingManager ( )

protected

Member Function Documentation

◆ AbortRendering()

void mitk::RenderingManager::AbortRendering ( )

Abort all in-progress renderings by setting the abort flag on active render windows.

◆ AddRenderWindow()

void mitk::RenderingManager::AddRenderWindow ( vtkRenderWindow * renderWindow )

Register a vtkRenderWindow with this RenderingManager.

Required for using RequestUpdateAll() and ForceImmediateUpdateAll(). Also sets up VTK rendering callbacks for the LOD abort mechanism.

Parameters

[in] renderWindow The render window to register.

◆ DoFinishAbortRendering()

virtual void mitk::RenderingManager::DoFinishAbortRendering ( )

inlinevirtual

Hook called when rendering abort is finished. Override in subclasses.

Reimplemented in QmitkRenderingManager.

Definition at line 365 of file mitkRenderingManager.h.

◆ DoMonitorRendering()

virtual void mitk::RenderingManager::DoMonitorRendering ( )

inlinevirtual

Hook called to monitor rendering progress. Override in subclasses.

Reimplemented in QmitkRenderingManager.

Definition at line 363 of file mitkRenderingManager.h.

◆ DoStartRendering()

virtual void mitk::RenderingManager::DoStartRendering ( )

inlinevirtual

Hook called when rendering starts. Override in subclasses.

Definition at line 361 of file mitkRenderingManager.h.

◆ ExecutePendingHighResRenderingRequest()

void mitk::RenderingManager::ExecutePendingHighResRenderingRequest ( )

Execute any pending high-resolution rendering requests. Called from a timer callback in subclasses.

◆ ExecutePendingRequests()

virtual void mitk::RenderingManager::ExecutePendingRequests ( )

virtual

Execute all pending rendering requests.

Must be called by the system whenever a RenderingManager-induced request event occurs in the system pipeline.

◆ ForceImmediateUpdate()

void mitk::RenderingManager::ForceImmediateUpdate ( vtkRenderWindow * renderWindow )

Immediately execute a synchronous update of the specified render window.

Parameters

[in] renderWindow The render window to update.

◆ ForceImmediateUpdateAll()

void mitk::RenderingManager::ForceImmediateUpdateAll ( RequestType type = REQUEST_UPDATE_ALL )

Immediately execute a synchronous update for all registered render windows.

Parameters

[in] type Filter to update only specific window types (default: all).

◆ GenerateRenderingRequestEvent()

virtual void mitk::RenderingManager::GenerateRenderingRequestEvent ( )

protectedpure virtual

Abstract method for generating a system specific event for rendering request. This method is called whenever an update is requested

Implemented in QmitkRenderingManager, and mitk::TestingRenderingManager.

◆ GetAllRegisteredRenderWindows()

const RenderWindowVector& mitk::RenderingManager::GetAllRegisteredRenderWindows ( )

Get all registered vtkRenderWindows.

Returns: Const reference to the vector of registered render windows.

◆ GetAntiAliasing()

virtual AntiAliasing mitk::RenderingManager::GetAntiAliasing ( ) const

virtual

◆ GetClippingPlaneStatus()

bool mitk::RenderingManager::GetClippingPlaneStatus ( )

Get the clipping plane status.

Returns: True if the clipping plane is enabled.

◆ GetConstrainedPanningZooming()

virtual bool mitk::RenderingManager::GetConstrainedPanningZooming ( ) const

virtual

◆ GetDataStorage() [1/2]

virtual DataStorage* mitk::RenderingManager::GetDataStorage ( )

virtual

Getter for internal DataStorage.

Returns the DataStorage that is used internally. This instance holds all DataNodes that are rendered by the registered BaseRenderers.

◆ GetDataStorage() [2/2]

virtual DataStorage* mitk::RenderingManager::GetDataStorage ( ) const

virtual

◆ GetFactory()

static const RenderingManagerFactory* mitk::RenderingManager::GetFactory ( )

static

Get the factory that produces platform-specific RenderingManager instances.

Returns: Pointer to the current factory.

◆ GetFocusedRenderWindow()

virtual vtkRenderWindow* mitk::RenderingManager::GetFocusedRenderWindow ( )

virtual

◆ GetInstance()

static RenderingManager* mitk::RenderingManager::GetInstance ( )

static

Get the RenderingManager singleton instance.

If no instance exists yet, one is created using the registered factory.

Returns: Pointer to the singleton RenderingManager.

Referenced by QmitkTransferFunctionCanvas::SetX(), and QmitkTransferFunctionCanvas::SetY().

◆ GetLODAbortMechanismEnabled()

virtual bool mitk::RenderingManager::GetLODAbortMechanismEnabled ( )

virtual

Get whether the LOD abort mechanism is enabled.

◆ GetLODIncreaseBlocked()

virtual bool mitk::RenderingManager::GetLODIncreaseBlocked ( )

virtual

Get whether LOD increase is blocked globally.

◆ GetNextLOD()

int mitk::RenderingManager::GetNextLOD ( BaseRenderer * renderer )

Get the next LOD level for the given renderer.

Parameters

[in] renderer The renderer to query (nullptr returns 0).

Returns: The next LOD level.

◆ GetProperty()

BaseProperty* mitk::RenderingManager::GetProperty ( const char * propertyKey ) const

Get a property from the internal property list.

Parameters

[in] propertyKey The property key to look up.

Returns: Pointer to the property, or nullptr if not found.

◆ GetPropertyList()

PropertyList::Pointer mitk::RenderingManager::GetPropertyList ( ) const

Get the internal property list used for global rendering settings.

Returns: Smart pointer to the PropertyList.

◆ GetShading()

bool mitk::RenderingManager::GetShading ( unsigned int lod )

Get the shading state for a specific LOD level.

Parameters

[in] lod The LOD level.

Returns: True if shading is enabled for the given LOD.

◆ GetShadingValues()

FloatVector& mitk::RenderingManager::GetShadingValues ( )

Get the current shading values.

Returns: Reference to the vector of shading values [ambient, diffuse, specular, specpower].

◆ GetTimeNavigationController() [1/2]

TimeNavigationController* mitk::RenderingManager::GetTimeNavigationController ( )

Gets the (global) TimeNavigationController responsible for time-slicing.

◆ GetTimeNavigationController() [2/2]

const TimeNavigationController* mitk::RenderingManager::GetTimeNavigationController ( ) const

Gets the (global) TimeNavigationController responsible for time-slicing.

◆ HasFactory()

static bool mitk::RenderingManager::HasFactory ( )

static

Check whether a factory has already been set.

Returns: True if a factory is registered.

Referenced by mitk::TestingRenderingManagerFactory::TestingRenderingManagerFactory().

◆ InitializePropertyList()

virtual void mitk::RenderingManager::InitializePropertyList ( )

protectedvirtual

◆ InitializeView() [1/3]

virtual bool mitk::RenderingManager::InitializeView ( vtkRenderWindow * renderWindow )

virtual

Initialize the specified render window to the default viewing direction without updating the geometry information.

Parameters

renderWindow The specific render window to update

◆ InitializeView() [2/3]

virtual bool mitk::RenderingManager::InitializeView	(	vtkRenderWindow *	renderWindow,
		const BaseGeometry *	geometry,
		bool	resetCamera = `true`
	)

virtual

Initialize the specified render window to the given geometry.

Throws an exception if bounding box has 0 extent due to exceeding double precision range.

Parameters

renderWindow	The specific render window to update
geometry	The geometry to be used to initialize / update the render window's time- and slice navigation controller
resetCamera	If this parameter is set to true, the camera controller will be set / fit to the center of the rendered image. If set to false, only the the slice navigation controller is reset to the geometry without changing the camera view / position.

◆ InitializeView() [3/3]

virtual bool mitk::RenderingManager::InitializeView	(	vtkRenderWindow *	renderWindow,
		const TimeGeometry *	geometry,
		bool	resetCamera = `true`
	)

virtual

Initialize the specified render window to the given geometry.

Throws an exception if bounding box has 0 extent due to exceeding double precision range.

Parameters

renderWindow	The specific render window to update
geometry	The geometry to be used to initialize / update the render window's time- and slice navigation controller
resetCamera	If this parameter is set to true, the camera controller will be set / fit to the center of the rendered image. If set to false, only the the slice navigation controller is reset to the geometry without changing the camera view / position.

◆ InitializeViewByBoundingObjects()

virtual void mitk::RenderingManager::InitializeViewByBoundingObjects	(	vtkRenderWindow *	renderWindow,
		const DataStorage *	dataStorage,
		bool	resetCamera = `true`
	)

virtual

Initialize the given render window by the aggregated geometry of all objects that are held in the data storage.

Parameters

renderWindow	The specified render window to update
dataStorage	The data storage from which the bounding object can be retrieved
resetCamera	If this parameter is set to true, the camera controller will be set / fit to the center of the rendered image. If set to false, only the the slice navigation controller is reset to the geometry without changing the camera view / position.

◆ InitializeViews() [1/3]

virtual bool mitk::RenderingManager::InitializeViews	(	const BaseGeometry *	geometry,
		RequestType	type = `REQUEST_UPDATE_ALL`,
		bool	resetCamera = `true`
	)

virtual

Initialize the render windows specified by "type" to the given geometry.

Throws an exception if bounding box has 0 extent due to exceeding double precision range.

Parameters

geometry	The geometry to be used to initialize / update a render window's time and slice navigation controller
type	The type of update request: REQUEST_UPDATE_ALL will initialize / update the time and slice navigation controller of all retrieved render windows REQUEST_UPDATE_2DWINDOWS will only initialize / update the time and slice navigation controller of 2D render windows REQUEST_UPDATE_3DWINDOWS will only initialize / update the time and slice navigation controller of 3D render windows
resetCamera	If this parameter is set to true, the camera controller will be set / fit to the center of the rendered image. If set to false, only the the slice navigation controller is reset to the geometry without changing the camera view / position.

◆ InitializeViews() [2/3]

virtual bool mitk::RenderingManager::InitializeViews	(	const TimeGeometry *	geometry,
		RequestType	type = `REQUEST_UPDATE_ALL`,
		bool	resetCamera = `true`
	)

virtual

Initialize the render windows specified by "type" to the given geometry.

Throws an exception if bounding box has 0 extent due to exceeding double precision range.

Parameters

geometry	The geometry to be used to initialize / update a render window's time- and slice navigation controller
type	The type of update request: REQUEST_UPDATE_ALL will initialize / update the time- and slice navigation controller of all retrieved render windows REQUEST_UPDATE_2DWINDOWS will only initialize / update the time- and slice navigation controller of 2D render windows REQUEST_UPDATE_3DWINDOWS will only initialize / update the time- and slice navigation controller of 3D render windows
resetCamera	If this parameter is set to true, the camera controller will be set / fit to the center of the rendered image. If set to false, only the the slice navigation controller is reset to the geometry without changing the camera view / position.

◆ InitializeViews() [3/3]

virtual bool mitk::RenderingManager::InitializeViews ( RequestType type = REQUEST_UPDATE_ALL )

virtual

Initialize the render windows specified by "type" to the default viewing direction without updating the geometry information.

Parameters

type

The type of update request:

REQUEST_UPDATE_ALL will initialize the slice navigation controller of all retrieved render windows
REQUEST_UPDATE_2DWINDOWS will only initialize the slice navigation controller of 2D render windows
REQUEST_UPDATE_3DWINDOWS will only initialize the slice navigation controller of 3D render windows

◆ InitializeViewsByBoundingObjects()

virtual void mitk::RenderingManager::InitializeViewsByBoundingObjects ( const DataStorage * dataStorage )

virtual

Initialize the render windows by the aggregated geometry of all objects that are held in the data storage.

Parameters

dataStorage The data storage from which the bounding object can be retrieved

◆ IsInstantiated()

static bool mitk::RenderingManager::IsInstantiated ( )

static

Check whether the singleton instance already exists.

Returns: True if the singleton is instantiated.

◆ IsRendering()

bool mitk::RenderingManager::IsRendering ( ) const

Check whether any registered render window is currently rendering.

Returns: True if rendering is in progress.

◆ LODAbortMechanismEnabledOff()

virtual void mitk::RenderingManager::LODAbortMechanismEnabledOff ( )

virtual

◆ LODAbortMechanismEnabledOn()

virtual void mitk::RenderingManager::LODAbortMechanismEnabledOn ( )

virtual

Toggle the LOD abort mechanism.

◆ LODIncreaseBlockedOff()

virtual void mitk::RenderingManager::LODIncreaseBlockedOff ( )

virtual

◆ LODIncreaseBlockedOn()

virtual void mitk::RenderingManager::LODIncreaseBlockedOn ( )

virtual

Toggle LOD increase blocking.

◆ mitkClassMacroItkParent()

mitk::RenderingManager::mitkClassMacroItkParent	(	RenderingManager	,
		itk::Object
	)

◆ New()

static Pointer mitk::RenderingManager::New ( )

static

Create a new RenderingManager instance via the registered factory.

Returns: Smart pointer to the newly created instance, or nullptr if no factory is set.

◆ RemoveRenderWindow()

void mitk::RenderingManager::RemoveRenderWindow ( vtkRenderWindow * renderWindow )

Unregister a vtkRenderWindow from this RenderingManager.

Parameters

[in] renderWindow The render window to remove.

◆ RenderingEndCallback()

static void mitk::RenderingManager::RenderingEndCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)

staticprotected

◆ RenderingProgressCallback()

static void mitk::RenderingManager::RenderingProgressCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)

staticprotected

◆ RenderingStartCallback()

static void mitk::RenderingManager::RenderingStartCallback	(	vtkObject *	caller,
		unsigned long	eid,
		void *	clientdata,
		void *	calldata
	)

staticprotected

◆ RequestUpdate()

void mitk::RenderingManager::RequestUpdate ( vtkRenderWindow * renderWindow )

Request a deferred update for the specified render window.

The update is executed at the next event loop iteration. Multiple requests for the same window are coalesced.

Parameters

[in] renderWindow The render window to update.

◆ RequestUpdateAll()

void mitk::RenderingManager::RequestUpdateAll ( RequestType type = REQUEST_UPDATE_ALL )

Request a deferred update for all registered render windows.

Parameters

[in] type Filter to update only specific window types (default: all).

Referenced by QmitkTransferFunctionCanvas::SetX(), and QmitkTransferFunctionCanvas::SetY().

◆ SetAntiAliasing()

void mitk::RenderingManager::SetAntiAliasing ( AntiAliasing antiAliasing )

◆ SetClippingPlaneStatus()

void mitk::RenderingManager::SetClippingPlaneStatus ( bool status )

Enable or disable the clipping plane.

Parameters

[in] status True to enable, false to disable.

◆ SetConstrainedPanningZooming()

void mitk::RenderingManager::SetConstrainedPanningZooming ( bool constrain )

◆ SetDataStorage()

void mitk::RenderingManager::SetDataStorage ( DataStorage * storage )

Setter for internal DataStorage.

Sets the DataStorage that is used internally. This instance holds all DataNodes that are rendered by the registered BaseRenderers.

If this DataStorage is changed at runtime by calling SetDataStorage(), all currently registered BaseRenderers are automatically given the correct instance. When a new BaseRenderer is added, it is automatically initialized with the currently active DataStorage.

◆ SetFactory()

static void mitk::RenderingManager::SetFactory ( RenderingManagerFactory * factory )

static

Set the factory that produces platform-specific RenderingManager instances.

Parameters

[in] factory The factory to use.

Referenced by mitk::TestingRenderingManagerFactory::TestingRenderingManagerFactory().

◆ SetLODAbortMechanismEnabled()

virtual void mitk::RenderingManager::SetLODAbortMechanismEnabled ( bool _arg )

virtual

Set whether the LOD abort mechanism is enabled.

◆ SetLODIncreaseBlocked()

virtual void mitk::RenderingManager::SetLODIncreaseBlocked ( bool _arg )

virtual

Set whether LOD increase is blocked globally.

◆ SetMaximumLOD()

void mitk::RenderingManager::SetMaximumLOD ( unsigned int max )

Set the maximum LOD level.

Parameters

[in] max The maximum LOD value.

◆ SetProperty()

void mitk::RenderingManager::SetProperty	(	const char *	propertyKey,
		BaseProperty *	propertyValue
	)

Set or add a property in the internal property list.

Parameters

[in]	propertyKey	The property key.
[in]	propertyValue	The property value to set.

◆ SetRenderWindowFocus()

void mitk::RenderingManager::SetRenderWindowFocus ( vtkRenderWindow * focusWindow )

Sets a flag to the given renderwindow to indicated that it has the focus e.g. has been clicked recently.

Parameters

focusWindow

◆ SetShading()

void mitk::RenderingManager::SetShading	(	bool	state,
		unsigned int	lod
	)

Enable or disable shading for a specific LOD level.

Parameters

[in]	state	True to enable, false to disable.
[in]	lod	The LOD level.

◆ SetShadingValues()

void mitk::RenderingManager::SetShadingValues	(	float	ambient,
		float	diffuse,
		float	specular,
		float	specpower
	)

Set the shading values for rendering.

Parameters

[in]	ambient	Ambient coefficient.
[in]	diffuse	Diffuse coefficient.
[in]	specular	Specular coefficient.
[in]	specpower	Specular power.

◆ StartOrResetTimer()

virtual void mitk::RenderingManager::StartOrResetTimer ( )

inlinevirtual

Start or reset a timer for a pending high-resolution rendering request. Subclasses should override.

Reimplemented in QmitkRenderingManager.

Definition at line 355 of file mitkRenderingManager.h.

Member Data Documentation

◆ m_AllRenderWindows

RenderWindowVector mitk::RenderingManager::m_AllRenderWindows

protected

Definition at line 519 of file mitkRenderingManager.h.

◆ m_ClippingPlaneEnabled

bool mitk::RenderingManager::m_ClippingPlaneEnabled

protected

Definition at line 508 of file mitkRenderingManager.h.

◆ m_ConstrainedPanningZooming

bool mitk::RenderingManager::m_ConstrainedPanningZooming

protected

Definition at line 539 of file mitkRenderingManager.h.

◆ m_DataStorage

DataStoragePointer mitk::RenderingManager::m_DataStorage

protected

Definition at line 537 of file mitkRenderingManager.h.

◆ m_LODAbortMechanismEnabled

bool mitk::RenderingManager::m_LODAbortMechanismEnabled

protected

Definition at line 504 of file mitkRenderingManager.h.

◆ m_LODIncreaseBlocked

bool mitk::RenderingManager::m_LODIncreaseBlocked

protected

Definition at line 502 of file mitkRenderingManager.h.

◆ m_MaxLOD

unsigned int mitk::RenderingManager::m_MaxLOD

protected

Definition at line 500 of file mitkRenderingManager.h.

◆ m_NextLODMap

RendererIntMap mitk::RenderingManager::m_NextLODMap

protected

Definition at line 498 of file mitkRenderingManager.h.

◆ m_PropertyList

PropertyList::Pointer mitk::RenderingManager::m_PropertyList

protected

Definition at line 535 of file mitkRenderingManager.h.

◆ m_RenderingAbortedMap

RendererBoolMap mitk::RenderingManager::m_RenderingAbortedMap

protected

Definition at line 496 of file mitkRenderingManager.h.

◆ m_RenderWindowCallbacksList

RenderWindowCallbacksList mitk::RenderingManager::m_RenderWindowCallbacksList

protected

Definition at line 528 of file mitkRenderingManager.h.

◆ m_RenderWindowList

RenderWindowList mitk::RenderingManager::m_RenderWindowList

protected

Definition at line 518 of file mitkRenderingManager.h.

◆ m_ShadingEnabled

BoolVector mitk::RenderingManager::m_ShadingEnabled

protected

Definition at line 506 of file mitkRenderingManager.h.

◆ m_ShadingValues

FloatVector mitk::RenderingManager::m_ShadingValues

protected

Definition at line 510 of file mitkRenderingManager.h.

◆ m_TimeNavigationController

itk::SmartPointer<TimeNavigationController> mitk::RenderingManager::m_TimeNavigationController

protected

Definition at line 530 of file mitkRenderingManager.h.

◆ m_UpdatePending

bool mitk::RenderingManager::m_UpdatePending

protected

Definition at line 491 of file mitkRenderingManager.h.

◆ s_Instance

RenderingManager::Pointer mitk::RenderingManager::s_Instance

staticprotected

Definition at line 532 of file mitkRenderingManager.h.

◆ s_RenderingManagerFactory

RenderingManagerFactory* mitk::RenderingManager::s_RenderingManagerFactory

staticprotected

Definition at line 533 of file mitkRenderingManager.h.

The documentation for this class was generated from the following file:

mitkRenderingManager.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BoolVector

◆ DataStoragePointer

◆ FloatVector

◆ RendererBoolMap

◆ RendererIntMap

◆ RenderWindowCallbacksList

◆ RenderWindowList

◆ RenderWindowVector

Member Enumeration Documentation

◆ anonymous enum

◆ RequestType

Constructor & Destructor Documentation

◆ ~RenderingManager()

◆ RenderingManager()

Member Function Documentation

◆ AbortRendering()

◆ AddRenderWindow()

◆ DoFinishAbortRendering()

◆ DoMonitorRendering()

◆ DoStartRendering()

◆ ExecutePendingHighResRenderingRequest()

◆ ExecutePendingRequests()

◆ ForceImmediateUpdate()

◆ ForceImmediateUpdateAll()

◆ GenerateRenderingRequestEvent()

◆ GetAllRegisteredRenderWindows()

◆ GetAntiAliasing()

◆ GetClippingPlaneStatus()

◆ GetConstrainedPanningZooming()

◆ GetDataStorage() [1/2]

◆ GetDataStorage() [2/2]

◆ GetFactory()

◆ GetFocusedRenderWindow()

◆ GetInstance()

◆ GetLODAbortMechanismEnabled()

◆ GetLODIncreaseBlocked()

◆ GetNextLOD()

◆ GetProperty()

◆ GetPropertyList()

◆ GetShading()

◆ GetShadingValues()

◆ GetTimeNavigationController() [1/2]

◆ GetTimeNavigationController() [2/2]

◆ HasFactory()

◆ InitializePropertyList()

◆ InitializeView() [1/3]

◆ InitializeView() [2/3]

◆ InitializeView() [3/3]

◆ InitializeViewByBoundingObjects()

◆ InitializeViews() [1/3]

◆ InitializeViews() [2/3]

◆ InitializeViews() [3/3]

◆ InitializeViewsByBoundingObjects()

◆ IsInstantiated()

◆ IsRendering()

◆ LODAbortMechanismEnabledOff()

◆ LODAbortMechanismEnabledOn()

◆ LODIncreaseBlockedOff()

◆ LODIncreaseBlockedOn()

◆ mitkClassMacroItkParent()

◆ New()

◆ RemoveRenderWindow()

◆ RenderingEndCallback()

◆ RenderingProgressCallback()

◆ RenderingStartCallback()

◆ RequestUpdate()

◆ RequestUpdateAll()

◆ SetAntiAliasing()

◆ SetClippingPlaneStatus()
