mitkRenderWindow integrates the MITK rendering mechanism into VTK and is NOT QT dependent More...

#include <mitkRenderWindow.h>

Inheritance diagram for mitk::RenderWindow:

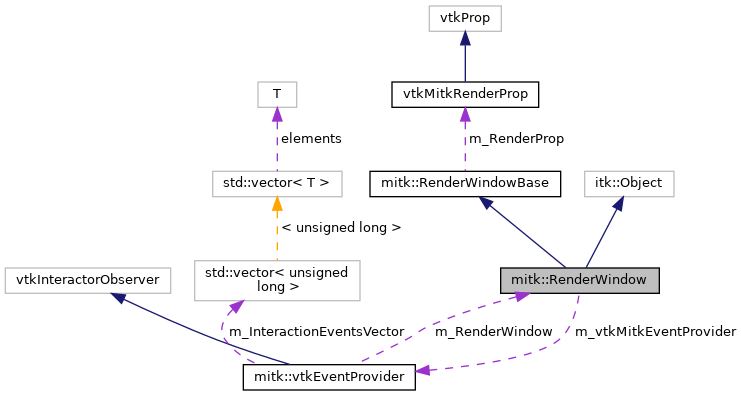

Collaboration diagram for mitk::RenderWindow:

[legend]

Public Member Functions
	mitkClassMacroItkParent (RenderWindow, itk::Object)

Pointer	Clone () const

	mitkNewMacro1Param (Self, vtkRenderWindow *)

	mitkNewMacro2Param (Self, vtkRenderWindow , const char )

	~RenderWindow () override
	Destructor. Cleans up VTK render window, interactor, and event provider. More...

vtkRenderWindow *	GetVtkRenderWindow () override
	Returns the underlying vtkRenderWindow. More...

vtkRenderWindowInteractor *	GetVtkRenderWindowInteractor () override
	Returns the underlying vtkRenderWindowInteractor. More...

void	SetLayoutIndex (unsigned int layoutIndex)
	Sets the layout index to define the layout type. More...

unsigned int	GetLayoutIndex ()
	Returns the layout index that defines the layout type. More...

void	LayoutDesignListChanged (int layoutDesignIndex)
	Notifies that the layout design list has changed. More...

void	FullScreenMode (bool state)
	Toggles full screen mode. More...

void	SetSize (int width, int height)
	Convenience method to set the size of an mitkRenderWindow. More...

void	ReinitEventProvider ()
	Initializes the mitkVtkEventProvider to listen to the currently used vtkInteractorStyle. More...

Public Member Functions inherited from mitk::RenderWindowBase
virtual	~RenderWindowBase ()
	Virtual destructor. More...

void	InitRenderer ()
	Initializes the renderer associated with this render window. More...

virtual mitk::SliceNavigationController *	GetSliceNavigationController ()
	Returns the SliceNavigationController for navigating through slices. More...

virtual mitk::CameraRotationController *	GetCameraRotationController ()
	Returns the CameraRotationController for 3D camera rotation. More...

virtual mitk::BaseController *	GetController ()
	Returns the appropriate controller for the current mapper mode. More...

virtual mitk::VtkPropRenderer *	GetRenderer ()
	Returns the VtkPropRenderer associated with this render window. More...

virtual bool	HandleEvent (InteractionEvent *interactionEvent)
	Dispatches an interaction event to the renderer's event dispatcher. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	RenderWindow (vtkRenderWindow existingRenderWindow=nullptr, const char name="unnamed renderer")

void	ResetView ()

Protected Member Functions inherited from mitk::RenderWindowBase
	RenderWindowBase ()
	Constructor. More...

void	Initialize (const char *name="unnamed renderer")
	Initializes the renderer and adds it to the RenderingManager. More...

void	Destroy ()
	Tears down the renderer and removes it from the RenderingManager. More...

Protected Attributes
vtkRenderWindow *	m_vtkRenderWindow

vtkRenderWindowInteractor *	m_vtkRenderWindowInteractor

vtkEventProvider *	m_vtkMitkEventProvider

Protected Attributes inherited from mitk::RenderWindowBase
mitk::VtkPropRenderer::Pointer	m_Renderer

vtkMitkRenderProp *	m_RenderProp

bool	m_InResize

Detailed Description

mitkRenderWindow integrates the MITK rendering mechanism into VTK and is NOT QT dependent

Definition at line 31 of file mitkRenderWindow.h.

Constructor & Destructor Documentation

◆ ~RenderWindow()

mitk::RenderWindow::~RenderWindow ( )

override

Destructor. Cleans up VTK render window, interactor, and event provider.

◆ RenderWindow()

mitk::RenderWindow::RenderWindow	(	vtkRenderWindow *	existingRenderWindow = `nullptr`,
		const char *	name = `"unnamed renderer"`
	)

protected

Member Function Documentation

◆ Clone()

Pointer mitk::RenderWindow::Clone ( ) const

◆ FullScreenMode()

void mitk::RenderWindow::FullScreenMode ( bool state )

Toggles full screen mode.

Parameters

state if true, enters full screen mode; if false, leaves it.

◆ GetLayoutIndex()

unsigned int mitk::RenderWindow::GetLayoutIndex ( )

Returns the layout index that defines the layout type.

Returns: The current layout index.

◆ GetVtkRenderWindow()

vtkRenderWindow* mitk::RenderWindow::GetVtkRenderWindow ( )

overridevirtual

Returns the underlying vtkRenderWindow.

Returns: The VTK render window instance.

Implements mitk::RenderWindowBase.

◆ GetVtkRenderWindowInteractor()

vtkRenderWindowInteractor* mitk::RenderWindow::GetVtkRenderWindowInteractor ( )

overridevirtual

Returns the underlying vtkRenderWindowInteractor.

Returns: The VTK render window interactor instance.

Implements mitk::RenderWindowBase.

◆ LayoutDesignListChanged()

void mitk::RenderWindow::LayoutDesignListChanged ( int layoutDesignIndex )

Notifies that the layout design list has changed.

Called when the MenuWidget needs to update the Layout Design List after a layout change.

Parameters

layoutDesignIndex the new layout design index.

◆ mitkClassMacroItkParent()

mitk::RenderWindow::mitkClassMacroItkParent	(	RenderWindow	,
		itk::Object
	)

◆ mitkNewMacro1Param()

mitk::RenderWindow::mitkNewMacro1Param	(	Self	,
		vtkRenderWindow *
	)

◆ mitkNewMacro2Param()

mitk::RenderWindow::mitkNewMacro2Param	(	Self	,
		vtkRenderWindow *	,
		const char *
	)

◆ New()

static Pointer mitk::RenderWindow::New ( )

static

◆ ReinitEventProvider()

void mitk::RenderWindow::ReinitEventProvider ( )

Initializes the mitkVtkEventProvider to listen to the currently used vtkInteractorStyle.

This method makes sure that the internal mitkVtkEventProvider listens to the correct vtkInteractorStyle. This makes sure that VTK-Events are correctly translated into MITK-Events.

Warning: This method needs to be called MANUALLY as soon as the MapperID for this RenderWindow is changed or the vtkInteractorStyle is modified somehow else!

◆ ResetView()

void mitk::RenderWindow::ResetView ( )

protected

◆ SetLayoutIndex()

void mitk::RenderWindow::SetLayoutIndex ( unsigned int layoutIndex )

Sets the layout index to define the layout type.

Parameters

layoutIndex the layout index to set.

◆ SetSize()

void mitk::RenderWindow::SetSize	(	int	width,
		int	height
	)

Convenience method to set the size of an mitkRenderWindow.

This method sets the size of the vtkRenderWindow and tells the rendering that the size has changed, which adapts displayGeometry, etc.

Parameters

width	the new width in pixels.
height	the new height in pixels.

Member Data Documentation

◆ m_vtkMitkEventProvider

vtkEventProvider* mitk::RenderWindow::m_vtkMitkEventProvider

protected

Definition at line 116 of file mitkRenderWindow.h.

◆ m_vtkRenderWindow

vtkRenderWindow* mitk::RenderWindow::m_vtkRenderWindow

protected

Definition at line 113 of file mitkRenderWindow.h.

◆ m_vtkRenderWindowInteractor

vtkRenderWindowInteractor* mitk::RenderWindow::m_vtkRenderWindowInteractor

protected

Definition at line 114 of file mitkRenderWindow.h.

The documentation for this class was generated from the following file:

mitkRenderWindow.h
