mitk::BaseController Class Reference

Base class for renderer slice, camera, and time control. More...

#include <mitkBaseController.h>

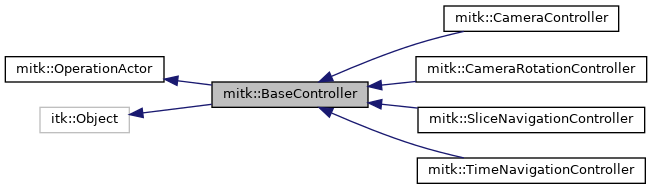

Inheritance diagram for mitk::BaseController:

Collaboration diagram for mitk::BaseController:

Public Member Functions
	mitkClassMacroItkParent (BaseController, OperationActor)
Stepper *	GetStepper ()
	Get the stepper for stepping through the controlled dimension. More...
const Stepper *	GetStepper () const
	Get the stepper for stepping through the controlled dimension (const). More...
Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	BaseController ()
	Default constructor. More...
	~BaseController () override
	Destructor. More...
void	ExecuteOperation (Operation *) override
	Execute an undo/redo operation. More...

Protected Attributes
Stepper::Pointer	m_Stepper
	Stepper through the controlled dimension. More...
unsigned long	m_LastUpdateTime
	Timestamp of the last update. More...

Detailed Description

Base class for renderer slice, camera, and time control.

Tells the renderer (subclass of BaseRenderer) which slice (SliceNavigationController), which camera direction (CameraController), or which time point (TimeNavigationController) to render. Contains a Stepper for stepping through slices, camera views, or time steps.

See also

SliceNavigationController

CameraController

TimeNavigationController

Stepper

BaseRenderer

Definition at line 40 of file mitkBaseController.h.

Constructor & Destructor Documentation

BaseController()

mitk::BaseController::BaseController ( )

protected

Default constructor.

~BaseController()

mitk::BaseController::~BaseController ( )

overrideprotected

Destructor.

Member Function Documentation

ExecuteOperation()

void mitk::BaseController::ExecuteOperation ( Operation *  )

overrideprotectedvirtual

Execute an undo/redo operation.

Implements mitk::OperationActor.

Reimplemented in mitk::SliceNavigationController.

GetStepper() [1/2]

Stepper* mitk::BaseController::GetStepper

(

)

Get the stepper for stepping through the controlled dimension.

Returns

Pointer to the mutable Stepper.

GetStepper() [2/2]

const Stepper* mitk::BaseController::GetStepper

(

)

const

Get the stepper for stepping through the controlled dimension (const).

Returns

Pointer to the const Stepper.

mitkClassMacroItkParent()

mitk::BaseController::mitkClassMacroItkParent	(	BaseController	,
		OperationActor
	)

New()

static Pointer mitk::BaseController::New ( )

static

Member Data Documentation

m_LastUpdateTime

unsigned long mitk::BaseController::m_LastUpdateTime

protected

Timestamp of the last update.

Definition at line 73 of file mitkBaseController.h.

m_Stepper

Stepper::Pointer mitk::BaseController::m_Stepper

protected

Stepper through the controlled dimension.

Definition at line 71 of file mitkBaseController.h.

---

The documentation for this class was generated from the following file:

• mitkBaseController.h
