Controls the camera used by the associated BaseRenderer. More...

#include <mitkCameraController.h>

Inheritance diagram for mitk::CameraController:

[legend]

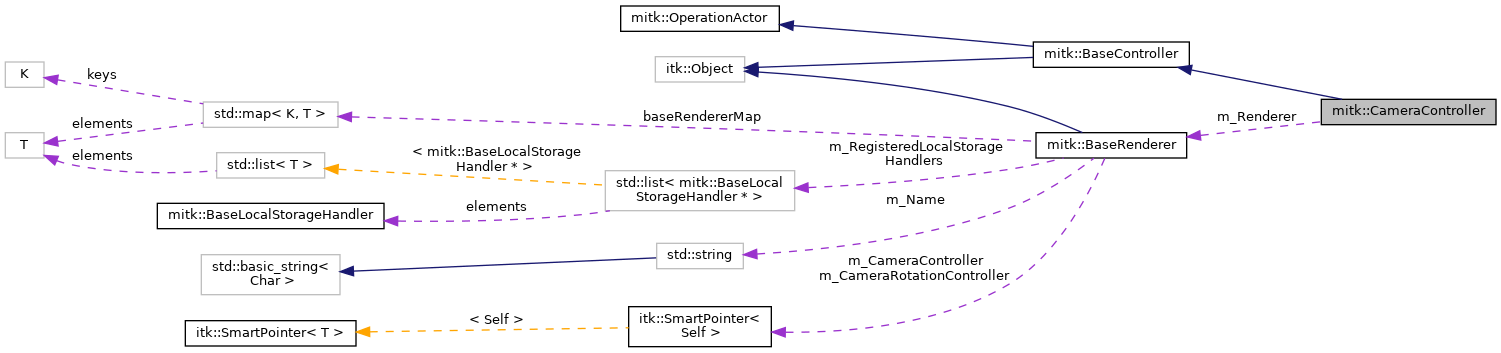

Collaboration diagram for mitk::CameraController:

[legend]

Public Types
enum	StandardView { ANTERIOR , POSTERIOR , SINISTER , DEXTER , CRANIAL , CAUDAL }
	Enumeration of standard anatomical viewing directions. More...

Public Member Functions
	mitkClassMacro (CameraController, BaseController)

void	SetRenderer (const BaseRenderer *renderer)
	Set the renderer whose camera this controller manages. More...

virtual const BaseRenderer *	GetRenderer () const

virtual void	SetViewToAnterior ()
	Set the camera to an anterior (front) view. More...

virtual void	SetViewToPosterior ()
	Set the camera to a posterior (back) view. More...

virtual void	SetViewToSinister ()
	Set the camera to a sinister (left) view. More...

virtual void	SetViewToDexter ()
	Set the camera to a dexter (right) view. More...

virtual void	SetViewToCranial ()
	Set the camera to a cranial (top) view. More...

virtual void	SetViewToCaudal ()
	Set the camera to a caudal (bottom) view. More...

virtual void	SetStandardView (StandardView view)
	Set the camera to one of the standard anatomical views. More...

void	Fit ()
	Adjust the camera so that the world bounding box is fully visible. More...

void	SetScaleFactorInMMPerDisplayUnit (ScalarType scale)
	Set the desired zoom level to an absolute value. More...

void	MoveCameraToPoint (const Point2D &planePoint)
	Move the camera so that the given point on the plane is in the view center. More...

void	MoveBy (const Vector2D &moveVectorInMM)
	Move the camera by the given vector (in mm). More...

void	Zoom (ScalarType factor, const Point2D &zoomPointInMM)
	Zoom the camera by the given factor around the specified point. More...

Point2D	GetCameraPositionOnPlane ()
	Get the current camera position projected onto the plane. More...

void	AdjustCameraToPlane ()
	Adjust the camera orientation to match the current plane without panning or zooming. More...

Public Member Functions inherited from mitk::BaseController
	mitkClassMacroItkParent (BaseController, OperationActor)

Stepper *	GetStepper ()
	Get the stepper for stepping through the controlled dimension. More...

const Stepper *	GetStepper () const
	Get the stepper for stepping through the controlled dimension (const). More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::BaseController
static Pointer	New ()

Protected Member Functions
	CameraController ()
	Default constructor. More...

	~CameraController () override
	Destructor. More...

ScalarType	ComputeMaxParallelScale ()
	Compute the maximum parallel scale that fits the entire plane into the viewport. More...

Protected Member Functions inherited from mitk::BaseController
	BaseController ()
	Default constructor. More...

	~BaseController () override
	Destructor. More...

void	ExecuteOperation (Operation *) override
	Execute an undo/redo operation. More...

Protected Attributes
const BaseRenderer *	m_Renderer
	The renderer whose camera is controlled. More...

Protected Attributes inherited from mitk::BaseController
Stepper::Pointer	m_Stepper
	Stepper through the controlled dimension. More...

unsigned long	m_LastUpdateTime
	Timestamp of the last update. More...

Detailed Description

Controls the camera used by the associated BaseRenderer.

Subclass of BaseController. Provides methods for setting standard anatomical views, fitting the view to the world bounding box, zooming, panning, and adjusting the camera to the current plane geometry.

See also: BaseController BaseRenderer

Definition at line 33 of file mitkCameraController.h.

Member Enumeration Documentation

◆ StandardView

enum mitk::CameraController::StandardView

Enumeration of standard anatomical viewing directions.

Enumerator
ANTERIOR	View from the front (ventral).
POSTERIOR	View from the back (dorsal).
SINISTER	View from the left.
DEXTER	View from the right.
CRANIAL	View from above (superior).
CAUDAL	View from below (inferior).

Definition at line 37 of file mitkCameraController.h.

Constructor & Destructor Documentation

◆ CameraController()

mitk::CameraController::CameraController ( )

protected

Default constructor.

◆ ~CameraController()

mitk::CameraController::~CameraController ( )

overrideprotected

Destructor.

Member Function Documentation

◆ AdjustCameraToPlane()

void mitk::CameraController::AdjustCameraToPlane ( )

Adjust the camera orientation to match the current plane without panning or zooming.

This rotates the camera so it is aligned with the current world plane geometry.

◆ ComputeMaxParallelScale()

ScalarType mitk::CameraController::ComputeMaxParallelScale ( )

protected

Compute the maximum parallel scale that fits the entire plane into the viewport.

Returns: The maximum parallel scale value in mm.

◆ Fit()

void mitk::CameraController::Fit ( )

Adjust the camera so that the world bounding box is fully visible.

◆ GetCameraPositionOnPlane()

Point2D mitk::CameraController::GetCameraPositionOnPlane ( )

Get the current camera position projected onto the plane.

Returns: The camera position in plane coordinates (mm).

◆ GetRenderer()

virtual const BaseRenderer* mitk::CameraController::GetRenderer ( ) const

virtual

◆ mitkClassMacro()

mitk::CameraController::mitkClassMacro	(	CameraController	,
		BaseController
	)

◆ MoveBy()

void mitk::CameraController::MoveBy ( const Vector2D & moveVectorInMM )

Move the camera by the given vector (in mm).

Parameters

moveVectorInMM The translation vector in millimeters.

◆ MoveCameraToPoint()

void mitk::CameraController::MoveCameraToPoint ( const Point2D & planePoint )

Move the camera so that the given point on the plane is in the view center.

Parameters

planePoint The target point in plane coordinates (mm).

◆ New()

static Pointer mitk::CameraController::New ( )

static

◆ SetRenderer()

void mitk::CameraController::SetRenderer ( const BaseRenderer * renderer )

inline

Set the renderer whose camera this controller manages.

Definition at line 52 of file mitkCameraController.h.

◆ SetScaleFactorInMMPerDisplayUnit()

void mitk::CameraController::SetScaleFactorInMMPerDisplayUnit ( ScalarType scale )

Set the desired zoom level to an absolute value.

Parameters

scale The scale factor in millimeters per display unit.

◆ SetStandardView()

virtual void mitk::CameraController::SetStandardView ( StandardView view )

virtual

Set the camera to one of the standard anatomical views.

Parameters

view	The StandardView direction to apply.

◆ SetViewToAnterior()

virtual void mitk::CameraController::SetViewToAnterior ( )

virtual

Set the camera to an anterior (front) view.

◆ SetViewToCaudal()

virtual void mitk::CameraController::SetViewToCaudal ( )

virtual

Set the camera to a caudal (bottom) view.

◆ SetViewToCranial()

virtual void mitk::CameraController::SetViewToCranial ( )

virtual

Set the camera to a cranial (top) view.

◆ SetViewToDexter()

virtual void mitk::CameraController::SetViewToDexter ( )

virtual

Set the camera to a dexter (right) view.

◆ SetViewToPosterior()

virtual void mitk::CameraController::SetViewToPosterior ( )

virtual

Set the camera to a posterior (back) view.

◆ SetViewToSinister()

virtual void mitk::CameraController::SetViewToSinister ( )

virtual

Set the camera to a sinister (left) view.

◆ Zoom()

void mitk::CameraController::Zoom	(	ScalarType	factor,
		const Point2D &	zoomPointInMM
	)

Zoom the camera by the given factor around the specified point.

Parameters

factor	The zoom factor (>1 zooms in, <1 zooms out, <=0 is ignored).
zoomPointInMM	The point around which to zoom, in plane coordinates (mm).

Member Data Documentation

◆ m_Renderer

const BaseRenderer* mitk::CameraController::m_Renderer

protected

The renderer whose camera is controlled.

Definition at line 125 of file mitkCameraController.h.

The documentation for this class was generated from the following file:

mitkCameraController.h
