mitk::TestingRenderingManager Class Reference
#include <mitkRenderingManager.h>
Inheritance diagram for mitk::TestingRenderingManager:

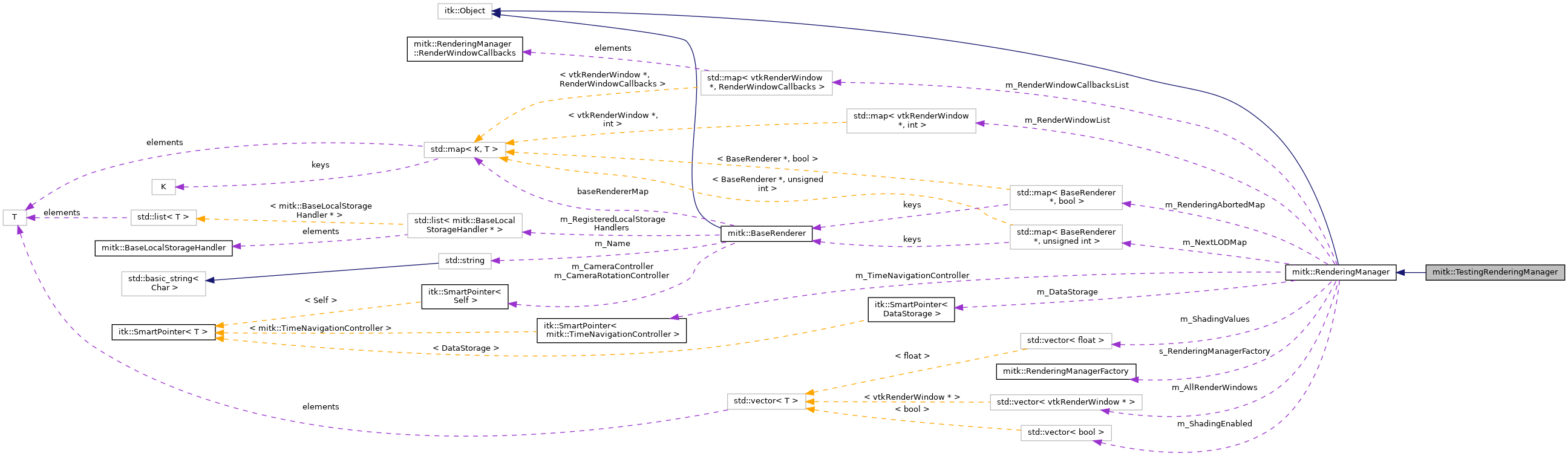

Collaboration diagram for mitk::TestingRenderingManager:
Public Member Functions | |
| mitkClassMacro (TestingRenderingManager, RenderingManager) | |
| Pointer | Clone () const |
 Public Member Functions inherited from mitk::RenderingManager | |
| mitkClassMacroItkParent (RenderingManager, itk::Object) | |
| void | AddRenderWindow (vtkRenderWindow *renderWindow) |
| Register a vtkRenderWindow with this RenderingManager. More... | |
| void | RemoveRenderWindow (vtkRenderWindow *renderWindow) |
| Unregister a vtkRenderWindow from this RenderingManager. More... | |
| const RenderWindowVector & | GetAllRegisteredRenderWindows () |
| Get all registered vtkRenderWindows. More... | |
| void | RequestUpdate (vtkRenderWindow *renderWindow) |
| Request a deferred update for the specified render window. More... | |
| void | ForceImmediateUpdate (vtkRenderWindow *renderWindow) |
| Immediately execute a synchronous update of the specified render window. More... | |
| void | RequestUpdateAll (RequestType type=REQUEST_UPDATE_ALL) |
| Request a deferred update for all registered render windows. More... | |
| void | ForceImmediateUpdateAll (RequestType type=REQUEST_UPDATE_ALL) |
| Immediately execute a synchronous update for all registered render windows. More... | |
| virtual void | InitializeViewsByBoundingObjects (const DataStorage *dataStorage) |
| Initialize the render windows by the aggregated geometry of all objects that are held in the data storage. More... | |
| virtual void | InitializeViewByBoundingObjects (vtkRenderWindow *renderWindow, const DataStorage *dataStorage, bool resetCamera=true) |
| Initialize the given render window by the aggregated geometry of all objects that are held in the data storage. More... | |
| virtual bool | InitializeViews (const BaseGeometry *geometry, RequestType type=REQUEST_UPDATE_ALL, bool resetCamera=true) |
| Initialize the render windows specified by "type" to the given geometry. More... | |
| virtual bool | InitializeViews (const TimeGeometry *geometry, RequestType type=REQUEST_UPDATE_ALL, bool resetCamera=true) |
| Initialize the render windows specified by "type" to the given geometry. More... | |
| virtual bool | InitializeViews (RequestType type=REQUEST_UPDATE_ALL) |
| Initialize the render windows specified by "type" to the default viewing direction without updating the geometry information. More... | |
| virtual bool | InitializeView (vtkRenderWindow *renderWindow, const BaseGeometry *geometry, bool resetCamera=true) |
| Initialize the specified render window to the given geometry. More... | |
| virtual bool | InitializeView (vtkRenderWindow *renderWindow, const TimeGeometry *geometry, bool resetCamera=true) |
| Initialize the specified render window to the given geometry. More... | |
| virtual bool | InitializeView (vtkRenderWindow *renderWindow) |
| Initialize the specified render window to the default viewing direction without updating the geometry information. More... | |
| const TimeNavigationController * | GetTimeNavigationController () const |
| TimeNavigationController * | GetTimeNavigationController () |
| ~RenderingManager () override | |
| Destructor. Unregisters all render windows and removes callbacks. More... | |
| virtual void | ExecutePendingRequests () |
| Execute all pending rendering requests. More... | |
| bool | IsRendering () const |
| Check whether any registered render window is currently rendering. More... | |
| void | AbortRendering () |
| Abort all in-progress renderings by setting the abort flag on active render windows. More... | |
| virtual void | SetLODIncreaseBlocked (bool _arg) |
| Set whether LOD increase is blocked globally. More... | |
| virtual bool | GetLODIncreaseBlocked () |
| Get whether LOD increase is blocked globally. More... | |
| virtual void | LODIncreaseBlockedOn () |
| Toggle LOD increase blocking. More... | |
| virtual void | LODIncreaseBlockedOff () |
| virtual void | SetLODAbortMechanismEnabled (bool _arg) |
| Set whether the LOD abort mechanism is enabled. More... | |
| virtual bool | GetLODAbortMechanismEnabled () |
| Get whether the LOD abort mechanism is enabled. More... | |
| virtual void | LODAbortMechanismEnabledOn () |
| Toggle the LOD abort mechanism. More... | |
| virtual void | LODAbortMechanismEnabledOff () |
| virtual void | StartOrResetTimer () |
| Start or reset a timer for a pending high-resolution rendering request. Subclasses should override. More... | |
| void | ExecutePendingHighResRenderingRequest () |
| Execute any pending high-resolution rendering requests. Called from a timer callback in subclasses. More... | |
| virtual void | DoStartRendering () |
| Hook called when rendering starts. Override in subclasses. More... | |
| virtual void | DoMonitorRendering () |
| Hook called to monitor rendering progress. Override in subclasses. More... | |
| virtual void | DoFinishAbortRendering () |
| Hook called when rendering abort is finished. Override in subclasses. More... | |
| int | GetNextLOD (BaseRenderer *renderer) |
| Get the next LOD level for the given renderer. More... | |
| void | SetMaximumLOD (unsigned int max) |
| Set the maximum LOD level. More... | |
| void | SetShading (bool state, unsigned int lod) |
| Enable or disable shading for a specific LOD level. More... | |
| bool | GetShading (unsigned int lod) |
| Get the shading state for a specific LOD level. More... | |
| void | SetClippingPlaneStatus (bool status) |
| Enable or disable the clipping plane. More... | |
| bool | GetClippingPlaneStatus () |
| Get the clipping plane status. More... | |
| void | SetShadingValues (float ambient, float diffuse, float specular, float specpower) |
| Set the shading values for rendering. More... | |
| FloatVector & | GetShadingValues () |
| Get the current shading values. More... | |
| PropertyList::Pointer | GetPropertyList () const |
| Get the internal property list used for global rendering settings. More... | |
| BaseProperty * | GetProperty (const char *propertyKey) const |
| Get a property from the internal property list. More... | |
| void | SetProperty (const char *propertyKey, BaseProperty *propertyValue) |
| Set or add a property in the internal property list. More... | |
| void | SetDataStorage (DataStorage *storage) |
| Setter for internal DataStorage. More... | |
| virtual DataStorage * | GetDataStorage () |
| Getter for internal DataStorage. More... | |
| virtual DataStorage * | GetDataStorage () const |
| void | SetRenderWindowFocus (vtkRenderWindow *focusWindow) |
| Sets a flag to the given renderwindow to indicated that it has the focus e.g. has been clicked recently. More... | |
| virtual vtkRenderWindow * | GetFocusedRenderWindow () |
| void | SetConstrainedPanningZooming (bool constrain) |
| virtual bool | GetConstrainedPanningZooming () const |
| void | SetAntiAliasing (AntiAliasing antiAliasing) |
| virtual AntiAliasing | GetAntiAliasing () const |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::RenderingManager | |
| static Pointer | New () |
| Create a new RenderingManager instance via the registered factory. More... | |
| static void | SetFactory (RenderingManagerFactory *factory) |
| Set the factory that produces platform-specific RenderingManager instances. More... | |
| static const RenderingManagerFactory * | GetFactory () |
| Get the factory that produces platform-specific RenderingManager instances. More... | |
| static bool | HasFactory () |
| Check whether a factory has already been set. More... | |
| static RenderingManager * | GetInstance () |
| Get the RenderingManager singleton instance. More... | |
| static bool | IsInstantiated () |
| Check whether the singleton instance already exists. More... | |
Protected Member Functions | |
| void | GenerateRenderingRequestEvent () override |
| Protected Member Functions inherited from mitk::RenderingManager | |
| RenderingManager () | |
| virtual void | InitializePropertyList () |
Detailed Description
Generic RenderingManager implementation for "non-rendering-platform", e.g. for tests. Its factory (TestingRenderingManagerFactory) is automatically on start-up and is used by default if not other RenderingManagerFactory is instantiated explicitly thereafter. (see mitkRenderingManager.cpp)
Definition at line 600 of file mitkRenderingManager.h.
Member Function Documentation
◆ Clone()
| Pointer mitk::TestingRenderingManager::Clone | ( | ) | const |
◆ GenerateRenderingRequestEvent()
|
inlineoverrideprotectedvirtual |
Abstract method for generating a system specific event for rendering request. This method is called whenever an update is requested
Implements mitk::RenderingManager.
Definition at line 609 of file mitkRenderingManager.h.
◆ mitkClassMacro()
| mitk::TestingRenderingManager::mitkClassMacro | ( | TestingRenderingManager | , |
| RenderingManager | |||
| ) |
◆ New()
|
static |
The documentation for this class was generated from the following file:
