mitk::DisplayActionEventHandlerDesynchronized Class Reference
Handler that connects desynchronized (per-renderer) display actions. More...
#include <mitkDisplayActionEventHandlerDesynchronized.h>
Inheritance diagram for mitk::DisplayActionEventHandlerDesynchronized:

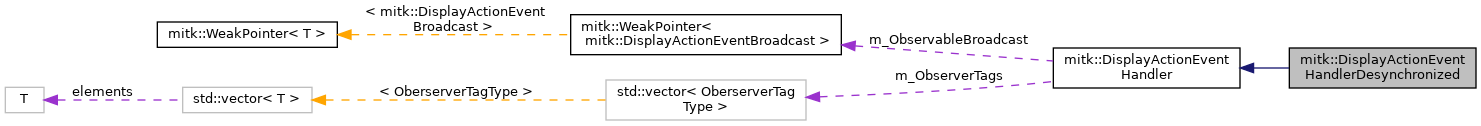

Collaboration diagram for mitk::DisplayActionEventHandlerDesynchronized:
Protected Member Functions | |
| void | InitActionsImpl (const std::string &prefixFilter="") override |
| Initialize desynchronized display actions (move, zoom, scroll per renderer). More... | |
Additional Inherited Members | |
 Public Types inherited from mitk::DisplayActionEventHandler | |
| using | OberserverTagType = unsigned long |
| Tag type used to identify registered observers. More... | |
| Public Member Functions inherited from mitk::DisplayActionEventHandler | |
| virtual | ~DisplayActionEventHandler () |
| Destructor. Removes all registered observers. More... | |
| void | SetObservableBroadcast (DisplayActionEventBroadcast *observableBroadcast) |
| Set the DisplayActionEventBroadcast instance to observe. More... | |
| OberserverTagType | ConnectDisplayActionEvent (const DisplayActionEvent &displayActionEvent, const StdFunctionCommand::ActionFunction &actionFunction, const StdFunctionCommand::FilterFunction &filterFunction=[](const itk::EventObject &) { return true;}) |
| Register an observer for a specific display action event. More... | |
| void | DisconnectObserver (OberserverTagType observerTag) |
| Remove an observer identified by its tag. More... | |
| const std::vector< OberserverTagType > & | GetAllObserverTags () |
| Get all currently registered observer tags. More... | |
| void | InitActions (std::string prefixFilter="") |
| Initialize pre-defined display actions and connect them to the broadcast. More... | |
| Protected Attributes inherited from mitk::DisplayActionEventHandler | |
| WeakPointer< DisplayActionEventBroadcast > | m_ObservableBroadcast |
| std::vector< OberserverTagType > | m_ObserverTags |
Detailed Description
Handler that connects desynchronized (per-renderer) display actions.
Each renderer reacts independently to display action events such as move, zoom, and scroll – changes are not propagated to other renderers.
Definition at line 31 of file mitkDisplayActionEventHandlerDesynchronized.h.
Member Function Documentation
◆ InitActionsImpl()
|
overrideprotectedvirtual |
Initialize desynchronized display actions (move, zoom, scroll per renderer).
- Precondition
- The observable broadcast must have been set.
- Exceptions
-
mitk::Exception if the observable is null.
- Parameters
-
prefixFilter Only react to / send changes to renderers whose name starts with this prefix.
Reimplemented from mitk::DisplayActionEventHandler.
The documentation for this class was generated from the following file:
