mitk::AffineBaseDataInteractor3D Class Reference

Affine interaction with mitk::BaseGeometry. More...

#include <mitkAffineBaseDataInteractor3D.h>

Inheritance diagram for mitk::AffineBaseDataInteractor3D:

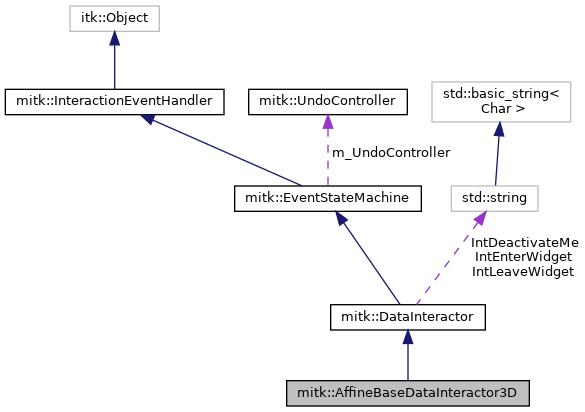

Collaboration diagram for mitk::AffineBaseDataInteractor3D:

Public Member Functions
	mitkClassMacro (AffineBaseDataInteractor3D, DataInteractor)
Pointer	Clone () const
void	SetDataNode (DataNode *node) override
	Set the DataNode for this interactor. More...
void	TranslateGeometry (mitk::Vector3D translate, mitk::BaseGeometry *geometry)
	Translate the given geometry by the specified vector. More...
void	RotateGeometry (mitk::ScalarType angle, int rotationaxis, mitk::BaseGeometry *geometry)
	Rotate the given geometry around one of its principal axes. More...
void	ScaleGeometry (mitk::Point3D newScale, mitk::BaseGeometry *geometry)
	Scale the given geometry by the specified factors. More...
mitk::BaseGeometry *	GetUpdatedTimeGeometry (mitk::InteractionEvent *interactionEvent)
	Retrieve the geometry for the current time step from the interaction event. More...
Public Member Functions inherited from mitk::DataInteractor
	mitkClassMacro (DataInteractor, EventStateMachine)
Pointer	Clone () const
DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...
int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...
ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...
Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...
bool	HandleEvent (InteractionEvent *event, DataNode *dataNode)
	Process an incoming interaction event. More...
void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...
void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...
Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...
bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...
EventConfig	GetEventConfig () const
	Returns the current configuration. More...
bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...
bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::DataInteractor
static Pointer	New ()

Protected Member Functions
	AffineBaseDataInteractor3D ()
	~AffineBaseDataInteractor3D () override
void	ConnectActionsAndFunctions () override
void	DataNodeChanged () override
virtual bool	CheckOverObject (const InteractionEvent *)
virtual void	SelectObject (StateMachineAction *, InteractionEvent *)
virtual void	DeselectObject (StateMachineAction *, InteractionEvent *)
virtual void	InitTranslate (StateMachineAction *, InteractionEvent *)
virtual void	InitRotate (StateMachineAction *, InteractionEvent *)
virtual void	TranslateObject (StateMachineAction *, InteractionEvent *)
virtual void	RotateObject (StateMachineAction *, InteractionEvent *)
virtual void	ScaleObject (StateMachineAction *, InteractionEvent *)
virtual void	TranslateUpKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	TranslateDownKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	TranslateLeftKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	TranslateRightKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	TranslateUpModifierKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	TranslateDownModifierKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateUpKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateDownKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateLeftKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateRightKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateUpModifierKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	RotateDownModifierKey (StateMachineAction *, InteractionEvent *interactionEvent)
virtual void	ScaleDownKey (mitk::StateMachineAction *, mitk::InteractionEvent *interactionEvent)
virtual void	ScaleUpKey (mitk::StateMachineAction *, mitk::InteractionEvent *interactionEvent)
virtual void	RestoreNodeProperties ()
bool	InitMembers (InteractionEvent *interactionEvent)
	InitMembers convenience method to avoid code duplication between InitRotate() and InitTranslate(). More...
Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()
	~DataInteractor () override
virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...
virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...
Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()
	~EventStateMachine () override
void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)
void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)
StateMachineState *	GetCurrentState () const
void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...
virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)
virtual void	ExecuteAction (StateMachineAction *action, InteractionEvent *interactionEvent)
virtual bool	FilterEvents (InteractionEvent *interactionEvent, DataNode *dataNode)
void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...
void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...
StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...
Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()
	~InteractionEventHandler () override
PropertyList::Pointer	GetAttributes () const
std::string	MapToEventVariant (InteractionEvent *interactionEvent)
virtual void	ConfigurationChanged ()

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType
Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...
static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...
static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...
Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction *, InteractionEvent *, void >	ActionFunctionDelegate
typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate
Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive
UndoController *	m_UndoController
bool	m_UndoEnabled

Detailed Description

Affine interaction with mitk::BaseGeometry.

Provides translation, rotation, and scaling of data objects in 3D render windows via mouse and keyboard interaction. The interactor is driven by a state machine pattern and supports configurable step sizes through DataNode properties.

Relevant DataNode properties:

• "AffineBaseDataInteractor3D.Translation Step Size" (float, default 1.0)
• "AffineBaseDataInteractor3D.Rotation Step Size" (float, default 1.0)
• "AffineBaseDataInteractor3D.Scale Step Size" (float, default 0.1)
• "AffineBaseDataInteractor3D.Anchor Point X/Y/Z" (float, default 0.0)

See also

DataInteractor, AffineImageCropperInteractor

Definition at line 54 of file mitkAffineBaseDataInteractor3D.h.

Constructor & Destructor Documentation

AffineBaseDataInteractor3D()

mitk::AffineBaseDataInteractor3D::AffineBaseDataInteractor3D ( )

protected

~AffineBaseDataInteractor3D()

mitk::AffineBaseDataInteractor3D::~AffineBaseDataInteractor3D ( )

overrideprotected

Member Function Documentation

CheckOverObject()

virtual bool mitk::AffineBaseDataInteractor3D::CheckOverObject ( const InteractionEvent *  )

protectedvirtual

Initializes the movement, stores starting position.

Clone()

Pointer mitk::AffineBaseDataInteractor3D::Clone

(

)

const

ConnectActionsAndFunctions()

void mitk::AffineBaseDataInteractor3D::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::DataInteractor.

DataNodeChanged()

void mitk::AffineBaseDataInteractor3D::DataNodeChanged ( )

overrideprotectedvirtual

This function is called when a DataNode has been set/changed.

Reimplemented from mitk::DataInteractor.

DeselectObject()

virtual void mitk::AffineBaseDataInteractor3D::DeselectObject ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

GetUpdatedTimeGeometry()

mitk::BaseGeometry* mitk::AffineBaseDataInteractor3D::GetUpdatedTimeGeometry

(

mitk::InteractionEvent *

interactionEvent

)

Retrieve the geometry for the current time step from the interaction event.

Parameters

[in]

interactionEvent

The event providing time step information.

Returns

Pointer to the geometry for the relevant time step, or nullptr if the geometry could not be obtained.

InitMembers()

bool mitk::AffineBaseDataInteractor3D::InitMembers ( InteractionEvent *  interactionEvent )

protected

InitMembers convenience method to avoid code duplication between InitRotate() and InitTranslate().

Parameters

interactionEvent

InitRotate()

virtual void mitk::AffineBaseDataInteractor3D::InitRotate ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

InitTranslate()

virtual void mitk::AffineBaseDataInteractor3D::InitTranslate ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

mitkClassMacro()

mitk::AffineBaseDataInteractor3D::mitkClassMacro	(	AffineBaseDataInteractor3D	,
		DataInteractor
	)

New()

static Pointer mitk::AffineBaseDataInteractor3D::New ( )

static

RestoreNodeProperties()

virtual void mitk::AffineBaseDataInteractor3D::RestoreNodeProperties ( )

protectedvirtual

RotateDownKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateDownKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

RotateDownModifierKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateDownModifierKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

RotateGeometry()

void mitk::AffineBaseDataInteractor3D::RotateGeometry	(	mitk::ScalarType	angle,
		int	rotationaxis,
		mitk::BaseGeometry *	geometry
	)

Rotate the given geometry around one of its principal axes.

The rotation is performed around an anchor point defined by DataNode properties.

Parameters

[in]	angle	The rotation angle in degrees.
[in]	rotationaxis	The axis index to rotate around (0=x, 1=y, 2=z).
[in,out]	geometry	The geometry to rotate.

RotateLeftKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateLeftKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

RotateObject()

virtual void mitk::AffineBaseDataInteractor3D::RotateObject ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

RotateRightKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateRightKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

RotateUpKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateUpKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

RotateUpModifierKey()

virtual void mitk::AffineBaseDataInteractor3D::RotateUpModifierKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

ScaleDownKey()

virtual void mitk::AffineBaseDataInteractor3D::ScaleDownKey ( mitk::StateMachineAction *  , mitk::InteractionEvent *  interactionEvent  )

protectedvirtual

ScaleGeometry()

void mitk::AffineBaseDataInteractor3D::ScaleGeometry	(	mitk::Point3D	newScale,
		mitk::BaseGeometry *	geometry
	)

Scale the given geometry by the specified factors.

Scaling is performed relative to an anchor point defined by DataNode properties.

Parameters

[in]	newScale	The scale factors for each axis.
[in,out]	geometry	The geometry to scale.

ScaleObject()

virtual void mitk::AffineBaseDataInteractor3D::ScaleObject ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

ScaleUpKey()

virtual void mitk::AffineBaseDataInteractor3D::ScaleUpKey ( mitk::StateMachineAction *  , mitk::InteractionEvent *  interactionEvent  )

protectedvirtual

SelectObject()

virtual void mitk::AffineBaseDataInteractor3D::SelectObject ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

SetDataNode()

void mitk::AffineBaseDataInteractor3D::SetDataNode ( DataNode *  node )

overridevirtual

Set the DataNode for this interactor.

Restores the color of any previously assigned node before setting the new one.

Parameters

[in]

node

The DataNode to interact with.

Reimplemented from mitk::DataInteractor.

TranslateDownKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateDownKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

TranslateDownModifierKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateDownModifierKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

TranslateGeometry()

void mitk::AffineBaseDataInteractor3D::TranslateGeometry	(	mitk::Vector3D	translate,
		mitk::BaseGeometry *	geometry
	)

Translate the given geometry by the specified vector.

Triggers a rendering update after translation.

Parameters

[in]	translate	The translation vector in world coordinates.
[in,out]	geometry	The geometry to translate.

TranslateLeftKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateLeftKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

TranslateObject()

virtual void mitk::AffineBaseDataInteractor3D::TranslateObject ( StateMachineAction *  , InteractionEvent *    )

protectedvirtual

TranslateRightKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateRightKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

TranslateUpKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateUpKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

TranslateUpModifierKey()

virtual void mitk::AffineBaseDataInteractor3D::TranslateUpModifierKey ( StateMachineAction *  , InteractionEvent *  interactionEvent  )

protectedvirtual

---

The documentation for this class was generated from the following file:

• mitkAffineBaseDataInteractor3D.h
