LiveWire-based contour model interactor for editing contour segments. More...

#include <mitkContourModelLiveWireInteractor.h>

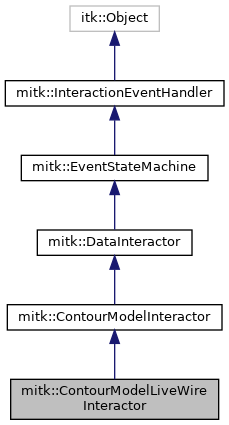

Inheritance diagram for mitk::ContourModelLiveWireInteractor:

[legend]

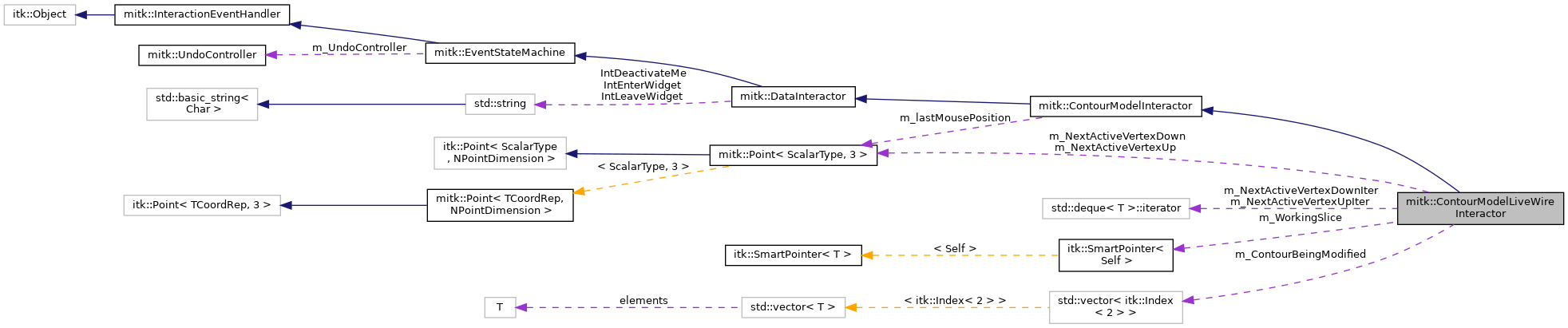

Collaboration diagram for mitk::ContourModelLiveWireInteractor:

[legend]

Public Member Functions
	mitkClassMacro (ContourModelLiveWireInteractor, ContourModelInteractor)

Pointer	Clone () const

virtual void	SetWorkingImage (mitk::Image *_arg)
	Sets the working image used for LiveWire cost computation. More...

void	ConnectActionsAndFunctions () override

Public Member Functions inherited from mitk::ContourModelInteractor
	mitkClassMacro (ContourModelInteractor, DataInteractor)

Pointer	Clone () const

void	SetRestrictedArea (mitk::ContourModel *restrictedArea)
	Sets a contour that constrains the vertex editing area. More...

Public Member Functions inherited from mitk::DataInteractor
	mitkClassMacro (DataInteractor, EventStateMachine)

Pointer	Clone () const

DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...

virtual void	SetDataNode (DataNode *dataNode)
	Set the DataNode that this interactor operates on. More...

int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...

ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ContourModelInteractor
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static Pointer	New ()

Protected Member Functions
	ContourModelLiveWireInteractor ()

	~ContourModelLiveWireInteractor () override

bool	OnCheckPointClick (const InteractionEvent *interactionEvent) override
	Select/ add and select vertex to modify contour and prepare for modification of contour. More...

void	OnMovePoint (StateMachineAction , InteractionEvent interactionEvent) override
	Update contour when point is moved. More...

void	OnAddPoint (StateMachineAction , InteractionEvent interactionEvent) override
	Add a new control point. More...

void	OnDeletePoint (StateMachineAction , InteractionEvent interactionEvent) override
	Delete selected vertex and recompute contour. More...

void	OnFinishEditing (StateMachineAction , InteractionEvent interactionEvent) override
	Finish modification of contour. More...

void	SplitContourFromSelectedVertex (mitk::ContourModel srcContour, const mitk::ContourModel::VertexType nextPoint, const mitk::ContourModel::VertexType *previousPoint, int timestep)
	Split contour into a part before the selected vertex and after the selected vertex. More...

void	SetRepulsivePoints (const mitk::ContourModel::VertexType nextPoint, mitk::ContourModel contour, int timestep)
	Set repulsive points which should not be changed during editing of the contour. More...

Protected Member Functions inherited from mitk::ContourModelInteractor
	ContourModelInteractor ()

	~ContourModelInteractor () override

virtual bool	IsHovering (const InteractionEvent *interactionEvent)

virtual void	OnMoveContour (StateMachineAction , InteractionEvent interactionEvent)

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

virtual void	DataNodeChanged ()
	Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Protected Attributes
mitk::ImageLiveWireContourModelFilter::Pointer	m_LiveWireFilter

mitk::Image::Pointer	m_WorkingSlice

mitk::Point3D	m_NextActiveVertexDown

mitk::Point3D	m_NextActiveVertexUp

mitk::ContourModel::VertexIterator	m_NextActiveVertexDownIter

mitk::ContourModel::VertexIterator	m_NextActiveVertexUpIter

std::vector< itk::Index< 2 > >	m_ContourBeingModified

mitk::ContourModel::Pointer	m_ContourLeft

mitk::ContourModel::Pointer	m_ContourRight

Protected Attributes inherited from mitk::ContourModelInteractor
const float	eps

mitk::Point3D	m_lastMousePosition

mitk::ContourModel::Pointer	m_RestrictedArea

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...

static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...

static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Detailed Description

LiveWire-based contour model interactor for editing contour segments.

Extends ContourModelInteractor with LiveWire-based computation of contour segments between control points. When a vertex is moved, the connecting segments are recomputed using the shortest path algorithm.

See also: ContourModelInteractor, ImageLiveWireContourModelFilter

Warning: Make sure the working image is properly set, otherwise the algorithm for computing LiveWire contour segments will not work.

Definition at line 38 of file mitkContourModelLiveWireInteractor.h.

Constructor & Destructor Documentation

◆ ContourModelLiveWireInteractor()

mitk::ContourModelLiveWireInteractor::ContourModelLiveWireInteractor ( )

protected

◆ ~ContourModelLiveWireInteractor()

mitk::ContourModelLiveWireInteractor::~ContourModelLiveWireInteractor ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::ContourModelLiveWireInteractor::Clone ( ) const

◆ ConnectActionsAndFunctions()

void mitk::ContourModelLiveWireInteractor::ConnectActionsAndFunctions ( )

overridevirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::ContourModelInteractor.

◆ mitkClassMacro()

mitk::ContourModelLiveWireInteractor::mitkClassMacro	(	ContourModelLiveWireInteractor	,
		ContourModelInteractor
	)

◆ New()

static Pointer mitk::ContourModelLiveWireInteractor::New ( )

static

◆ OnAddPoint()

void mitk::ContourModelLiveWireInteractor::OnAddPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

overrideprotectedvirtual

Add a new control point.

Reimplemented from mitk::ContourModelInteractor.

◆ OnCheckPointClick()

bool mitk::ContourModelLiveWireInteractor::OnCheckPointClick ( const InteractionEvent * interactionEvent )

overrideprotectedvirtual

Select/ add and select vertex to modify contour and prepare for modification of contour.

Reimplemented from mitk::ContourModelInteractor.

◆ OnDeletePoint()

void mitk::ContourModelLiveWireInteractor::OnDeletePoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

overrideprotectedvirtual

Delete selected vertex and recompute contour.

Reimplemented from mitk::ContourModelInteractor.

◆ OnFinishEditing()

void mitk::ContourModelLiveWireInteractor::OnFinishEditing	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

overrideprotectedvirtual

Finish modification of contour.

Reimplemented from mitk::ContourModelInteractor.

◆ OnMovePoint()

void mitk::ContourModelLiveWireInteractor::OnMovePoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

overrideprotectedvirtual

Update contour when point is moved.

Reimplemented from mitk::ContourModelInteractor.

◆ SetRepulsivePoints()

void mitk::ContourModelLiveWireInteractor::SetRepulsivePoints	(	const mitk::ContourModel::VertexType *	nextPoint,
		mitk::ContourModel *	contour,
		int	timestep
	)

protected

Set repulsive points which should not be changed during editing of the contour.

◆ SetWorkingImage()

virtual void mitk::ContourModelLiveWireInteractor::SetWorkingImage ( mitk::Image * _arg )

virtual

Sets the working image used for LiveWire cost computation.

Parameters

[in] _arg Pointer to the image slice for the LiveWire filter.

◆ SplitContourFromSelectedVertex()

void mitk::ContourModelLiveWireInteractor::SplitContourFromSelectedVertex	(	mitk::ContourModel *	srcContour,
		const mitk::ContourModel::VertexType *	nextPoint,
		const mitk::ContourModel::VertexType *	previousPoint,
		int	timestep
	)

protected

Split contour into a part before the selected vertex and after the selected vertex.

Member Data Documentation

◆ m_ContourBeingModified

std::vector<itk::Index<2> > mitk::ContourModelLiveWireInteractor::m_ContourBeingModified

protected

Definition at line 88 of file mitkContourModelLiveWireInteractor.h.

◆ m_ContourLeft

mitk::ContourModel::Pointer mitk::ContourModelLiveWireInteractor::m_ContourLeft

protected

Definition at line 90 of file mitkContourModelLiveWireInteractor.h.

◆ m_ContourRight

mitk::ContourModel::Pointer mitk::ContourModelLiveWireInteractor::m_ContourRight

protected

Definition at line 91 of file mitkContourModelLiveWireInteractor.h.

◆ m_LiveWireFilter

mitk::ImageLiveWireContourModelFilter::Pointer mitk::ContourModelLiveWireInteractor::m_LiveWireFilter

protected

Definition at line 79 of file mitkContourModelLiveWireInteractor.h.

◆ m_NextActiveVertexDown

mitk::Point3D mitk::ContourModelLiveWireInteractor::m_NextActiveVertexDown

protected

Definition at line 82 of file mitkContourModelLiveWireInteractor.h.

◆ m_NextActiveVertexDownIter

mitk::ContourModel::VertexIterator mitk::ContourModelLiveWireInteractor::m_NextActiveVertexDownIter

protected

Definition at line 85 of file mitkContourModelLiveWireInteractor.h.

◆ m_NextActiveVertexUp

mitk::Point3D mitk::ContourModelLiveWireInteractor::m_NextActiveVertexUp

protected

Definition at line 83 of file mitkContourModelLiveWireInteractor.h.

◆ m_NextActiveVertexUpIter

mitk::ContourModel::VertexIterator mitk::ContourModelLiveWireInteractor::m_NextActiveVertexUpIter

protected

Definition at line 86 of file mitkContourModelLiveWireInteractor.h.

◆ m_WorkingSlice

mitk::Image::Pointer mitk::ContourModelLiveWireInteractor::m_WorkingSlice

protected

Definition at line 80 of file mitkContourModelLiveWireInteractor.h.

The documentation for this class was generated from the following file:

mitkContourModelLiveWireInteractor.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ContourModelLiveWireInteractor()

◆ ~ContourModelLiveWireInteractor()

Member Function Documentation

◆ Clone()

◆ ConnectActionsAndFunctions()

◆ mitkClassMacro()

◆ New()

◆ OnAddPoint()

◆ OnCheckPointClick()

◆ OnDeletePoint()

◆ OnFinishEditing()

◆ OnMovePoint()

◆ SetRepulsivePoints()

◆ SetWorkingImage()

◆ SplitContourFromSelectedVertex()

Member Data Documentation

◆ m_ContourBeingModified

◆ m_ContourLeft

◆ m_ContourRight

◆ m_LiveWireFilter

◆ m_NextActiveVertexDown

◆ m_NextActiveVertexDownIter

◆ m_NextActiveVertexUp

◆ m_NextActiveVertexUpIter

◆ m_WorkingSlice
