A time-resolved contour representation consisting of linked vertices in 3D space. More...

#include <mitkContourModel.h>

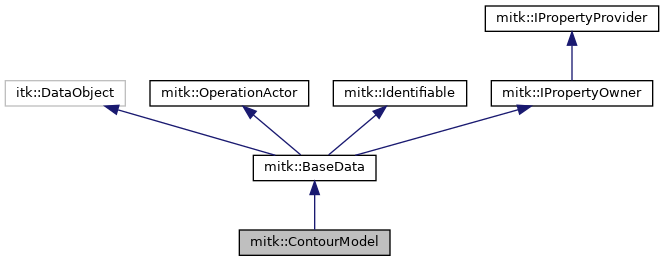

Inheritance diagram for mitk::ContourModel:

[legend]

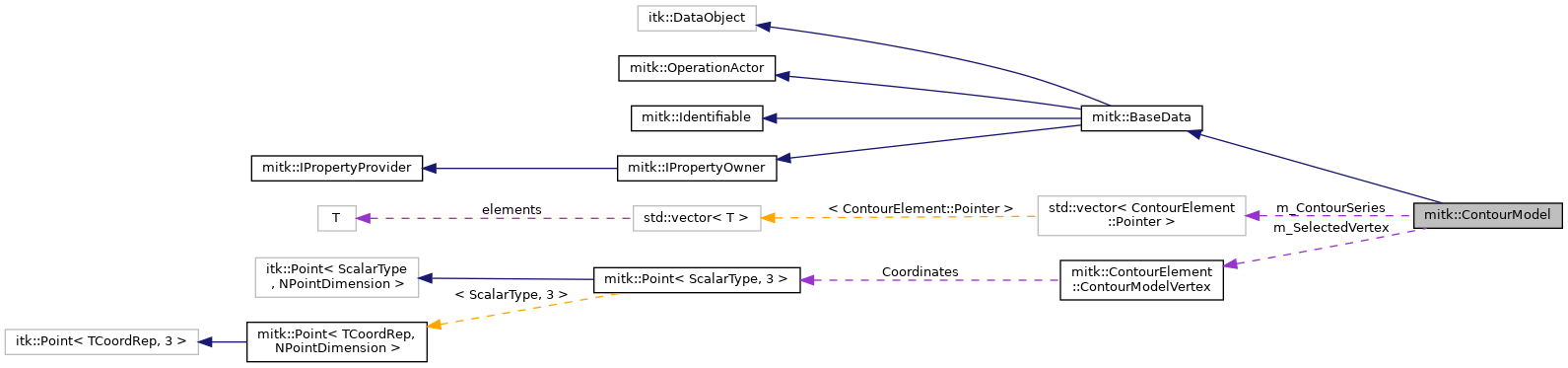

Collaboration diagram for mitk::ContourModel:

[legend]

Public Types
enum	LineSegmentInterpolation { LINEAR , B_SPLINE }
	Interpolation mode for line segments between control points. More...

typedef ContourElement::VertexType	VertexType

typedef ContourElement::VertexListType	VertexListType

typedef ContourElement::VertexIterator	VertexIterator

typedef ContourElement::ConstVertexIterator	ConstVertexIterator

typedef std::vector< ContourElement::Pointer >	ContourModelSeries

Public Types inherited from mitk::Identifiable
using	UIDType = std::string
	Type alias for unique identifiers. More...

Public Member Functions
	mitkClassMacro (ContourModel, BaseData)

Pointer	Clone () const

VertexType *	GetSelectedVertex ()
	Get the currently selected vertex. More...

void	Deselect ()
	Clear the current vertex selection. More...

void	SetSelectedVertexAsControlPoint (bool isControlPoint=true)
	Set or clear the control point flag on the currently selected vertex. More...

void	SetLineSegmentInterpolation (LineSegmentInterpolation interpolation)
	Set the interpolation mode for line segments between control points. More...

LineSegmentInterpolation	GetLineSegmentInterpolation ()
	Get the current interpolation mode for line segments between control points. More...

void	AddVertex (const Point3D &vertex, TimeStepType timestep=0)
	Add a vertex to the contour at given timestep. The vertex is added at the end of contour. More...

void	AddVertex (const VertexType &vertex, TimeStepType timestep=0)
	Add a vertex to the contour at given timestep. A copy of the passed vertex is added at the end of contour. More...

void	AddVertex (const Point3D &vertex, bool isControlPoint, TimeStepType timestep=0)
	Add a vertex to the contour. More...

void	UpdateContour (const ContourModel *sourceModel, TimeStepType destinationTimeStep, TimeStepType sourceTimeStep)

void	AddVertexAtFront (const Point3D &vertex, TimeStepType timestep=0)
	Add a vertex to the contour at given timestep AT THE FRONT of the contour. The vertex is added at the FRONT of contour. More...

void	AddVertexAtFront (const VertexType &vertex, TimeStepType timestep=0)
	Add a vertex to the contour at given timestep AT THE FRONT of the contour. The vertex is added at the FRONT of contour. More...

void	AddVertexAtFront (const Point3D &vertex, bool isControlPoint, TimeStepType timestep=0)
	Add a vertex to the contour at given timestep AT THE FRONT of the contour. More...

void	InsertVertexAtIndex (const Point3D &vertex, int index, bool isControlPoint=false, TimeStepType timestep=0)
	Insert a vertex at given index. More...

bool	SetVertexAt (int pointId, const Point3D &point, TimeStepType timestep=0)
	Set a coordinates for point at given index. More...

bool	SetVertexAt (int pointId, const VertexType *vertex, TimeStepType timestep=0)
	Set a coordinates and control state for point at given index. More...

bool	IsClosed (int timestep=0) const
	Return if the contour is closed or not. More...

void	Concatenate (ContourModel *other, TimeStepType timestep=0, bool check=false)
	Concatenate two contours. The starting control point of the other will be added at the end of the contour. More...

VertexIterator	Begin (TimeStepType timestep=0) const
	Returns a const VertexIterator at the start element of the contour. More...

VertexIterator	IteratorBegin (TimeStepType timestep=0) const
	Returns a const VertexIterator at the start element of the contour. More...

VertexIterator	End (TimeStepType timestep=0) const
	Returns a const VertexIterator at the end element of the contour. More...

VertexIterator	IteratorEnd (TimeStepType timestep=0) const
	Returns a const VertexIterator at the end element of the contour. More...

virtual void	Close (TimeStepType timestep=0)
	Close the contour. The last control point will be linked with the first point. More...

virtual void	Open (TimeStepType timestep=0)
	Set isClosed to false contour. The link between the last control point the first point will be removed. More...

virtual void	SetClosed (bool isClosed, TimeStepType timestep=0)
	Set closed property to given boolean. More...

int	GetNumberOfVertices (TimeStepType timestep=0) const
	Returns the number of vertices at a given timestep. More...

virtual bool	IsEmpty (TimeStepType timestep) const
	Returns whether the contour model is empty at a given timestep. More...

bool	IsEmpty () const override
	Returns whether the contour model is empty. More...

virtual const VertexType *	GetVertexAt (int index, TimeStepType timestep=0) const
	Returns the vertex at the index position within the container. If the index or timestep is invalid a nullptr will be returned. More...

const VertexType *	GetVertexAt (mitk::Point3D &point, float eps, TimeStepType timestep) const
	Find the nearest vertex to a given 3D position at a specific time step. More...

virtual const VertexType *	GetNextControlVertexAt (mitk::Point3D &point, float eps, TimeStepType timestep) const
	Return the next control vertex after the nearest vertex to a given 3D position. More...

virtual const VertexType *	GetPreviousControlVertexAt (mitk::Point3D &point, float eps, TimeStepType timestep) const
	Return the previous control vertex before the nearest vertex to a given 3D position. More...

int	GetIndex (const VertexType *vertex, TimeStepType timestep=0)
	Return the index of a given vertex within the contour at the specified time step. More...

bool	IsEmptyTimeStep (unsigned int t) const override
	Check whether the given time step has no associated contour data. More...

bool	IsNearContour (Point3D &point, float eps, TimeStepType timestep) const
	Check whether a given point lies near the contour at the specified time step. More...

bool	GetLineSegmentForPoint (Point3D &point, float eps, TimeStepType timestep, mitk::ContourElement::VertexType previousVertex=nullptr, mitk::ContourElement::VertexType nextVertex=nullptr)

bool	GetLineSegmentForPoint (const mitk::Point3D &point, float eps, TimeStepType timestep, ContourElement::VertexSizeType &segmentStartIndex, ContourElement::VertexSizeType &segmentEndIndex, mitk::Point3D &closestContourPoint, bool findClosest=true) const

bool	SelectVertexAt (int index, TimeStepType timestep=0)
	Mark a vertex at an index in the container as selected. More...

bool	SetControlVertexAt (int index, TimeStepType timestep=0)
	Mark a vertex at an index in the container as control point. More...

bool	SelectControlVertexAt (const Point3D &point, float eps, TimeStepType timestep=0)
	Mark a control vertex at a given position in 3D space. More...

bool	SelectVertexAt (const Point3D &point, float eps, TimeStepType timestep=0)
	Mark a vertex at a given position in 3D space. More...

bool	SetControlVertexAt (Point3D &point, float eps, TimeStepType timestep=0)

bool	RemoveVertexAt (int index, TimeStepType timestep=0)
	Remove a vertex at given index within the container. More...

bool	RemoveVertex (const VertexType *vertex, TimeStepType timestep=0)
	Remove a vertex at given timestep within the container. More...

bool	RemoveVertexAt (Point3D &point, float eps, TimeStepType timestep=0)
	Remove a vertex at a query position in 3D space. More...

void	ShiftSelectedVertex (Vector3D &translate)
	Shift the currently selected vertex by a translation vector. More...

void	ShiftContour (Vector3D &translate, TimeStepType timestep=0)
	Shift the whole contour by a translation vector at given timestep. More...

virtual void	Clear (TimeStepType timestep)
	Clear the storage container at given timestep. More...

void	Initialize () override
	Initialize all data objects. More...

void	Initialize (const ContourModel &other)
	Initialize object with specs of other contour. Note: No data will be copied. More...

VertexListType	GetControlVertices (TimeStepType timestep)
	Returns a list pointing to all vertices that are indicated to be control points. More...

VertexListType	GetVertexList (TimeStepType timestep)
	Returns the container of the vertices. More...

void	SetRequestedRegionToLargestPossibleRegion () override
	Inherit from base data - no region support available for contourModel objects. More...

bool	RequestedRegionIsOutsideOfTheBufferedRegion () override
	Inherit from base data - no region support available for contourModel objects. More...

bool	VerifyRequestedRegion () override
	Inherit from base data - no region support available for contourModel objects. More...

void	SetRequestedRegion (const itk::DataObject *data) override
	Inherit from base data - no region support available for contourModel objects. More...

void	Expand (unsigned int timeSteps) override
	Expand the contour model and its TimeGeometry to given number of timesteps. More...

void	UpdateOutputInformation () override
	Update the OutputInformation of a ContourModel object. More...

void	Clear () override
	Clear the storage container. More...

void	ExecuteOperation (Operation *operation) override
	overwrite if the Data can be called by an Interactor (StateMachine). More...

virtual void	RedistributeControlVertices (int period, TimeStepType timestep)
	Redistributes control vertices with a given period (as number of vertices) More...

Public Member Functions inherited from mitk::BaseData
	mitkClassMacroItkParent (BaseData, itk::DataObject)

BaseProperty::ConstPointer	GetConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const override
	Get a const property by its key. More...

std::vector< std::string >	GetPropertyKeys (const std::string &contextName="", bool includeDefaultContext=false) const override
	Get all property keys stored in the property list. More...

std::vector< std::string >	GetPropertyContextNames () const override
	Get the names of all property contexts. More...

BaseProperty *	GetNonConstProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) override
	Get a non-const property by its key. More...

void	SetProperty (const std::string &propertyKey, BaseProperty *property, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Set a property in the property list. More...

void	RemoveProperty (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=false) override
	Remove a property from the property list. More...

const mitk::TimeGeometry *	GetTimeGeometry () const
	Return the TimeGeometry of the data as const pointer. More...

mitk::TimeGeometry *	GetTimeGeometry ()
	Return the TimeGeometry of the data as non-const pointer. More...

const mitk::TimeGeometry *	GetUpdatedTimeGeometry ()
	Return the TimeGeometry of the data after ensuring it is up-to-date. More...

const mitk::BaseGeometry *	GetUpdatedGeometry (int t=0)
	Return the BaseGeometry of the data at time step t after ensuring it is up-to-date. More...

mitk::BaseGeometry *	GetGeometry (int t=0) const
	Return the BaseGeometry of the data at time step t as a non-const pointer. More...

void	UpdateOutputInformation () override
	Update the information for this BaseData so that it can be used as an output of a BaseProcess. More...

void	CopyInformation (const itk::DataObject *data) override
	Copy information from the specified data set. More...

virtual bool	IsInitialized () const
	Check whether the data has been initialized. More...

void	ExecuteOperation (Operation *operation) override
	Execute an operation on this data object. More...

virtual void	SetGeometry (BaseGeometry *aGeometry3D)
	Set the BaseGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetTimeGeometry (TimeGeometry *geometry)
	Set the TimeGeometry of the data, which will be referenced (not copied!). More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D)
	Set a clone of the provided geometry as the BaseGeometry of the data. More...

virtual void	SetClonedTimeGeometry (const TimeGeometry *geometry)
	Set a clone of the provided TimeGeometry as the TimeGeometry of the data. More...

virtual void	SetClonedGeometry (const BaseGeometry *aGeometry3D, unsigned int time)
	Set a clone of the provided geometry as the BaseGeometry of a given time step. More...

mitk::PropertyList::Pointer	GetPropertyList () const
	Get the data's property list. More...

void	SetPropertyList (PropertyList *propertyList)
	Set the data's property list, replacing the existing one. More...

mitk::BaseProperty::Pointer	GetProperty (const char *propertyKey) const
	Get a property by its key from the PropertyList. More...

void	SetProperty (const char propertyKey, BaseProperty property)
	Set a property in the PropertyList. More...

virtual void	SetOrigin (const Point3D &origin)
	Convenience method for setting the origin of the BaseGeometry instances of all time steps. More...

itk::SmartPointer< mitk::BaseDataSource >	GetSource () const
	Get the process object that generated this data object. More...

unsigned int	GetTimeSteps () const
	Get the number of time steps from the TimeGeometry. More...

itk::ModifiedTimeType	GetMTime () const override
	Get the modification time of this data object or its geometry, whichever was modified most recently. More...

void	Graft (const DataObject *) override
	Graft data and information from another data object. More...

Public Member Functions inherited from mitk::OperationActor
	itkTypeMacroNoParent (OperationActor) virtual ~OperationActor()

Public Member Functions inherited from mitk::Identifiable
	Identifiable ()
	Default constructor. Generates a new random UID. More...

	Identifiable (const UIDType &uid)
	Construct with a pre-existing UID. More...

	Identifiable (const Identifiable &)=delete
	Copy construction is deleted to prevent UID duplication. More...

	Identifiable (Identifiable &&) noexcept
	Move constructor. Transfers ownership of the UID. More...

virtual	~Identifiable ()
	Virtual destructor. More...

Identifiable &	operator= (const Identifiable &)=delete
	Copy assignment is deleted to prevent UID duplication. More...

Identifiable &	operator= (Identifiable &&other) noexcept
	Move assignment operator. Transfers ownership of the UID. More...

virtual UIDType	GetUID () const
	Get the unique identifier of this object. More...

UIDType	GetRuntimeUID () const noexcept
	Get a runtime-unique ID for this object instance. More...

Public Member Functions inherited from mitk::IPropertyOwner
	~IPropertyOwner () override

virtual bool	PropertyIsOwned (const std::string &propertyKey, const std::string &contextName="", bool fallBackOnDefaultContext=true) const
	Checks if a certain property exists. More...

Public Member Functions inherited from mitk::IPropertyProvider
virtual	~IPropertyProvider ()
	Virtual destructor. More...

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	mitkCloneMacro (Self)

	ContourModel ()

	ContourModel (const ContourModel &other)

	~ContourModel () override

void	ClearData () override
	reset to non-initialized state, release memory More...

void	InitializeEmpty () override
	Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry. More...

Protected Member Functions inherited from mitk::BaseData
	BaseData ()

	BaseData (const BaseData &other)

	~BaseData () override

virtual void	InitializeTimeGeometry (unsigned int timeSteps=1)
	Initialize the TimeGeometry for a number of time steps. The TimeGeometry is initialized empty and evenly timed. In many cases it will be necessary to overwrite this in sub-classes. More...

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Member Functions inherited from mitk::Identifiable
virtual void	SetUID (const UIDType &uid)

Static Protected Member Functions
static void	ShiftVertex (VertexType *vertex, Vector3D &vector)

Protected Attributes
ContourModelSeries	m_ContourSeries

VertexType *	m_SelectedVertex

LineSegmentInterpolation	m_lineInterpolation

bool	m_UpdateBoundingBox

Protected Attributes inherited from mitk::BaseData
bool	m_LastRequestedRegionWasOutsideOfTheBufferedRegion

unsigned int	m_SourceOutputIndexDuplicate

bool	m_Initialized

Detailed Description

A time-resolved contour representation consisting of linked vertices in 3D space.

ContourModel stores a sequence of vertices (mitk::ContourElement) for each time step. Line segments between vertices are implicitly defined. By default, consecutive control points are connected by straight lines, but B-spline interpolation is also available.

Vertices can be added at the front or end and accessed by index, 3D position, or iterator. The contour may be open (a polyline) or closed (forming a Jordan curve). Interaction operations such as shifting individual vertices or the entire contour are provided directly in the API without requiring a separate interactor class.

ContourModel inherits from mitk::BaseData and therefore integrates with the MITK data management framework (DataStorage, DataNode, TimeGeometry).

Display Options

The default mappers are mitk::ContourModelMapper2D and mitk::ContourModelMapper3D. See those classes for display properties that can be configured via DataNode properties.

See also: ContourElement, ContourModelSet, ContourModelMapper2D, ContourModelMapper3D

Definition at line 46 of file mitkContourModel.h.

Member Typedef Documentation

◆ ConstVertexIterator

typedef ContourElement::ConstVertexIterator mitk::ContourModel::ConstVertexIterator

Definition at line 59 of file mitkContourModel.h.

◆ ContourModelSeries

typedef std::vector<ContourElement::Pointer> mitk::ContourModel::ContourModelSeries

Definition at line 60 of file mitkContourModel.h.

◆ VertexIterator

typedef ContourElement::VertexIterator mitk::ContourModel::VertexIterator

Definition at line 58 of file mitkContourModel.h.

◆ VertexListType

typedef ContourElement::VertexListType mitk::ContourModel::VertexListType

Definition at line 57 of file mitkContourModel.h.

◆ VertexType

typedef ContourElement::VertexType mitk::ContourModel::VertexType

Definition at line 56 of file mitkContourModel.h.

Member Enumeration Documentation

◆ LineSegmentInterpolation

enum mitk::ContourModel::LineSegmentInterpolation

Interpolation mode for line segments between control points.

Determines how consecutive control points are connected visually.

Enumerator
LINEAR	Straight line segments between control points.
B_SPLINE	B-spline interpolated curve through control points.

Definition at line 67 of file mitkContourModel.h.

Constructor & Destructor Documentation

◆ ContourModel() [1/2]

mitk::ContourModel::ContourModel ( )

protected

◆ ContourModel() [2/2]

mitk::ContourModel::ContourModel ( const ContourModel & other )

protected

◆ ~ContourModel()

mitk::ContourModel::~ContourModel ( )

overrideprotected

Member Function Documentation

◆ AddVertex() [1/3]

void mitk::ContourModel::AddVertex	(	const Point3D &	vertex,
		bool	isControlPoint,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)
isControlPoint	- specifies the vertex to be handled in a special way (e.g. control points will be rendered).

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ AddVertex() [2/3]

void mitk::ContourModel::AddVertex	(	const Point3D &	vertex,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour at given timestep. The vertex is added at the end of contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ AddVertex() [3/3]

void mitk::ContourModel::AddVertex	(	const VertexType &	vertex,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour at given timestep. A copy of the passed vertex is added at the end of contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ AddVertexAtFront() [1/3]

void mitk::ContourModel::AddVertexAtFront	(	const Point3D &	vertex,
		bool	isControlPoint,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour at given timestep AT THE FRONT of the contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)
isControlPoint	- specifies the vertex to be handled in a special way (e.g. control points will be rendered).

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ AddVertexAtFront() [2/3]

void mitk::ContourModel::AddVertexAtFront	(	const Point3D &	vertex,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour at given timestep AT THE FRONT of the contour. The vertex is added at the FRONT of contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ AddVertexAtFront() [3/3]

void mitk::ContourModel::AddVertexAtFront	(	const VertexType &	vertex,
		TimeStepType	timestep = `0`
	)

Add a vertex to the contour at given timestep AT THE FRONT of the contour. The vertex is added at the FRONT of contour.

Parameters

vertex	- coordinate representation of a control point
timestep	- the timestep at which the vertex will be add ( default 0)

Note: Adding a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ Begin()

VertexIterator mitk::ContourModel::Begin ( TimeStepType timestep = 0 ) const

Returns a const VertexIterator at the start element of the contour.

Exceptions

mitk::Exception if the timestep is invalid.

◆ Clear() [1/2]

void mitk::ContourModel::Clear ( )

overridevirtual

Clear the storage container.

The object is set to initial state. All control points are removed and the number of timesteps are set to 1.

Reimplemented from mitk::BaseData.

◆ Clear() [2/2]

virtual void mitk::ContourModel::Clear ( TimeStepType timestep )

virtual

Clear the storage container at given timestep.

All control points are removed at timestep.

◆ ClearData()

void mitk::ContourModel::ClearData ( )

overrideprotectedvirtual

reset to non-initialized state, release memory

Reimplemented from mitk::BaseData.

◆ Clone()

Pointer mitk::ContourModel::Clone ( ) const

◆ Close()

virtual void mitk::ContourModel::Close ( TimeStepType timestep = 0 )

virtual

Close the contour. The last control point will be linked with the first point.

◆ Concatenate()

void mitk::ContourModel::Concatenate	(	ContourModel *	other,
		TimeStepType	timestep = `0`,
		bool	check = `false`
	)

Concatenate two contours. The starting control point of the other will be added at the end of the contour.

Parameters

other
timestep	- the timestep at which the vertex will be add ( default 0)
check	- check for intersections ( default false)

◆ Deselect()

void mitk::ContourModel::Deselect ( )

inline

Clear the current vertex selection.

Postcondition: GetSelectedVertex() returns nullptr.

Definition at line 83 of file mitkContourModel.h.

◆ End()

VertexIterator mitk::ContourModel::End ( TimeStepType timestep = 0 ) const

Returns a const VertexIterator at the end element of the contour.

Exceptions

mitk::Exception if the timestep is invalid.

◆ ExecuteOperation()

void mitk::ContourModel::ExecuteOperation ( Operation * operation )

overridevirtual

overwrite if the Data can be called by an Interactor (StateMachine).

Implements mitk::OperationActor.

◆ Expand()

void mitk::ContourModel::Expand ( unsigned int timeSteps )

overridevirtual

Expand the contour model and its TimeGeometry to given number of timesteps.

Reimplemented from mitk::BaseData.

◆ GetControlVertices()

VertexListType mitk::ContourModel::GetControlVertices ( TimeStepType timestep )

Returns a list pointing to all vertices that are indicated to be control points.

◆ GetIndex()

int mitk::ContourModel::GetIndex	(	const VertexType *	vertex,
		TimeStepType	timestep = `0`
	)

Return the index of a given vertex within the contour at the specified time step.

Parameters

[in]	vertex	Pointer to the vertex to find.
[in]	timestep	Time step to query. Default is 0.

Returns: Index of the vertex, or -1 if not found or the timestep is invalid.

◆ GetLineSegmentForPoint() [1/2]

bool mitk::ContourModel::GetLineSegmentForPoint	(	const mitk::Point3D &	point,
		float	eps,
		TimeStepType	timestep,
		ContourElement::VertexSizeType &	segmentStartIndex,
		ContourElement::VertexSizeType &	segmentEndIndex,
		mitk::Point3D &	closestContourPoint,
		bool	findClosest = `true`
	)		const

Overloaded version that returns additional information (start and end vertex of the line closest to the passed point and the closest point on the contour).

Remarks: segmentStart, segmentStop and closestContourPoint are only valid if the function returns true.

◆ GetLineSegmentForPoint() [2/2]

bool mitk::ContourModel::GetLineSegmentForPoint	(	Point3D &	point,
		float	eps,
		TimeStepType	timestep,
		mitk::ContourElement::VertexType *	previousVertex = `nullptr`,
		mitk::ContourElement::VertexType *	nextVertex = `nullptr`
	)

Function that searches for the line segment of the contour that is closest to the passed point and close enough (distance between point and line segment <= eps). If such an line segment exist, the starting vertex and closing vertex of the found segment are passed back.

Returns: True indicates that a line segment was found. False indicates that no segment of the contour is close enough to the passed point.

Remarks: previousVertex and nextVertex are only valid if return is true.

◆ GetLineSegmentInterpolation()

LineSegmentInterpolation mitk::ContourModel::GetLineSegmentInterpolation ( )

inline

Get the current interpolation mode for line segments between control points.

Returns: The current LineSegmentInterpolation mode.

See also: SetLineSegmentInterpolation

Definition at line 113 of file mitkContourModel.h.

◆ GetNextControlVertexAt()

virtual const VertexType* mitk::ContourModel::GetNextControlVertexAt	(	mitk::Point3D &	point,
		float	eps,
		TimeStepType	timestep
	)		const

virtual

Return the next control vertex after the nearest vertex to a given 3D position.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for the search.
[in]	timestep	Time step to query.

Returns: Const pointer to the next control vertex, or nullptr if the timestep is invalid or no vertex is found.

◆ GetNumberOfVertices()

int mitk::ContourModel::GetNumberOfVertices ( TimeStepType timestep = 0 ) const

Returns the number of vertices at a given timestep.

Parameters

timestep - default = 0

◆ GetPreviousControlVertexAt()

virtual const VertexType* mitk::ContourModel::GetPreviousControlVertexAt	(	mitk::Point3D &	point,
		float	eps,
		TimeStepType	timestep
	)		const

virtual

Return the previous control vertex before the nearest vertex to a given 3D position.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for the search.
[in]	timestep	Time step to query.

Returns: Const pointer to the previous control vertex, or nullptr if the timestep is invalid or no vertex is found.

◆ GetSelectedVertex()

VertexType* mitk::ContourModel::GetSelectedVertex ( )

inline

Get the currently selected vertex.

Returns: Pointer to the selected vertex, or nullptr if no vertex is selected.

Definition at line 78 of file mitkContourModel.h.

◆ GetVertexAt() [1/2]

virtual const VertexType* mitk::ContourModel::GetVertexAt	(	int	index,
		TimeStepType	timestep = `0`
	)		const

virtual

Returns the vertex at the index position within the container. If the index or timestep is invalid a nullptr will be returned.

◆ GetVertexAt() [2/2]

const VertexType* mitk::ContourModel::GetVertexAt	(	mitk::Point3D &	point,
		float	eps,
		TimeStepType	timestep
	)		const

Find the nearest vertex to a given 3D position at a specific time step.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for the search.
[in]	timestep	Time step to query.

Returns: Const pointer to the nearest vertex, or nullptr if the timestep is invalid or no vertex is within eps.

◆ GetVertexList()

VertexListType mitk::ContourModel::GetVertexList ( TimeStepType timestep )

Returns the container of the vertices.

◆ Initialize() [1/2]

void mitk::ContourModel::Initialize ( )

override

Initialize all data objects.

◆ Initialize() [2/2]

void mitk::ContourModel::Initialize ( const ContourModel & other )

Initialize object with specs of other contour. Note: No data will be copied.

◆ InitializeEmpty()

void mitk::ContourModel::InitializeEmpty ( )

overrideprotectedvirtual

Pure virtual; Must be used in subclasses to get a data object to a valid state. Should at least create one empty object and call Superclass::InitializeTimeGeometry() to ensure an existing valid geometry.

Reimplemented from mitk::BaseData.

◆ InsertVertexAtIndex()

void mitk::ContourModel::InsertVertexAtIndex	(	const Point3D &	vertex,
		int	index,
		bool	isControlPoint = `false`,
		TimeStepType	timestep = `0`
	)

Insert a vertex at given index.

◆ IsClosed()

bool mitk::ContourModel::IsClosed ( int timestep = 0 ) const

Return if the contour is closed or not.

◆ IsEmpty() [1/2]

bool mitk::ContourModel::IsEmpty ( ) const

overridevirtual

Returns whether the contour model is empty.

Reimplemented from mitk::BaseData.

◆ IsEmpty() [2/2]

virtual bool mitk::ContourModel::IsEmpty ( TimeStepType timestep ) const

virtual

Returns whether the contour model is empty at a given timestep.

Parameters

timestep - default = 0

◆ IsEmptyTimeStep()

bool mitk::ContourModel::IsEmptyTimeStep ( unsigned int t ) const

overridevirtual

Check whether the given time step has no associated contour data.

Parameters

[in] t Time step index.

Returns: True if t exceeds the number of available time steps.

Reimplemented from mitk::BaseData.

◆ IsNearContour()

bool mitk::ContourModel::IsNearContour	(	Point3D &	point,
		float	eps,
		TimeStepType	timestep
	)		const

Check whether a given point lies near the contour at the specified time step.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum squared distance for the proximity test.
[in]	timestep	Time step to query.

Returns: True if the point is near the contour, false otherwise.

◆ IteratorBegin()

VertexIterator mitk::ContourModel::IteratorBegin ( TimeStepType timestep = 0 ) const

Returns a const VertexIterator at the start element of the contour.

Exceptions

mitk::Exception if the timestep is invalid.

◆ IteratorEnd()

VertexIterator mitk::ContourModel::IteratorEnd ( TimeStepType timestep = 0 ) const

Returns a const VertexIterator at the end element of the contour.

Exceptions

mitk::Exception if the timestep is invalid.

◆ mitkClassMacro()

mitk::ContourModel::mitkClassMacro	(	ContourModel	,
		BaseData
	)

◆ mitkCloneMacro()

mitk::ContourModel::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::ContourModel::New ( )

static

◆ Open()

virtual void mitk::ContourModel::Open ( TimeStepType timestep = 0 )

virtual

Set isClosed to false contour. The link between the last control point the first point will be removed.

◆ RedistributeControlVertices()

virtual void mitk::ContourModel::RedistributeControlVertices	(	int	period,
		TimeStepType	timestep
	)

virtual

Redistributes control vertices with a given period (as number of vertices)

Parameters

period	- the number of vertices between control points.
timestep	- at this timestep all lines will be rebuilt.

◆ RemoveVertex()

bool mitk::ContourModel::RemoveVertex	(	const VertexType *	vertex,
		TimeStepType	timestep = `0`
	)

Remove a vertex at given timestep within the container.

Returns: true = the vertex was successfully removed.

◆ RemoveVertexAt() [1/2]

bool mitk::ContourModel::RemoveVertexAt	(	int	index,
		TimeStepType	timestep = `0`
	)

Remove a vertex at given index within the container.

Returns: true = the vertex was successfully removed; false = wrong index.

◆ RemoveVertexAt() [2/2]

bool mitk::ContourModel::RemoveVertexAt	(	Point3D &	point,
		float	eps,
		TimeStepType	timestep = `0`
	)

Remove a vertex at a query position in 3D space.

The vertex to be removed will be search by nearest neighbour search. Note that possibly no vertex at this position and eps is stored inside the contour.

Returns: true = the vertex was successfully removed; false = no vertex found.

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

bool mitk::ContourModel::RequestedRegionIsOutsideOfTheBufferedRegion ( )

overridevirtual

Inherit from base data - no region support available for contourModel objects.

Implements mitk::BaseData.

◆ SelectControlVertexAt()

bool mitk::ContourModel::SelectControlVertexAt	(	const Point3D &	point,
		float	eps,
		TimeStepType	timestep = `0`
	)

Mark a control vertex at a given position in 3D space.

Parameters

point	- query point in 3D space
eps	- radius for nearest neighbour search (error bound).
timestep	- search at this timestep

Returns: true = vertex found; false = no vertex found

◆ SelectVertexAt() [1/2]

bool mitk::ContourModel::SelectVertexAt	(	const Point3D &	point,
		float	eps,
		TimeStepType	timestep = `0`
	)

Mark a vertex at a given position in 3D space.

Parameters

point	- query point in 3D space
eps	- radius for nearest neighbour search (error bound).
timestep	- search at this timestep

Returns: true = vertex found; false = no vertex found

◆ SelectVertexAt() [2/2]

bool mitk::ContourModel::SelectVertexAt	(	int	index,
		TimeStepType	timestep = `0`
	)

Mark a vertex at an index in the container as selected.

◆ SetClosed()

virtual void mitk::ContourModel::SetClosed	(	bool	isClosed,
		TimeStepType	timestep = `0`
	)

virtual

Set closed property to given boolean.

false - The link between the last control point the first point will be removed. true - The last control point will be linked with the first point.

◆ SetControlVertexAt() [1/2]

bool mitk::ContourModel::SetControlVertexAt	(	int	index,
		TimeStepType	timestep = `0`
	)

Mark a vertex at an index in the container as control point.

◆ SetControlVertexAt() [2/2]

bool mitk::ContourModel::SetControlVertexAt	(	Point3D &	point,
		float	eps,
		TimeStepType	timestep = `0`
	)

◆ SetLineSegmentInterpolation()

void mitk::ContourModel::SetLineSegmentInterpolation ( LineSegmentInterpolation interpolation )

inline

Set the interpolation mode for line segments between control points.

Parameters

[in] interpolation The desired interpolation mode.

See also: GetLineSegmentInterpolation

Definition at line 103 of file mitkContourModel.h.

◆ SetRequestedRegion()

void mitk::ContourModel::SetRequestedRegion ( const itk::DataObject * data )

overridevirtual

Inherit from base data - no region support available for contourModel objects.

Implements mitk::BaseData.

◆ SetRequestedRegionToLargestPossibleRegion()

void mitk::ContourModel::SetRequestedRegionToLargestPossibleRegion ( )

overridevirtual

Inherit from base data - no region support available for contourModel objects.

Implements mitk::BaseData.

◆ SetSelectedVertexAsControlPoint()

void mitk::ContourModel::SetSelectedVertexAsControlPoint ( bool isControlPoint = true )

inline

Set or clear the control point flag on the currently selected vertex.

Parameters

[in] isControlPoint If true, marks the selected vertex as a control point; if false, removes the control point designation. Default is true.

Note: Does nothing if no vertex is currently selected.

Definition at line 90 of file mitkContourModel.h.

◆ SetVertexAt() [1/2]

bool mitk::ContourModel::SetVertexAt	(	int	pointId,
		const Point3D &	point,
		TimeStepType	timestep = `0`
	)

Set a coordinates for point at given index.

◆ SetVertexAt() [2/2]

bool mitk::ContourModel::SetVertexAt	(	int	pointId,
		const VertexType *	vertex,
		TimeStepType	timestep = `0`
	)

Set a coordinates and control state for point at given index.

◆ ShiftContour()

void mitk::ContourModel::ShiftContour	(	Vector3D &	translate,
		TimeStepType	timestep = `0`
	)

Shift the whole contour by a translation vector at given timestep.

Parameters

translate	- the translation vector.
timestep	- at this timestep the contour will be shifted.

◆ ShiftSelectedVertex()

void mitk::ContourModel::ShiftSelectedVertex ( Vector3D & translate )

Shift the currently selected vertex by a translation vector.

Parameters

translate - the translation vector.

◆ ShiftVertex()

static void mitk::ContourModel::ShiftVertex	(	VertexType *	vertex,
		Vector3D &	vector
	)

staticprotected

◆ UpdateContour()

void mitk::ContourModel::UpdateContour	(	const ContourModel *	sourceModel,
		TimeStepType	destinationTimeStep,
		TimeStepType	sourceTimeStep
	)

Clears the contour of destinationTimeStep and copies the contour of the passed source model at the sourceTimeStep.

Precondition: sourceModel must point to a valid instance; sourceTimePoint must be valid

Note: Updating a vertex to a timestep which exceeds the timebounds of the contour will not be added, the TimeGeometry will not be expanded.

◆ UpdateOutputInformation()

void mitk::ContourModel::UpdateOutputInformation ( )

override

Update the OutputInformation of a ContourModel object.

The BoundingBox of the contour will be updated, if necessary.

◆ VerifyRequestedRegion()

bool mitk::ContourModel::VerifyRequestedRegion ( )

overridevirtual

Inherit from base data - no region support available for contourModel objects.

Implements mitk::BaseData.

Member Data Documentation

◆ m_ContourSeries

ContourModelSeries mitk::ContourModel::m_ContourSeries

protected

Definition at line 501 of file mitkContourModel.h.

◆ m_lineInterpolation

LineSegmentInterpolation mitk::ContourModel::m_lineInterpolation

protected

Definition at line 507 of file mitkContourModel.h.

◆ m_SelectedVertex

VertexType* mitk::ContourModel::m_SelectedVertex

protected

Definition at line 504 of file mitkContourModel.h.

◆ m_UpdateBoundingBox

bool mitk::ContourModel::m_UpdateBoundingBox

protected

Definition at line 510 of file mitkContourModel.h.

The documentation for this class was generated from the following file:

mitkContourModel.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Display Options

Member Typedef Documentation

◆ ConstVertexIterator

◆ ContourModelSeries

◆ VertexIterator

◆ VertexListType

◆ VertexType

Member Enumeration Documentation

◆ LineSegmentInterpolation

Constructor & Destructor Documentation

◆ ContourModel() [1/2]

◆ ContourModel() [2/2]

◆ ~ContourModel()

Member Function Documentation

◆ AddVertex() [1/3]

◆ AddVertex() [2/3]

◆ AddVertex() [3/3]

◆ AddVertexAtFront() [1/3]

◆ AddVertexAtFront() [2/3]

◆ AddVertexAtFront() [3/3]

◆ Begin()

◆ Clear() [1/2]

◆ Clear() [2/2]

◆ ClearData()

◆ Clone()

◆ Close()

◆ Concatenate()

◆ Deselect()

◆ End()

◆ ExecuteOperation()

◆ Expand()

◆ GetControlVertices()

◆ GetIndex()

◆ GetLineSegmentForPoint() [1/2]

◆ GetLineSegmentForPoint() [2/2]

◆ GetLineSegmentInterpolation()

◆ GetNextControlVertexAt()

◆ GetNumberOfVertices()

◆ GetPreviousControlVertexAt()

◆ GetSelectedVertex()

◆ GetVertexAt() [1/2]

◆ GetVertexAt() [2/2]

◆ GetVertexList()

◆ Initialize() [1/2]

◆ Initialize() [2/2]

◆ InitializeEmpty()

◆ InsertVertexAtIndex()

◆ IsClosed()

◆ IsEmpty() [1/2]

◆ IsEmpty() [2/2]

◆ IsEmptyTimeStep()

◆ IsNearContour()

◆ IteratorBegin()

◆ IteratorEnd()

◆ mitkClassMacro()

◆ mitkCloneMacro()

◆ New()

◆ Open()

◆ RedistributeControlVertices()

◆ RemoveVertex()

◆ RemoveVertexAt() [1/2]

◆ RemoveVertexAt() [2/2]

◆ RequestedRegionIsOutsideOfTheBufferedRegion()

◆ SelectControlVertexAt()

◆ SelectVertexAt() [1/2]

◆ SelectVertexAt() [2/2]

◆ SetClosed()

◆ SetControlVertexAt() [1/2]

◆ SetControlVertexAt() [2/2]

◆ SetLineSegmentInterpolation()

◆ SetRequestedRegion()

◆ SetRequestedRegionToLargestPossibleRegion()

◆ SetSelectedVertexAsControlPoint()
