Represents a contour in 3D space as a sequence of linked vertices. More...

#include <mitkContourElement.h>

Inheritance diagram for mitk::ContourElement:

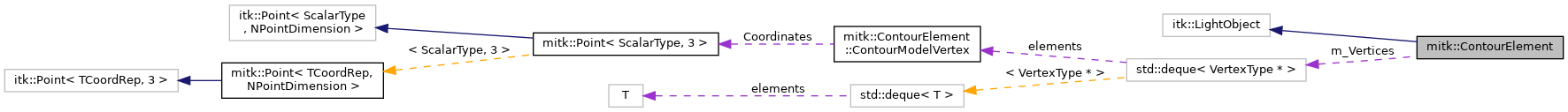

Collaboration diagram for mitk::ContourElement:

[legend]

Classes
struct	ContourModelVertex
	Represents a single vertex of a contour. More...

Public Types
using	VertexType = ContourModelVertex
	Alias for the vertex type used in this contour. More...

using	VertexListType = std::deque< VertexType * >
	Alias for the container type storing vertex pointers. More...

using	VertexIterator = VertexListType::iterator
	Mutable iterator for traversing vertices. More...

using	ConstVertexIterator = VertexListType::const_iterator
	Const iterator for traversing vertices. More...

using	VertexSizeType = VertexListType::size_type
	Size type for indexing into the vertex list. More...

Public Member Functions
	mitkClassMacroItkParent (ContourElement, itk::LightObject)

Pointer	Clone () const

ConstVertexIterator	ConstIteratorBegin () const
	Return a const iterator to the first vertex. More...

ConstVertexIterator	ConstIteratorEnd () const
	Return a const iterator past the last vertex. More...

VertexIterator	IteratorBegin ()
	Return a mutable iterator to the first vertex. More...

VertexIterator	IteratorEnd ()
	Return a mutable iterator past the last vertex. More...

ConstVertexIterator	begin () const
	Return a const iterator to the first vertex (STL-compatible). More...

ConstVertexIterator	end () const
	Return a const iterator past the last vertex (STL-compatible). More...

VertexIterator	begin ()
	Return a mutable iterator to the first vertex (STL-compatible). More...

VertexIterator	end ()
	Return a mutable iterator past the last vertex (STL-compatible). More...

VertexSizeType	GetSize () const
	Return the number of vertices in this contour element. More...

void	AddVertex (const mitk::Point3D &point, bool isControlPoint)
	Add a vertex at the end of the contour. More...

void	AddVertexAtFront (const mitk::Point3D &point, bool isControlPoint)
	Add a vertex at the front of the contour. More...

void	InsertVertexAtIndex (const mitk::Point3D &point, bool isControlPoint, VertexSizeType index)
	Insert a vertex at the given index in the contour. More...

void	SetVertexAt (VertexSizeType pointId, const mitk::Point3D &point)
	Set the coordinates of an existing vertex at the given index. More...

void	SetVertexAt (VertexSizeType pointId, const VertexType *vertex)
	Set the vertex data at a given index by copying from the provided vertex. More...

VertexType *	GetVertexAt (VertexSizeType index)
	Return the vertex at the given index. More...

const VertexType *	GetVertexAt (VertexSizeType index) const
	Return the vertex at the given index (const version). More...

VertexType *	GetVertexAt (const mitk::Point3D &point, float eps)
	Find the nearest vertex to a given 3D position within a search radius. More...

VertexType *	GetNextControlVertexAt (const mitk::Point3D &point, float eps)
	Return the next control vertex after the nearest vertex to a given 3D position. More...

VertexType *	GetPreviousControlVertexAt (const mitk::Point3D &point, float eps)
	Return the previous control vertex before the nearest vertex to a given 3D position. More...

VertexType *	GetControlVertexAt (const mitk::Point3D &point, float eps)
	Find the nearest control vertex to a given 3D position within a search radius. More...

VertexSizeType	GetIndex (const VertexType *vertex) const
	Return the index of a given vertex within the contour. More...

const VertexListType *	GetVertexList () const
	Return a pointer to the internal vertex container. More...

bool	IsEmpty () const
	Check whether the contour element contains no vertices. More...

bool	IsClosed () const
	Check whether the contour is closed. More...

bool	IsNearContour (const mitk::Point3D &point, float eps) const
	Check whether a given point lies near the contour within a specified tolerance. More...

bool	GetLineSegmentForPoint (const mitk::Point3D &point, float eps, mitk::ContourElement::VertexType previousVertex, mitk::ContourElement::VertexType nextVertex) const
	Find the contour line segment closest to a given point. More...

bool	GetLineSegmentForPoint (const mitk::Point3D &point, float eps, VertexSizeType &segmentStartIndex, VertexSizeType &segmentEndIndex, mitk::Point3D &closestContourPoint, bool findClosest=true) const
	Find the contour line segment closest to a given point (extended version). More...

void	Close ()
	Close the contour by logically connecting the last vertex to the first. More...

void	Open ()
	Open the contour by removing the logical connection between last and first vertex. More...

void	SetClosed (bool isClosed)
	Set the closed state of the contour. More...

void	Concatenate (const mitk::ContourElement *other, bool check)
	Append all vertices of another contour to the end of this contour. More...

bool	RemoveVertex (const VertexType *vertex)
	Remove a specific vertex from the contour by pointer identity. More...

bool	RemoveVertexAt (VertexSizeType index)
	Remove the vertex at a given index. More...

bool	RemoveVertexAt (const mitk::Point3D &point, double eps)
	Remove the nearest vertex to a given 3D position within a search radius. More...

void	Clear ()
	Remove all vertices from the contour and free their memory. More...

VertexType *	BruteForceGetVertexAt (const mitk::Point3D &point, double eps, bool isControlPoint=false, int offset=0)
	Find the nearest vertex to a given 3D position using brute-force search. More...

int	BruteForceGetVertexIndexAt (const mitk::Point3D &point, double eps, VertexListType verticesList)
	Find the index of the nearest vertex to a given 3D position using brute-force search. More...

VertexListType	GetControlVertices () const
	Return a list of all vertices that are marked as control points. More...

void	RedistributeControlVertices (const VertexType *vertex, int period)
	Uniformly redistribute control point markers among the vertices. More...

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const VertexSizeType	NPOS
	Sentinel value indicating an invalid vertex index. More...

Protected Member Functions
	mitkCloneMacro (Self)

	ContourElement ()=default

	ContourElement (const mitk::ContourElement &other)

	~ContourElement ()

ContourElement &	operator= (const ContourElement &other)

bool	RemoveVertexByIterator (VertexListType::iterator &iter)

Protected Attributes
VertexListType	m_Vertices

bool	m_IsClosed

Detailed Description

Represents a contour in 3D space as a sequence of linked vertices.

A ContourElement consists of linked vertices that implicitly define a contour. The vertices are stored in a double-ended queue (std::deque), making it possible to add vertices at the front and end of the contour and to iterate in both directions. Individual vertices can be marked as control points to distinguish them from regular interpolation points.

This class owns all its vertices. When a vertex is added, ownership is transferred to this ContourElement instance, which manages deletion.

Note: This class is designed as an internal component of ContourModel. It is strongly recommended to use ContourModel rather than ContourElement directly when working with contour representations in MITK.

See also: ContourModel; ContourModelSet

Definition at line 41 of file mitkContourElement.h.

Member Typedef Documentation

◆ ConstVertexIterator

using mitk::ContourElement::ConstVertexIterator = VertexListType::const_iterator

Const iterator for traversing vertices.

Definition at line 96 of file mitkContourElement.h.

◆ VertexIterator

using mitk::ContourElement::VertexIterator = VertexListType::iterator

Mutable iterator for traversing vertices.

Definition at line 94 of file mitkContourElement.h.

◆ VertexListType

using mitk::ContourElement::VertexListType = std::deque<VertexType*>

Alias for the container type storing vertex pointers.

Definition at line 92 of file mitkContourElement.h.

◆ VertexSizeType

using mitk::ContourElement::VertexSizeType = VertexListType::size_type

Size type for indexing into the vertex list.

Definition at line 98 of file mitkContourElement.h.

◆ VertexType

using mitk::ContourElement::VertexType = ContourModelVertex

Alias for the vertex type used in this contour.

Definition at line 90 of file mitkContourElement.h.

Constructor & Destructor Documentation

◆ ContourElement() [1/2]

mitk::ContourElement::ContourElement ( )

protecteddefault

◆ ContourElement() [2/2]

mitk::ContourElement::ContourElement ( const mitk::ContourElement & other )

protected

◆ ~ContourElement()

mitk::ContourElement::~ContourElement ( )

protected

Member Function Documentation

◆ AddVertex()

void mitk::ContourElement::AddVertex	(	const mitk::Point3D &	point,
		bool	isControlPoint
	)

Add a vertex at the end of the contour.

Parameters

[in]	point	Coordinates of the new vertex in 3D space.
[in]	isControlPoint	If true, the vertex is marked as a control point.

◆ AddVertexAtFront()

void mitk::ContourElement::AddVertexAtFront	(	const mitk::Point3D &	point,
		bool	isControlPoint
	)

Add a vertex at the front of the contour.

Parameters

[in]	point	Coordinates of the new vertex in 3D space.
[in]	isControlPoint	If true, the vertex is marked as a control point.

◆ begin() [1/2]

VertexIterator mitk::ContourElement::begin ( )

Return a mutable iterator to the first vertex (STL-compatible).

Returns: Iterator pointing to the beginning of the vertex container.

◆ begin() [2/2]

ConstVertexIterator mitk::ContourElement::begin ( ) const

Return a const iterator to the first vertex (STL-compatible).

Returns: Const iterator pointing to the beginning of the vertex container.

◆ BruteForceGetVertexAt()

VertexType* mitk::ContourElement::BruteForceGetVertexAt	(	const mitk::Point3D &	point,
		double	eps,
		bool	isControlPoint = `false`,
		int	offset = `0`
	)

Find the nearest vertex to a given 3D position using brute-force search.

Optionally filters for control points only and supports returning a vertex at an offset from the nearest match (e.g., +1 for the next, -1 for the previous). Wrapping is applied if the offset goes past either end of the list.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance (open boundary). Must be >= 0.
[in]	isControlPoint	If true, only control vertices are considered. Default is false.
[in]	offset	Index offset from the nearest vertex. Default is 0 (return the nearest).

Returns: Pointer to the matching vertex, or nullptr if no vertex is within eps.

◆ BruteForceGetVertexIndexAt()

int mitk::ContourElement::BruteForceGetVertexIndexAt	(	const mitk::Point3D &	point,
		double	eps,
		VertexListType	verticesList
	)

Find the index of the nearest vertex to a given 3D position using brute-force search.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance (open boundary). Must be >= 0.
[in]	verticesList	The vertex list to search (may be a subset, e.g., only control vertices).

Returns: Index of the nearest vertex within eps, or -1 if none is found.

Exceptions

mitk::Exception if eps is negative.

◆ Clear()

void mitk::ContourElement::Clear ( )

Remove all vertices from the contour and free their memory.

Postcondition: GetSize() returns 0.

◆ Clone()

Pointer mitk::ContourElement::Clone ( ) const

◆ Close()

void mitk::ContourElement::Close ( )

Close the contour by logically connecting the last vertex to the first.

Postcondition: IsClosed() returns true.

◆ Concatenate()

void mitk::ContourElement::Concatenate	(	const mitk::ContourElement *	other,
		bool	check
	)

Append all vertices of another contour to the end of this contour.

All vertices from other are cloned and appended after the last vertex of this contour.

Parameters

[in]	other	The contour whose vertices are to be appended.
[in]	check	If true, vertices whose coordinates already exist in this contour are skipped to avoid duplicates.

◆ ConstIteratorBegin()

ConstVertexIterator mitk::ContourElement::ConstIteratorBegin ( ) const

Return a const iterator to the first vertex.

Returns: Const iterator pointing to the beginning of the vertex container.

◆ ConstIteratorEnd()

ConstVertexIterator mitk::ContourElement::ConstIteratorEnd ( ) const

Return a const iterator past the last vertex.

Returns: Const iterator pointing past the end of the vertex container.

◆ end() [1/2]

VertexIterator mitk::ContourElement::end ( )

Return a mutable iterator past the last vertex (STL-compatible).

Returns: Iterator pointing past the end of the vertex container.

◆ end() [2/2]

ConstVertexIterator mitk::ContourElement::end ( ) const

Return a const iterator past the last vertex (STL-compatible).

Returns: Const iterator pointing past the end of the vertex container.

◆ GetControlVertexAt()

VertexType* mitk::ContourElement::GetControlVertexAt	(	const mitk::Point3D &	point,
		float	eps
	)

Find the nearest control vertex to a given 3D position within a search radius.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for a control vertex to be considered a match.

Returns: Pointer to the nearest control vertex, or nullptr if none is within eps.

◆ GetControlVertices()

VertexListType mitk::ContourElement::GetControlVertices ( ) const

Return a list of all vertices that are marked as control points.

The returned list contains pointers to the internally stored vertices. The ContourElement retains ownership of the vertices; callers must clone any vertices they wish to manage independently.

Returns: A VertexListType containing pointers to all control point vertices.

◆ GetIndex()

VertexSizeType mitk::ContourElement::GetIndex ( const VertexType * vertex ) const

Return the index of a given vertex within the contour.

Parameters

[in] vertex Pointer to the vertex to search for (by pointer identity).

Returns: Index of the vertex, or ContourElement::NPOS if not found.

◆ GetLineSegmentForPoint() [1/2]

bool mitk::ContourElement::GetLineSegmentForPoint	(	const mitk::Point3D &	point,
		float	eps,
		mitk::ContourElement::VertexType *	previousVertex,
		mitk::ContourElement::VertexType *	nextVertex
	)		const

Find the contour line segment closest to a given point.

Searches for the line segment whose distance to point is at most eps. If found, the start and end vertices of the segment are written to previousVertex and nextVertex.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum squared distance for a segment to be considered close enough.
[out]	previousVertex	Receives the start vertex of the found segment.
[out]	nextVertex	Receives the end vertex of the found segment.

Returns: True if a matching segment was found, false otherwise.

Note: previousVertex and nextVertex are only valid when the return value is true.

◆ GetLineSegmentForPoint() [2/2]

bool mitk::ContourElement::GetLineSegmentForPoint	(	const mitk::Point3D &	point,
		float	eps,
		VertexSizeType &	segmentStartIndex,
		VertexSizeType &	segmentEndIndex,
		mitk::Point3D &	closestContourPoint,
		bool	findClosest = `true`
	)		const

Find the contour line segment closest to a given point (extended version).

In addition to the basic version, this overload returns the indices of the segment endpoints, the closest point on the segment, and supports choosing between the first close-enough segment or the globally closest segment.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum squared distance for a segment to be considered close enough.
[out]	segmentStartIndex	Index of the segment's start vertex.
[out]	segmentEndIndex	Index of the segment's end vertex.
[out]	closestContourPoint	The point on the segment closest to `point`.
[in]	findClosest	If true, finds the globally closest segment; if false, returns the first segment within eps. Default is true.

Returns: True if a matching segment was found, false otherwise.

Note: Output parameters are only valid when the return value is true.

◆ GetNextControlVertexAt()

VertexType* mitk::ContourElement::GetNextControlVertexAt	(	const mitk::Point3D &	point,
		float	eps
	)

Return the next control vertex after the nearest vertex to a given 3D position.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for the initial nearest vertex search.

Returns: Pointer to the next control vertex, or nullptr if none is found.

◆ GetPreviousControlVertexAt()

VertexType* mitk::ContourElement::GetPreviousControlVertexAt	(	const mitk::Point3D &	point,
		float	eps
	)

Return the previous control vertex before the nearest vertex to a given 3D position.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for the initial nearest vertex search.

Returns: Pointer to the previous control vertex, or nullptr if none is found.

◆ GetSize()

VertexSizeType mitk::ContourElement::GetSize ( ) const

Return the number of vertices in this contour element.

Returns: The number of contained vertices.

◆ GetVertexAt() [1/3]

VertexType* mitk::ContourElement::GetVertexAt	(	const mitk::Point3D &	point,
		float	eps
	)

Find the nearest vertex to a given 3D position within a search radius.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for a vertex to be considered a match.

Returns: Pointer to the nearest vertex, or nullptr if none is within eps.

◆ GetVertexAt() [2/3]

VertexType* mitk::ContourElement::GetVertexAt ( VertexSizeType index )

Return the vertex at the given index.

Parameters

[in] index Index of the vertex to retrieve.

Returns: Pointer to the vertex at the specified index.

Precondition: index must be a valid index (< GetSize()).

Exceptions

std::out_of_range if the index is out of bounds.

◆ GetVertexAt() [3/3]

const VertexType* mitk::ContourElement::GetVertexAt ( VertexSizeType index ) const

Return the vertex at the given index (const version).

Parameters

[in] index Index of the vertex to retrieve.

Returns: Const pointer to the vertex at the specified index.

Precondition: index must be a valid index (< GetSize()).

Exceptions

std::out_of_range if the index is out of bounds.

◆ GetVertexList()

const VertexListType* mitk::ContourElement::GetVertexList ( ) const

Return a pointer to the internal vertex container.

Returns: Const pointer to the internal deque of vertex pointers.

◆ InsertVertexAtIndex()

void mitk::ContourElement::InsertVertexAtIndex	(	const mitk::Point3D &	point,
		bool	isControlPoint,
		VertexSizeType	index
	)

Insert a vertex at the given index in the contour.

If the index equals or exceeds the current size, the vertex is appended.

Parameters

[in]	point	Coordinates of the new vertex in 3D space.
[in]	isControlPoint	If true, the vertex is marked as a control point.
[in]	index	Position at which the vertex is inserted.

◆ IsClosed()

bool mitk::ContourElement::IsClosed ( ) const

Check whether the contour is closed.

Returns: True if the contour is closed (first and last vertex are logically connected).

◆ IsEmpty()

bool mitk::ContourElement::IsEmpty ( ) const

Check whether the contour element contains no vertices.

Returns: True if the contour has no vertices, false otherwise.

◆ IsNearContour()

bool mitk::ContourElement::IsNearContour	(	const mitk::Point3D &	point,
		float	eps
	)		const

Check whether a given point lies near the contour within a specified tolerance.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum squared distance for the point to be considered near the contour.

Returns: True if the point is within eps squared distance of any contour line segment.

◆ IteratorBegin()

VertexIterator mitk::ContourElement::IteratorBegin ( )

Return a mutable iterator to the first vertex.

Returns: Iterator pointing to the beginning of the vertex container.

◆ IteratorEnd()

VertexIterator mitk::ContourElement::IteratorEnd ( )

Return a mutable iterator past the last vertex.

Returns: Iterator pointing past the end of the vertex container.

◆ mitkClassMacroItkParent()

mitk::ContourElement::mitkClassMacroItkParent	(	ContourElement	,
		itk::LightObject
	)

◆ mitkCloneMacro()

mitk::ContourElement::mitkCloneMacro ( Self )

protected

◆ New()

static Pointer mitk::ContourElement::New ( )

static

◆ Open()

void mitk::ContourElement::Open ( )

Open the contour by removing the logical connection between last and first vertex.

Postcondition: IsClosed() returns false.

◆ operator=()

ContourElement& mitk::ContourElement::operator= ( const ContourElement & other )

protected

◆ RedistributeControlVertices()

void mitk::ContourElement::RedistributeControlVertices	(	const VertexType *	vertex,
		int	period
	)

Uniformly redistribute control point markers among the vertices.

Starting from vertex (or the first vertex if nullptr), marks every period-th vertex as a control point and clears the flag on all others.

Parameters

[in]	vertex	The vertex around which redistribution is centered. May be nullptr.
[in]	period	Number of vertices between successive control points.

◆ RemoveVertex()

bool mitk::ContourElement::RemoveVertex ( const VertexType * vertex )

Remove a specific vertex from the contour by pointer identity.

Parameters

[in] vertex Pointer to the vertex to remove.

Returns: True if the vertex was found and removed, false otherwise.

◆ RemoveVertexAt() [1/2]

bool mitk::ContourElement::RemoveVertexAt	(	const mitk::Point3D &	point,
		double	eps
	)

Remove the nearest vertex to a given 3D position within a search radius.

Parameters

[in]	point	Query position in 3D space.
[in]	eps	Maximum Euclidean distance for a vertex to be considered a match.

Returns: True if a vertex was found and removed, false otherwise.

◆ RemoveVertexAt() [2/2]

bool mitk::ContourElement::RemoveVertexAt ( VertexSizeType index )

Remove the vertex at a given index.

Parameters

[in] index Index of the vertex to remove.

Returns: True if the index was valid and the vertex was removed, false otherwise.

◆ RemoveVertexByIterator()

bool mitk::ContourElement::RemoveVertexByIterator ( VertexListType::iterator & iter )

protected

Internal helper function to correctly remove the element indicated by the iterator from the list. After the call the iterator is invalid. Caller of the function must ensure that the iterator is valid!.

Returns: Indicates if the element indicated by the iterator was removed. If iterator points to end it returns false.

◆ SetClosed()

void mitk::ContourElement::SetClosed ( bool isClosed )

Set the closed state of the contour.

Parameters

[in] isClosed If true, the contour is closed; if false, it is opened.

◆ SetVertexAt() [1/2]

void mitk::ContourElement::SetVertexAt	(	VertexSizeType	pointId,
		const mitk::Point3D &	point
	)

Set the coordinates of an existing vertex at the given index.

Parameters

[in]	pointId	Index of the vertex to modify.
[in]	point	New 3D coordinates.

◆ SetVertexAt() [2/2]

void mitk::ContourElement::SetVertexAt	(	VertexSizeType	pointId,
		const VertexType *	vertex
	)

Set the vertex data at a given index by copying from the provided vertex.

Parameters

[in]	pointId	Index of the vertex to modify.
[in]	vertex	Source vertex whose coordinates and control point flag are copied.

Precondition: vertex must be a valid (non-null) pointer.

Exceptions

mitk::Exception if vertex is nullptr.

Member Data Documentation

◆ m_IsClosed

bool mitk::ContourElement::m_IsClosed

protected

Definition at line 407 of file mitkContourElement.h.

◆ m_Vertices

VertexListType mitk::ContourElement::m_Vertices

protected

Definition at line 406 of file mitkContourElement.h.

◆ NPOS

const VertexSizeType mitk::ContourElement::NPOS

static

Sentinel value indicating an invalid vertex index.

Equivalent to the maximum value of the unsigned size type.

Definition at line 104 of file mitkContourElement.h.

The documentation for this class was generated from the following file:

mitkContourElement.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstVertexIterator

◆ VertexIterator

◆ VertexListType

◆ VertexSizeType

◆ VertexType

Constructor & Destructor Documentation

◆ ContourElement() [1/2]

◆ ContourElement() [2/2]

◆ ~ContourElement()

Member Function Documentation

◆ AddVertex()

◆ AddVertexAtFront()

◆ begin() [1/2]

◆ begin() [2/2]

◆ BruteForceGetVertexAt()

◆ BruteForceGetVertexIndexAt()

◆ Clear()

◆ Clone()

◆ Close()

◆ Concatenate()

◆ ConstIteratorBegin()

◆ ConstIteratorEnd()

◆ end() [1/2]

◆ end() [2/2]

◆ GetControlVertexAt()

◆ GetControlVertices()

◆ GetIndex()

◆ GetLineSegmentForPoint() [1/2]

◆ GetLineSegmentForPoint() [2/2]

◆ GetNextControlVertexAt()

◆ GetPreviousControlVertexAt()

◆ GetSize()

◆ GetVertexAt() [1/3]

◆ GetVertexAt() [2/3]

◆ GetVertexAt() [3/3]

◆ GetVertexList()

◆ InsertVertexAtIndex()

◆ IsClosed()

◆ IsEmpty()

◆ IsNearContour()

◆ IteratorBegin()

◆ IteratorEnd()

◆ mitkClassMacroItkParent()

◆ mitkCloneMacro()

◆ New()

◆ Open()

◆ operator=()

◆ RedistributeControlVertices()

◆ RemoveVertex()

◆ RemoveVertexAt() [1/2]

◆ RemoveVertexAt() [2/2]

◆ RemoveVertexByIterator()

◆ SetClosed()

◆ SetVertexAt() [1/2]

◆ SetVertexAt() [2/2]

Member Data Documentation

◆ m_IsClosed

◆ m_Vertices

◆ NPOS
