VTK-based mapper to display a mitk::ContourModel in a 3D render window. More...

#include <mitkContourModelMapper3D.h>

Inheritance diagram for mitk::ContourModelMapper3D:

[legend]

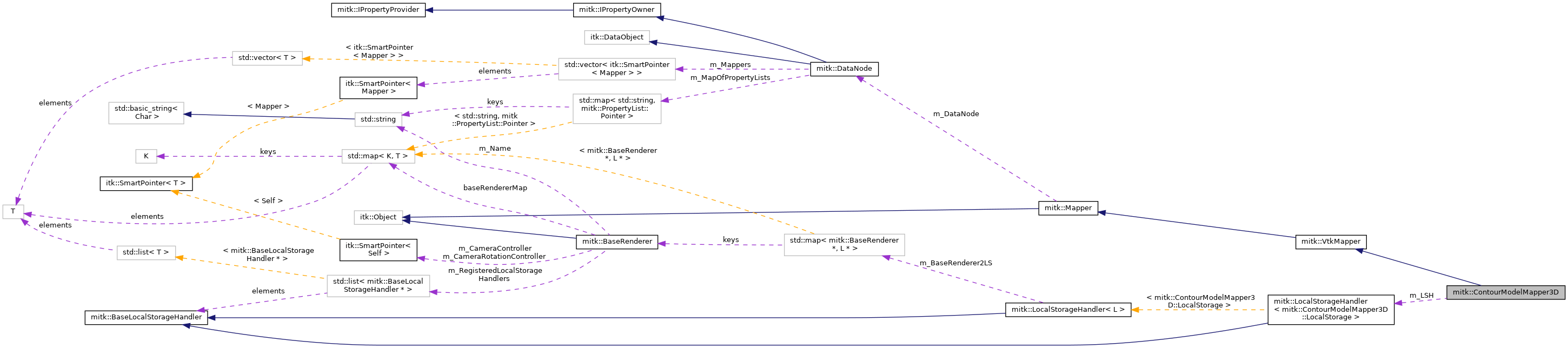

Collaboration diagram for mitk::ContourModelMapper3D:

[legend]

Classes
class	LocalStorage

Public Member Functions
	mitkClassMacro (ContourModelMapper3D, VtkMapper)

Pointer	Clone () const

const mitk::ContourModel *	GetInput (void)
	Return the input ContourModel data object. More...

void	Update (mitk::BaseRenderer *renderer) override
	Check whether this mapper needs to regenerate its rendering data. More...

vtkProp *	GetVtkProp (mitk::BaseRenderer *renderer) override
	Return the top-level VTK prop for the given renderer. More...

LocalStorage *	GetLocalStorage (mitk::BaseRenderer *renderer)
	Retrieve the LocalStorage for the given renderer. More...

Public Member Functions inherited from mitk::VtkMapper
	mitkClassMacro (VtkMapper, Mapper)

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Determine the render pass type and call the appropriate render method. More...

virtual void	MitkRenderOverlay (BaseRenderer *renderer)
	Check visibility and render the overlay pass. More...

virtual void	MitkRenderOpaqueGeometry (BaseRenderer *renderer)
	Check visibility and render opaque (untransparent) geometry. More...

virtual void	MitkRenderTranslucentGeometry (BaseRenderer *renderer)
	Check visibility and render translucent (transparent) geometry. More...

virtual void	MitkRenderVolumetricGeometry (BaseRenderer *renderer)
	Check visibility and render volumetric geometry. More...

virtual bool	HasVtkProp (const vtkProp prop, BaseRenderer renderer)
	Check whether this mapper owns the specified vtkProp for the given renderer. More...

virtual void	UpdateVtkTransform (mitk::BaseRenderer *renderer)
	Set the vtkTransform of the m_Prop3D for the current time step of renderer. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor) override
	Apply color and opacity properties read from the PropertyList to the given vtkActor. More...

virtual void	ReleaseGraphicsResources (mitk::BaseRenderer *)
	Release VTK-based graphics resources consumed by this mapper. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default rendering properties for ContourModel 3D display. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
mitk::LocalStorageHandler< LocalStorage >	m_LSH
	Handler that manages per-renderer LocalStorage instances. More...

Protected Member Functions
	ContourModelMapper3D ()

	~ContourModelMapper3D () override

void	GenerateDataForRenderer (mitk::BaseRenderer *renderer) override
	Generate the data needed for rendering into renderer. More...

virtual vtkSmartPointer< vtkPolyData >	CreateVtkPolyDataFromContour (mitk::ContourModel *inputContour)

virtual void	ApplyContourProperties (mitk::BaseRenderer *renderer)

Protected Member Functions inherited from mitk::VtkMapper
	VtkMapper ()

	~VtkMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

VTK-based mapper to display a mitk::ContourModel in a 3D render window.

Creates VTK polydata from the contour vertices and renders the result as tube-filtered 3D geometry using VTK actors.

See also: ContourModel, ContourModelMapper2D, ContourModelSetMapper3D

Definition at line 42 of file mitkContourModelMapper3D.h.

Constructor & Destructor Documentation

◆ ContourModelMapper3D()

mitk::ContourModelMapper3D::ContourModelMapper3D ( )

protected

◆ ~ContourModelMapper3D()

mitk::ContourModelMapper3D::~ContourModelMapper3D ( )

overrideprotected

Member Function Documentation

◆ ApplyContourProperties()

virtual void mitk::ContourModelMapper3D::ApplyContourProperties ( mitk::BaseRenderer * renderer )

protectedvirtual

◆ Clone()

Pointer mitk::ContourModelMapper3D::Clone ( ) const

◆ CreateVtkPolyDataFromContour()

virtual vtkSmartPointer<vtkPolyData> mitk::ContourModelMapper3D::CreateVtkPolyDataFromContour ( mitk::ContourModel * inputContour )

protectedvirtual

◆ GenerateDataForRenderer()

void mitk::ContourModelMapper3D::GenerateDataForRenderer ( mitk::BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

◆ GetInput()

const mitk::ContourModel* mitk::ContourModelMapper3D::GetInput ( void )

Return the input ContourModel data object.

Returns: Const pointer to the ContourModel associated with this mapper's data node.

◆ GetLocalStorage()

LocalStorage* mitk::ContourModelMapper3D::GetLocalStorage ( mitk::BaseRenderer * renderer )

Retrieve the LocalStorage for the given renderer.

Parameters

[in] renderer The renderer whose local storage is requested.

Returns: Pointer to the corresponding LocalStorage instance.

◆ GetVtkProp()

vtkProp* mitk::ContourModelMapper3D::GetVtkProp ( mitk::BaseRenderer * renderer )

overridevirtual

Return the top-level VTK prop for the given renderer.

Parameters

[in] renderer The renderer for which to retrieve the VTK prop.

Returns: The VTK prop representing this contour in the 3D render window.

Implements mitk::VtkMapper.

◆ mitkClassMacro()

mitk::ContourModelMapper3D::mitkClassMacro	(	ContourModelMapper3D	,
		VtkMapper
	)

◆ New()

static Pointer mitk::ContourModelMapper3D::New ( )

static

◆ SetDefaultProperties()

static void mitk::ContourModelMapper3D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default rendering properties for ContourModel 3D display.

Parameters

[in]	node	The data node to configure.
[in]	renderer	The renderer context. If nullptr, properties are set globally.
[in]	overwrite	If true, existing properties are overwritten.

◆ Update()

void mitk::ContourModelMapper3D::Update ( mitk::BaseRenderer * renderer )

overridevirtual

Check whether this mapper needs to regenerate its rendering data.

Parameters

[in] renderer The renderer to check for update necessity.

Reimplemented from mitk::Mapper.

Member Data Documentation

◆ m_LSH

mitk::LocalStorageHandler<LocalStorage> mitk::ContourModelMapper3D::m_LSH

Handler that manages per-renderer LocalStorage instances.

Definition at line 90 of file mitkContourModelMapper3D.h.

The documentation for this class was generated from the following file:

mitkContourModelMapper3D.h
