mitk::ContourModelMapper2D Class Reference

OpenGL-based mapper to display a mitk::ContourModel in a 2D render window. More...

#include <mitkContourModelMapper2D.h>

Inheritance diagram for mitk::ContourModelMapper2D:

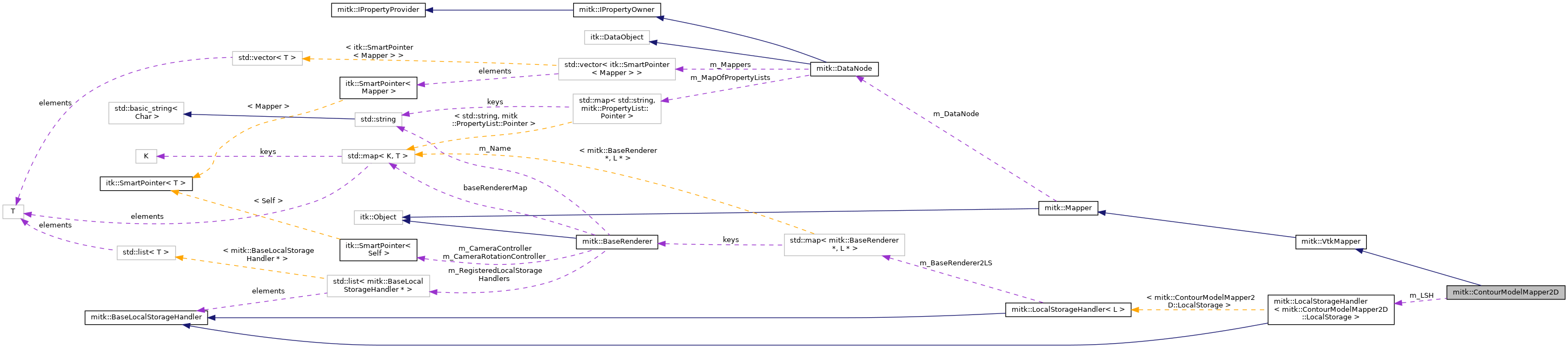

Collaboration diagram for mitk::ContourModelMapper2D:

Public Member Functions
	mitkClassMacro (ContourModelMapper2D, ContourModelMapper2DBase)
Pointer	Clone () const
void	MitkRender (BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Perform the rendering of the contour model. More...
Public Member Functions inherited from mitk::ContourModelMapper2DBase
	mitkClassMacro (ContourModelMapper2DBase, Mapper)
void	ApplyColorAndOpacityProperties (mitk::BaseRenderer *renderer, vtkActor *actor=nullptr) override
	Apply color and opacity properties from the data node to the rendering context. More...
Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...
virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...
virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...
TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...
virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()
static void	SetDefaultProperties (mitk::DataNode *node, mitk::BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default rendering properties for ContourModel nodes. More...
Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH
	Local storage handler for per-renderer data. More...

Protected Member Functions
	ContourModelMapper2D ()
	~ContourModelMapper2D () override
Protected Member Functions inherited from mitk::ContourModelMapper2DBase
	ContourModelMapper2DBase ()
	~ContourModelMapper2DBase () override
void	DrawContour (mitk::ContourModel *contour, mitk::BaseRenderer *renderer)
void	WriteTextWithAnnotation (TextAnnotationPointerType textAnnotation, const char *text, float rgb[3], Point2D pt2d, mitk::BaseRenderer *)
virtual void	InternalDrawContour (mitk::ContourModel *renderingContour, mitk::BaseRenderer *renderer)
Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...
	~Mapper () override
	virtual destructor in order to derive from this class More...
virtual void	GenerateDataForRenderer (BaseRenderer *)
	Generate the data needed for rendering into renderer. More...
virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...
virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
mitk::ContourModel::Pointer	m_SubdivisionContour
bool	m_InitSubdivisionCurve
Protected Attributes inherited from mitk::ContourModelMapper2DBase
TextAnnotationPointerType	m_PointNumbersAnnotation
TextAnnotationPointerType	m_ControlPointNumbersAnnotation
RendererListType	m_RendererList
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Protected Types inherited from mitk::ContourModelMapper2DBase
typedef TextAnnotation2D::Pointer	TextAnnotationPointerType
typedef std::vector< BaseRenderer * >	RendererListType

Detailed Description

OpenGL-based mapper to display a mitk::ContourModel in a 2D render window.

Renders a ContourModel by projecting its vertices onto the current 2D slice and drawing line segments between them using OpenGL primitives. Supports optional subdivision curve smoothing via the "subdivision curve" property.

Properties evaluated by this mapper:

• "contour.color": line color (default: yellow-green)
• "contour.points.color": point marker color
• "contour.width": line width in pixels
• "contour.points.show": show point markers
• "contour.controlpoints.show": show control point markers
• "subdivision curve": enable DLG subdivision smoothing

See also

ContourModel, ContourModelMapper2DBase, ContourModelMapper3D

Definition at line 44 of file mitkContourModelMapper2D.h.

Constructor & Destructor Documentation

ContourModelMapper2D()

mitk::ContourModelMapper2D::ContourModelMapper2D ( )

protected

~ContourModelMapper2D()

mitk::ContourModelMapper2D::~ContourModelMapper2D ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::ContourModelMapper2D::Clone

(

)

const

mitkClassMacro()

mitk::ContourModelMapper2D::mitkClassMacro	(	ContourModelMapper2D	,
		ContourModelMapper2DBase
	)

MitkRender()

void mitk::ContourModelMapper2D::MitkRender ( BaseRenderer *  renderer, mitk::VtkPropRenderer::RenderType  type  )

overridevirtual

Perform the rendering of the contour model.

Projects the contour onto the current 2D slice and draws it. If the "subdivision curve" property is enabled, the contour is first smoothed using a ContourModelSubDivisionFilter.

Parameters

[in]	renderer	The renderer for the current render window.
[in]	type	The render type (opaque, transparent, overlay).

Implements mitk::Mapper.

New()

static Pointer mitk::ContourModelMapper2D::New ( )

static

SetDefaultProperties()

static void mitk::ContourModelMapper2D::SetDefaultProperties ( mitk::DataNode *  node, mitk::BaseRenderer *  renderer = nullptr, bool  overwrite = false  )

static

Set default rendering properties for ContourModel nodes.

Parameters

[in]	node	The data node to configure.
[in]	renderer	The renderer context. If nullptr, properties are set globally.
[in]	overwrite	If true, existing properties are overwritten.

Member Data Documentation

m_InitSubdivisionCurve

bool mitk::ContourModelMapper2D::m_InitSubdivisionCurve

protected

Definition at line 80 of file mitkContourModelMapper2D.h.

m_LSH

LocalStorageHandler<BaseLocalStorage> mitk::ContourModelMapper2D::m_LSH

Local storage handler for per-renderer data.

Definition at line 72 of file mitkContourModelMapper2D.h.

m_SubdivisionContour

mitk::ContourModel::Pointer mitk::ContourModelMapper2D::m_SubdivisionContour

protected

Definition at line 79 of file mitkContourModelMapper2D.h.

---

The documentation for this class was generated from the following file:

• mitkContourModelMapper2D.h
