mitk::ContourModelMapper2DBase Class Reference

Abstract base class for OpenGL-based 2D contour mappers. More...

#include <mitkContourModelMapper2DBase.h>

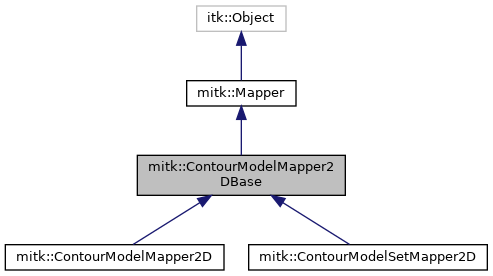

Inheritance diagram for mitk::ContourModelMapper2DBase:

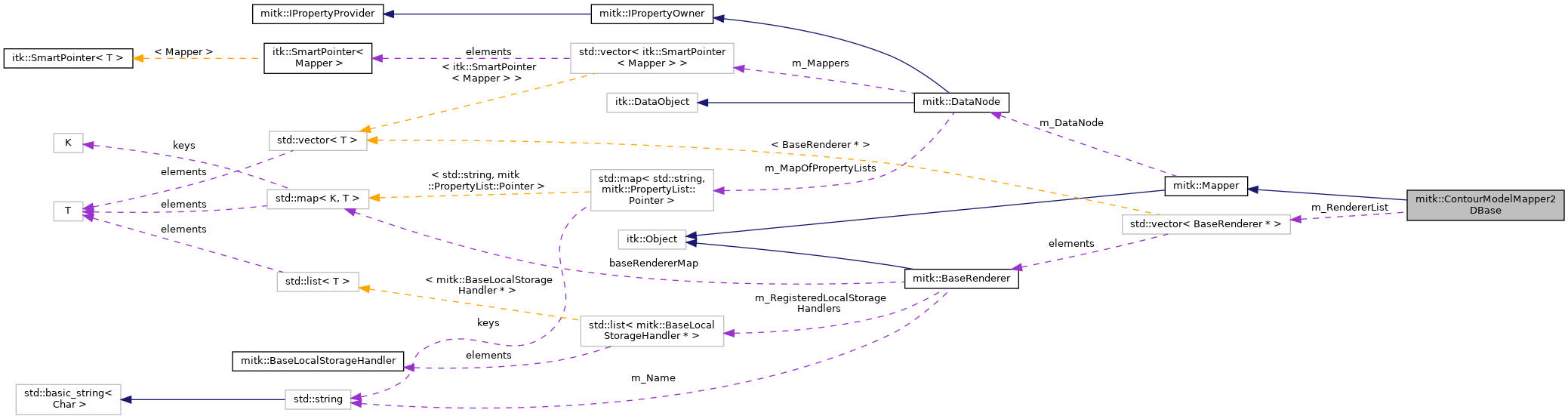

Collaboration diagram for mitk::ContourModelMapper2DBase:

Public Member Functions
	mitkClassMacro (ContourModelMapper2DBase, Mapper)
void	ApplyColorAndOpacityProperties (mitk::BaseRenderer *renderer, vtkActor *actor=nullptr) override
	Apply color and opacity properties from the data node to the rendering context. More...
Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)
virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...
virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...
virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...
virtual void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type)=0
	Responsible for calling the appropriate render functions. More...
TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...
virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Protected Types
typedef TextAnnotation2D::Pointer	TextAnnotationPointerType
typedef std::vector< BaseRenderer * >	RendererListType

Protected Member Functions
	ContourModelMapper2DBase ()
	~ContourModelMapper2DBase () override
void	DrawContour (mitk::ContourModel *contour, mitk::BaseRenderer *renderer)
void	WriteTextWithAnnotation (TextAnnotationPointerType textAnnotation, const char *text, float rgb[3], Point2D pt2d, mitk::BaseRenderer *)
virtual void	InternalDrawContour (mitk::ContourModel *renderingContour, mitk::BaseRenderer *renderer)
Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...
	~Mapper () override
	virtual destructor in order to derive from this class More...
virtual void	GenerateDataForRenderer (BaseRenderer *)
	Generate the data needed for rendering into renderer. More...
virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...
virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
TextAnnotationPointerType	m_PointNumbersAnnotation
TextAnnotationPointerType	m_ControlPointNumbersAnnotation
RendererListType	m_RendererList
Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode *node, BaseRenderer *renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Detailed Description

Abstract base class for OpenGL-based 2D contour mappers.

Provides shared functionality for drawing contour models in 2D render windows using OpenGL. Subclasses such as ContourModelMapper2D and ContourModelSetMapper2D implement the MitkRender method to handle specific data types.

See also

ContourModelMapper2D, ContourModelSetMapper2D, ContourModel

Definition at line 41 of file mitkContourModelMapper2DBase.h.

Member Typedef Documentation

RendererListType

typedef std::vector<BaseRenderer *> mitk::ContourModelMapper2DBase::RendererListType

protected

Definition at line 69 of file mitkContourModelMapper2DBase.h.

TextAnnotationPointerType

typedef TextAnnotation2D::Pointer mitk::ContourModelMapper2DBase::TextAnnotationPointerType

protected

Definition at line 53 of file mitkContourModelMapper2DBase.h.

Constructor & Destructor Documentation

ContourModelMapper2DBase()

mitk::ContourModelMapper2DBase::ContourModelMapper2DBase ( )

protected

~ContourModelMapper2DBase()

mitk::ContourModelMapper2DBase::~ContourModelMapper2DBase ( )

overrideprotected

Member Function Documentation

ApplyColorAndOpacityProperties()

void mitk::ContourModelMapper2DBase::ApplyColorAndOpacityProperties ( mitk::BaseRenderer *  renderer, vtkActor *  actor = nullptr  )

overridevirtual

Apply color and opacity properties from the data node to the rendering context.

Parameters

[in]	renderer	The base renderer providing the rendering context.
[in]	actor	Optional VTK actor (unused in OpenGL rendering). Default is nullptr.

Implements mitk::Mapper.

DrawContour()

void mitk::ContourModelMapper2DBase::DrawContour ( mitk::ContourModel *  contour, mitk::BaseRenderer *  renderer  )

protected

InternalDrawContour()

virtual void mitk::ContourModelMapper2DBase::InternalDrawContour ( mitk::ContourModel *  renderingContour, mitk::BaseRenderer *  renderer  )

protectedvirtual

mitkClassMacro()

mitk::ContourModelMapper2DBase::mitkClassMacro	(	ContourModelMapper2DBase	,
		Mapper
	)

WriteTextWithAnnotation()

void mitk::ContourModelMapper2DBase::WriteTextWithAnnotation ( TextAnnotationPointerType  textAnnotation, const char *  text, float  rgb[3], Point2D  pt2d, mitk::BaseRenderer *    )

protected

Member Data Documentation

m_ControlPointNumbersAnnotation

TextAnnotationPointerType mitk::ContourModelMapper2DBase::m_ControlPointNumbersAnnotation

protected

Definition at line 67 of file mitkContourModelMapper2DBase.h.

m_PointNumbersAnnotation

TextAnnotationPointerType mitk::ContourModelMapper2DBase::m_PointNumbersAnnotation

protected

Definition at line 66 of file mitkContourModelMapper2DBase.h.

m_RendererList

RendererListType mitk::ContourModelMapper2DBase::m_RendererList

protected

Definition at line 70 of file mitkContourModelMapper2DBase.h.

---

The documentation for this class was generated from the following file:

• mitkContourModelMapper2DBase.h
