OpenGL-based mapper to display a mitk::ContourModelSet in a 2D render window. More...

#include <mitkContourModelSetMapper2D.h>

Inheritance diagram for mitk::ContourModelSetMapper2D:

[legend]

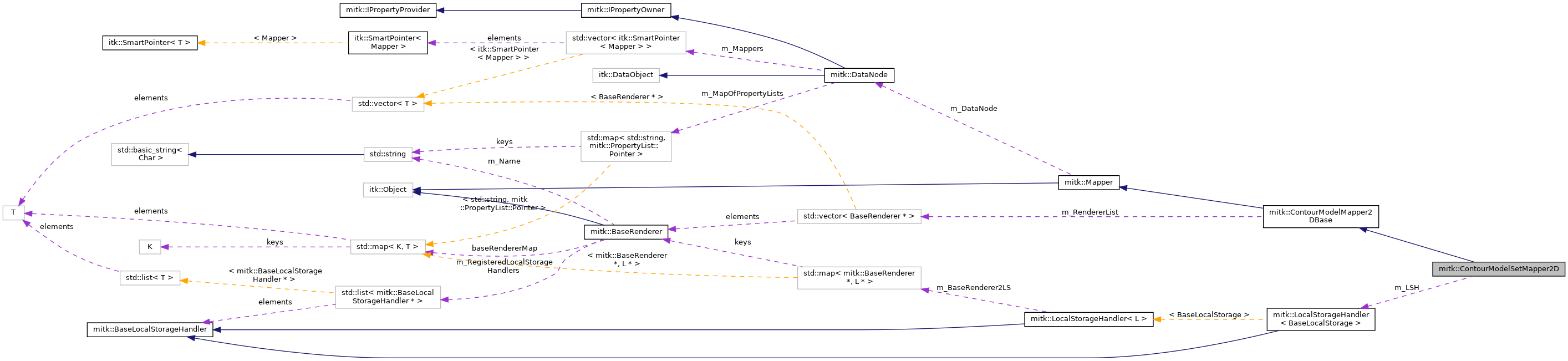

Collaboration diagram for mitk::ContourModelSetMapper2D:

[legend]

Public Member Functions
	mitkClassMacro (ContourModelSetMapper2D, ContourModelMapper2DBase)

Pointer	Clone () const

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Render all contour models in the set onto the 2D slice. More...

Public Member Functions inherited from mitk::ContourModelMapper2DBase
	mitkClassMacro (ContourModelMapper2DBase, Mapper)

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor=nullptr) override
	Apply color and opacity properties from the data node to the rendering context. More...

Public Member Functions inherited from mitk::Mapper
	mitkClassMacroItkParent (Mapper, itk::Object)

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. More...

virtual void	Update (BaseRenderer *renderer)
	Calculate the time step for the current renderer and generate rendering data. More...

TimeStepType	GetTimestep () const
	Return the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const
	Return whether this Mapper currently allows for Level-of-Detail rendering. More...

Static Public Member Functions
static Pointer	New ()

static void	SetDefaultProperties (mitk::DataNode node, mitk::BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default rendering properties for ContourModelSet nodes. More...

Static Public Member Functions inherited from mitk::Mapper
static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper on the given node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH
	Local storage handler for per-renderer data. More...

Protected Member Functions
	ContourModelSetMapper2D ()

	~ContourModelSetMapper2D () override

Protected Member Functions inherited from mitk::ContourModelMapper2DBase
	ContourModelMapper2DBase ()

	~ContourModelMapper2DBase () override

void	DrawContour (mitk::ContourModel contour, mitk::BaseRenderer renderer)

void	WriteTextWithAnnotation (TextAnnotationPointerType textAnnotation, const char text, float rgb[3], Point2D pt2d, mitk::BaseRenderer )

virtual void	InternalDrawContour (mitk::ContourModel renderingContour, mitk::BaseRenderer renderer)

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateDataForRenderer (BaseRenderer *)
	Generate the data needed for rendering into renderer. More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Additional Inherited Members
Protected Types inherited from mitk::ContourModelMapper2DBase
typedef TextAnnotation2D::Pointer	TextAnnotationPointerType

typedef std::vector< BaseRenderer * >	RendererListType

Protected Attributes inherited from mitk::ContourModelMapper2DBase
TextAnnotationPointerType	m_PointNumbersAnnotation

TextAnnotationPointerType	m_ControlPointNumbersAnnotation

RendererListType	m_RendererList

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Detailed Description

OpenGL-based mapper to display a mitk::ContourModelSet in a 2D render window.

Iterates over all ContourModel instances in the ContourModelSet and draws each one onto the current 2D slice using OpenGL primitives.

See also: ContourModelSet, ContourModelMapper2DBase, ContourModelMapper2D

Definition at line 35 of file mitkContourModelSetMapper2D.h.

Constructor & Destructor Documentation

◆ ContourModelSetMapper2D()

mitk::ContourModelSetMapper2D::ContourModelSetMapper2D ( )

protected

◆ ~ContourModelSetMapper2D()

mitk::ContourModelSetMapper2D::~ContourModelSetMapper2D ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::ContourModelSetMapper2D::Clone ( ) const

◆ mitkClassMacro()

mitk::ContourModelSetMapper2D::mitkClassMacro	(	ContourModelSetMapper2D	,
		ContourModelMapper2DBase
	)

◆ MitkRender()

void mitk::ContourModelSetMapper2D::MitkRender	(	mitk::BaseRenderer *	renderer,
		mitk::VtkPropRenderer::RenderType	type
	)

overridevirtual

Render all contour models in the set onto the 2D slice.

Parameters

[in]	renderer	The renderer for the current render window.
[in]	type	The render type (opaque, transparent, overlay).

Implements mitk::Mapper.

◆ New()

static Pointer mitk::ContourModelSetMapper2D::New ( )

static

◆ SetDefaultProperties()

static void mitk::ContourModelSetMapper2D::SetDefaultProperties	(	mitk::DataNode *	node,
		mitk::BaseRenderer *	renderer = `nullptr`,
		bool	overwrite = `false`
	)

static

Set default rendering properties for ContourModelSet nodes.

Parameters

[in]	node	The data node to configure.
[in]	renderer	The renderer context. If nullptr, properties are set globally.
[in]	overwrite	If true, existing properties are overwritten.

Member Data Documentation

◆ m_LSH

LocalStorageHandler<BaseLocalStorage> mitk::ContourModelSetMapper2D::m_LSH

Local storage handler for per-renderer data.

Definition at line 58 of file mitkContourModelSetMapper2D.h.

The documentation for this class was generated from the following file:

mitkContourModelSetMapper2D.h
