Calculates a LiveWire contour between two points in an image. More...

#include <mitkImageLiveWireContourModelFilter.h>

Inheritance diagram for mitk::ImageLiveWireContourModelFilter:

[legend]

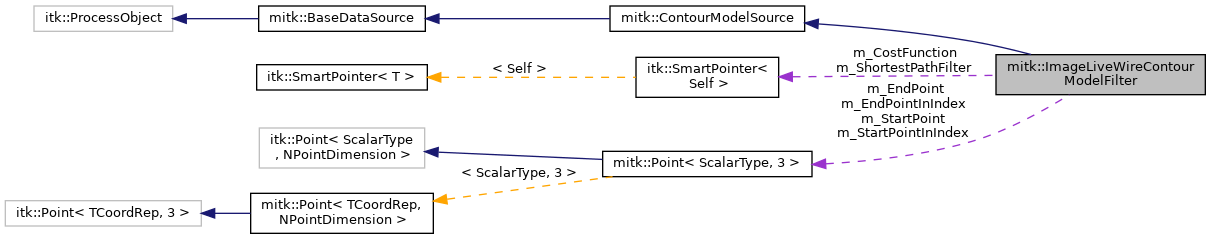

Collaboration diagram for mitk::ImageLiveWireContourModelFilter:

[legend]

Public Types
typedef ContourModel	OutputType

typedef OutputType::Pointer	OutputTypePointer

typedef mitk::Image	InputType

typedef itk::Image< float, 2 >	InternalImageType

typedef itk::ShortestPathImageFilter< InternalImageType, InternalImageType >	ShortestPathImageFilterType

typedef itk::ShortestPathCostFunctionLiveWire< InternalImageType >	CostFunctionType

typedef std::vector< itk::Index< 2 > >	ShortestPathType

Public Types inherited from mitk::ContourModelSource
typedef ContourModel	OutputType
	The output data type produced by this source. More...

typedef OutputType::Pointer	OutputTypePointer
	Smart pointer type for the output. More...

Public Types inherited from mitk::BaseDataSource
typedef BaseData	OutputType
	Output data type. More...

typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
	Identifier type for named data objects. More...

Public Member Functions
	mitkClassMacro (ImageLiveWireContourModelFilter, ContourModelSource)

Pointer	Clone () const

virtual void	SetStartPoint (mitk::Point3D _arg)
	Start point in world coordinates. More...

virtual mitk::Point3D	GetStartPoint ()

virtual void	SetEndPoint (mitk::Point3D _arg)
	End point in world coordinates. More...

virtual mitk::Point3D	GetEndPoint ()

virtual void	SetUseDynamicCostMap (bool _arg)
	Create dynamic cost transfer map - use on the fly training. More...

virtual bool	GetUseDynamicCostMap ()

void	ClearRepulsivePoints ()
	Clear all repulsive points used in the cost function. More...

void	SetRepulsivePoints (const ShortestPathType &points)
	Set a vector with repulsive points to use in the cost function. More...

void	AddRepulsivePoint (const itk::Index< 2 > &idx)
	Add a single repulsive point to the cost function. More...

void	RemoveRepulsivePoint (const itk::Index< 2 > &idx)
	Remove a single repulsive point from the cost function. More...

virtual void	SetInput (const InputType *input)
	Set the input image for the LiveWire computation. More...

virtual void	SetInput (unsigned int idx, const InputType *input)
	Set the input image at a specific index. More...

const InputType *	GetInput (void)
	Get the first input image. More...

const InputType *	GetInput (unsigned int idx)
	Get the input image at a specific index. More...

virtual OutputType *	GetOutput ()
	Get the output contour model. More...

virtual void	DumpMaskImage ()
	Debug helper that dumps the internal mask image. More...

bool	CreateDynamicCostMap (mitk::ContourModel *path=nullptr)
	Create a dynamic cost transfer map using on-the-fly training. More...

void	SetUseCostFunction (bool doUseCostFunction)
	Enable or disable the cost function in the shortest path filter. More...

Public Member Functions inherited from mitk::ContourModelSource
	mitkClassMacro (ContourModelSource, BaseDataSource)

Pointer	Clone () const

mitkBaseDataSourceGetOutputDeclarations itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Allocate a new output object at the given index. More...

itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
	Allocate a new output object by name. More...

Public Member Functions inherited from mitk::BaseDataSource
	mitkClassMacroItkParent (BaseDataSource, itk::ProcessObject)

OutputType *	GetOutput ()

const OutputType *	GetOutput () const

OutputType *	GetOutput (DataObjectPointerArraySizeType idx)

const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const

virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...

virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
	Graft the specified base data object onto a named output. More...

virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...

bool	Updating () const
	Check whether the pipeline is currently executing. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::ContourModelSource
static Pointer	New ()

Protected Member Functions
	ImageLiveWireContourModelFilter ()

	~ImageLiveWireContourModelFilter () override

void	GenerateOutputInformation () override

void	GenerateData () override

void	UpdateLiveWire ()

template<typename TPixel , unsigned int VImageDimension>
void	ItkPreProcessImage (const itk::Image< TPixel, VImageDimension > *inputImage)

template<typename TPixel , unsigned int VImageDimension>
void	CreateDynamicCostMapByITK (const itk::Image< TPixel, VImageDimension > inputImage, mitk::ContourModel path=nullptr)

Protected Member Functions inherited from mitk::ContourModelSource
	ContourModelSource ()

	~ContourModelSource () override

Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	Constructor. More...

	~BaseDataSource () override
	Destructor. More...

Protected Attributes
mitk::Point3D	m_StartPoint
	Start point in world coordinates. More...

mitk::Point3D	m_EndPoint
	End point in world coordinates. More...

mitk::Point3D	m_StartPointInIndex
	Start point in image index coordinates. More...

mitk::Point3D	m_EndPointInIndex
	End point in image index coordinates. More...

CostFunctionType::Pointer	m_CostFunction
	The cost function to compute costs between two pixels. More...

ShortestPathImageFilterType::Pointer	m_ShortestPathFilter
	Shortest path filter according to cost function m_CostFunction. More...

bool	m_UseDynamicCostMap
	Flag to use a dynamic cost map or not. More...

unsigned int	m_TimeStep

InternalImageType::Pointer	m_InternalImage

Additional Inherited Members
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Calculates a LiveWire contour between two points in an image.

For defining costs between two pixels specific features are extracted from the image and transformed into a single cost value.

See also: ShortestPathCostFunctionLiveWire

The filter is able to create dynamic cost transfer map and thus use on the fly training.

Note: On the fly training will only be used for next update. The computation uses the last calculated segment to map cost according to features in the area of the segment.

Caution: time support currently not available. Filter will always work on the first timestep in its current implementation.

Definition at line 47 of file mitkImageLiveWireContourModelFilter.h.

Member Typedef Documentation

◆ CostFunctionType

typedef itk::ShortestPathCostFunctionLiveWire<InternalImageType> mitk::ImageLiveWireContourModelFilter::CostFunctionType

Definition at line 60 of file mitkImageLiveWireContourModelFilter.h.

◆ InputType

typedef mitk::Image mitk::ImageLiveWireContourModelFilter::InputType

Definition at line 56 of file mitkImageLiveWireContourModelFilter.h.

◆ InternalImageType

typedef itk::Image<float, 2> mitk::ImageLiveWireContourModelFilter::InternalImageType

Definition at line 58 of file mitkImageLiveWireContourModelFilter.h.

◆ OutputType

typedef ContourModel mitk::ImageLiveWireContourModelFilter::OutputType

Definition at line 54 of file mitkImageLiveWireContourModelFilter.h.

◆ OutputTypePointer

typedef OutputType::Pointer mitk::ImageLiveWireContourModelFilter::OutputTypePointer

Definition at line 55 of file mitkImageLiveWireContourModelFilter.h.

◆ ShortestPathImageFilterType

typedef itk::ShortestPathImageFilter<InternalImageType, InternalImageType> mitk::ImageLiveWireContourModelFilter::ShortestPathImageFilterType

Definition at line 59 of file mitkImageLiveWireContourModelFilter.h.

◆ ShortestPathType

typedef std::vector<itk::Index<2> > mitk::ImageLiveWireContourModelFilter::ShortestPathType

Definition at line 61 of file mitkImageLiveWireContourModelFilter.h.

Constructor & Destructor Documentation

◆ ImageLiveWireContourModelFilter()

mitk::ImageLiveWireContourModelFilter::ImageLiveWireContourModelFilter ( )

protected

◆ ~ImageLiveWireContourModelFilter()

mitk::ImageLiveWireContourModelFilter::~ImageLiveWireContourModelFilter ( )

overrideprotected

Member Function Documentation

◆ AddRepulsivePoint()

void mitk::ImageLiveWireContourModelFilter::AddRepulsivePoint ( const itk::Index< 2 > & idx )

Add a single repulsive point to the cost function.

◆ ClearRepulsivePoints()

void mitk::ImageLiveWireContourModelFilter::ClearRepulsivePoints ( )

Clear all repulsive points used in the cost function.

◆ Clone()

Pointer mitk::ImageLiveWireContourModelFilter::Clone ( ) const

◆ CreateDynamicCostMap()

bool mitk::ImageLiveWireContourModelFilter::CreateDynamicCostMap ( mitk::ContourModel * path = nullptr )

Create a dynamic cost transfer map using on-the-fly training.

Parameters

path	Optional contour path to use for training. If nullptr, the last computed segment is used.

Returns: True if the cost map was created successfully.

◆ CreateDynamicCostMapByITK()

template<typename TPixel , unsigned int VImageDimension>

void mitk::ImageLiveWireContourModelFilter::CreateDynamicCostMapByITK	(	const itk::Image< TPixel, VImageDimension > *	inputImage,
		mitk::ContourModel *	path = `nullptr`
	)

protected

◆ DumpMaskImage()

virtual void mitk::ImageLiveWireContourModelFilter::DumpMaskImage ( )

virtual

Debug helper that dumps the internal mask image.

◆ GenerateData()

void mitk::ImageLiveWireContourModelFilter::GenerateData ( )

overrideprotected

◆ GenerateOutputInformation()

void mitk::ImageLiveWireContourModelFilter::GenerateOutputInformation ( )

inlineoverrideprotected

Definition at line 135 of file mitkImageLiveWireContourModelFilter.h.

◆ GetEndPoint()

virtual mitk::Point3D mitk::ImageLiveWireContourModelFilter::GetEndPoint ( )

virtual

◆ GetInput() [1/2]

const InputType* mitk::ImageLiveWireContourModelFilter::GetInput ( unsigned int idx )

Get the input image at a specific index.

◆ GetInput() [2/2]

const InputType* mitk::ImageLiveWireContourModelFilter::GetInput ( void )

Get the first input image.

◆ GetOutput()

virtual OutputType* mitk::ImageLiveWireContourModelFilter::GetOutput ( )

virtual

Get the output contour model.

◆ GetStartPoint()

virtual mitk::Point3D mitk::ImageLiveWireContourModelFilter::GetStartPoint ( )

virtual

◆ GetUseDynamicCostMap()

virtual bool mitk::ImageLiveWireContourModelFilter::GetUseDynamicCostMap ( )

virtual

◆ ItkPreProcessImage()

template<typename TPixel , unsigned int VImageDimension>

void mitk::ImageLiveWireContourModelFilter::ItkPreProcessImage ( const itk::Image< TPixel, VImageDimension > * inputImage )

protected

◆ mitkClassMacro()

mitk::ImageLiveWireContourModelFilter::mitkClassMacro	(	ImageLiveWireContourModelFilter	,
		ContourModelSource
	)

◆ New()

static Pointer mitk::ImageLiveWireContourModelFilter::New ( )

static

◆ RemoveRepulsivePoint()

void mitk::ImageLiveWireContourModelFilter::RemoveRepulsivePoint ( const itk::Index< 2 > & idx )

Remove a single repulsive point from the cost function.

◆ SetEndPoint()

virtual void mitk::ImageLiveWireContourModelFilter::SetEndPoint ( mitk::Point3D _arg )

virtual

End point in world coordinates.

◆ SetInput() [1/2]

virtual void mitk::ImageLiveWireContourModelFilter::SetInput ( const InputType * input )

virtual

Set the input image for the LiveWire computation.

Parameters

input The image to compute the LiveWire contour on.

◆ SetInput() [2/2]

virtual void mitk::ImageLiveWireContourModelFilter::SetInput	(	unsigned int	idx,
		const InputType *	input
	)

virtual

Set the input image at a specific index.

Parameters

idx	The input index.
input	The image to set.

◆ SetRepulsivePoints()

void mitk::ImageLiveWireContourModelFilter::SetRepulsivePoints ( const ShortestPathType & points )

Set a vector with repulsive points to use in the cost function.

◆ SetStartPoint()

virtual void mitk::ImageLiveWireContourModelFilter::SetStartPoint ( mitk::Point3D _arg )

virtual

Start point in world coordinates.

◆ SetUseCostFunction()

void mitk::ImageLiveWireContourModelFilter::SetUseCostFunction ( bool doUseCostFunction )

inline

Enable or disable the cost function in the shortest path filter.

Parameters

doUseCostFunction If true, the cost function is used; otherwise uniform cost is assumed.

Definition at line 128 of file mitkImageLiveWireContourModelFilter.h.

◆ SetUseDynamicCostMap()

virtual void mitk::ImageLiveWireContourModelFilter::SetUseDynamicCostMap ( bool _arg )

virtual

Create dynamic cost transfer map - use on the fly training.

Note: On the fly training will be used for next update only. The computation uses the last calculated segment to map cost according to features in the area of the segment.

◆ UpdateLiveWire()

void mitk::ImageLiveWireContourModelFilter::UpdateLiveWire ( )

protected

Member Data Documentation

◆ m_CostFunction

CostFunctionType::Pointer mitk::ImageLiveWireContourModelFilter::m_CostFunction

protected

The cost function to compute costs between two pixels.

Definition at line 154 of file mitkImageLiveWireContourModelFilter.h.

◆ m_EndPoint

mitk::Point3D mitk::ImageLiveWireContourModelFilter::m_EndPoint

protected

End point in world coordinates.

Definition at line 145 of file mitkImageLiveWireContourModelFilter.h.

◆ m_EndPointInIndex

mitk::Point3D mitk::ImageLiveWireContourModelFilter::m_EndPointInIndex

protected

End point in image index coordinates.

Definition at line 151 of file mitkImageLiveWireContourModelFilter.h.

◆ m_InternalImage

InternalImageType::Pointer mitk::ImageLiveWireContourModelFilter::m_InternalImage

protected

Definition at line 171 of file mitkImageLiveWireContourModelFilter.h.

◆ m_ShortestPathFilter

ShortestPathImageFilterType::Pointer mitk::ImageLiveWireContourModelFilter::m_ShortestPathFilter

protected

Shortest path filter according to cost function m_CostFunction.

Definition at line 157 of file mitkImageLiveWireContourModelFilter.h.

◆ m_StartPoint

mitk::Point3D mitk::ImageLiveWireContourModelFilter::m_StartPoint

protected

Start point in world coordinates.

Definition at line 142 of file mitkImageLiveWireContourModelFilter.h.

◆ m_StartPointInIndex

mitk::Point3D mitk::ImageLiveWireContourModelFilter::m_StartPointInIndex

protected

Start point in image index coordinates.

Definition at line 148 of file mitkImageLiveWireContourModelFilter.h.

◆ m_TimeStep

unsigned int mitk::ImageLiveWireContourModelFilter::m_TimeStep

protected

Definition at line 162 of file mitkImageLiveWireContourModelFilter.h.

◆ m_UseDynamicCostMap

bool mitk::ImageLiveWireContourModelFilter::m_UseDynamicCostMap

protected

Flag to use a dynamic cost map or not.

Definition at line 160 of file mitkImageLiveWireContourModelFilter.h.

The documentation for this class was generated from the following file:

mitkImageLiveWireContourModelFilter.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CostFunctionType

◆ InputType

◆ InternalImageType

◆ OutputType

◆ OutputTypePointer

◆ ShortestPathImageFilterType

◆ ShortestPathType

Constructor & Destructor Documentation

◆ ImageLiveWireContourModelFilter()

◆ ~ImageLiveWireContourModelFilter()

Member Function Documentation

◆ AddRepulsivePoint()

◆ ClearRepulsivePoints()

◆ Clone()

◆ CreateDynamicCostMap()

◆ CreateDynamicCostMapByITK()

◆ DumpMaskImage()

◆ GenerateData()

◆ GenerateOutputInformation()

◆ GetEndPoint()

◆ GetInput() [1/2]

◆ GetInput() [2/2]

◆ GetOutput()

◆ GetStartPoint()

◆ GetUseDynamicCostMap()

◆ ItkPreProcessImage()

◆ mitkClassMacro()

◆ New()

◆ RemoveRepulsivePoint()

◆ SetEndPoint()

◆ SetInput() [1/2]

◆ SetInput() [2/2]

◆ SetRepulsivePoints()

◆ SetStartPoint()

◆ SetUseCostFunction()

◆ SetUseDynamicCostMap()

◆ UpdateLiveWire()

Member Data Documentation

◆ m_CostFunction

◆ m_EndPoint

◆ m_EndPointInIndex

◆ m_InternalImage

◆ m_ShortestPathFilter

◆ m_StartPoint

◆ m_StartPointInIndex

◆ m_TimeStep

◆ m_UseDynamicCostMap
