Implementation of the PointSetInteractor. More...

#include <mitkPointSetDataInteractor.h>

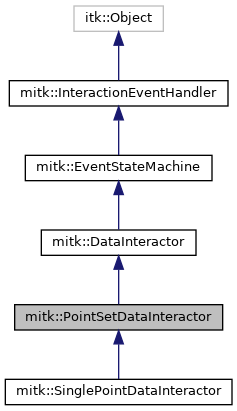

Inheritance diagram for mitk::PointSetDataInteractor:

[legend]

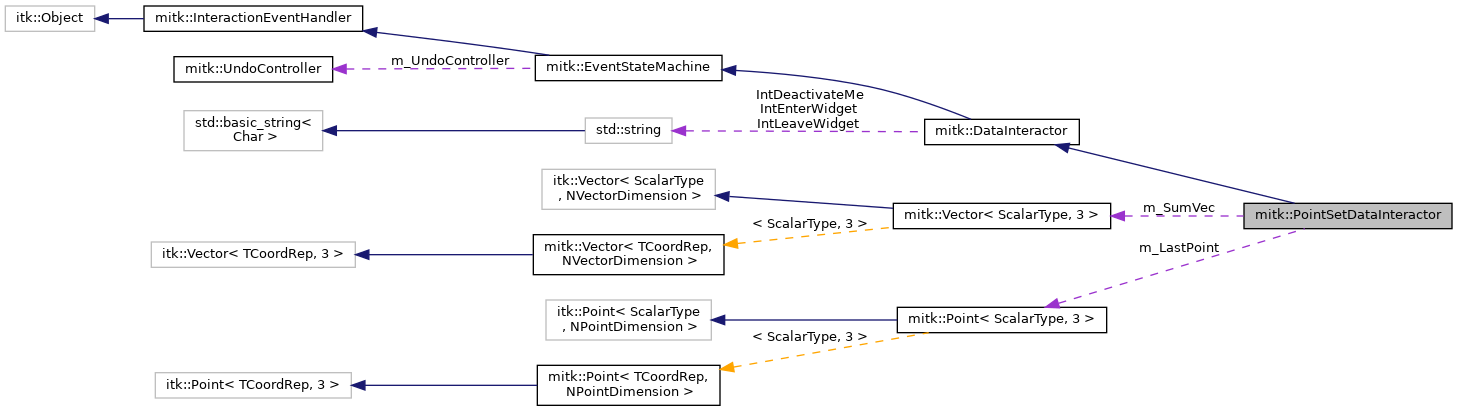

Collaboration diagram for mitk::PointSetDataInteractor:

[legend]

Public Member Functions
	mitkClassMacro (PointSetDataInteractor, DataInteractor)

Pointer	Clone () const

void	SetAccuracy (float accuracy)
	Set the maximum distance for selecting a point by position. More...

void	SetMaxPoints (unsigned int maxNumber=0)
	Set the maximum number of points allowed in the point set. More...

void	EnableMovement (bool enabled=true)
	Enable or disable point movement. More...

void	EnableRemoval (bool enabled=true)
	Enable or disable point removal. More...

void	Enable3DPointPlacement (bool enabled=true)
	Enable or disable point placement in 3D render windows. More...

void	SetBounds (BaseGeometry *geometry)
	Set the boundaries within which points can be placed. More...

Public Member Functions inherited from mitk::DataInteractor
	mitkClassMacro (DataInteractor, EventStateMachine)

Pointer	Clone () const

DataNode *	GetDataNode () const
	Get the DataNode associated with this interactor. More...

virtual void	SetDataNode (DataNode *dataNode)
	Set the DataNode that this interactor operates on. More...

int	GetLayer () const
	Get the rendering layer of the associated DataNode. More...

ProcessEventMode	GetMode () const
	Get the current event processing mode from the state machine's current state. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static Pointer	New ()

Protected Member Functions
	PointSetDataInteractor ()

	~PointSetDataInteractor () override

void	ConnectActionsAndFunctions () override

void	DataNodeChanged () override

virtual int	GetPointIndexByPosition (Point3D position, unsigned int time=0, float accuracy=-1)
	Return index in PointSet of the point that is within given accuracy to the provided position. More...

virtual bool	CheckSelection (const InteractionEvent *interactionEvent)
	Check whether the pointer is over a point in the point set. More...

virtual bool	CanAddPoint (const InteractionEvent *interactionEvent)
	Check whether a new point can be added. More...

virtual void	AddPoint (StateMachineAction , InteractionEvent event)

virtual void	RemovePoint (StateMachineAction , InteractionEvent interactionEvent)

virtual void	IsClosedContour (StateMachineAction , InteractionEvent )

virtual void	MovePoint (StateMachineAction , InteractionEvent )

virtual void	InitMove (StateMachineAction , InteractionEvent interactionEvent)

virtual void	FinishMove (StateMachineAction , InteractionEvent )

virtual void	SelectPoint (StateMachineAction , InteractionEvent )

virtual void	UnSelectPointAtPosition (StateMachineAction , InteractionEvent )

virtual void	UnSelectAll (StateMachineAction , InteractionEvent )

virtual void	UpdatePointSet (StateMachineAction stateMachineAction, InteractionEvent )
	Update the member variable that holds the point set. More...

virtual void	Abort (StateMachineAction , InteractionEvent )

virtual void	KeyDelete (StateMachineAction , InteractionEvent )
	Delete the currently selected point via keyboard action. More...

void	UnselectAll (unsigned int timeStep, ScalarType timeInMs)

void	SelectPoint (int position, unsigned int timeStep, ScalarType timeInMS)

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

virtual bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Protected Attributes
Point3D	m_LastPoint
	to calculate a direction vector from last point and actual point More...

Vector3D	m_SumVec
	summ-vector for Movement More...

PointSet::Pointer	m_PointSet

int	m_MaxNumberOfPoints

float	m_SelectionAccuracy

bool	m_IsMovementEnabled

bool	m_IsRemovalEnabled

bool	m_Is3DPointPlacementEnabled

mitk::BaseGeometry::Pointer	m_Bounds

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Additional Inherited Members
Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe
	Internal signal name to request deactivation of this interactor. More...

static const std::string	IntLeaveWidget
	Internal signal name indicating the pointer left the widget area. More...

static const std::string	IntEnterWidget
	Internal signal name indicating the pointer entered the widget area. More...

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Detailed Description

Implementation of the PointSetInteractor.

Interactor that operates on a point set and supports:

adding points
removing points
moving single points
moving the complete point set
selecting/unselecting a point

in 2D and 3D render windows.

Warning: If this Interactor is assigned (SetDataNode) an empty mitk::DataNode it creates a point set. Changing the point set of the assigned mitk::DataNode after this assignment will cause the mitk::PointSetDataInteractor to not work properly. The usage must follow this general scheme:

// Set up interactor
m_CurrentInteractor = mitk::PointSetDataInteractor::New();
m_CurrentInteractor->LoadStateMachine("PointSet.xml");
m_CurrentInteractor->SetEventConfig("PointSetConfig.xml");
// Create new PointSet which will receive the interaction input
m_TestPointSet = mitk::PointSet::New();
// Add the point set to the DataNode *before* the DataNode is added to the PointSetDataInteractor
m_TestPointSetNode->SetData(m_TestPointSet);
// Finally add the DataNode (which already is added to the DataStorage) to the PointSetDataInteractor
m_CurrentInteractor->SetDataNode(m_TestPointSetNode);

See also: DataInteractor; PointSet

Definition at line 59 of file mitkPointSetDataInteractor.h.

Constructor & Destructor Documentation

◆ PointSetDataInteractor()

mitk::PointSetDataInteractor::PointSetDataInteractor ( )

protected

◆ ~PointSetDataInteractor()

mitk::PointSetDataInteractor::~PointSetDataInteractor ( )

overrideprotected

Member Function Documentation

◆ Abort()

virtual void mitk::PointSetDataInteractor::Abort	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Calls for inactivation of the DataInteractor

◆ AddPoint()

virtual void mitk::PointSetDataInteractor::AddPoint	(	StateMachineAction *	,
		InteractionEvent *	event
	)

protectedvirtual

Adds a point at the given coordinates. Every time a point is added it is also checked if the maximal number of points is reached, and if so an InternalEvent with the signal name "MaxNumberOfPoints" is triggered.

Reimplemented in mitk::SinglePointDataInteractor.

◆ CanAddPoint()

virtual bool mitk::PointSetDataInteractor::CanAddPoint ( const InteractionEvent * interactionEvent )

protectedvirtual

Check whether a new point can be added.

Returns true unless 3D point placement is disabled and the event originates from a 3D render window.

◆ CheckSelection()

virtual bool mitk::PointSetDataInteractor::CheckSelection ( const InteractionEvent * interactionEvent )

protectedvirtual

Check whether the pointer is over a point in the point set.

Returns: true if a point is within selection accuracy of the event position.

◆ Clone()

Pointer mitk::PointSetDataInteractor::Clone ( ) const

◆ ConnectActionsAndFunctions()

void mitk::PointSetDataInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Here actions strings from the loaded state machine pattern are mapped to functions of the DataInteractor. These functions are called when an action from the state machine pattern is executed.

Reimplemented from mitk::DataInteractor.

◆ DataNodeChanged()

void mitk::PointSetDataInteractor::DataNodeChanged ( )

overrideprotectedvirtual

This function is called when a DataNode has been set/changed. It is used to initialize the DataNode, e.g. if no PointSet exists yet it is created and added to the DataNode.

Reimplemented from mitk::DataInteractor.

Reimplemented in mitk::SinglePointDataInteractor.

◆ Enable3DPointPlacement()

void mitk::PointSetDataInteractor::Enable3DPointPlacement ( bool enabled = true )

Enable or disable point placement in 3D render windows.

Parameters

enabled If true (default), points can be placed in 3D views.

◆ EnableMovement()

void mitk::PointSetDataInteractor::EnableMovement ( bool enabled = true )

Enable or disable point movement.

Parameters

enabled If true (default), points can be moved interactively.

◆ EnableRemoval()

void mitk::PointSetDataInteractor::EnableRemoval ( bool enabled = true )

Enable or disable point removal.

Parameters

enabled If true (default), points can be removed interactively.

◆ FinishMove()

virtual void mitk::PointSetDataInteractor::FinishMove	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Is called when a movement is finished, changes back to regular color.

◆ GetPointIndexByPosition()

virtual int mitk::PointSetDataInteractor::GetPointIndexByPosition	(	Point3D	position,
		unsigned int	time = `0`,
		float	accuracy = `-1`
	)

protectedvirtual

Return index in PointSet of the point that is within given accuracy to the provided position.

Assumes that the DataNode contains a PointSet, if so it iterates over all points in the DataNode to check if it contains a point near the pointer position. If a point is found its index-position is returned, else -1 is returned.

◆ InitMove()

virtual void mitk::PointSetDataInteractor::InitMove	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Initializes the movement, stores starting position.

◆ IsClosedContour()

virtual void mitk::PointSetDataInteractor::IsClosedContour	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Checks if new point is close enough to an old one, if so, trigger the ClosedContour signal which can be caught by the state machine.

◆ KeyDelete()

virtual void mitk::PointSetDataInteractor::KeyDelete	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Delete the currently selected point via keyboard action.

◆ mitkClassMacro()

mitk::PointSetDataInteractor::mitkClassMacro	(	PointSetDataInteractor	,
		DataInteractor
	)

◆ MovePoint()

virtual void mitk::PointSetDataInteractor::MovePoint	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Moves the currently selected point to the new coordinates.

◆ New()

static Pointer mitk::PointSetDataInteractor::New ( )

static

◆ RemovePoint()

virtual void mitk::PointSetDataInteractor::RemovePoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protectedvirtual

Removes point that is selected

◆ SelectPoint() [1/2]

void mitk::PointSetDataInteractor::SelectPoint	(	int	position,
		unsigned int	timeStep,
		ScalarType	timeInMS
	)

protected

◆ SelectPoint() [2/2]

virtual void mitk::PointSetDataInteractor::SelectPoint	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Selects a point from the PointSet as currently active.

◆ SetAccuracy()

void mitk::PointSetDataInteractor::SetAccuracy ( float accuracy )

Set the maximum distance for selecting a point by position.

Sets the maximum distance that is accepted when looking for a point at a certain position using the GetPointIndexByPosition function.

Parameters

accuracy The selection accuracy (distance threshold) in world units.

◆ SetBounds()

void mitk::PointSetDataInteractor::SetBounds ( BaseGeometry * geometry )

Set the boundaries within which points can be placed.

Points outside the given geometry will be rejected on add, and clamped during movement.

Parameters

geometry The geometry defining the allowed region, or nullptr to remove bounds.

◆ SetMaxPoints()

void mitk::PointSetDataInteractor::SetMaxPoints ( unsigned int maxNumber = 0 )

Set the maximum number of points allowed in the point set.

Default is zero, which allows an infinite number of points. When the maximum is reached, an InternalEvent "MaximalNumberOfPoints" is fired.

Parameters

maxNumber Maximum number of allowed points (0 for unlimited).

◆ UnSelectAll()

virtual void mitk::PointSetDataInteractor::UnSelectAll	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Unselects all points out of reach.

◆ UnselectAll()

void mitk::PointSetDataInteractor::UnselectAll	(	unsigned int	timeStep,
		ScalarType	timeInMs
	)

protected

◆ UnSelectPointAtPosition()

virtual void mitk::PointSetDataInteractor::UnSelectPointAtPosition	(	StateMachineAction *	,
		InteractionEvent *
	)

protectedvirtual

Unselects a point at the given coordinate.

◆ UpdatePointSet()

virtual void mitk::PointSetDataInteractor::UpdatePointSet	(	StateMachineAction *	stateMachineAction,
		InteractionEvent *
	)

protectedvirtual

Update the member variable that holds the point set.

Re-reads the PointSet from the DataNode, evaluating the time step of the sender.

Member Data Documentation

◆ m_Bounds

mitk::BaseGeometry::Pointer mitk::PointSetDataInteractor::m_Bounds

protected

Definition at line 230 of file mitkPointSetDataInteractor.h.

◆ m_Is3DPointPlacementEnabled

bool mitk::PointSetDataInteractor::m_Is3DPointPlacementEnabled

protected

Definition at line 229 of file mitkPointSetDataInteractor.h.

◆ m_IsMovementEnabled

bool mitk::PointSetDataInteractor::m_IsMovementEnabled

protected

Definition at line 227 of file mitkPointSetDataInteractor.h.

◆ m_IsRemovalEnabled

bool mitk::PointSetDataInteractor::m_IsRemovalEnabled

protected

Definition at line 228 of file mitkPointSetDataInteractor.h.

◆ m_LastPoint

Point3D mitk::PointSetDataInteractor::m_LastPoint

protected

to calculate a direction vector from last point and actual point

Definition at line 218 of file mitkPointSetDataInteractor.h.

◆ m_MaxNumberOfPoints

int mitk::PointSetDataInteractor::m_MaxNumberOfPoints

protected

Definition at line 225 of file mitkPointSetDataInteractor.h.

◆ m_PointSet

PointSet::Pointer mitk::PointSetDataInteractor::m_PointSet

protected

Definition at line 224 of file mitkPointSetDataInteractor.h.

◆ m_SelectionAccuracy

float mitk::PointSetDataInteractor::m_SelectionAccuracy

protected

Definition at line 226 of file mitkPointSetDataInteractor.h.

◆ m_SumVec

Vector3D mitk::PointSetDataInteractor::m_SumVec

protected

summ-vector for Movement

Definition at line 221 of file mitkPointSetDataInteractor.h.

The documentation for this class was generated from the following file:

mitkPointSetDataInteractor.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PointSetDataInteractor()

◆ ~PointSetDataInteractor()

Member Function Documentation

◆ Abort()

◆ AddPoint()

◆ CanAddPoint()

◆ CheckSelection()

◆ Clone()

◆ ConnectActionsAndFunctions()

◆ DataNodeChanged()

◆ Enable3DPointPlacement()

◆ EnableMovement()

◆ EnableRemoval()

◆ FinishMove()

◆ GetPointIndexByPosition()

◆ InitMove()

◆ IsClosedContour()

◆ KeyDelete()

◆ mitkClassMacro()

◆ MovePoint()

◆ New()

◆ RemovePoint()

◆ SelectPoint() [1/2]

◆ SelectPoint() [2/2]

◆ SetAccuracy()

◆ SetBounds()

◆ SetMaxPoints()

◆ UnSelectAll()

◆ UnselectAll()

◆ UnSelectPointAtPosition()

◆ UpdatePointSet()

Member Data Documentation

◆ m_Bounds

◆ m_Is3DPointPlacementEnabled

◆ m_IsMovementEnabled

◆ m_IsRemovalEnabled

◆ m_LastPoint

◆ m_MaxNumberOfPoints

◆ m_PointSet

◆ m_SelectionAccuracy

◆ m_SumVec
