mitk::SinglePointDataInteractor Class Reference
Implementation of the single point interaction. More...
#include <mitkSinglePointDataInteractor.h>

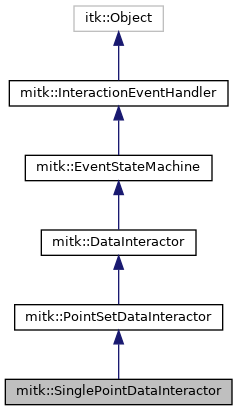

Inheritance diagram for mitk::SinglePointDataInteractor:

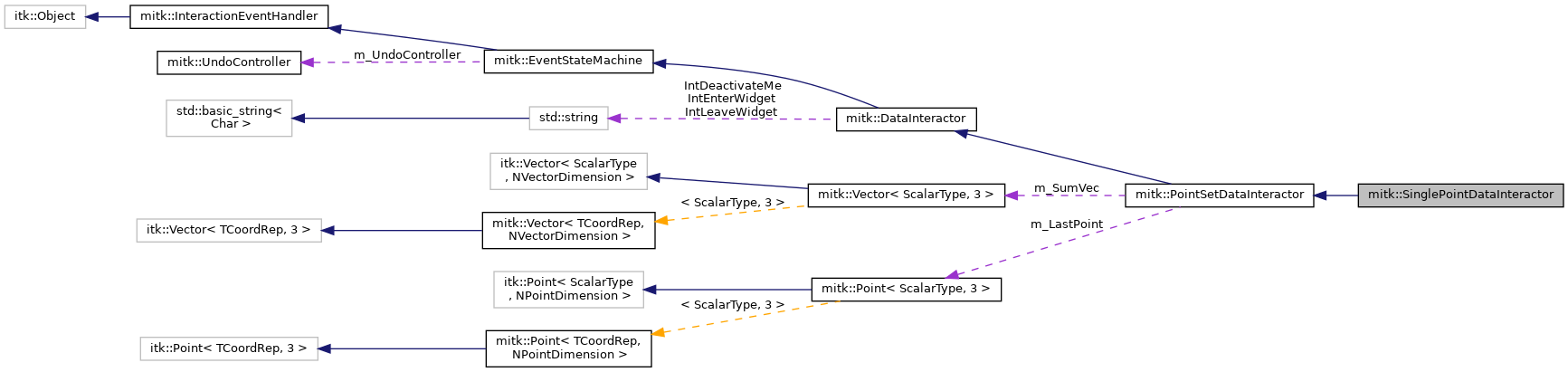

Collaboration diagram for mitk::SinglePointDataInteractor:
Public Member Functions | |
| mitkClassMacro (SinglePointDataInteractor, PointSetDataInteractor) | |
| Pointer | Clone () const |
 Public Member Functions inherited from mitk::PointSetDataInteractor | |
| mitkClassMacro (PointSetDataInteractor, DataInteractor) | |
| Pointer | Clone () const |
| void | SetAccuracy (float accuracy) |
| Set the maximum distance for selecting a point by position. More... | |
| void | SetMaxPoints (unsigned int maxNumber=0) |
| Set the maximum number of points allowed in the point set. More... | |
| void | EnableMovement (bool enabled=true) |
| Enable or disable point movement. More... | |
| void | EnableRemoval (bool enabled=true) |
| Enable or disable point removal. More... | |
| void | Enable3DPointPlacement (bool enabled=true) |
| Enable or disable point placement in 3D render windows. More... | |
| void | SetBounds (BaseGeometry *geometry) |
| Set the boundaries within which points can be placed. More... | |
| Public Member Functions inherited from mitk::DataInteractor | |
| mitkClassMacro (DataInteractor, EventStateMachine) | |
| Pointer | Clone () const |
| DataNode * | GetDataNode () const |
| Get the DataNode associated with this interactor. More... | |
| virtual void | SetDataNode (DataNode *dataNode) |
| Set the DataNode that this interactor operates on. More... | |
| int | GetLayer () const |
| Get the rendering layer of the associated DataNode. More... | |
| ProcessEventMode | GetMode () const |
| Get the current event processing mode from the state machine's current state. More... | |
| Public Member Functions inherited from mitk::EventStateMachine | |
| mitkClassMacro (EventStateMachine, InteractionEventHandler) | |
| bool | LoadStateMachine (const std::string &filename, const us::Module *module=nullptr) |
| Load a state machine pattern from an XML resource file. More... | |
| bool | HandleEvent (InteractionEvent *event, DataNode *dataNode) |
| Process an incoming interaction event. More... | |
| void | EnableUndo (bool enable) |
| Enable or disable the undo mechanism for this state machine. More... | |
| void | EnableInteraction (bool enable) |
| Enable or disable the state machine. More... | |
| Public Member Functions inherited from mitk::InteractionEventHandler | |
| mitkClassMacroItkParent (InteractionEventHandler, itk::Object) | |
| bool | SetEventConfig (const std::string &filename, const us::Module *module=nullptr) |
| Loads a configuration from an XML resource. More... | |
| bool | SetEventConfig (const EventConfig &config) |
| Loads a configuration from an EventConfig object. More... | |
| EventConfig | GetEventConfig () const |
| Returns the current configuration. More... | |
| bool | AddEventConfig (const std::string &filename, const us::Module *module=nullptr) |
| This method extends the configuration. More... | |
| bool | AddEventConfig (const EventConfig &config) |
| This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More... | |
Static Public Member Functions | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::PointSetDataInteractor | |
| static Pointer | New () |
| Static Public Member Functions inherited from mitk::DataInteractor | |
| static Pointer | New () |
Protected Member Functions | |
| SinglePointDataInteractor () | |
| ~SinglePointDataInteractor () override | |
| void | AddPoint (StateMachineAction *, InteractionEvent *event) override |
| Add or move the single point at the given coordinates. More... | |
| virtual void | SetMaxPoints (unsigned int maxNumber=0) |
| Overridden to enforce a maximum of one point. More... | |
| void | DataNodeChanged () override |
| Called when the data node changes. More... | |
| Protected Member Functions inherited from mitk::PointSetDataInteractor | |
| PointSetDataInteractor () | |
| ~PointSetDataInteractor () override | |
| void | ConnectActionsAndFunctions () override |
| virtual int | GetPointIndexByPosition (Point3D position, unsigned int time=0, float accuracy=-1) |
| Return index in PointSet of the point that is within given accuracy to the provided position. More... | |
| virtual bool | CheckSelection (const InteractionEvent *interactionEvent) |
| Check whether the pointer is over a point in the point set. More... | |
| virtual bool | CanAddPoint (const InteractionEvent *interactionEvent) |
| Check whether a new point can be added. More... | |
| virtual void | RemovePoint (StateMachineAction *, InteractionEvent *interactionEvent) |
| virtual void | IsClosedContour (StateMachineAction *, InteractionEvent *) |
| virtual void | MovePoint (StateMachineAction *, InteractionEvent *) |
| virtual void | InitMove (StateMachineAction *, InteractionEvent *interactionEvent) |
| virtual void | FinishMove (StateMachineAction *, InteractionEvent *) |
| virtual void | SelectPoint (StateMachineAction *, InteractionEvent *) |
| virtual void | UnSelectPointAtPosition (StateMachineAction *, InteractionEvent *) |
| virtual void | UnSelectAll (StateMachineAction *, InteractionEvent *) |
| virtual void | UpdatePointSet (StateMachineAction *stateMachineAction, InteractionEvent *) |
| Update the member variable that holds the point set. More... | |
| virtual void | Abort (StateMachineAction *, InteractionEvent *) |
| virtual void | KeyDelete (StateMachineAction *, InteractionEvent *) |
| Delete the currently selected point via keyboard action. More... | |
| void | UnselectAll (unsigned int timeStep, ScalarType timeInMs) |
| void | SelectPoint (int position, unsigned int timeStep, ScalarType timeInMS) |
| Protected Member Functions inherited from mitk::DataInteractor | |
| DataInteractor () | |
| ~DataInteractor () override | |
| virtual void | NotifyStart () |
| Sends StartInteraction event via the mitk::DataNode. More... | |
| virtual void | NotifyResultReady () |
| NotifyResultReady Sends ResultReady event via the mitk::DataNode. More... | |
| Protected Member Functions inherited from mitk::EventStateMachine | |
| EventStateMachine () | |
| ~EventStateMachine () override | |
| void | AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate) |
| void | AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate) |
| StateMachineState * | GetCurrentState () const |
| void | ResetToStartState () |
| ResetToStartState Reset state machine to it initial starting state. More... | |
| virtual bool | CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent) |
| virtual void | ExecuteAction (StateMachineAction *action, InteractionEvent *interactionEvent) |
| virtual bool | FilterEvents (InteractionEvent *interactionEvent, DataNode *dataNode) |
| void | SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY) |
| Sets the specified mouse cursor. More... | |
| void | ResetMouseCursor () |
| Resets the mouse cursor to its original state. More... | |
| StateMachineTransition * | GetExecutableTransition (InteractionEvent *event) |
| Returns the executable transition for the given event. More... | |
| Protected Member Functions inherited from mitk::InteractionEventHandler | |
| InteractionEventHandler () | |
| ~InteractionEventHandler () override | |
| PropertyList::Pointer | GetAttributes () const |
| std::string | MapToEventVariant (InteractionEvent *interactionEvent) |
| virtual void | ConfigurationChanged () |
Additional Inherited Members | |
| Public Types inherited from mitk::EventStateMachine | |
| typedef itk::SmartPointer< StateMachineState > | StateMachineStateType |
| Static Public Attributes inherited from mitk::DataInteractor | |
| static const std::string | IntDeactivateMe |
| Internal signal name to request deactivation of this interactor. More... | |
| static const std::string | IntLeaveWidget |
| Internal signal name indicating the pointer left the widget area. More... | |
| static const std::string | IntEnterWidget |
| Internal signal name indicating the pointer entered the widget area. More... | |
| Protected Types inherited from mitk::EventStateMachine | |
| typedef MessageAbstractDelegate2< StateMachineAction *, InteractionEvent *, void > | ActionFunctionDelegate |
| typedef MessageAbstractDelegate1< const InteractionEvent *, bool > | ConditionFunctionDelegate |
| Protected Attributes inherited from mitk::PointSetDataInteractor | |
| Point3D | m_LastPoint |
| to calculate a direction vector from last point and actual point More... | |
| Vector3D | m_SumVec |
| summ-vector for Movement More... | |
| PointSet::Pointer | m_PointSet |
| int | m_MaxNumberOfPoints |
| float | m_SelectionAccuracy |
| bool | m_IsMovementEnabled |
| bool | m_IsRemovalEnabled |
| bool | m_Is3DPointPlacementEnabled |
| mitk::BaseGeometry::Pointer | m_Bounds |
| Protected Attributes inherited from mitk::EventStateMachine | |
| bool | m_IsActive |
| UndoController * | m_UndoController |
| bool | m_UndoEnabled |
Detailed Description
Implementation of the single point interaction.
Interactor operates on a single point set. When a data node is set, its containing point set is cleared for initialization. Instead of adding new points, the first point's position is updated. All other interaction (move, delete) is handled by the base class PointSetDataInteractor.
- See also
- PointSetDataInteractor
Definition at line 36 of file mitkSinglePointDataInteractor.h.
Constructor & Destructor Documentation
◆ SinglePointDataInteractor()
|
protected |
◆ ~SinglePointDataInteractor()
|
overrideprotected |
Member Function Documentation
◆ AddPoint()
|
overrideprotectedvirtual |
Add or move the single point at the given coordinates.
Overwrites PointSetDataInteractor::AddPoint() so that instead of adding new points, the first point's position is updated. All other interaction (move, delete) is still handled by PointSetDataInteractor.
Reimplemented from mitk::PointSetDataInteractor.
◆ Clone()
| Pointer mitk::SinglePointDataInteractor::Clone | ( | ) | const |
◆ DataNodeChanged()
|
overrideprotectedvirtual |
Called when the data node changes.
Ensures the data node contains a point set. If one exists, it is cleared; otherwise a new empty PointSet is created and assigned.
Reimplemented from mitk::PointSetDataInteractor.
◆ mitkClassMacro()
| mitk::SinglePointDataInteractor::mitkClassMacro | ( | SinglePointDataInteractor | , |
| PointSetDataInteractor | |||
| ) |
◆ New()
|
static |
◆ SetMaxPoints()
|
protectedvirtual |
Overridden to enforce a maximum of one point.
This method is a no-op by design, since this class always operates on exactly one point.
The documentation for this class was generated from the following file:
