Abstract base class for segmentation tools. More...

#include <mitkSegTool2D.h>

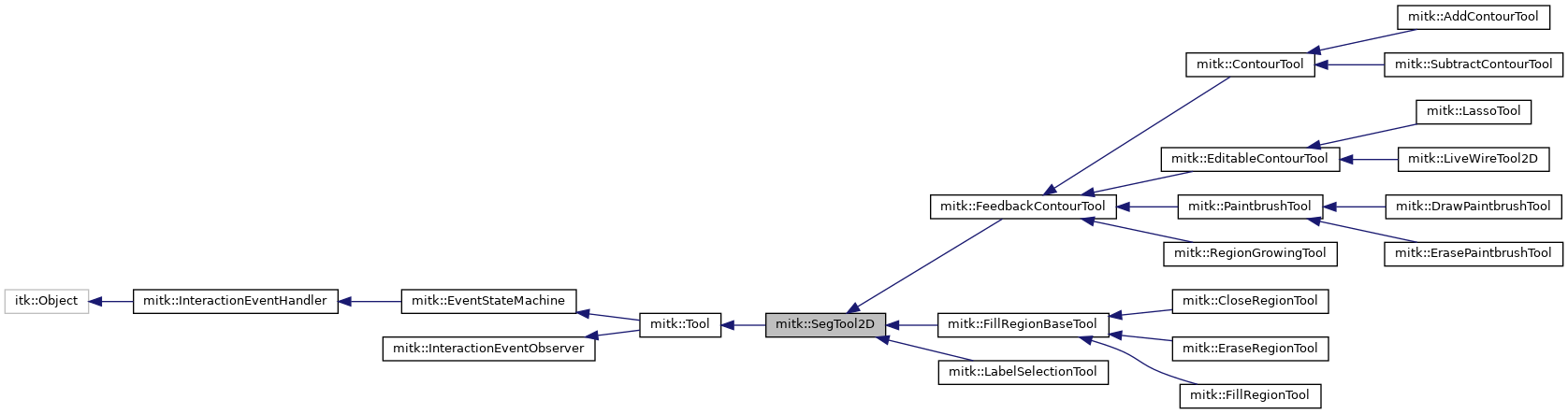

Inheritance diagram for mitk::SegTool2D:

[legend]

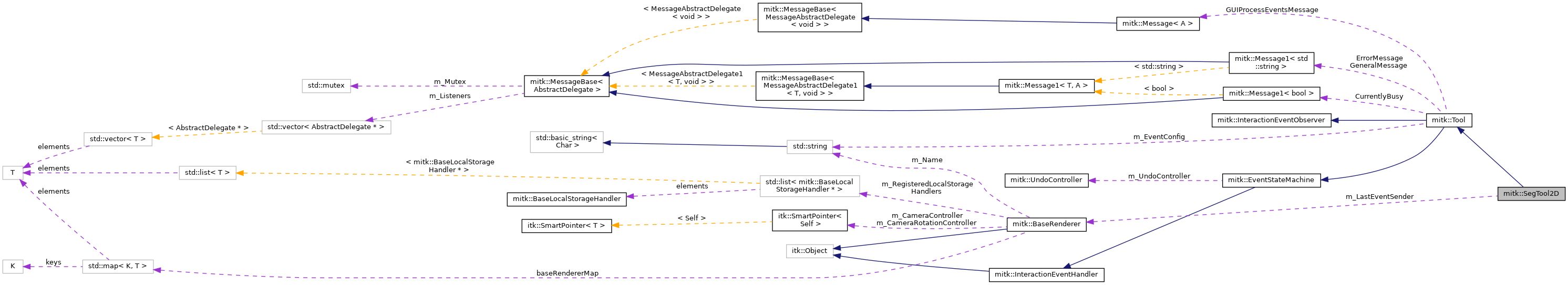

Collaboration diagram for mitk::SegTool2D:

[legend]

Classes
struct	SliceInformation

Public Member Functions
	mitkClassMacro (SegTool2D, Tool)

void	SetShowMarkerNodes (bool show)
	Sets whether contour marker nodes should be visible in the DataStorage. More...

void	SetEnable3DInterpolation (bool)
	Enables or disables the 3D interpolation after writing back the 2D segmentation result, and defaults to true. More...

void	Activated () override
	Called when the tool gets activated. More...

void	Deactivated () override
	Called when the tool gets deactivated. More...

virtual void	SetIsTimePointChangeAware (bool _arg)

virtual bool	GetIsTimePointChangeAware ()

virtual void	IsTimePointChangeAwareOn ()

virtual void	IsTimePointChangeAwareOff ()

DataNode *	GetWorkingDataNode () const
	Returns the segmentation node that should be modified by the tool. More...

MultiLabelSegmentation *	GetWorkingData () const
	Returns the working data (multi-label segmentation image). More...

DataNode *	GetReferenceDataNode () const
	Returns the reference data node. More...

Image *	GetReferenceData () const
	Returns the reference image data. More...

Public Member Functions inherited from mitk::Tool
	mitkClassMacro (Tool, EventStateMachine)

virtual us::ModuleResource	GetCursorIconResource () const
	Returns the cursor icon of the tool wrapped by a usModuleResource. More...

virtual us::ModuleResource	GetIconResource () const
	Returns the tool button icon of the tool wrapped by a usModuleResource. More...

virtual const char *	GetName () const =0
	Returns the name of this tool. Make it short! More...

virtual mitk::Label::AlgorithmType	GetAlgorithmType () const
	Returns the intrinsic algorithm type of this tool, used to stamp label provenance. More...

virtual const char *	GetGroup () const
	Name of a group. More...

virtual bool	IsEligibleForAutoInit () const
	Returns whether this tool is eligible for auto-initialization by ToolManager. More...

virtual void	InitializeStateMachine ()
	Initializes the state machine for this tool based on the interaction type. More...

virtual itk::Object::Pointer	GetGUI (const std::string &toolkitPrefix, const std::string &toolkitPostfix)
	Interface for GUI creation. More...

virtual NodePredicateBase::ConstPointer	GetReferenceDataPreference () const
	Returns a predicate describing valid reference data for this tool. More...

virtual NodePredicateBase::ConstPointer	GetWorkingDataPreference () const
	Returns a predicate describing valid working data for this tool. More...

virtual bool	CanHandle (const BaseData referenceData, const BaseData workingData) const
	Checks if a tool can handle the given reference data and optional working data. More...

virtual bool	ConfirmBeforeDeactivation ()
	Method call to invoke a dialog box just before exiting. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()
	Disable this observer so it no longer receives notifications. More...

void	Enable ()
	Enable this observer so it receives notifications. More...

bool	IsEnabled () const
	Check whether this observer is currently enabled. More...

Static Public Member Functions
static bool	DetermineAffectedImageSlice (const Image image, const PlaneGeometry plane, int &affectedDimension, int &affectedSlice)
	Calculates for a given Image and PlaneGeometry, which slice of the image (in index coordinates) is meant by the plane. More...

static void	UpdateAllSurfaceInterpolations (const MultiLabelSegmentation workingImage, TimeStepType timeStep, const PlaneGeometry plane, bool detectIntersection)
	Updates the surface interpolations by extracting contours from the given slice. More...

static Image::Pointer	GetAffectedImageSliceAs2DImage (const InteractionPositionEvent positionEvent, const Image image, unsigned int component=0)
	Extract the slice of an image that the user just scribbles on. The given component denotes the vector component of an vector image. More...

static Image::Pointer	GetAffectedImageSliceAs2DImage (const PlaneGeometry planeGeometry, const Image image, TimeStepType timeStep, unsigned int component=0)
	Extract the slice of an image cut by given plane. The given component denotes the vector component of a vector image. More...

static Image::Pointer	GetAffectedImageSliceAs2DImageByTimePoint (const PlaneGeometry planeGeometry, const Image image, TimePointType timePoint, unsigned int component=0)
	Extract the slice of an image cut by the given plane at a specified time point. More...

static void	WriteBackSegmentationResult (const DataNode workingNode, const PlaneGeometry planeGeometry, const Image *segmentationResult, TimeStepType timeStep, const std::string &toolName)
	Writes the provided segmentation result slice into the data of the passed workingNode. More...

static void	WriteSliceToVolume (Image workingImage, const PlaneGeometry planeGeometry, const Image *slice, TimeStepType timeStep)
	Writes a provided slice into the passed working image. More...

Protected Member Functions
	SegTool2D ()

	SegTool2D (const char , const us::Module interactorModule=nullptr)

	~SegTool2D () override

virtual void	OnTimePointChanged ()

bool	FilterEvents (InteractionEvent interactionEvent, DataNode dataNode) override
	Filters events that cannot be handled by 2D segmentation tools. More...

Image::Pointer	GetAffectedWorkingSlice (const InteractionPositionEvent *) const
	Extract the slice of the currently selected working image that the user just scribbles on. More...

Image::Pointer	GetAffectedReferenceSlice (const InteractionPositionEvent *) const
	Extract the slice of the currently selected reference image that the user just scribbles on. More...

Image::Pointer	GetAffectedReferenceSlice (const PlaneGeometry *planeGeometry, TimeStepType timeStep) const

void	WriteBackSegmentationResult (const InteractionPositionEvent , const Image segmentationResult)

void	WriteBackSegmentationResult (const PlaneGeometry planeGeometry, const Image segmentationResult, TimeStepType timeStep)

void	WriteBackSegmentationResults (const std::vector< SliceInformation > &sliceList, bool writeSliceToVolume=true)

virtual MultiLabelSegmentation::LabelValueVectorType	GetAffectedLabelValues () const
	Returns the label value(s) whose pixels this tool's writeback actually modifies, so the provenance stamp at the writeback choke point lands on the right label. The default is the active label; tools that write a label other than the active one (e.g. erase/close operate on the clicked label) override this. An empty result records no tool use. More...

int	AddContourmarker (const PlaneGeometry *planeGeometry, unsigned int sliceIndex)
	Adds a new node called Contourmarker to the datastorage which holds a mitk::PlanarFigure. By selecting this node the slicestack will be reoriented according to the passed PlanarFigure's Geometry. More...

void	DisableContourMarkers ()

void	InteractiveSegmentationBugMessage (const std::string &message) const

virtual TimePointType	GetLastTimePointTriggered ()

void	PushCursor ()
	Pushes the current tool cursor onto the cursor stack. More...

void	PushCursor (us::ModuleResource cursorResource)
	Pushes a custom cursor onto the cursor stack. More...

void	PopCursor (bool popFirstCursor=false)
	Pops the most recently pushed cursor from the stack. More...

void	PopAllCursors ()
	Pops all cursors from the stack, restoring the default cursor. More...

Protected Member Functions inherited from mitk::Tool
virtual void	SetToolManager (ToolManager *)

ToolManager *	GetToolManager () const

mitk::DataStorage *	GetDataStorage () const

void	ConnectActionsAndFunctions () override

	Tool (const char , const us::Module interactorModule=nullptr)

	~Tool () override

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override
	Called by the Dispatcher to notify this observer about an InteractionEvent. More...

bool	FilterEvents (InteractionEvent , DataNode ) override

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Static Protected Member Functions
static void	UpdateSurfaceInterpolation (const std::vector< SliceInformation > &sliceInfos, const Image *workingImage, bool detectIntersection, mitk::Label::PixelType activeLabelValue, bool silent=false)
	Updates the surface interpolation by extracting contours from given slices. More...

static void	WriteBackSegmentationResults (const DataNode *workingNode, const std::vector< SliceInformation > &sliceList, bool writeSliceToVolume=true, bool allowUndo=true, const std::string &toolName="")
	Writes all provided source slices into the data of the passed workingNode. The function does the following: 1) for every passed slice write it to workingNode (and generate and undo/redo step); 2) update the surface interpolation and 3) mark the node as modified. More...

static void	WriteSliceToVolume (Image *workingImage, const SliceInformation &sliceInfo)

static bool	IsPositionEventInsideImageRegion (InteractionPositionEvent positionEvent, const BaseData data)

Protected Attributes
BaseRenderer *	m_LastEventSender

unsigned int	m_LastEventSlice

Protected Attributes inherited from mitk::Tool
std::string	m_EventConfig
	Let subclasses change their event configuration. More...

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Additional Inherited Members
Public Types inherited from mitk::Tool
typedef mitk::Label::PixelType	DefaultSegmentationDataType

Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Attributes inherited from mitk::Tool
Message	GUIProcessEventsMessage
	To let GUI process new events (e.g. qApp->processEvents() ) More...

Message1< std::string >	ErrorMessage
	To send error messages (to be shown by some GUI) More...

Message1< bool >	CurrentlyBusy
	To send whether the tool is busy (to be shown by some GUI) More...

Message1< std::string >	GeneralMessage
	To send general messages (to be shown by some GUI) More...

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Detailed Description

Abstract base class for segmentation tools.

See also: Tool

Implements 2D segmentation specific helper methods, that might be of use to all kind of 2D segmentation tools. At the moment these are:

Determination of the slice where the user paints upon (DetermineAffectedImageSlice)
Projection of a 3D contour onto a 2D plane/slice

SegTool2D tries to structure the interaction a bit. If you pass "PressMoveRelease" as the interaction type of your derived tool, you might implement the methods OnMousePressed, OnMouseMoved, and OnMouseReleased. Yes, your guess about when they are called is correct.

Warning: Only to be instantiated by mitk::ToolManager.

$Author$

Definition at line 56 of file mitkSegTool2D.h.

Constructor & Destructor Documentation

◆ SegTool2D() [1/2]

mitk::SegTool2D::SegTool2D ( )

protected

◆ SegTool2D() [2/2]

mitk::SegTool2D::SegTool2D	(	const char *	,
		const us::Module *	interactorModule = `nullptr`
	)

protected

◆ ~SegTool2D()

mitk::SegTool2D::~SegTool2D ( )

overrideprotected

Member Function Documentation

◆ Activated()

void mitk::SegTool2D::Activated ( )

overridevirtual

Called when the tool gets activated.

Derived tools should call their parents implementation at the beginning of the overriding function.

Reimplemented from mitk::Tool.

◆ AddContourmarker()

int mitk::SegTool2D::AddContourmarker	(	const PlaneGeometry *	planeGeometry,
		unsigned int	sliceIndex
	)

protected

Adds a new node called Contourmarker to the datastorage which holds a mitk::PlanarFigure. By selecting this node the slicestack will be reoriented according to the passed PlanarFigure's Geometry.

◆ Deactivated()

void mitk::SegTool2D::Deactivated ( )

overridevirtual

Called when the tool gets deactivated.

Derived tools should call their parents implementation at the end of the overriding function.

Reimplemented from mitk::Tool.

◆ DetermineAffectedImageSlice()

static bool mitk::SegTool2D::DetermineAffectedImageSlice	(	const Image *	image,
		const PlaneGeometry *	plane,
		int &	affectedDimension,
		int &	affectedSlice
	)

static

Calculates for a given Image and PlaneGeometry, which slice of the image (in index coordinates) is meant by the plane.

Returns: false, if no slice direction seems right (e.g. rotated planes)

Parameters

plane
affectedDimension	The image dimension, which is constant for all points in the plane, e.g. Axial --> 2
affectedSlice	The index of the image slice

◆ DisableContourMarkers()

void mitk::SegTool2D::DisableContourMarkers ( )

protected

◆ FilterEvents()

bool mitk::SegTool2D::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

overrideprotectedvirtual

Filters events that cannot be handled by 2D segmentation tools.

Currently an event is discarded if it was not sent by a 2D renderwindow and if it is not of type InteractionPositionEvent

Reimplemented from mitk::EventStateMachine.

◆ GetAffectedImageSliceAs2DImage() [1/2]

static Image::Pointer mitk::SegTool2D::GetAffectedImageSliceAs2DImage	(	const InteractionPositionEvent *	positionEvent,
		const Image *	image,
		unsigned int	component = `0`
	)

static

Extract the slice of an image that the user just scribbles on. The given component denotes the vector component of an vector image.

Parameters

positionEvent	Event that specifies the plane that should be used to slice
image	Image that should be sliced
component	The component to be extracted of a given multi-component image. -1 is the default parameter to denote an invalid component.

Returns: 'nullptr' if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position.

◆ GetAffectedImageSliceAs2DImage() [2/2]

static Image::Pointer mitk::SegTool2D::GetAffectedImageSliceAs2DImage	(	const PlaneGeometry *	planeGeometry,
		const Image *	image,
		TimeStepType	timeStep,
		unsigned int	component = `0`
	)

static

Extract the slice of an image cut by given plane. The given component denotes the vector component of a vector image.

Parameters

planeGeometry	Geometry defining the slice that should be cut out.
image	Image that should be sliced
timeStep	TimeStep of the image that should be sliced
component	The component to be extracted of a given multi-component image. -1 is the default parameter to denote an invalid component.

Returns: 'nullptr' if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position.

◆ GetAffectedImageSliceAs2DImageByTimePoint()

static Image::Pointer mitk::SegTool2D::GetAffectedImageSliceAs2DImageByTimePoint	(	const PlaneGeometry *	planeGeometry,
		const Image *	image,
		TimePointType	timePoint,
		unsigned int	component = `0`
	)

static

Extract the slice of an image cut by the given plane at a specified time point.

Parameters

[in]	planeGeometry	Geometry defining the slice that should be cut out.
[in]	image	Image that should be sliced.
[in]	timePoint	Time point of the image that should be sliced.
[in]	component	The component to extract of a given multi-component image.

Returns: The extracted 2D slice, or nullptr on failure.

◆ GetAffectedLabelValues()

virtual MultiLabelSegmentation::LabelValueVectorType mitk::SegTool2D::GetAffectedLabelValues ( ) const

protectedvirtual

Returns the label value(s) whose pixels this tool's writeback actually modifies, so the provenance stamp at the writeback choke point lands on the right label. The default is the active label; tools that write a label other than the active one (e.g. erase/close operate on the clicked label) override this. An empty result records no tool use.

Reimplemented in mitk::FillRegionBaseTool.

◆ GetAffectedReferenceSlice() [1/2]

Image::Pointer mitk::SegTool2D::GetAffectedReferenceSlice ( const InteractionPositionEvent * ) const

protected

Extract the slice of the currently selected reference image that the user just scribbles on.

Returns: nullptr if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position, or just no reference image is selected.

◆ GetAffectedReferenceSlice() [2/2]

Image::Pointer mitk::SegTool2D::GetAffectedReferenceSlice	(	const PlaneGeometry *	planeGeometry,
		TimeStepType	timeStep
	)		const

protected

Overload version that gets the reference slice passed on the passed plane geometry and timestep.

◆ GetAffectedWorkingSlice()

Image::Pointer mitk::SegTool2D::GetAffectedWorkingSlice ( const InteractionPositionEvent * ) const

protected

Extract the slice of the currently selected working image that the user just scribbles on.

Returns: nullptr if SegTool2D is either unable to determine which slice was affected, or if there was some problem getting the image data at that position, or just no working image is selected.

◆ GetIsTimePointChangeAware()

virtual bool mitk::SegTool2D::GetIsTimePointChangeAware ( )

virtual

◆ GetLastTimePointTriggered()

virtual TimePointType mitk::SegTool2D::GetLastTimePointTriggered ( )

protectedvirtual

◆ GetReferenceData()

Image* mitk::SegTool2D::GetReferenceData ( ) const

Returns the reference image data.

◆ GetReferenceDataNode()

DataNode* mitk::SegTool2D::GetReferenceDataNode ( ) const

Returns the reference data node.

◆ GetWorkingData()

MultiLabelSegmentation* mitk::SegTool2D::GetWorkingData ( ) const

Returns the working data (multi-label segmentation image).

◆ GetWorkingDataNode()

DataNode* mitk::SegTool2D::GetWorkingDataNode ( ) const

Returns the segmentation node that should be modified by the tool.

Returns: Pointer to the working data node, or nullptr if none is set.

◆ InteractiveSegmentationBugMessage()

void mitk::SegTool2D::InteractiveSegmentationBugMessage ( const std::string & message ) const

protected

◆ IsPositionEventInsideImageRegion()

static bool mitk::SegTool2D::IsPositionEventInsideImageRegion	(	InteractionPositionEvent *	positionEvent,
		const BaseData *	data
	)

staticprotected

Helper function to check if a position events points to a point inside the boundingbox of a passed data instance.

◆ IsTimePointChangeAwareOff()

virtual void mitk::SegTool2D::IsTimePointChangeAwareOff ( )

virtual

◆ IsTimePointChangeAwareOn()

virtual void mitk::SegTool2D::IsTimePointChangeAwareOn ( )

virtual

◆ mitkClassMacro()

mitk::SegTool2D::mitkClassMacro	(	SegTool2D	,
		Tool
	)

◆ OnTimePointChanged()

virtual void mitk::SegTool2D::OnTimePointChanged ( )

protectedvirtual

This function can be reimplemented by derived classes to react on changes of the current time point. Default implementation does nothing.

Reimplemented in mitk::LiveWireTool2D.

◆ PopAllCursors()

void mitk::SegTool2D::PopAllCursors ( )

protected

Pops all cursors from the stack, restoring the default cursor.

◆ PopCursor()

void mitk::SegTool2D::PopCursor ( bool popFirstCursor = false )

protected

Pops the most recently pushed cursor from the stack.

Parameters

[in] popFirstCursor If true, also pops the first/initial cursor.

◆ PushCursor() [1/2]

void mitk::SegTool2D::PushCursor ( )

protected

Pushes the current tool cursor onto the cursor stack.

◆ PushCursor() [2/2]

void mitk::SegTool2D::PushCursor ( us::ModuleResource cursorResource )

protected

Pushes a custom cursor onto the cursor stack.

Parameters

[in] cursorResource The cursor icon to push.

◆ SetEnable3DInterpolation()

void mitk::SegTool2D::SetEnable3DInterpolation ( bool )

Enables or disables the 3D interpolation after writing back the 2D segmentation result, and defaults to true.

◆ SetIsTimePointChangeAware()

virtual void mitk::SegTool2D::SetIsTimePointChangeAware ( bool _arg )

virtual

◆ SetShowMarkerNodes()

void mitk::SegTool2D::SetShowMarkerNodes ( bool show )

Sets whether contour marker nodes should be visible in the DataStorage.

Parameters

[in] show If true, marker nodes are shown; otherwise hidden.

◆ UpdateAllSurfaceInterpolations()

static void mitk::SegTool2D::UpdateAllSurfaceInterpolations	(	const MultiLabelSegmentation *	workingImage,
		TimeStepType	timeStep,
		const PlaneGeometry *	plane,
		bool	detectIntersection
	)

static

Updates the surface interpolations by extracting contours from the given slice.

Updates contour information for all labels that have surface contour data stored for the given plane at the given time step.

Parameters

[in]	workingImage	The segmentation image.
[in]	timeStep	The time step for which the surface interpolation should be updated.
[in]	plane	The plane in which the slice lies.
[in]	detectIntersection	If true, the slice is eroded before contour extraction. If the slice is empty after the erosion, it is most likely an intersecting contour and will not be added to the SurfaceInterpolationController.

◆ UpdateSurfaceInterpolation()

static void mitk::SegTool2D::UpdateSurfaceInterpolation	(	const std::vector< SliceInformation > &	sliceInfos,
		const Image *	workingImage,
		bool	detectIntersection,
		mitk::Label::PixelType	activeLabelValue,
		bool	silent = `false`
	)

staticprotected

Updates the surface interpolation by extracting contours from given slices.

Parameters

[in]	sliceInfos	Vector of slice information instances from which contours are extracted.
[in]	workingImage	The segmentation image.
[in]	detectIntersection	If true, the slice is eroded before contour extraction. If the slice is empty after erosion, it is likely an intersecting contour and will not be added to the SurfaceInterpolationController.
[in]	activeLabelValue	The label value of the active label.
[in]	silent	If true, suppresses the modification event of the SurfaceInterpolationController.

◆ WriteBackSegmentationResult() [1/3]

static void mitk::SegTool2D::WriteBackSegmentationResult	(	const DataNode *	workingNode,
		const PlaneGeometry *	planeGeometry,
		const Image *	segmentationResult,
		TimeStepType	timeStep,
		const std::string &	toolName
	)

static

Writes the provided segmentation result slice into the data of the passed workingNode.

Public convenience wrapper that: (1) writes the slice to the working node and generates an undo/redo step; (2) updates the surface interpolation; and (3) marks the node as modified.

Parameters

[in]	workingNode	Pointer to the node that contains the working image.
[in]	planeGeometry	Indicates where the slice should be added in the data of the working node.
[in]	segmentationResult	Pointer to the slice image that should be written.
[in]	timeStep	Time step of the working node data that should be modified.
[in]	toolName	Name of the tool used as description in the undo operation.

Precondition: workingNode must point to a valid instance and contain an image instance as data.; planeGeometry must point to a valid instance.; segmentationResult must point to a valid instance.

◆ WriteBackSegmentationResult() [2/3]

void mitk::SegTool2D::WriteBackSegmentationResult	(	const InteractionPositionEvent *	,
		const Image *	segmentationResult
	)

protected

Convenience version that can be called for a given event (which is used to deduce timepoint and plane) and a slice image. Calls non static WriteBackSegmentationResults

◆ WriteBackSegmentationResult() [3/3]

void mitk::SegTool2D::WriteBackSegmentationResult	(	const PlaneGeometry *	planeGeometry,
		const Image *	segmentationResult,
		TimeStepType	timeStep
	)

protected

Convenience version that can be called for a given planeGeometry, slice image and time step. Calls non static WriteBackSegmentationResults

◆ WriteBackSegmentationResults() [1/2]

static void mitk::SegTool2D::WriteBackSegmentationResults	(	const DataNode *	workingNode,
		const std::vector< SliceInformation > &	sliceList,
		bool	writeSliceToVolume = `true`,
		bool	allowUndo = `true`,
		const std::string &	toolName = `""`
	)

staticprotected

Writes all provided source slices into the data of the passed workingNode. The function does the following: 1) for every passed slice write it to workingNode (and generate and undo/redo step); 2) update the surface interpolation and 3) mark the node as modified.

Parameters

workingNode	Pointer to the node that contains the working image.
sliceList	Vector of all slices that should be written into the workingNode. If the list is empty, the function call does nothing.
writeSliceToVolume	If set to false the write operation (WriteSliceToVolume will be skipped) and only the surface interpolation will be updated.
allowUndo	Indicates if undo/redo operations should be registered for the write operation
toolName	Name of the tool that should be used as description in the undo operation.

Precondition: workingNode must point to a valid instance and contain an image instance as data.

◆ WriteBackSegmentationResults() [2/2]

void mitk::SegTool2D::WriteBackSegmentationResults	(	const std::vector< SliceInformation > &	sliceList,
		bool	writeSliceToVolume = `true`
	)

protected

Overloaded version that calls the static version and also adds the contour markers.

Remarks: If the sliceList is empty, this function does nothing.

◆ WriteSliceToVolume() [1/2]

static void mitk::SegTool2D::WriteSliceToVolume	(	Image *	workingImage,
		const PlaneGeometry *	planeGeometry,
		const Image *	slice,
		TimeStepType	timeStep
	)

static

Writes a provided slice into the passed working image.

The content of working image that is covered by the slice will be completely overwritten.

Parameters

[in,out]	workingImage	Pointer to the image that is the target of the write operation.
[in]	planeGeometry	Geometry that indicates the plane that should be overwritten by the slice.
[in]	slice	Image containing the slice that should be written into working image.
[in]	timeStep	Time step of the working image that should be overwritten.

Precondition: workingImage, planeGeometry and slice must point to valid instances.

◆ WriteSliceToVolume() [2/2]

static void mitk::SegTool2D::WriteSliceToVolume	(	Image *	workingImage,
		const SliceInformation &	sliceInfo
	)

staticprotected

Convenience overloaded version that can be called with a slice info. Writes a provided slice into the passed working image. The content of working image that is covered by the slice will be completely overwritten. If asked for it also generates the needed undo/redo steps.

Parameters

workingImage	Pointer to the image that is the target of the write operation.
sliceInfo	SliceInfo instance that contains the slice image, the defining plane geometry and time step.

Precondition: workingImage must point to a valid instance.

Member Data Documentation

◆ m_LastEventSender

BaseRenderer* mitk::SegTool2D::m_LastEventSender

protected

Definition at line 317 of file mitkSegTool2D.h.

◆ m_LastEventSlice

unsigned int mitk::SegTool2D::m_LastEventSlice

protected

Definition at line 318 of file mitkSegTool2D.h.

The documentation for this class was generated from the following file:

mitkSegTool2D.h

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SegTool2D() [1/2]

◆ SegTool2D() [2/2]

◆ ~SegTool2D()

Member Function Documentation

◆ Activated()

◆ AddContourmarker()

◆ Deactivated()

◆ DetermineAffectedImageSlice()

◆ DisableContourMarkers()

◆ FilterEvents()

◆ GetAffectedImageSliceAs2DImage() [1/2]

◆ GetAffectedImageSliceAs2DImage() [2/2]

◆ GetAffectedImageSliceAs2DImageByTimePoint()

◆ GetAffectedLabelValues()

◆ GetAffectedReferenceSlice() [1/2]

◆ GetAffectedReferenceSlice() [2/2]

◆ GetAffectedWorkingSlice()

◆ GetIsTimePointChangeAware()

◆ GetLastTimePointTriggered()

◆ GetReferenceData()

◆ GetReferenceDataNode()

◆ GetWorkingData()

◆ GetWorkingDataNode()

◆ InteractiveSegmentationBugMessage()

◆ IsPositionEventInsideImageRegion()

◆ IsTimePointChangeAwareOff()

◆ IsTimePointChangeAwareOn()

◆ mitkClassMacro()

◆ OnTimePointChanged()

◆ PopAllCursors()

◆ PopCursor()

◆ PushCursor() [1/2]

◆ PushCursor() [2/2]

◆ SetEnable3DInterpolation()

◆ SetIsTimePointChangeAware()

◆ SetShowMarkerNodes()

◆ UpdateAllSurfaceInterpolations()

◆ UpdateSurfaceInterpolation()

◆ WriteBackSegmentationResult() [1/3]

◆ WriteBackSegmentationResult() [2/3]

◆ WriteBackSegmentationResult() [3/3]

◆ WriteBackSegmentationResults() [1/2]

◆ WriteBackSegmentationResults() [2/2]

◆ WriteSliceToVolume() [1/2]

◆ WriteSliceToVolume() [2/2]

Member Data Documentation

◆ m_LastEventSender

◆ m_LastEventSlice
