Base class of all tools used by mitk::ToolManager. More...

#include <mitkTool.h>

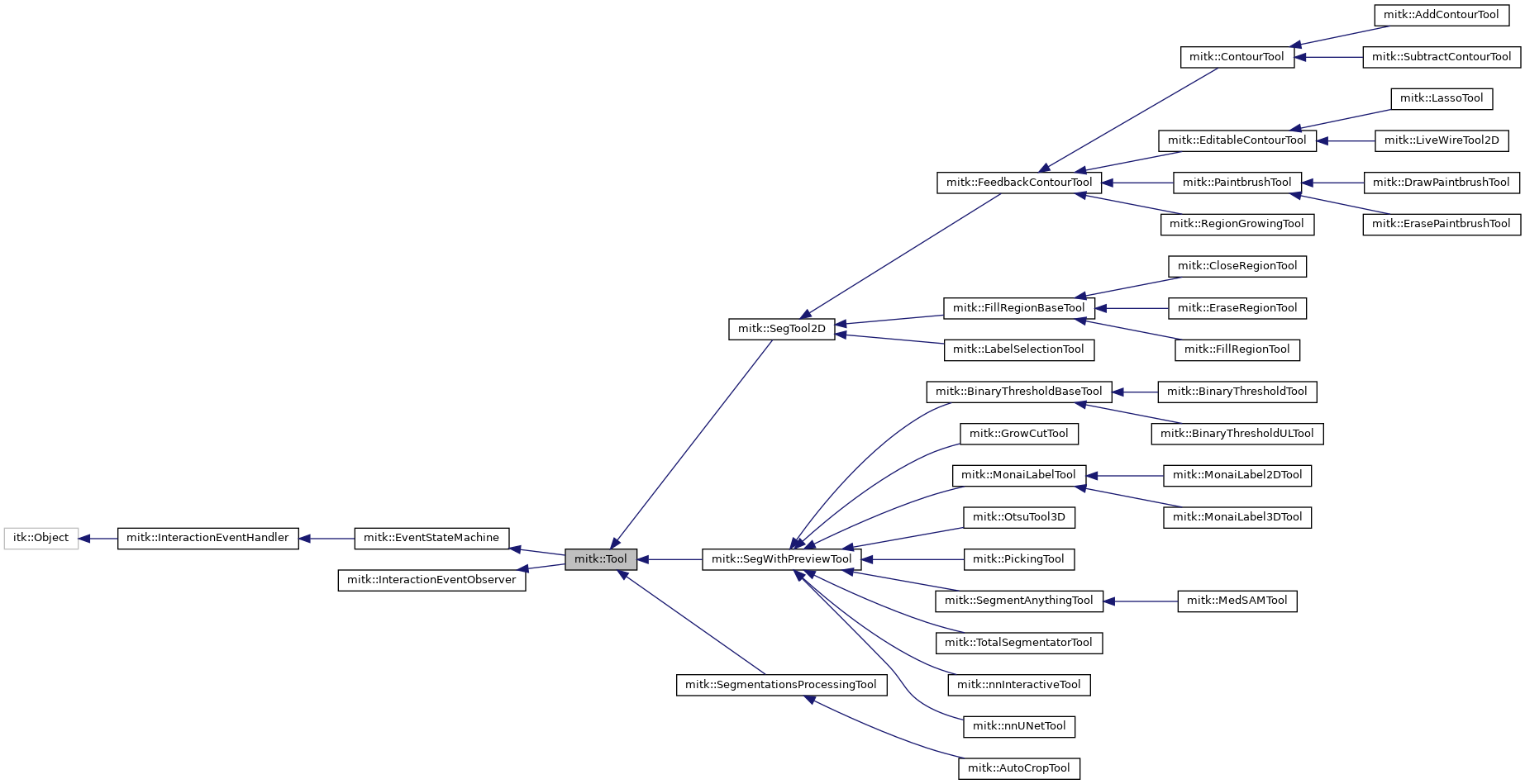

Inheritance diagram for mitk::Tool:

[legend]

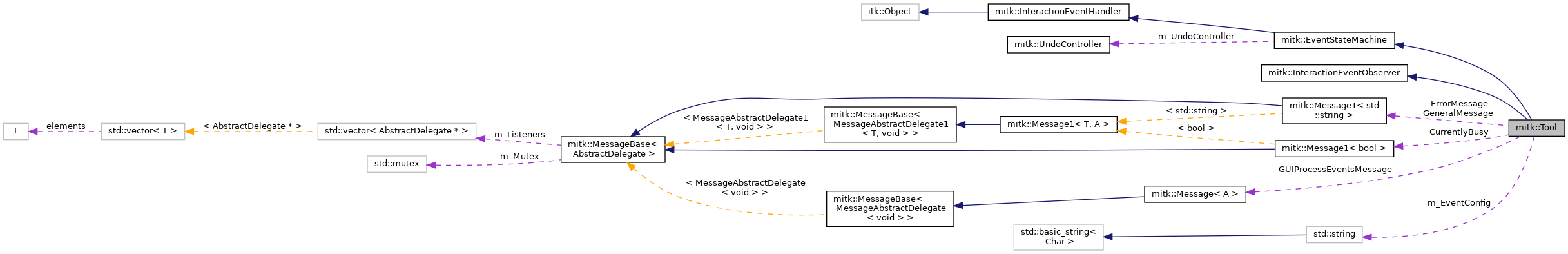

Collaboration diagram for mitk::Tool:

[legend]

Public Types
typedef mitk::Label::PixelType	DefaultSegmentationDataType

Public Types inherited from mitk::EventStateMachine
typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Member Functions
	mitkClassMacro (Tool, EventStateMachine)

virtual us::ModuleResource	GetCursorIconResource () const
	Returns the cursor icon of the tool wrapped by a usModuleResource. More...

virtual us::ModuleResource	GetIconResource () const
	Returns the tool button icon of the tool wrapped by a usModuleResource. More...

virtual const char *	GetName () const =0
	Returns the name of this tool. Make it short! More...

virtual mitk::Label::AlgorithmType	GetAlgorithmType () const
	Returns the intrinsic algorithm type of this tool, used to stamp label provenance. More...

virtual const char *	GetGroup () const
	Name of a group. More...

virtual bool	IsEligibleForAutoInit () const
	Returns whether this tool is eligible for auto-initialization by ToolManager. More...

virtual void	InitializeStateMachine ()
	Initializes the state machine for this tool based on the interaction type. More...

virtual itk::Object::Pointer	GetGUI (const std::string &toolkitPrefix, const std::string &toolkitPostfix)
	Interface for GUI creation. More...

virtual NodePredicateBase::ConstPointer	GetReferenceDataPreference () const
	Returns a predicate describing valid reference data for this tool. More...

virtual NodePredicateBase::ConstPointer	GetWorkingDataPreference () const
	Returns a predicate describing valid working data for this tool. More...

virtual bool	CanHandle (const BaseData referenceData, const BaseData workingData) const
	Checks if a tool can handle the given reference data and optional working data. More...

virtual bool	ConfirmBeforeDeactivation ()
	Method call to invoke a dialog box just before exiting. More...

Public Member Functions inherited from mitk::EventStateMachine
	mitkClassMacro (EventStateMachine, InteractionEventHandler)

bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Load a state machine pattern from an XML resource file. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)
	Process an incoming interaction event. More...

void	EnableUndo (bool enable)
	Enable or disable the undo mechanism for this state machine. More...

void	EnableInteraction (bool enable)
	Enable or disable the state machine. More...

Public Member Functions inherited from mitk::InteractionEventHandler
	mitkClassMacroItkParent (InteractionEventHandler, itk::Object)

bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Public Member Functions inherited from mitk::InteractionEventObserver
	InteractionEventObserver ()

virtual	~InteractionEventObserver ()

void	Disable ()
	Disable this observer so it no longer receives notifications. More...

void	Enable ()
	Enable this observer so it receives notifications. More...

bool	IsEnabled () const
	Check whether this observer is currently enabled. More...

Public Attributes
Message	GUIProcessEventsMessage
	To let GUI process new events (e.g. qApp->processEvents() ) More...

Message1< std::string >	ErrorMessage
	To send error messages (to be shown by some GUI) More...

Message1< bool >	CurrentlyBusy
	To send whether the tool is busy (to be shown by some GUI) More...

Message1< std::string >	GeneralMessage
	To send general messages (to be shown by some GUI) More...

Protected Member Functions
virtual void	SetToolManager (ToolManager *)

ToolManager *	GetToolManager () const

mitk::DataStorage *	GetDataStorage () const

void	ConnectActionsAndFunctions () override

virtual void	Activated ()
	Called when the tool gets activated. More...

virtual void	Deactivated ()
	Called when the tool gets deactivated. More...

	Tool (const char , const us::Module interactorModule=nullptr)

	~Tool () override

void	Notify (InteractionEvent *interactionEvent, bool isHandled) override
	Called by the Dispatcher to notify this observer about an InteractionEvent. More...

bool	FilterEvents (InteractionEvent , DataNode ) override

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

virtual void	ConfigurationChanged ()

Protected Attributes
std::string	m_EventConfig
	Let subclasses change their event configuration. More...

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Additional Inherited Members
Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Detailed Description

Base class of all tools used by mitk::ToolManager.

See also: ToolManager; SegTool2D

Every tool is a mitk::EventStateMachine, which can follow any transition pattern that it likes. Every derived tool should always call SuperClass::Deactivated() at the end of its own implementation of Deactivated, because mitk::Tool resets the interaction configuration in this method. Only if you are very sure that you covered all possible things that might happen to your own tool, you should consider not to reset the configuration.

To learn about the MITK implementation of state machines in general, have a look at Interaction and Undo/Redo Concepts.

To derive a non-abstract tool, you inherit from mitk::Tool (or some other base class further down the inheritance tree), and in your own parameterless constructor (that is called from the itkFactorylessNewMacro that you use) you pass a state machine name (interactor type). Names and .xml-files for valid state machines can be found in different "Interaction" directories (which might be enhanced by you).

You have to implement at least GetName() to provide some identification. Optionally, override GetIconResource() to provide a tool button icon and GetCursorIconResource() for a custom cursor.

Each Tool knows its ToolManager, which can provide the data that the tool should work on.

Warning: Only to be instantiated by mitk::ToolManager (because SetToolManager has to be called). All other uses are unsupported.

$Author$

Definition at line 79 of file mitkTool.h.

Member Typedef Documentation

◆ DefaultSegmentationDataType

typedef mitk::Label::PixelType mitk::Tool::DefaultSegmentationDataType

Definition at line 82 of file mitkTool.h.

Constructor & Destructor Documentation

◆ Tool()

mitk::Tool::Tool	(	const char *	,
		const us::Module *	interactorModule = `nullptr`
	)

protected

◆ ~Tool()

mitk::Tool::~Tool ( )

overrideprotected

Member Function Documentation

◆ Activated()

virtual void mitk::Tool::Activated ( )

protectedvirtual

Called when the tool gets activated.

Derived tools should call their parents implementation at the beginning of the overriding function.

Reimplemented in mitk::SegWithPreviewTool, mitk::SegTool2D, mitk::SegmentationsProcessingTool, mitk::RegionGrowingTool, mitk::PickingTool, mitk::PaintbrushTool, mitk::OtsuTool3D, mitk::MonaiLabelTool, mitk::MonaiLabel3DTool, mitk::MonaiLabel2DTool, mitk::LabelSelectionTool, mitk::GrowCutTool, mitk::FeedbackContourTool, mitk::EditableContourTool, mitk::ContourTool, and mitk::TotalSegmentatorTool.

◆ CanHandle()

virtual bool mitk::Tool::CanHandle	(	const BaseData *	referenceData,
		const BaseData *	workingData
	)		const

virtual

Checks if a tool can handle the given reference data and optional working data.

Parameters

[in]	referenceData	Pointer to the data that should be checked as valid reference for the tool.
[in]	workingData	Pointer to the data that should be checked as valid working data for this tool. This parameter can be null if no working data is specified so far.

Returns: true if the tool can handle the given data, false otherwise.

Precondition: referenceData must be a valid pointer.

Reimplemented in mitk::SegWithPreviewTool.

◆ ConfirmBeforeDeactivation()

virtual bool mitk::Tool::ConfirmBeforeDeactivation ( )

virtual

Method call to invoke a dialog box just before exiting.

The method can be reimplemented in the respective tool class with business logic on when there should be a confirmation dialog from the user before the tool exits.

Returns: true if the user must confirm before the tool is deactivated, false otherwise.

Reimplemented in mitk::SegWithPreviewTool.

◆ ConnectActionsAndFunctions()

void mitk::Tool::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Is called after loading a statemachine. Overwrite this function in specific interactor implementations. Connect actions and functions using the CONNECT_FUNCTION macro within this function.

Reimplemented from mitk::EventStateMachine.

◆ Deactivated()

virtual void mitk::Tool::Deactivated ( )

protectedvirtual

Called when the tool gets deactivated.

Derived tools should call their parents implementation at the end of the overriding function.

Reimplemented in mitk::SegWithPreviewTool, mitk::SegTool2D, mitk::SegmentationsProcessingTool, mitk::RegionGrowingTool, mitk::PickingTool, mitk::PaintbrushTool, mitk::MonaiLabelTool, mitk::LabelSelectionTool, mitk::GrowCutTool, mitk::FeedbackContourTool, mitk::EditableContourTool, mitk::ContourTool, and mitk::nnInteractiveTool.

◆ FilterEvents()

bool mitk::Tool::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

overrideprotectedvirtual

Implements filter scheme for events. Standard implementation accepts events from 2d and 3d windows, and rejects events if DataNode is not visible.

Returns: true if event is accepted, else false

Overwrite this function to adapt for your own needs, for example to filter out events from 3d windows like this:

bool mitk::EventStateMachine::FilterEvents(InteractionEvent* interactionEvent, DataNode*dataNode)
{
  return interactionEvent->GetSender()->GetMapperID() == BaseRenderer::Standard2D; // only 2D mappers
}

or to enforce that the interactor only reacts when the corresponding DataNode is selected in the DataManager view..

Reimplemented from mitk::EventStateMachine.

◆ GetAlgorithmType()

virtual mitk::Label::AlgorithmType mitk::Tool::GetAlgorithmType ( ) const

virtual

Returns the intrinsic algorithm type of this tool, used to stamp label provenance.

Base default is MANUAL: the user's direct input (stroke/polygon/click) is the result. Override to SEMIAUTOMATIC when an algorithm determines the affected pixels beyond where the user directly indicated (seeds/parameters/edge-snapping); override to AUTOMATIC when the tool runs with no per-image human input. Read at the writeback choke points and passed to mitk::Label::AddToolUse together with GetName().

Reimplemented in mitk::SegWithPreviewTool, mitk::RegionGrowingTool, mitk::MonaiLabelTool, mitk::LiveWireTool2D, mitk::FillRegionBaseTool, and mitk::TotalSegmentatorTool.

◆ GetCursorIconResource()

virtual us::ModuleResource mitk::Tool::GetCursorIconResource ( ) const

virtual

Returns the cursor icon of the tool wrapped by a usModuleResource.

Returns: A valid ModuleResource or an invalid one if this function is not reimplemented.

Reimplemented in mitk::SubtractContourTool, mitk::RegionGrowingTool, mitk::LiveWireTool2D, mitk::LassoTool, mitk::LabelSelectionTool, mitk::FillRegionTool, mitk::EraseRegionTool, mitk::ErasePaintbrushTool, mitk::DrawPaintbrushTool, mitk::CloseRegionTool, and mitk::AddContourTool.

◆ GetDataStorage()

mitk::DataStorage* mitk::Tool::GetDataStorage ( ) const

protected

Returns the data storage provided by the toolmanager. May be null (e.g. if ToolManager is not set).

◆ GetGroup()

virtual const char* mitk::Tool::GetGroup ( ) const

virtual

Name of a group.

You can group several tools by assigning a group name. Graphical tool selectors might use this information to group tools. (What other reason could there be?)

Reimplemented in mitk::SegWithPreviewTool, and mitk::SegmentationsProcessingTool.

◆ GetGUI()

virtual itk::Object::Pointer mitk::Tool::GetGUI	(	const std::string &	toolkitPrefix,
		const std::string &	toolkitPostfix
	)

virtual

Interface for GUI creation.

This is the basic interface for creation of a GUI object belonging to one tool.

Tools that support a GUI (e.g. for display/editing of parameters) should follow some rules:

A Tool and its GUI are two separate classes
There may be several instances of a GUI at the same time.
mitk::Tool is toolkit (Qt, wxWidgets, etc.) independent, the GUI part is of course dependent
The GUI part inherits both from itk::Object and some GUI toolkit class
The GUI class name HAS to be constructed like "toolkitPrefix" tool->GetClassName() + "toolkitPostfix", e.g. MyTool -> wxMyToolGUI
For each supported toolkit there is a base class for tool GUIs, which contains some convenience methods
Tools notify the GUI about changes using ITK events. The GUI must observe interesting events.
The GUI base class may convert all ITK events to the GUI toolkit's favoured messaging system (Qt -> signals)
Calling methods of a tool by its GUI is done directly. In some cases GUIs don't want to be notified by the tool when they cause a change in a tool. There is a macro CALL_WITHOUT_NOTICE(method()), which will temporarily disable all notifications during a method call.

◆ GetIconResource()

virtual us::ModuleResource mitk::Tool::GetIconResource ( ) const

virtual

Returns the tool button icon of the tool wrapped by a usModuleResource.

Returns: A valid ModuleResource or an invalid one if this function is not reimplemented.

Reimplemented in mitk::SubtractContourTool, mitk::RegionGrowingTool, mitk::PickingTool, mitk::OtsuTool3D, mitk::MonaiLabel3DTool, mitk::MonaiLabel2DTool, mitk::LiveWireTool2D, mitk::LassoTool, mitk::LabelSelectionTool, mitk::GrowCutTool, mitk::FillRegionTool, mitk::EraseRegionTool, mitk::ErasePaintbrushTool, mitk::DrawPaintbrushTool, mitk::CloseRegionTool, mitk::BinaryThresholdULTool, mitk::BinaryThresholdTool, mitk::AddContourTool, mitk::TotalSegmentatorTool, and mitk::nnInteractiveTool.

◆ GetName()

virtual const char* mitk::Tool::GetName ( ) const

pure virtual

Returns the name of this tool. Make it short!

This name has to fit into some kind of button in most applications, so take some time to think of a good name!

Note: The name is also recorded as label provenance via mitk::Label::AddToolUse, which reserves the separator characters "|" and ":". Avoid them in tool names (use plain spaces); names containing them are sanitized (separators replaced with "#") and a warning is logged.

Implemented in mitk::SubtractContourTool, mitk::RegionGrowingTool, mitk::PickingTool, mitk::OtsuTool3D, mitk::MonaiLabel3DTool, mitk::MonaiLabel2DTool, mitk::LiveWireTool2D, mitk::LassoTool, mitk::LabelSelectionTool, mitk::GrowCutTool, mitk::FillRegionTool, mitk::EraseRegionTool, mitk::ErasePaintbrushTool, mitk::DrawPaintbrushTool, mitk::CloseRegionTool, mitk::BinaryThresholdULTool, mitk::BinaryThresholdTool, mitk::AutoCropTool, mitk::AddContourTool, mitk::TotalSegmentatorTool, and mitk::nnInteractiveTool.

◆ GetReferenceDataPreference()

virtual NodePredicateBase::ConstPointer mitk::Tool::GetReferenceDataPreference ( ) const

virtual

Returns a predicate describing valid reference data for this tool.

◆ GetToolManager()

ToolManager* mitk::Tool::GetToolManager ( ) const

protected

Returns the pointer to the tool manager of the tool. May be null.

◆ GetWorkingDataPreference()

virtual NodePredicateBase::ConstPointer mitk::Tool::GetWorkingDataPreference ( ) const

virtual

Returns a predicate describing valid working data for this tool.

◆ InitializeStateMachine()

virtual void mitk::Tool::InitializeStateMachine ( )

virtual

Initializes the state machine for this tool based on the interaction type.

◆ IsEligibleForAutoInit()

virtual bool mitk::Tool::IsEligibleForAutoInit ( ) const

virtual

Returns whether this tool is eligible for auto-initialization by ToolManager.

Overload this method and return false to hide this tool from any ToolManager that does not explicitly initialize this tool.

◆ mitkClassMacro()

mitk::Tool::mitkClassMacro	(	Tool	,
		EventStateMachine
	)

◆ Notify()

void mitk::Tool::Notify	(	InteractionEvent *	interactionEvent,
		bool	isHandled
	)

overrideprotectedvirtual

Called by the Dispatcher to notify this observer about an InteractionEvent.

All registered InteractionEventObservers receive every event after it has been offered to DataInteractors. The isHandled flag indicates whether a DataInteractor has already handled the event. Observers that trigger actions should consider this flag to avoid confusing the user with multiple independent actions from one event.

To use state machine infrastructure, forward the event to HandleEvent():

void MyObserver::Notify(InteractionEvent::Pointer interactionEvent, bool isHandled)
{
  if (!isHandled) {
    this->HandleEvent(interactionEvent, nullptr);
  }
}

Parameters

[in]	interactionEvent	The event being dispatched.
[in]	isHandled	True if a DataInteractor already handled this event.

Implements mitk::InteractionEventObserver.

◆ SetToolManager()

virtual void mitk::Tool::SetToolManager ( ToolManager * )

protectedvirtual

Reimplemented in mitk::nnInteractiveTool.

Member Data Documentation

◆ CurrentlyBusy

Message1<bool> mitk::Tool::CurrentlyBusy

To send whether the tool is busy (to be shown by some GUI)

Definition at line 97 of file mitkTool.h.

◆ ErrorMessage

Message1<std::string> mitk::Tool::ErrorMessage

To send error messages (to be shown by some GUI)

Definition at line 92 of file mitkTool.h.

◆ GeneralMessage

Message1<std::string> mitk::Tool::GeneralMessage

To send general messages (to be shown by some GUI)

Definition at line 102 of file mitkTool.h.

◆ GUIProcessEventsMessage

Message mitk::Tool::GUIProcessEventsMessage

To let GUI process new events (e.g. qApp->processEvents() )

Definition at line 87 of file mitkTool.h.

◆ m_EventConfig

std::string mitk::Tool::m_EventConfig

protected

Let subclasses change their event configuration.

Definition at line 243 of file mitkTool.h.

The documentation for this class was generated from the following file:

mitkTool.h

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DefaultSegmentationDataType

Constructor & Destructor Documentation

◆ Tool()

◆ ~Tool()

Member Function Documentation

◆ Activated()

◆ CanHandle()

◆ ConfirmBeforeDeactivation()

◆ ConnectActionsAndFunctions()

◆ Deactivated()

◆ FilterEvents()

◆ GetAlgorithmType()

◆ GetCursorIconResource()

◆ GetDataStorage()

◆ GetGroup()

◆ GetGUI()

◆ GetIconResource()

◆ GetName()

◆ GetReferenceDataPreference()

◆ GetToolManager()

◆ GetWorkingDataPreference()

◆ InitializeStateMachine()

◆ IsEligibleForAutoInit()

◆ mitkClassMacro()

◆ Notify()

◆ SetToolManager()

Member Data Documentation

◆ CurrentlyBusy

◆ ErrorMessage

◆ GeneralMessage

◆ GUIProcessEventsMessage

◆ m_EventConfig
